Installation Procedure

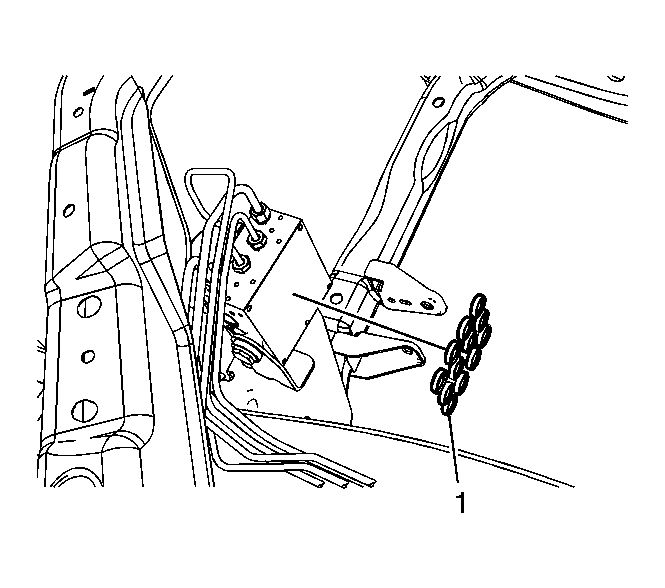

    Fig 1: Identifying O-Ring Seals
    GM1986365Courtesy of GENERAL MOTORS CORP.
  1. Install the 12 EBCM O-ring seals (1).
  2. If installing a new EBCM, install new O-ring seals.

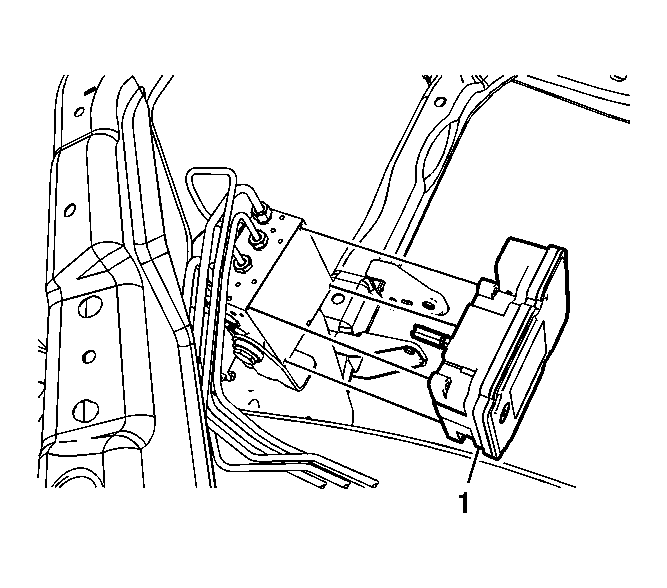

    3. Fig 2: View Of EBCM & BPMV
    GM1986364Courtesy of GENERAL MOTORS CORP.
  3. Carefully install the EBCM (1) to the BPMV.
    4. NOTE: Refer to Fastener Notice .

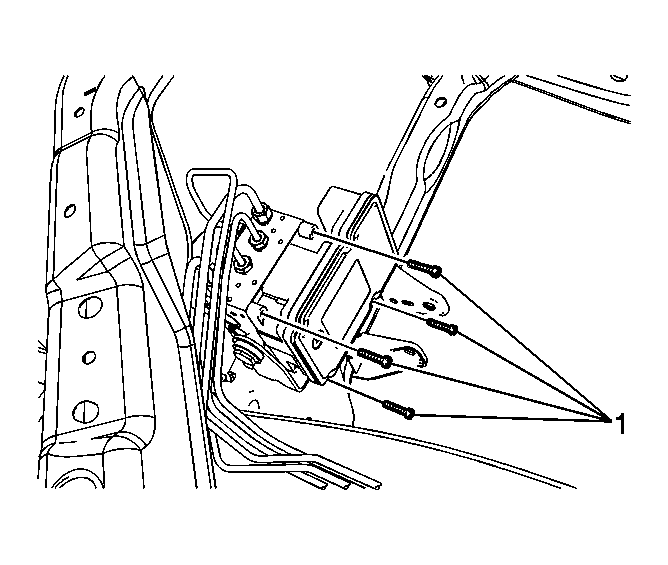

    Fig 3: Identifying Electronic Brake Control Module
    GM1986362Courtesy of GENERAL MOTORS CORP.
  4. Install the EBCM bolts (1).

    Tighten:  Tighten the bolts to 3 N.m (27 lb in).

  5. Connect the electrical connector to the EBCM.
  6. Install the cover to the ECM and TCM.
  7. If a new EBCM is being installed, program the EBCM. Refer to Electronic Brake Control Module Programming and Setup .
  8. Refer to Control Module References for programming and setup information.
