Front of Vehicle/Engine Compartment Component Views

Fig 1: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker Lamp - Right
2	Headlamp High/Low Beam - Right
3	Headlamp High/Low Beam - Left
4	Side Marker Lamp - Left
5	Park/Turn Signal DRL Lamp - Left Front
6	Fog Lamp - Left Front (T37)
7	Fog Lamp - Right Front (T37)
8	Park/Turn Signal DRL Lamp - Right Front

Fig 2: Front End Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Sensor
3	Left Front Strut Tower

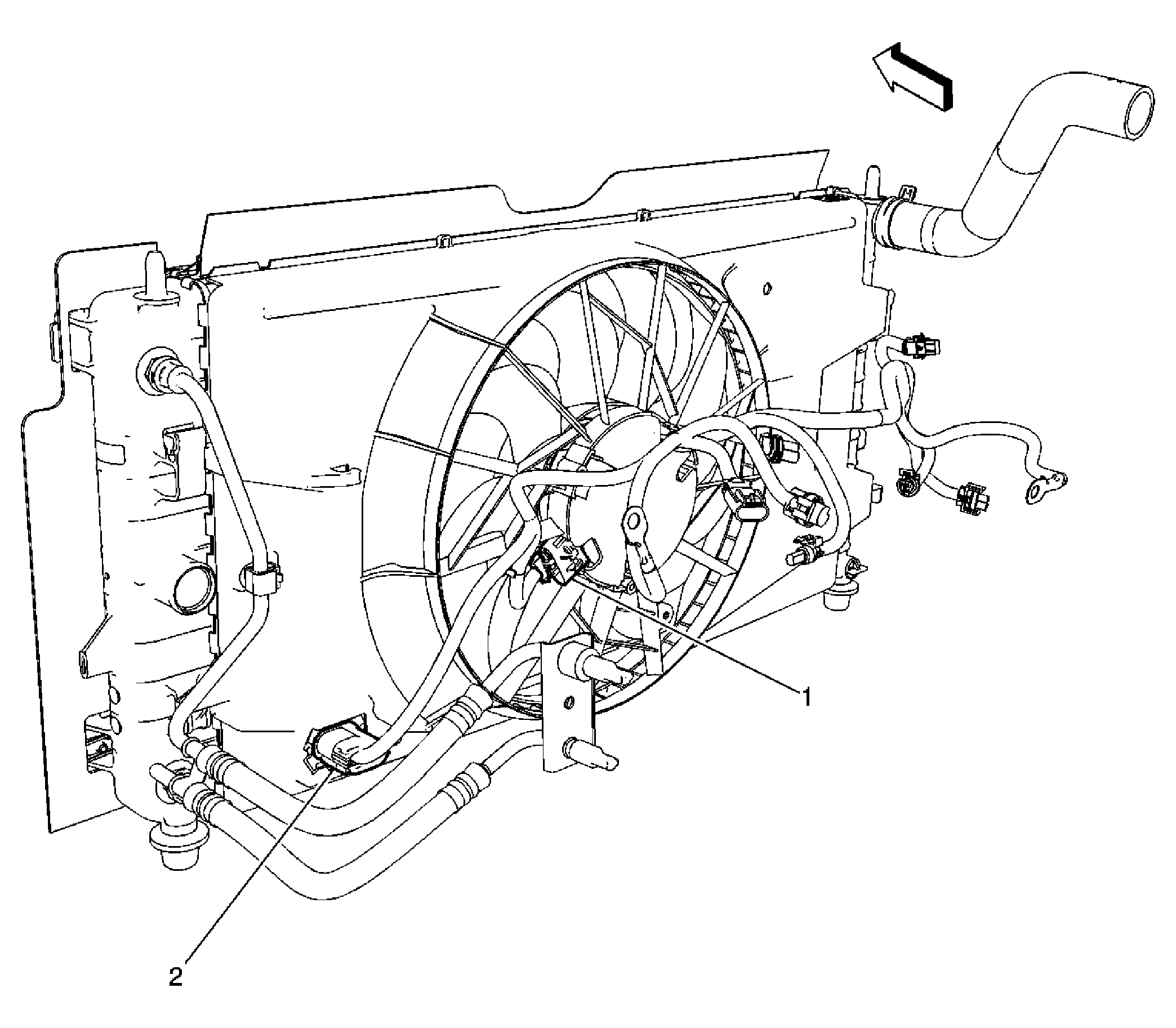

Fig 3: Cooling Fan (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Motor (L61/ LE5)
2	Cooling Fan Resistor (LE5)

Fig 4: Cooling Fan (L61)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Motor (L61/ LE5)

Fig 5: LR Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Surge Tank
2	Coolant Level Switch Connector

Fig 6: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Transmission Control Module (TCM) (MN5/MX0)
3	Windshield Washer Container (Sedan)
4	Windshield Washer Fluid Pump (Sedan)
5	Engine Control Module (ECM)
6	Windshield Washer Fluid Pump (Coupe)
7	Windshield Washer Container (Coupe)

Fig 7: Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Vacuum Sensor (JL4)
2	Brake Fluid Level Switch

Fig 8: Left Rear of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Windshield Wiper Motor
3	Left Front Strut Tower
4	Fuse Block - Underhood Connectors

Fig 9: Horn Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Rail
2	Left Front Strut Tower
3	Horn

Fig 10: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Ambient Air Temperature Sensor
3	Headlamp Bracket

Fig 11: Fixed Radio Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fixed Radio Antenna

Fig 12: View Of Above and Forward Of Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3/AP8)
