Control Module, Transfer Case



Component Connector End Views

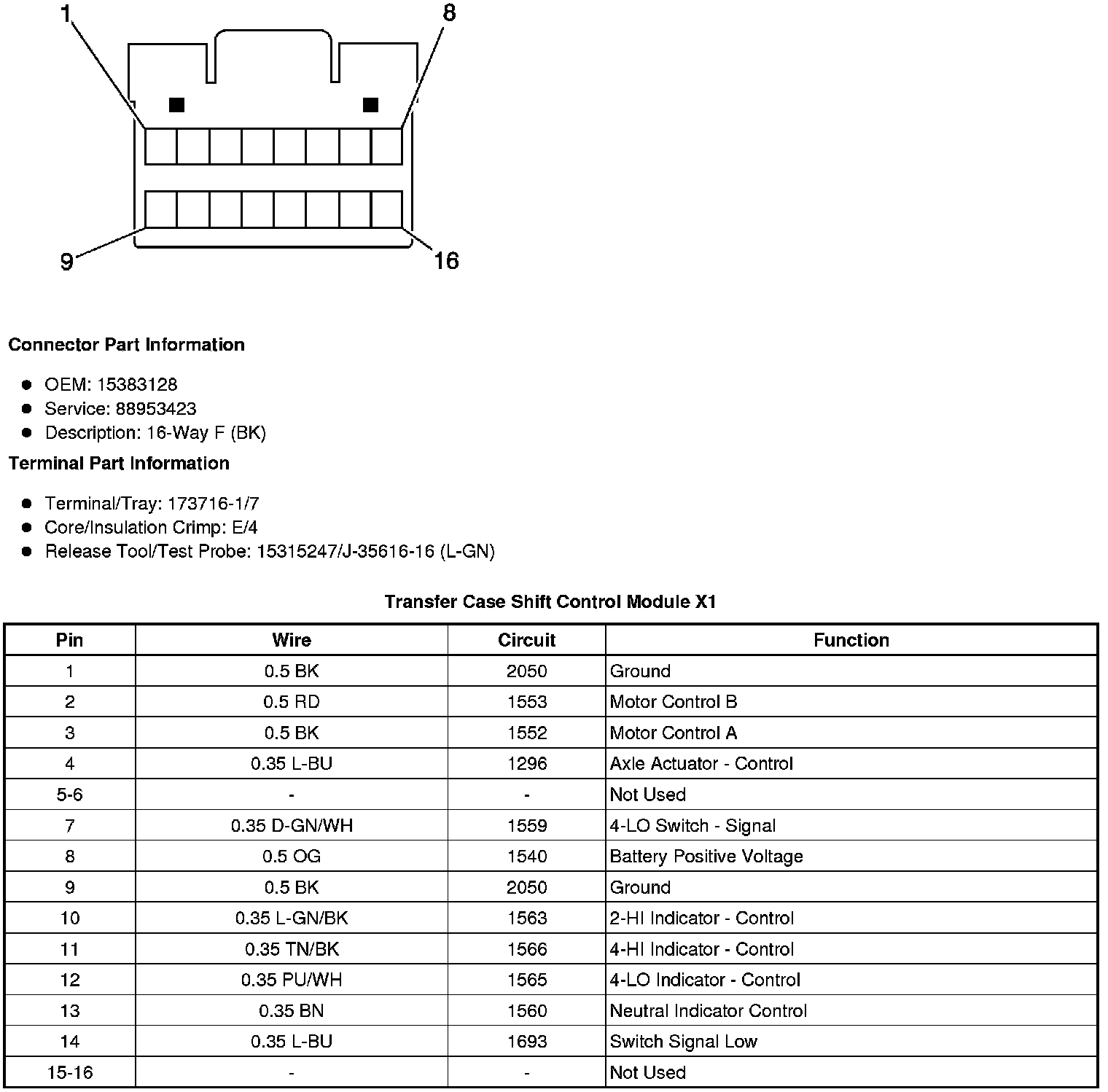

Transfer Case Shift Control Module X1

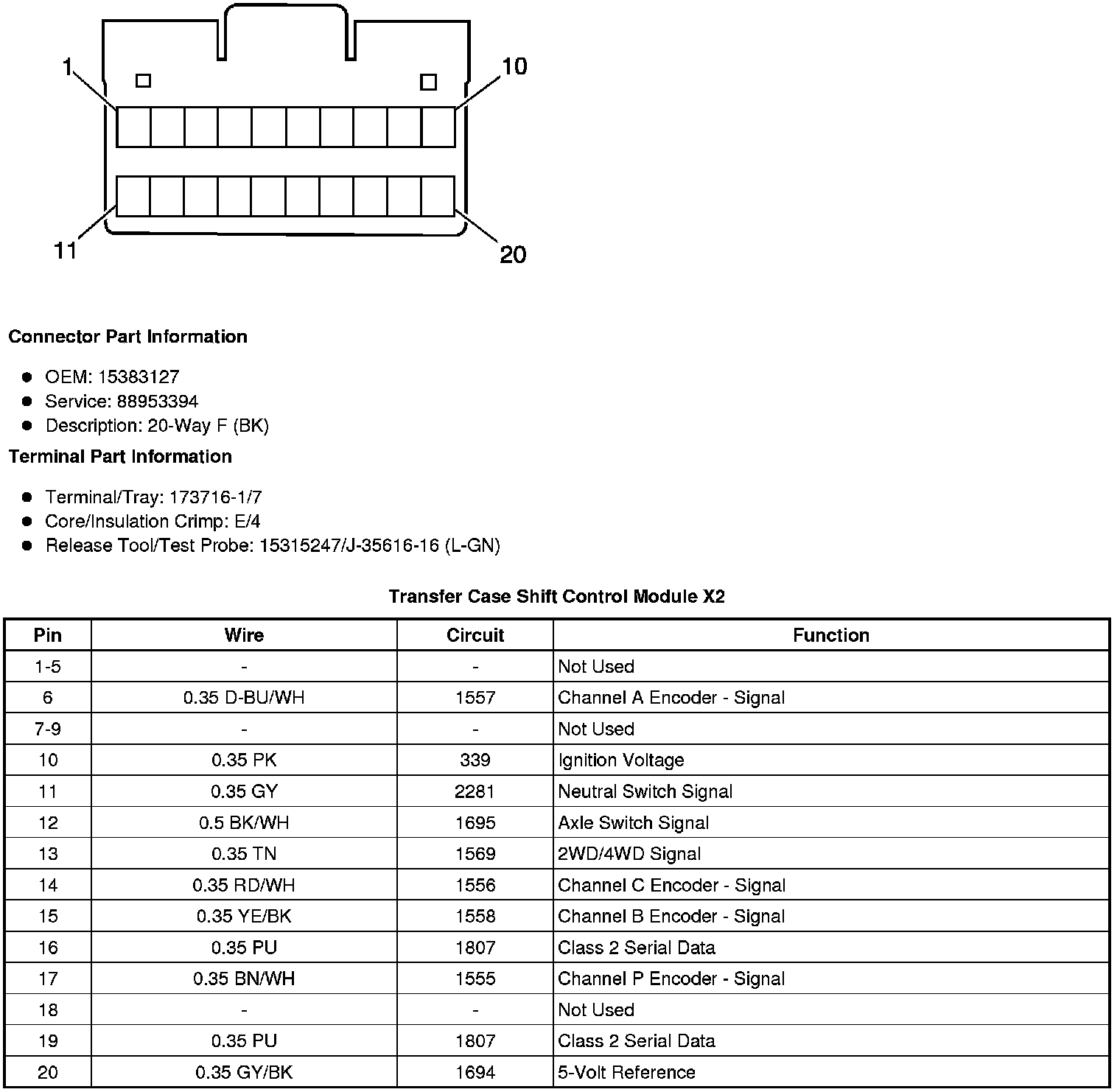

Transfer Case Shift Control Module X2
