Headlight Leveling Schematics

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

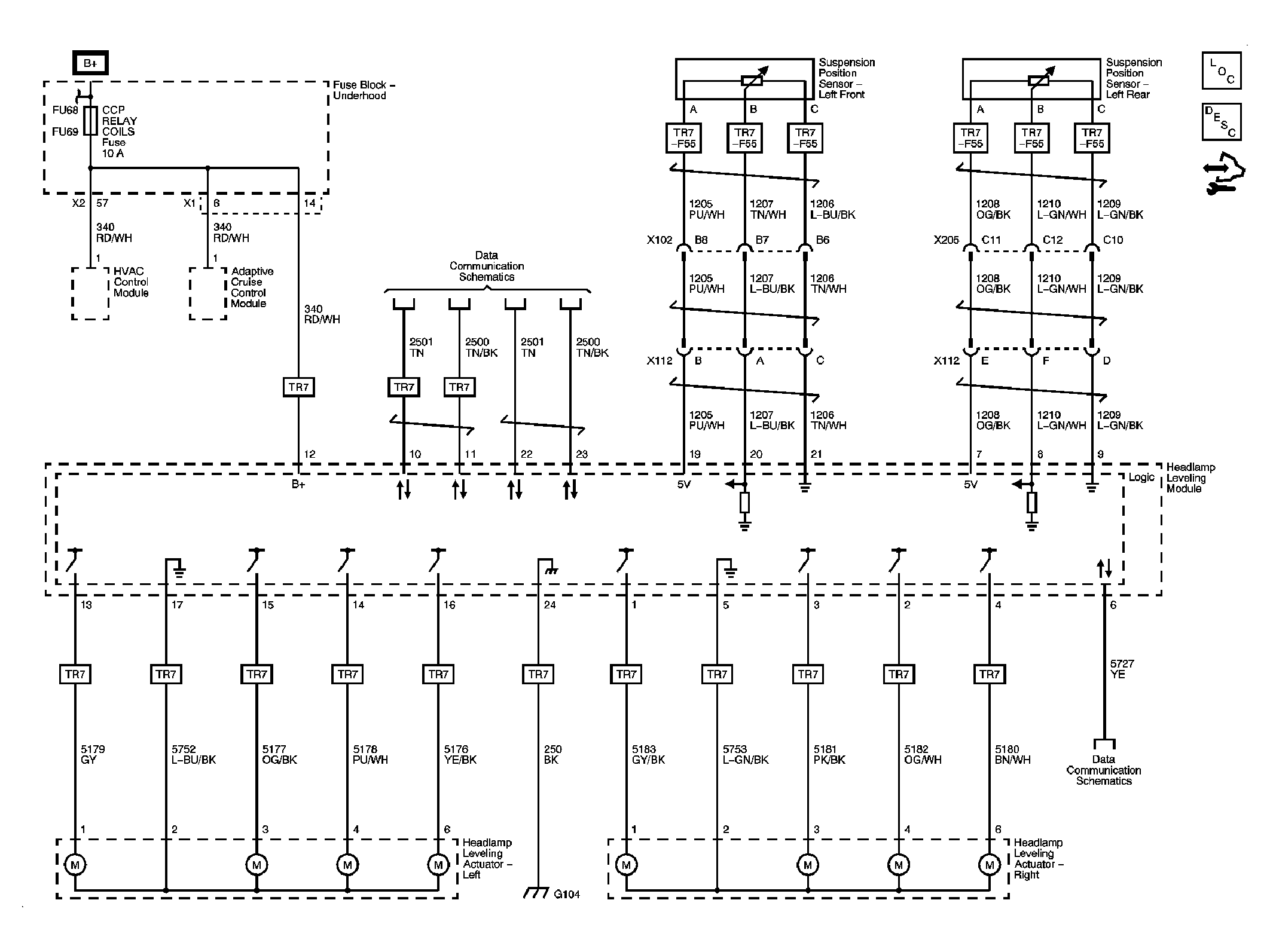

Fig 1: Headlight Leveling Schematic
GM1903091Courtesy of GENERAL MOTORS CORP.
