Body Fuse Block
Electrical Center Identification Views

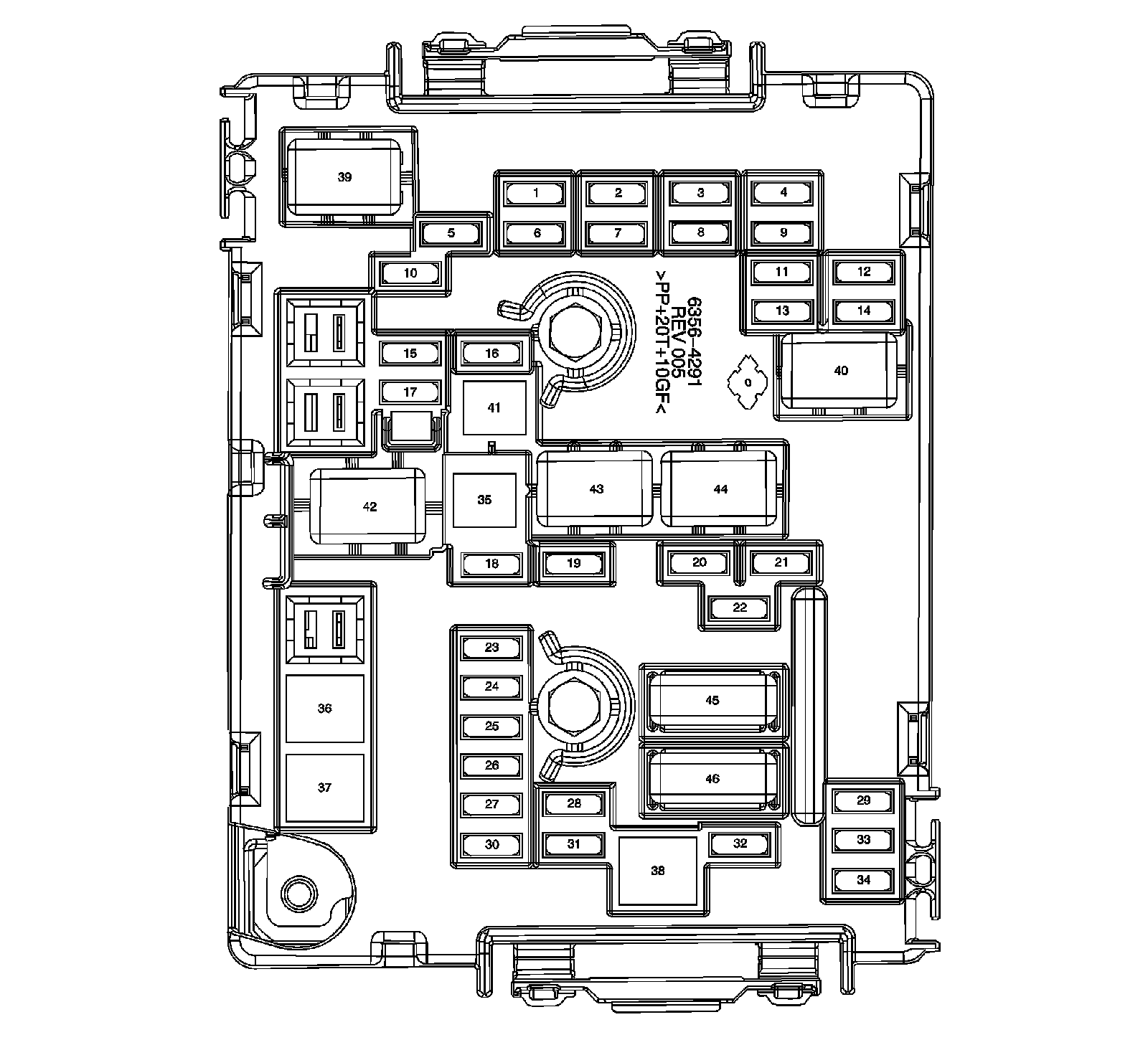

Fuse Block - Body Top View

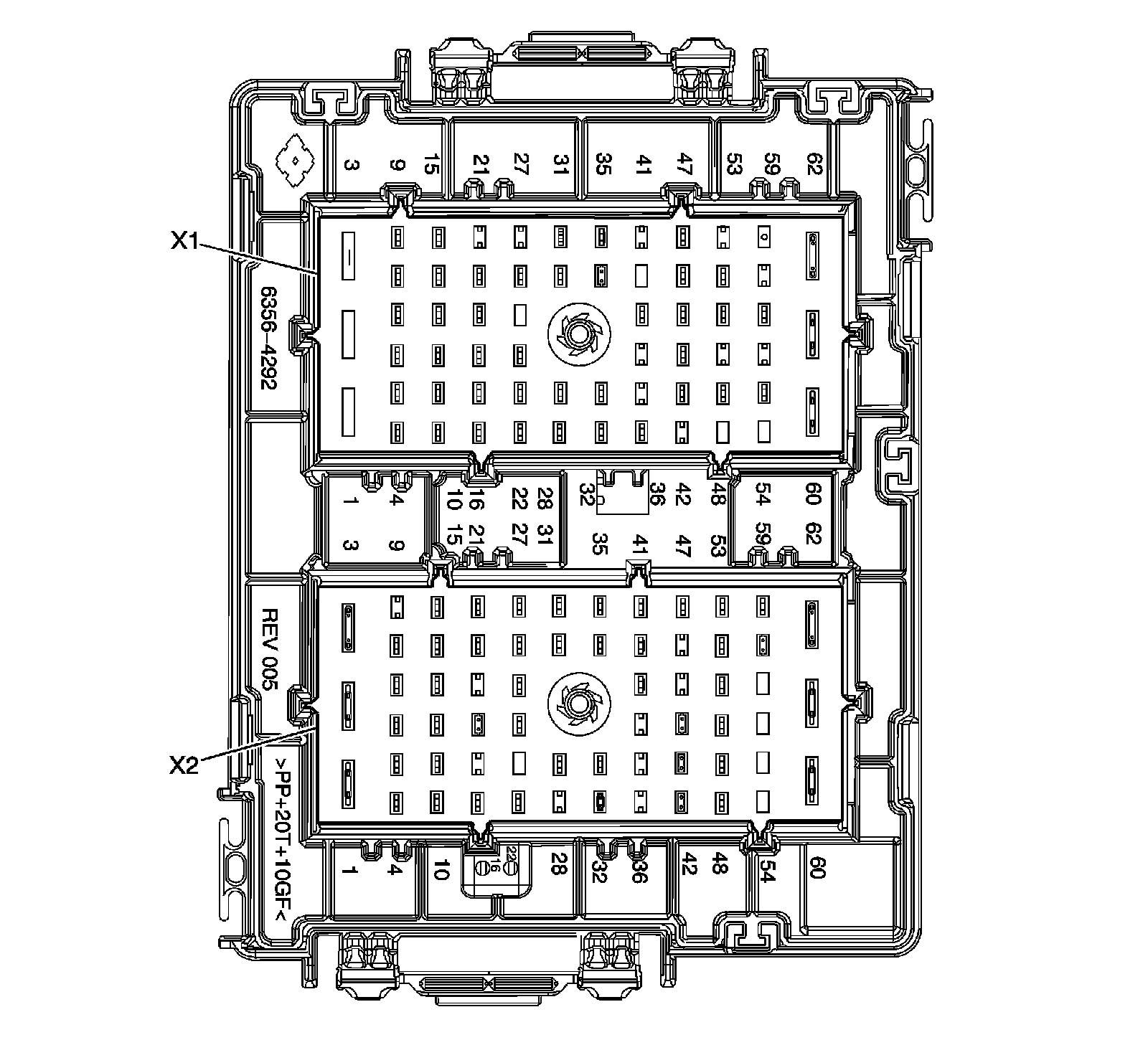

Fuse Block - Body Bottom View

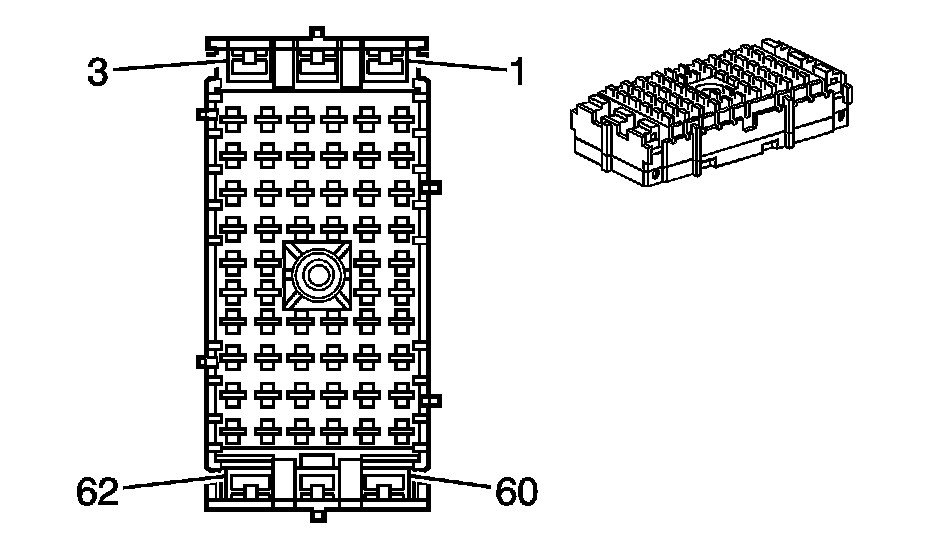

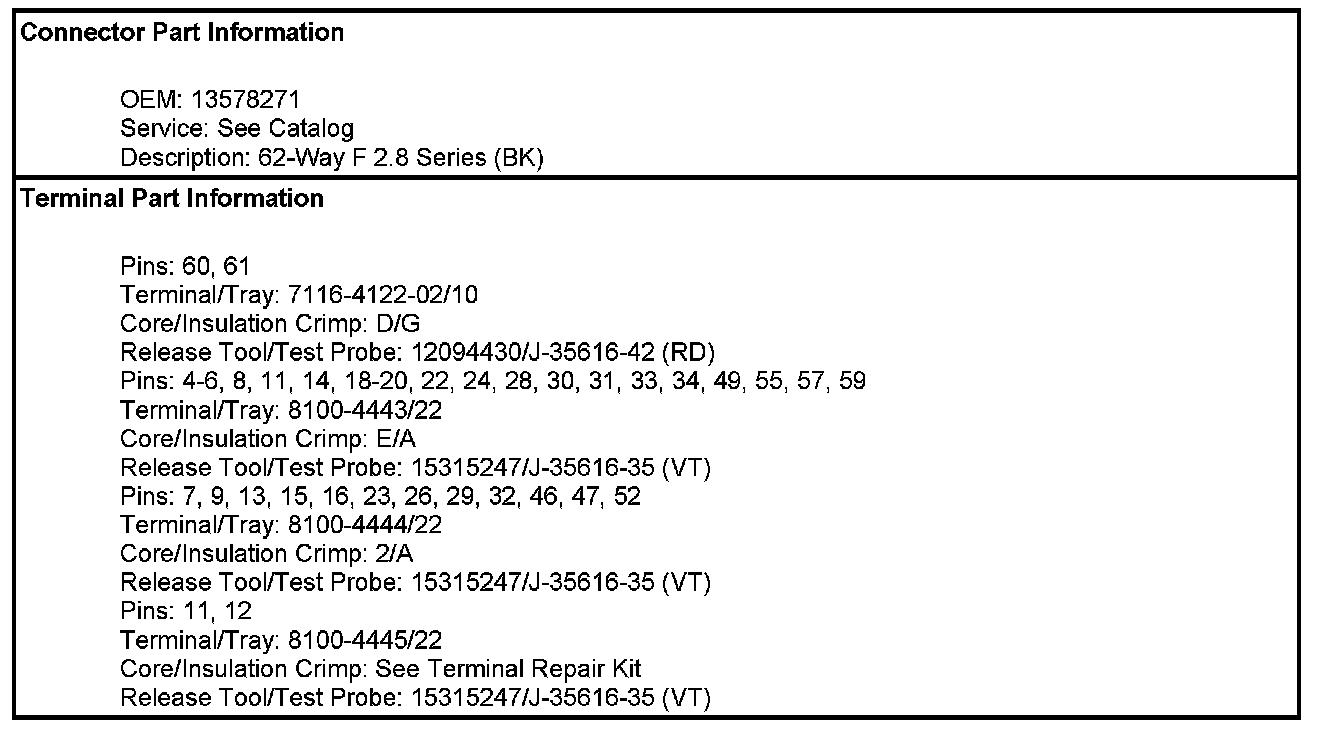

Fuse Block - Body X1

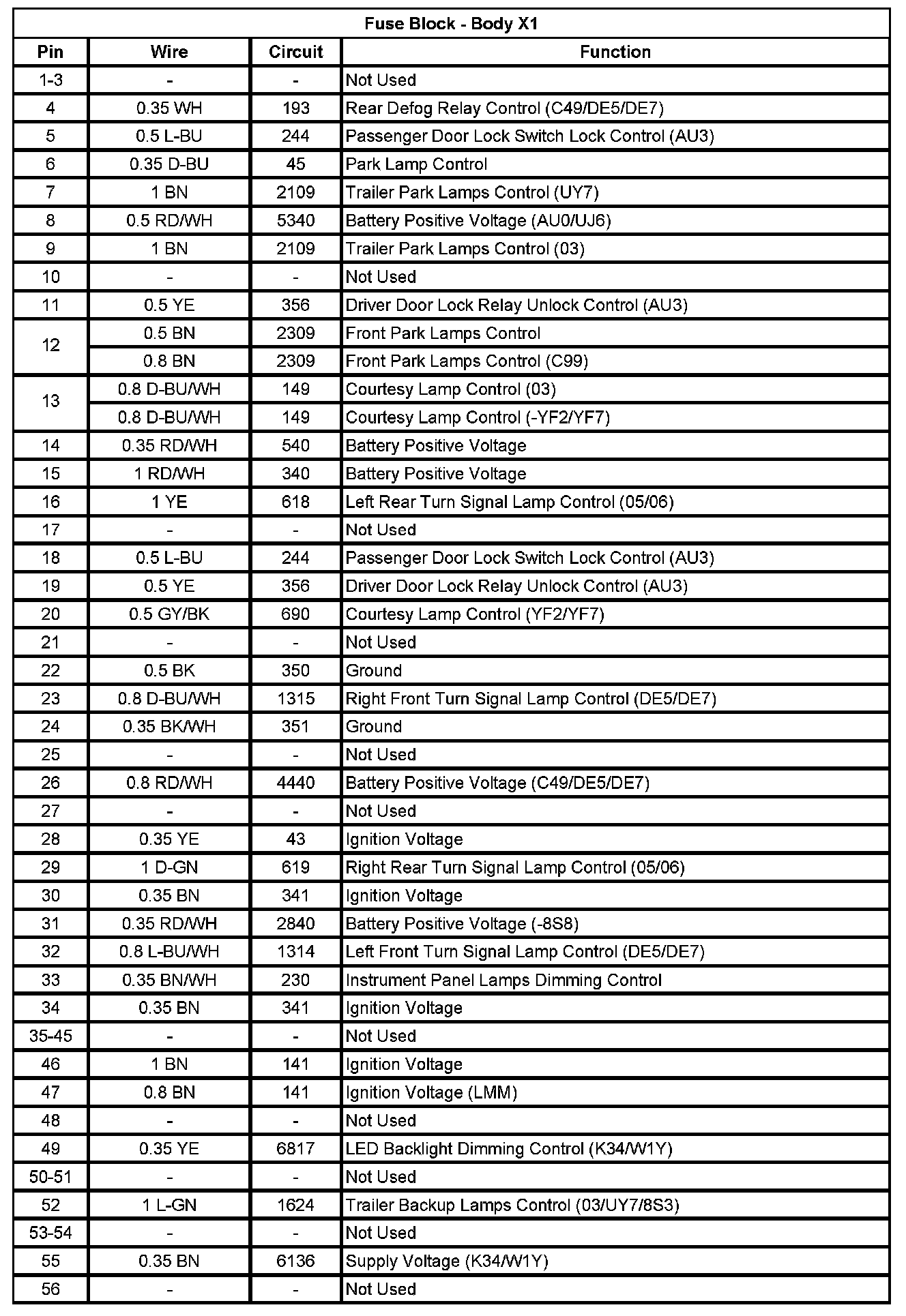

Fuse Block - Body X1 (Pin 1 To 56):

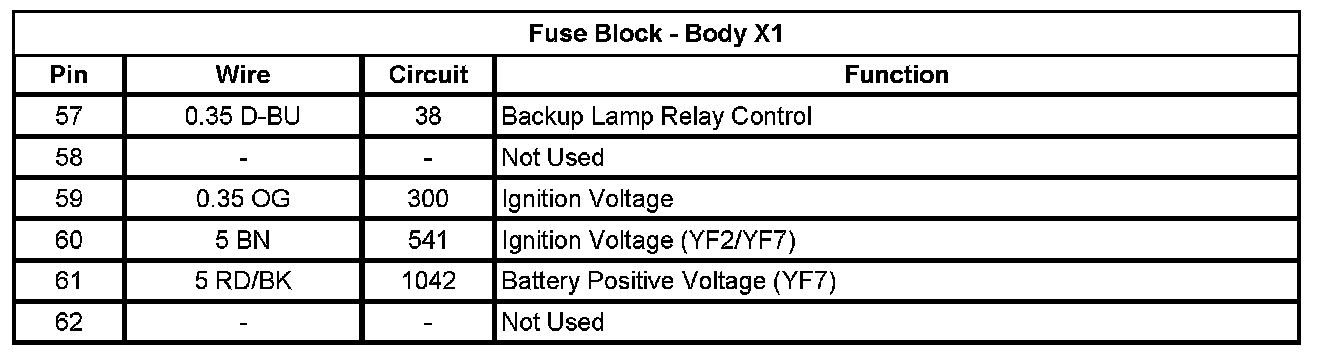

Fuse Block - Body X1 (Pin 57 To 62):

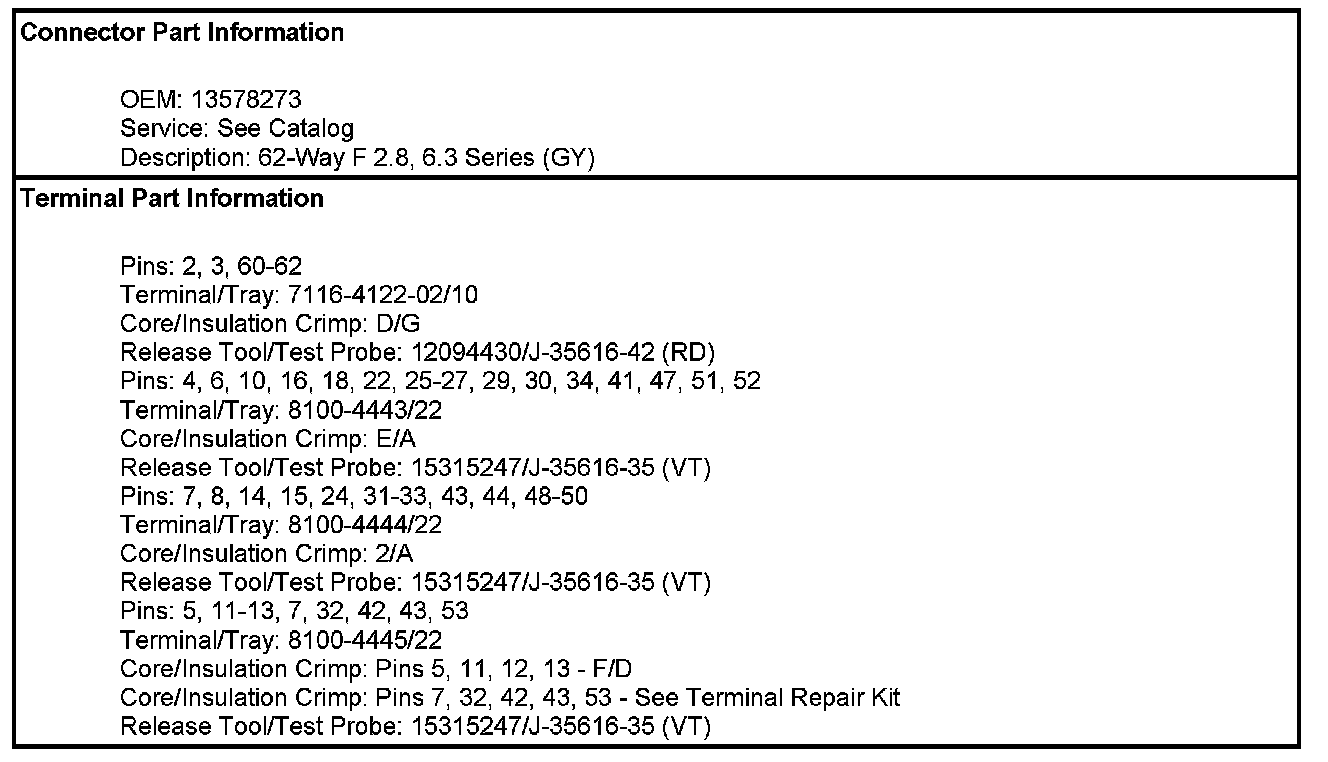

Fuse Block - Body X2

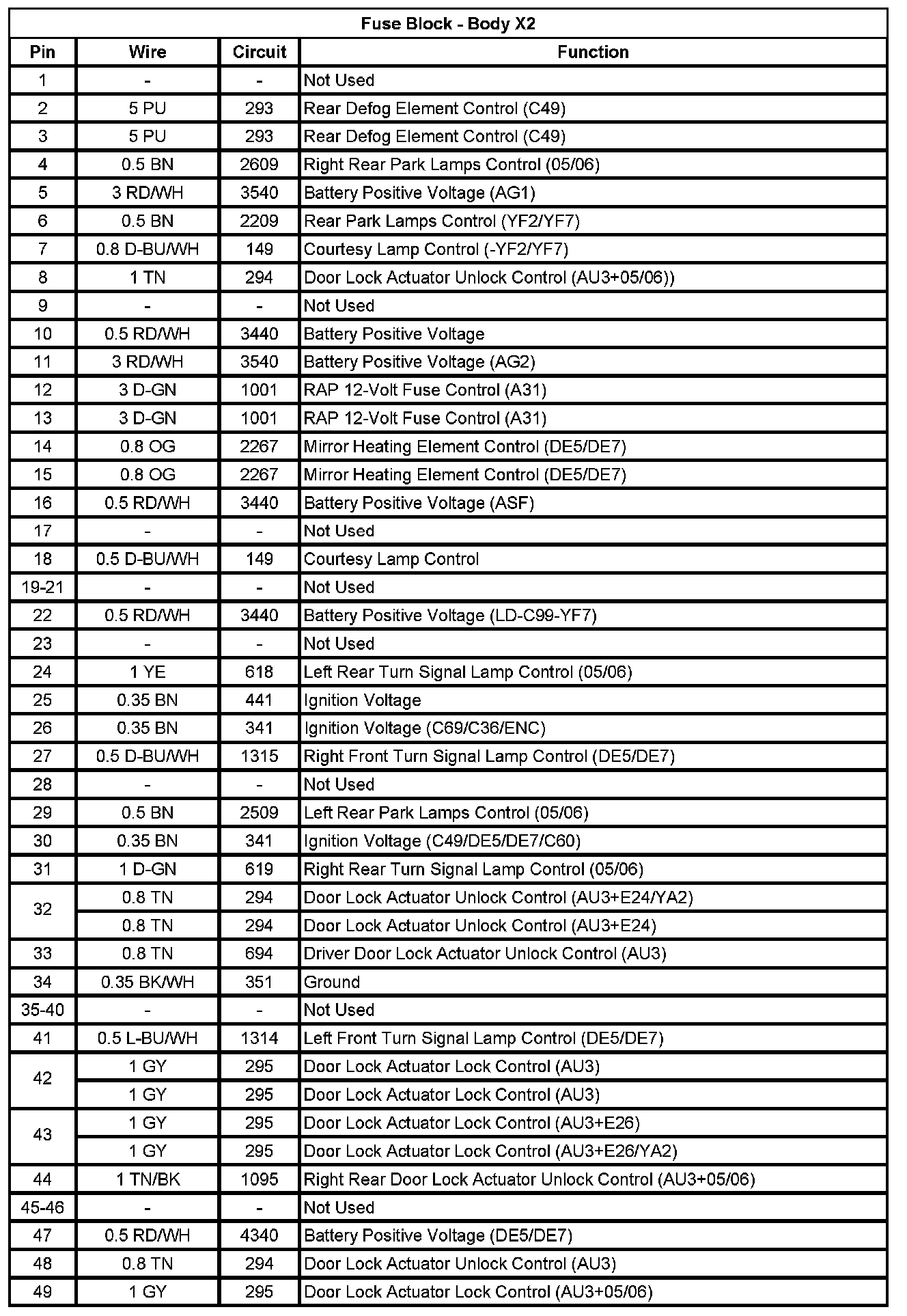

Fuse Block - Body X2 (Pin 1 To 49):

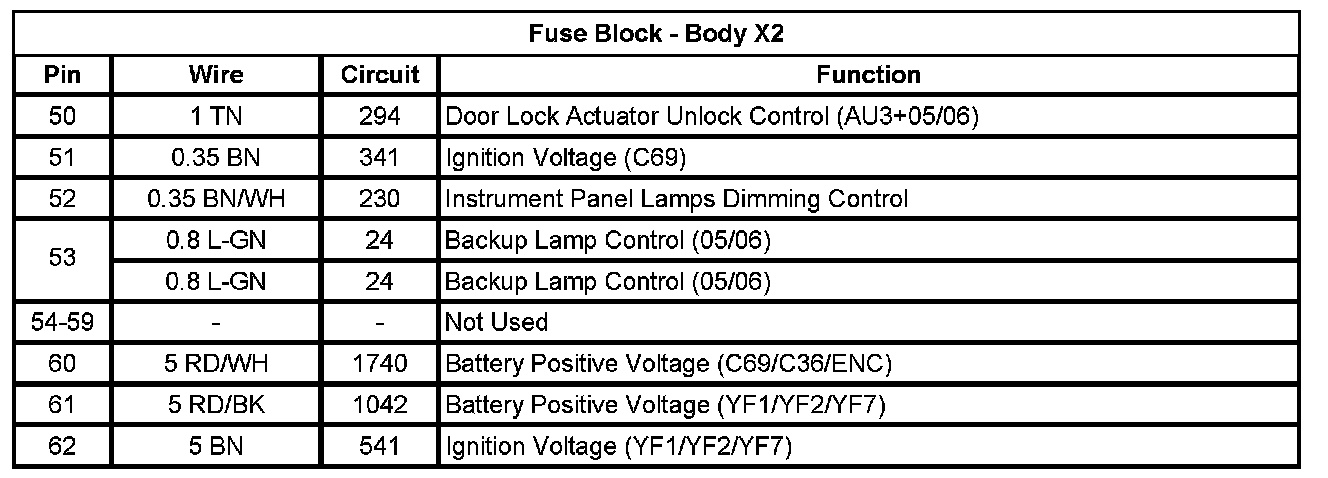

Fuse Block - Body X2 (Pin 50 To 62):
