Map Light

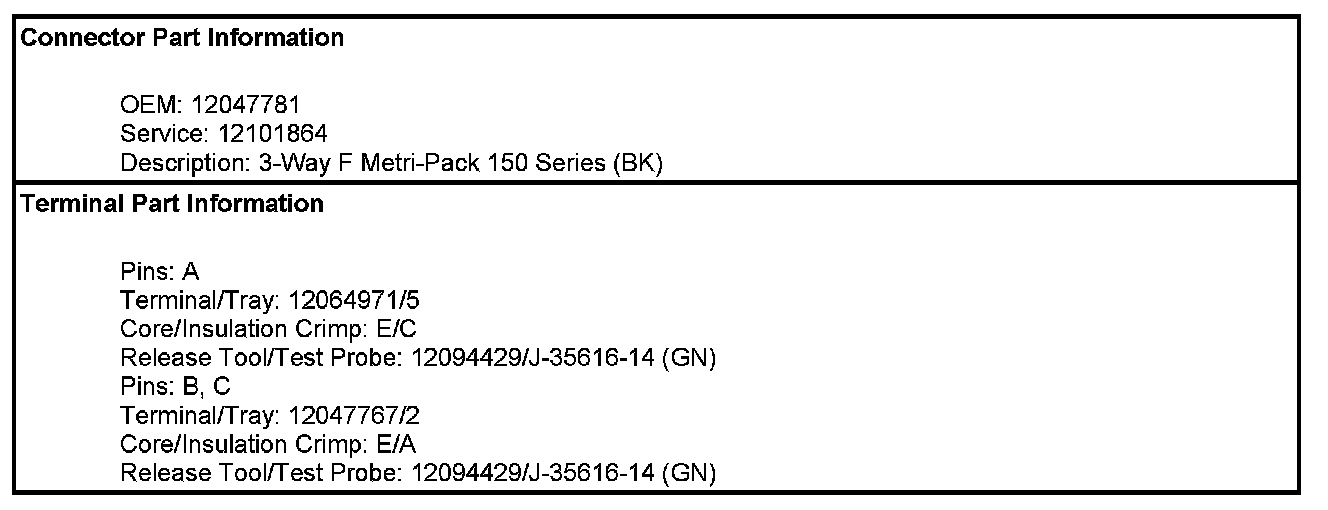

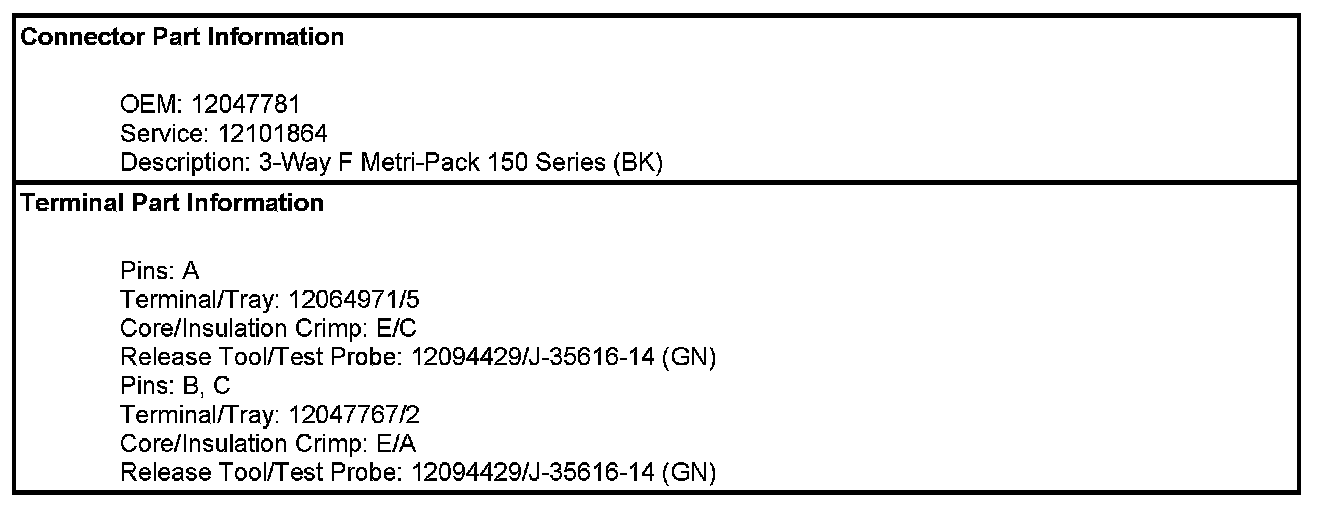

Component Connector End Views

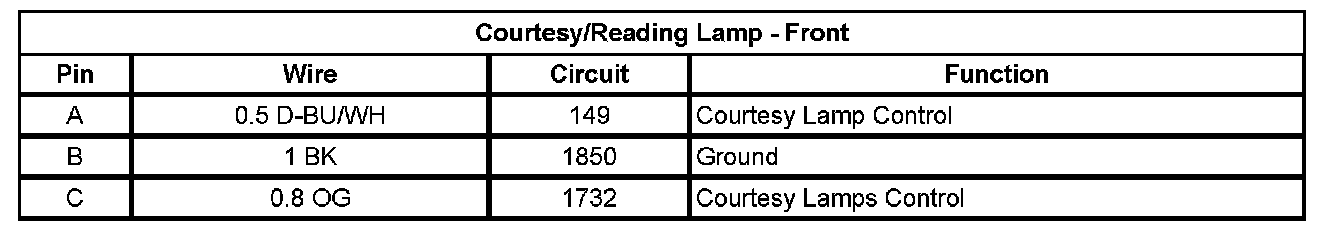

Courtesy/Reading Lamp - Front

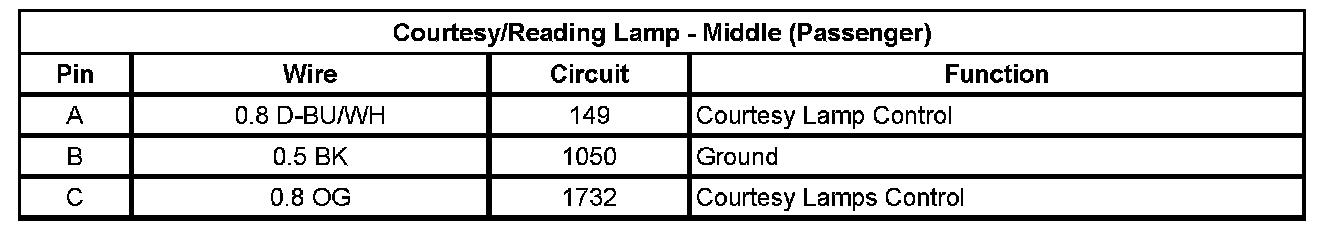

Courtesy/Reading Lamp - Middle (Passenger)

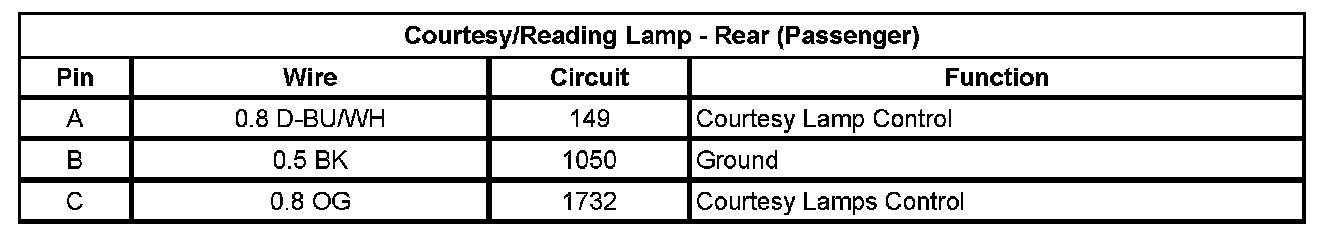

Courtesy/Reading Lamp - Rear (Passenger)
