Manifold Pressure/Vacuum Sensor: Diagrams

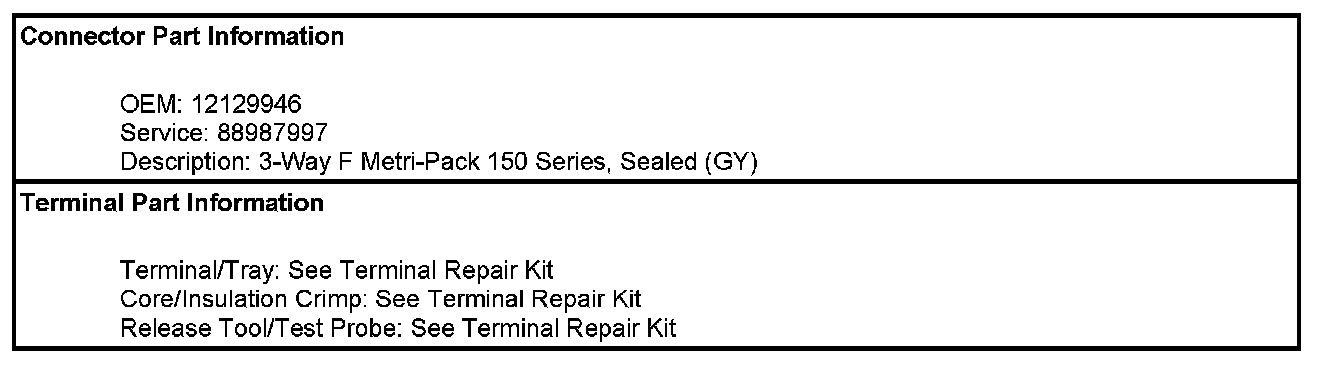

Component Connector End Views

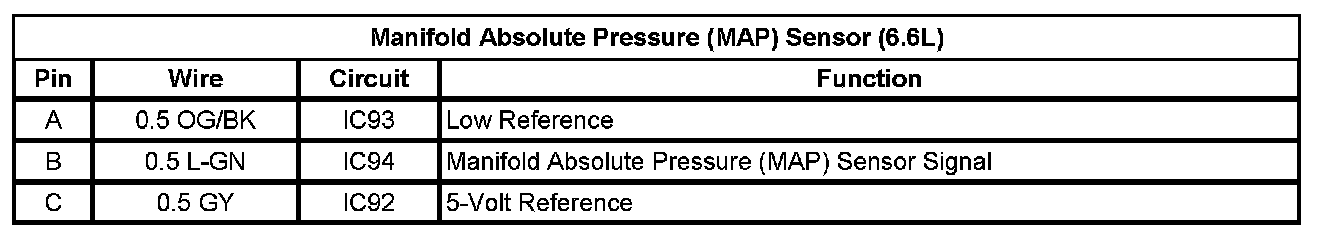

Manifold Absolute Pressure (MAP) Sensor (6.6L)
