Powertrain Component Views
Powertrain Component Views

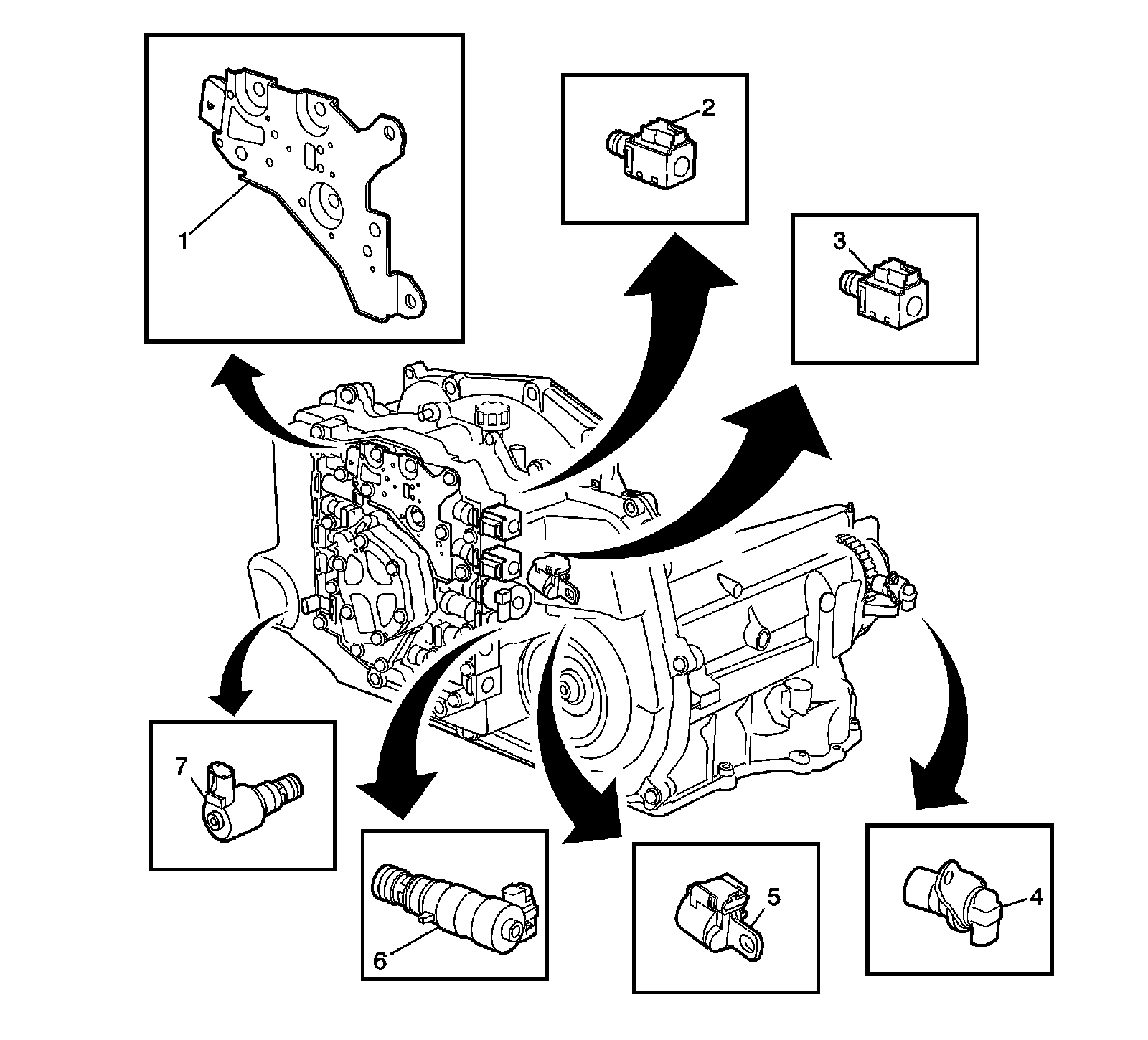

Electronic Components
1 - TFP Manual Valve Position Switch Assembly
2 - 1-2 Shift Solenoid Valve
3 - 2-3 Shift Solenoid Valve
4 - Output Speed Sensor
5 - Input Speed Sensor
6 - Pressure Control Solenoid
7 - TCC Control PWM Solenoid

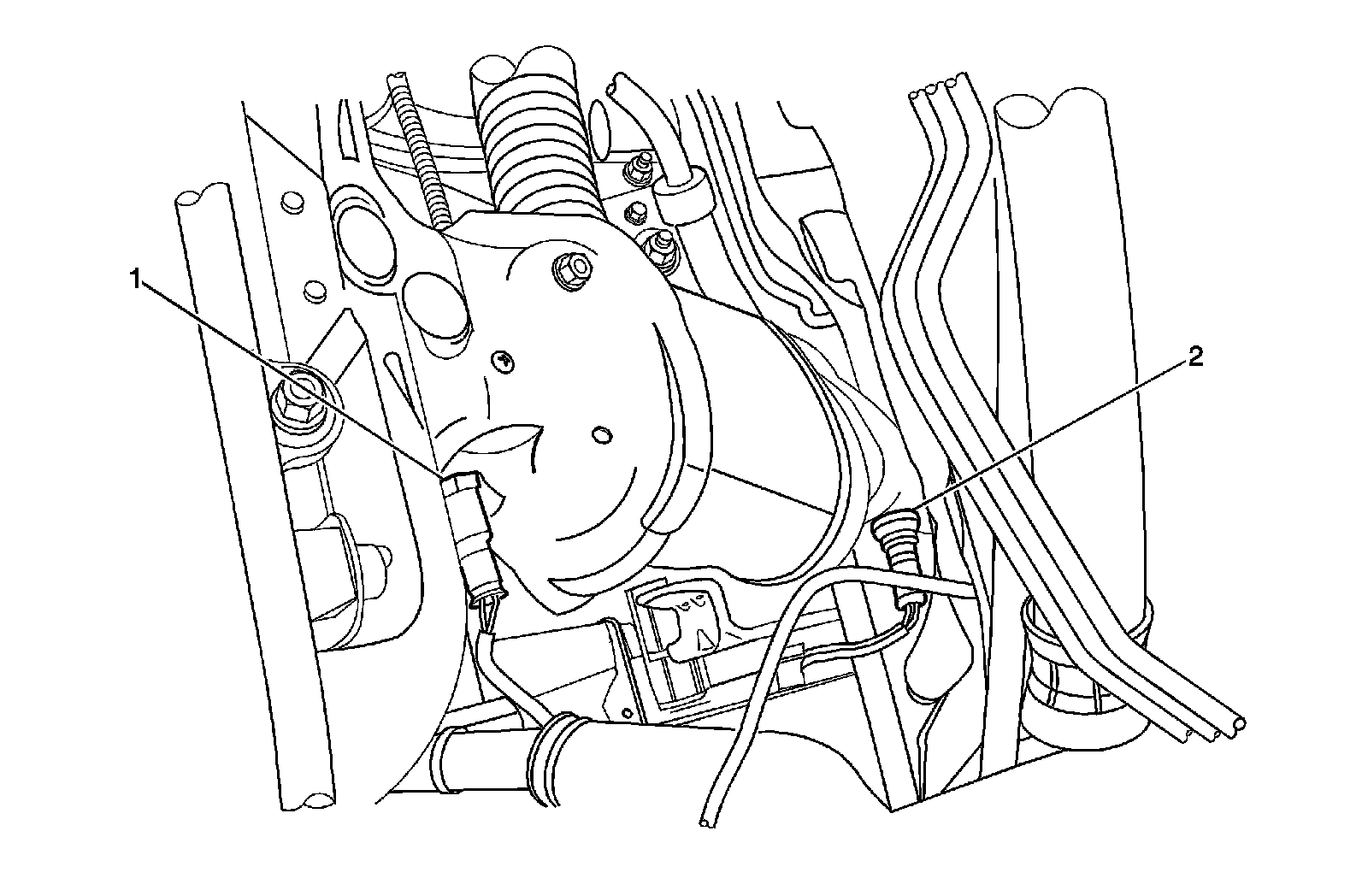

Rear of Engine - L61 - 2.2L
1 - Heated Oxygen Sensor (HO2S) 1
2 - Heated Oxygen Sensor (HO2S) 2

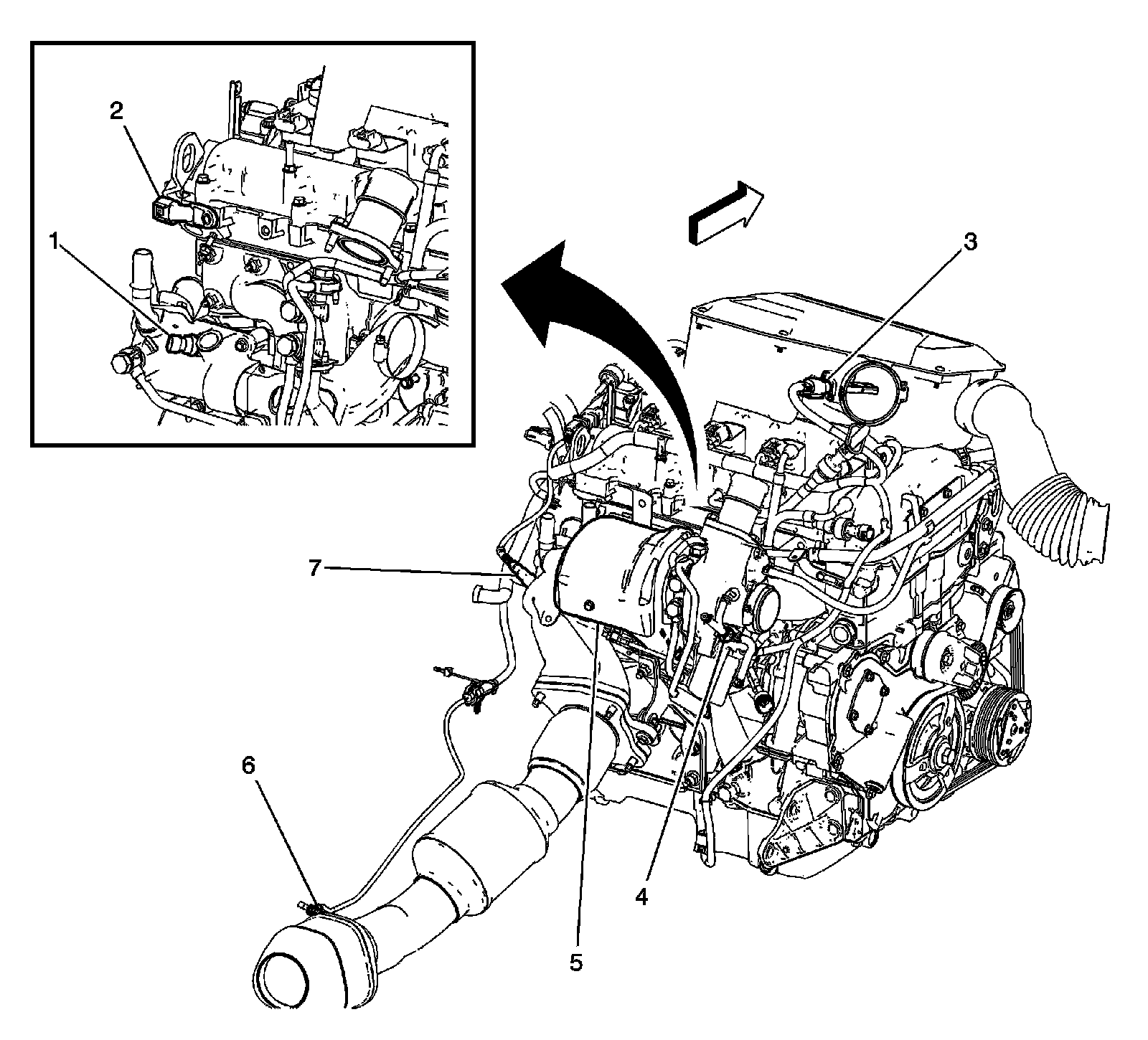

Engine - Rear (LNF - 2.0L)
1 - Engine Coolant Temperature (ECT) Sensor
2 - Camshaft Position (CMP) Sensor Exhaust
3 - Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
4 - Turbocharger Wastegate Solenoid (LNF)
5 - Turbocharger
6 - Heated Oxygen Sensor (HO2S) 2
7 - Heated Oxygen Sensor (HO2S) 1

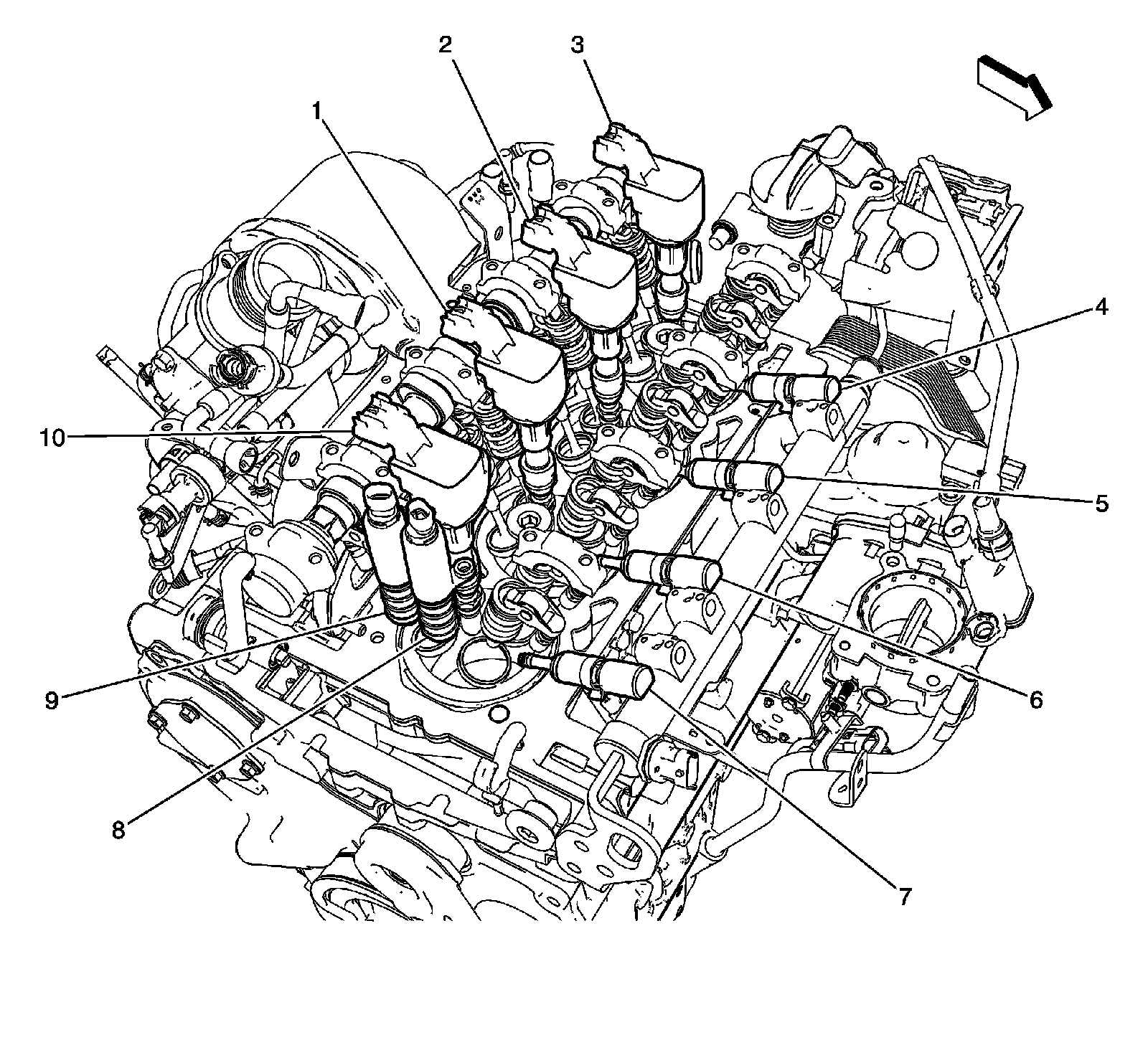

Engine - Top (LNF - 2.0L)
1 - Ignition Coil 2
2 - Ignition Coil 3
3 - Ignition Coil 4
4 - Fuel Injector 4
5 - Fuel Injector 3
6 - Fuel Injector 2
7 - Fuel Injector 1
8 - Camshaft Position (CMP) Actuator Solenoid Exhaust
9 - Camshaft Position (CMP) Actuator Solenoid Intake
10 - Ignition Coil 1
Engine - Front (LNF-2.0L)
1 - Fuel Rail Pressure Sensor (FPS) (LNF)
2 - Throttle Actuator Control (TAC) Module
3 - Turbo Bypass Valve Solenoid (LNF)
4 - Manifold Absolute Pressure (MAP) Sensor
5 - High Pressure Fuel Pump (LNF)
6 - Camshaft Position (CMP) Sensor Intake
7 - Knock Sensor (KS) 1 (LNF)
8 - Crankshaft Position (CKP) Sensor
9 - Engine Oil Pressure (EOP) Switch
10 - Starter
11 - A/C Compressor Clutch
12 - Generator
13 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

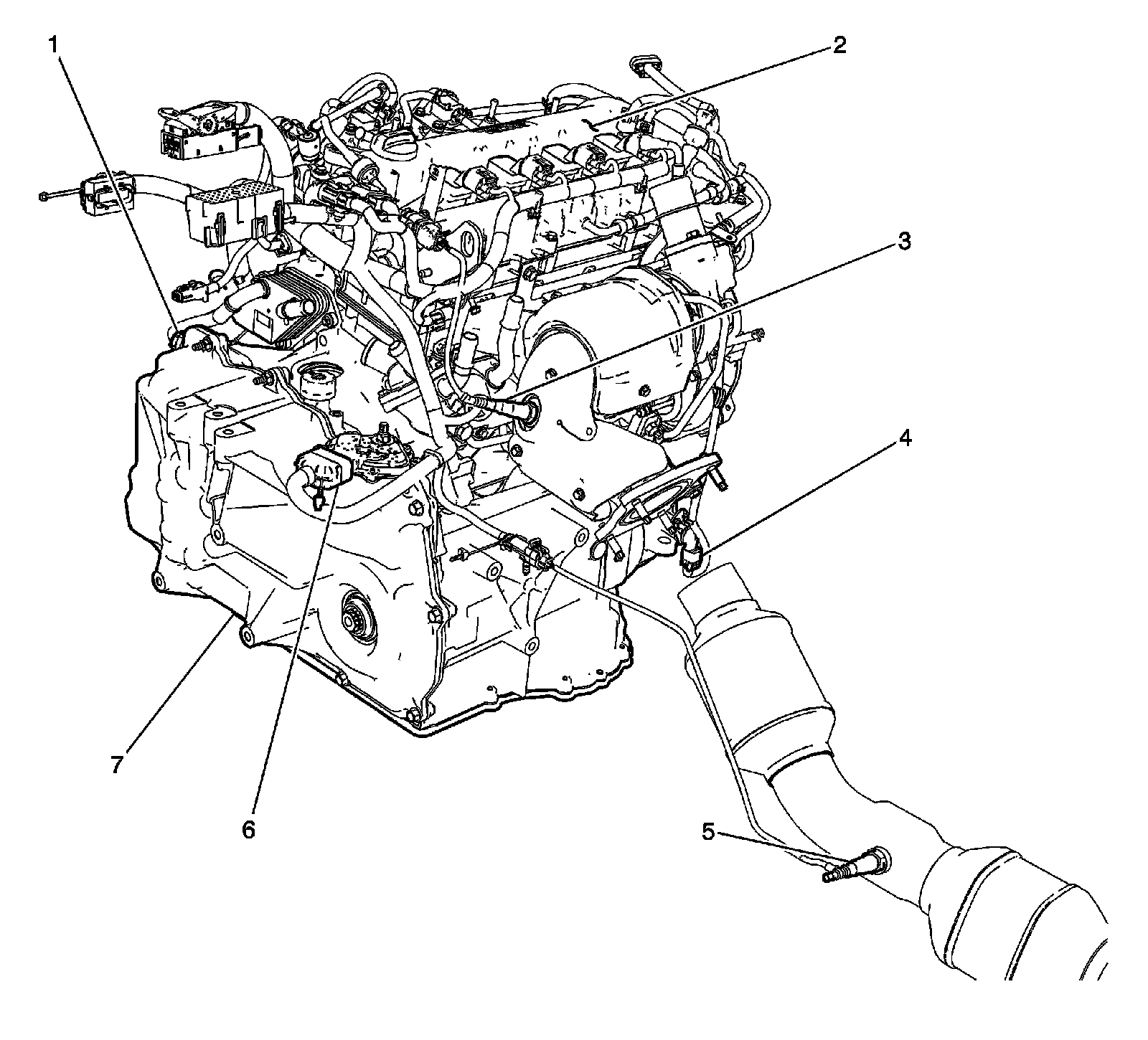

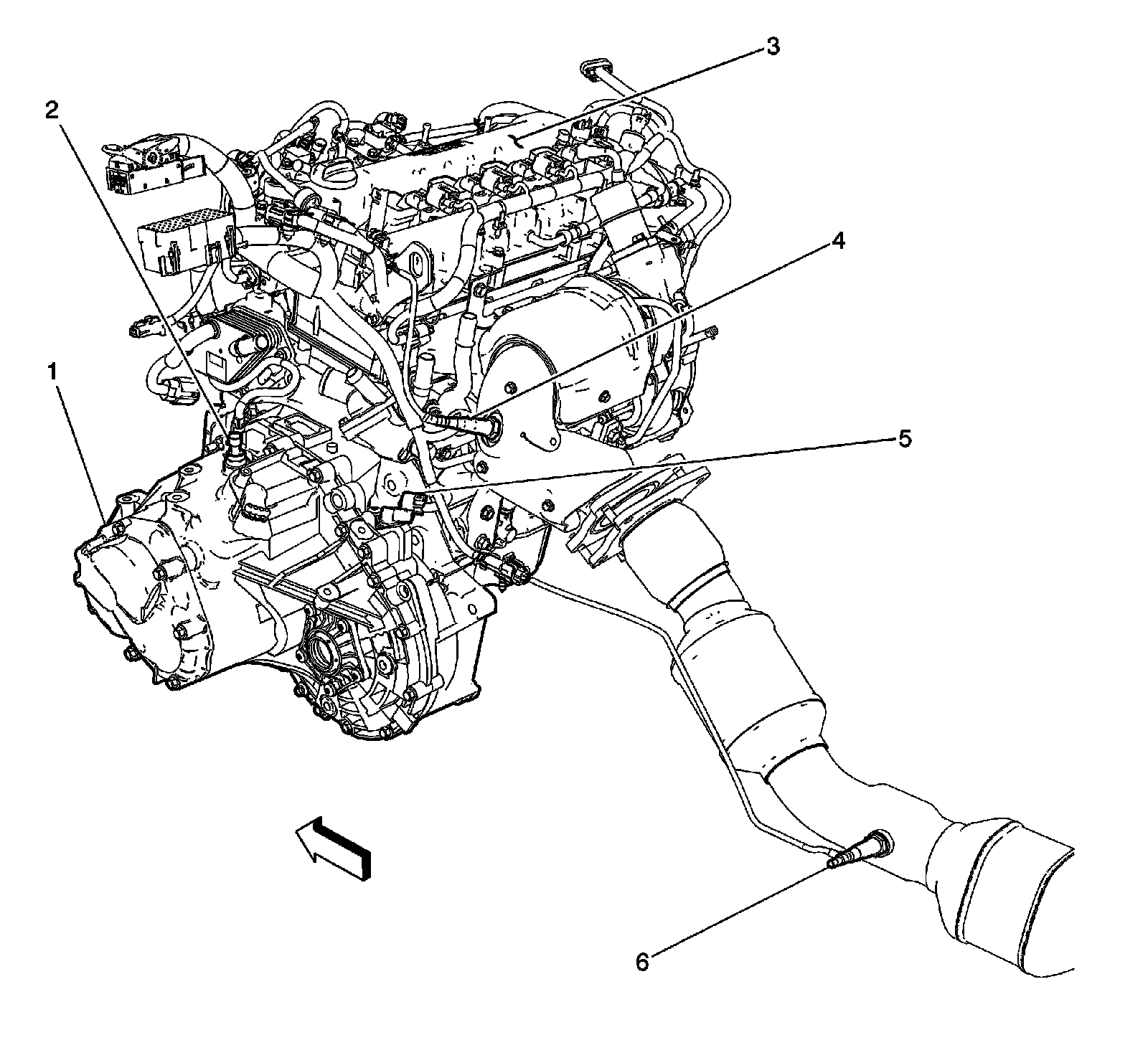

Engine with Transmission (LNF- 2.0L/MN5)
1 - X100 (MN5)
2 - Engine (LNF)
3 - Heated Oxygen Sensor (HO2S) 1
4 - Vehicle Speed Sensor (OSS/VSS) (MN5)
5 - Heated Oxygen Sensor (HO2S) 2
6 - Park Neutral Position (PNP) Switch (MN5)
7 - Transmission (MN5)
Engine with Transmission (LNF-2.0L/MU3)
1 - Transmission (MU3)
2 - Backup Lamp Switch (MU3)
3 - Engine (LNF)
4 - Heated Oxygen Sensor (HO2S) 1
5 - Vehicle Speed Sensor (VSS) (MU3)
6 - Heated Oxygen Sensor (HO2S) 2

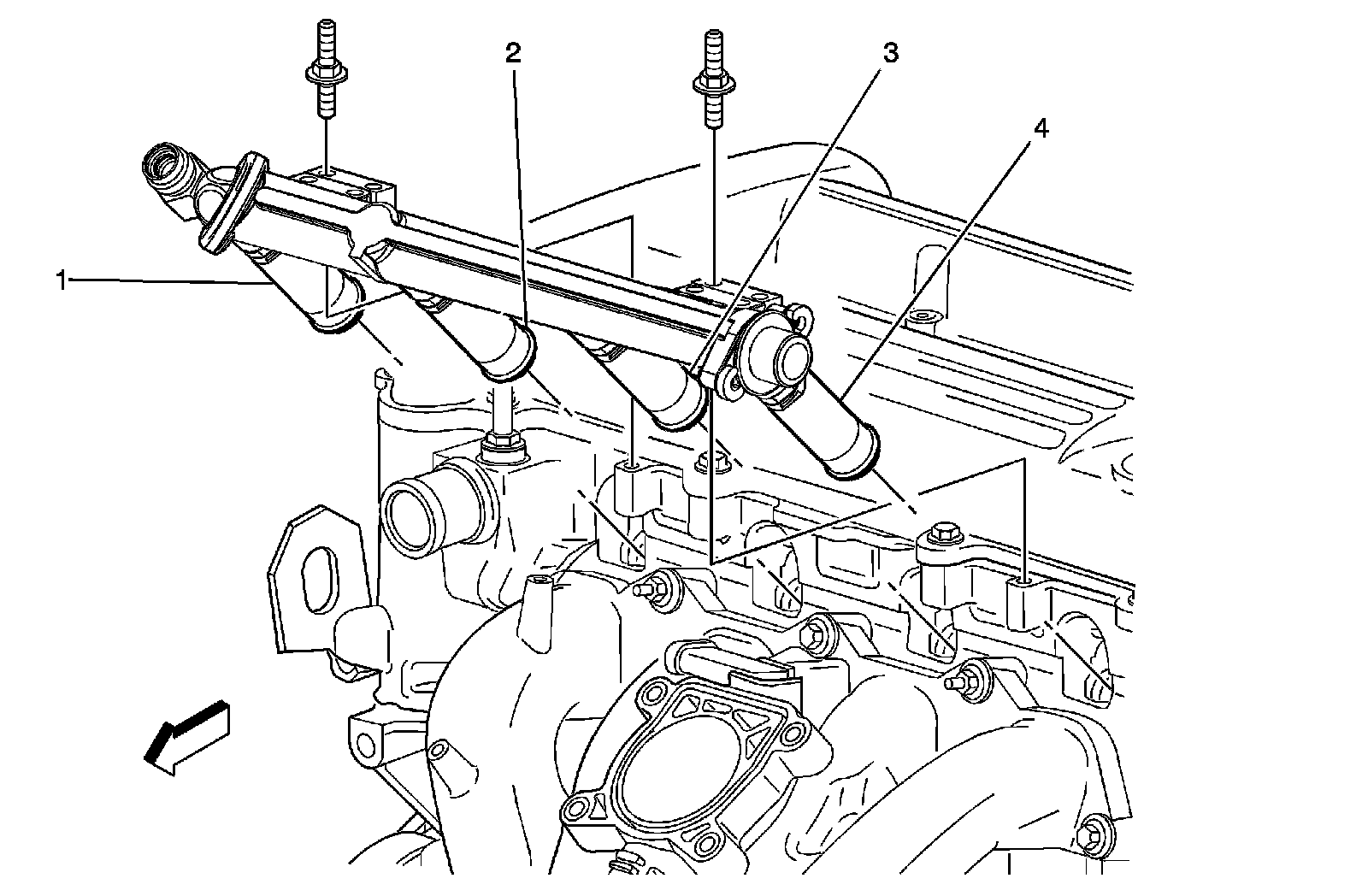

Top Front of the Engine
1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Fuel Injector 4

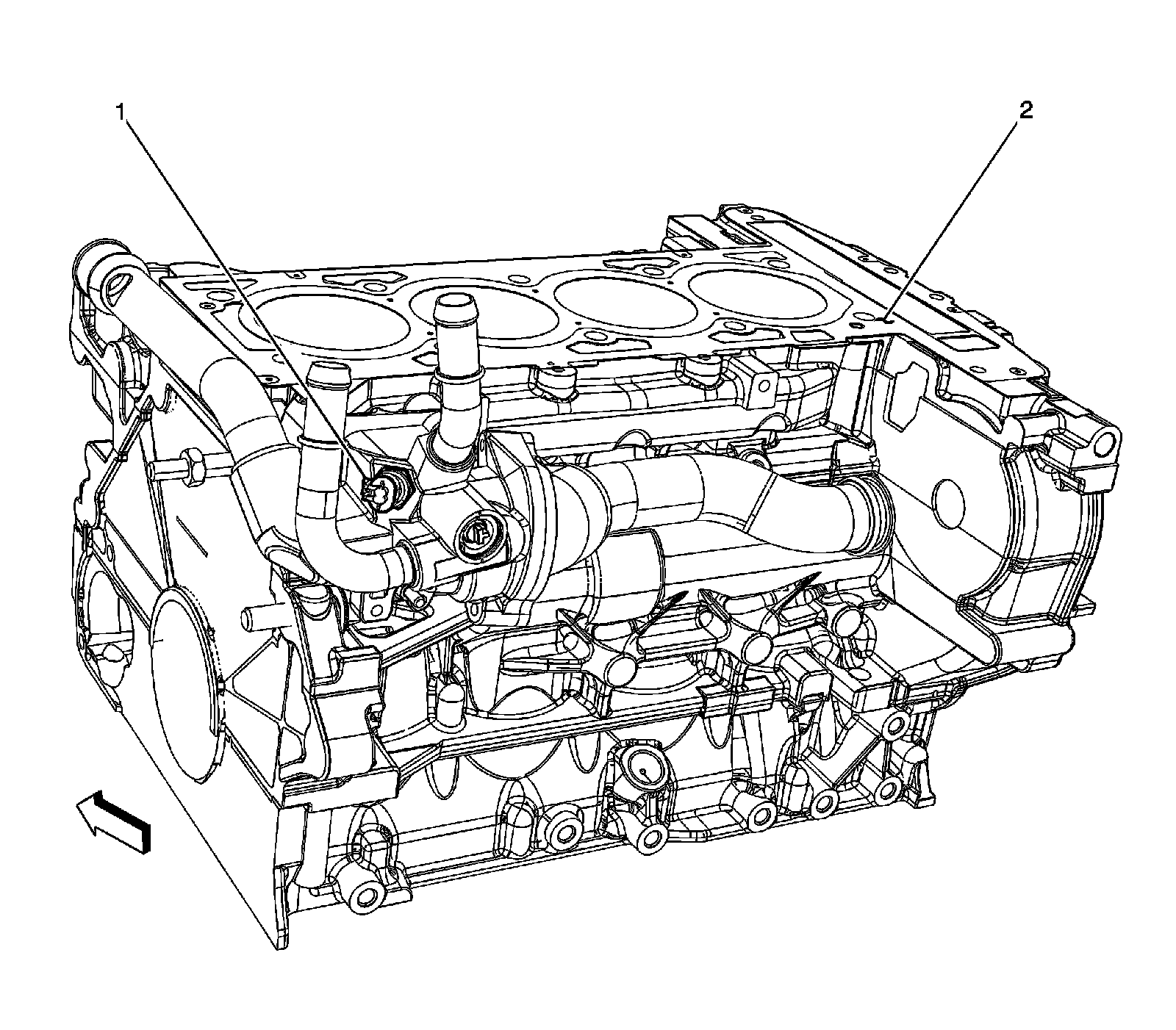

Rear of the Engine Block (L61-2.2L)
1 - Engine Coolant Temperature (ECT) Sensor
2 - Engine Block

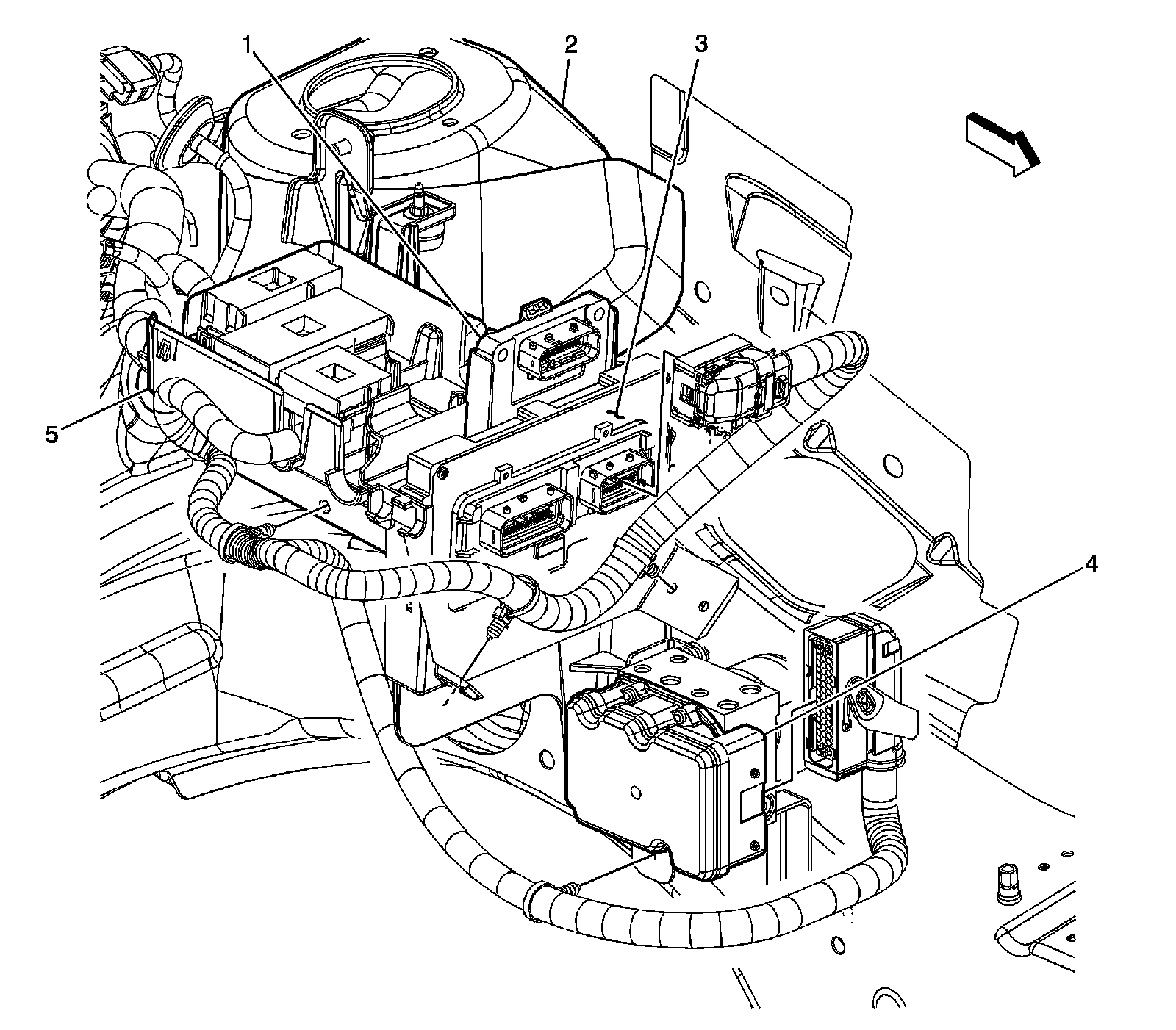

Left Side of the Engine Compartment
1 - Transmission Control Module (TCM) (MN5)
2 - Left Front Strut Tower
3 - Engine Control Module (ECM)
4 - Electronic Brake Control Module (EBCM) (JM4/JL9)
5 - Fuse Block - Underhood Bracket

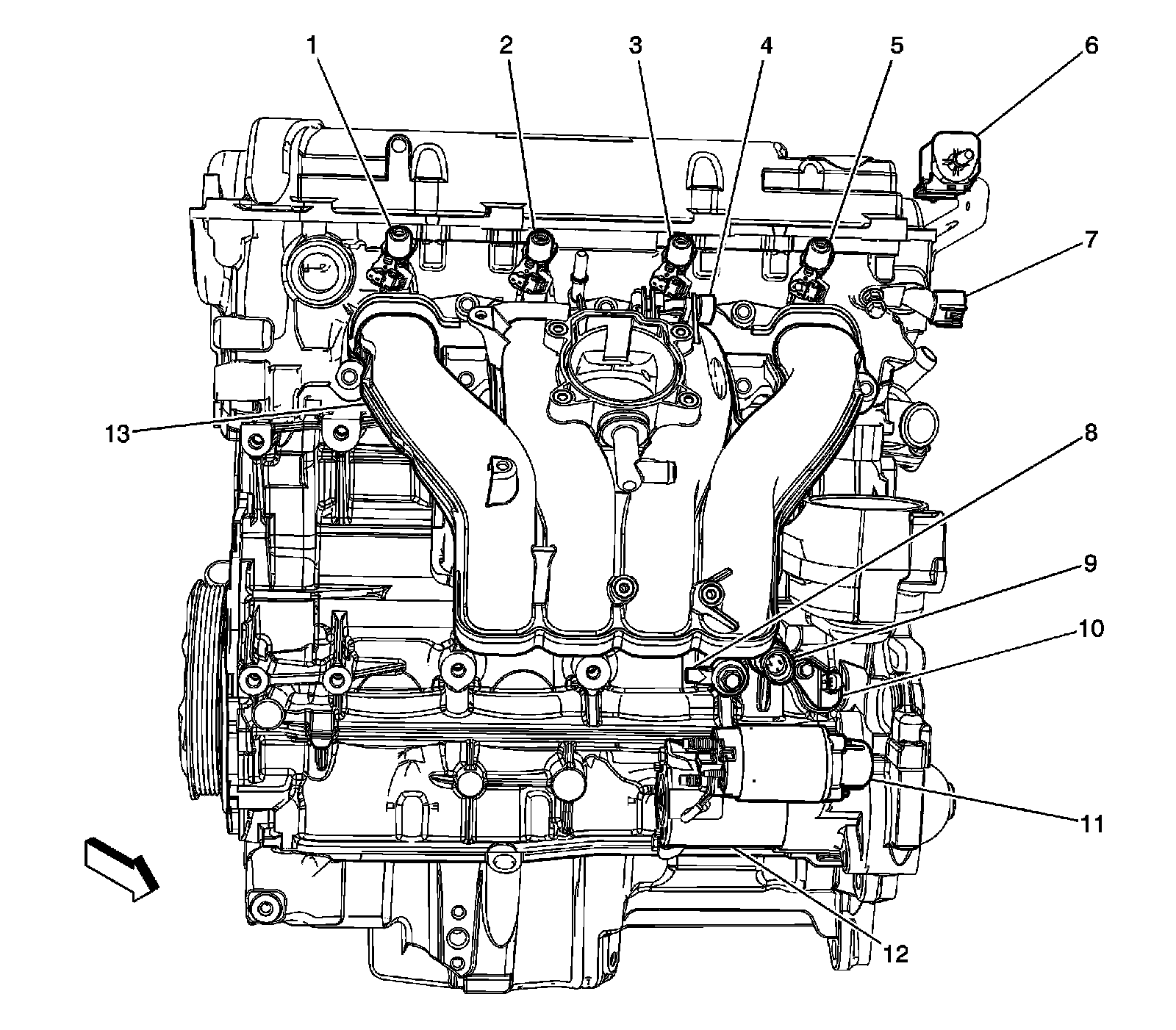

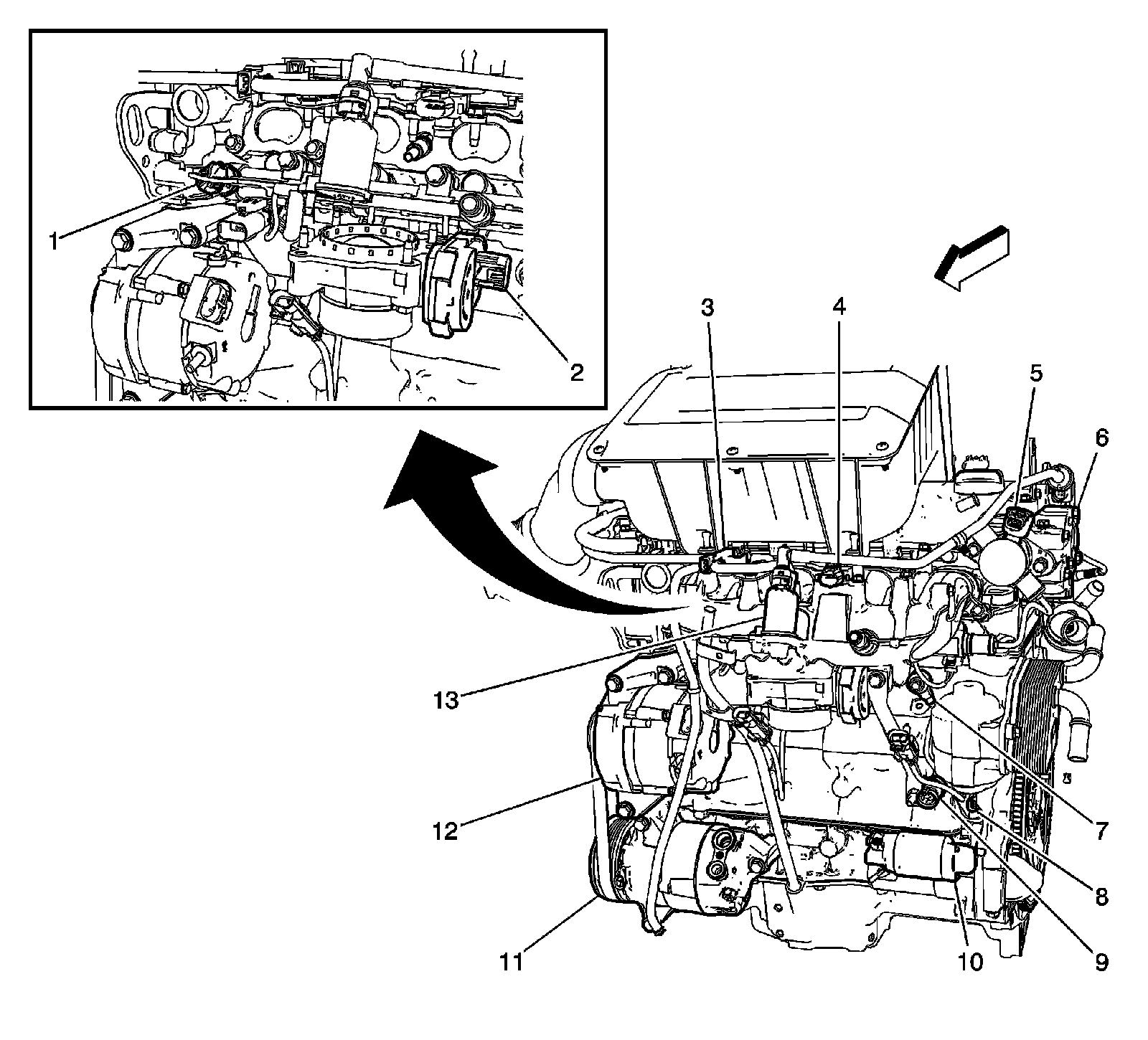

Front of the Engine (LE5-2.4L)
1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Fuel Injector 4
6 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7 - Camshaft Position (CMP) Sensor - Intake
8 - Knock Sensor (KS)
9 - Engine Oil Pressure (EOP) Switch
10 - Crankshaft Position (CKP) Sensor
11 - Starter Solenoid
12 - Starter
13 - Intake Manifold

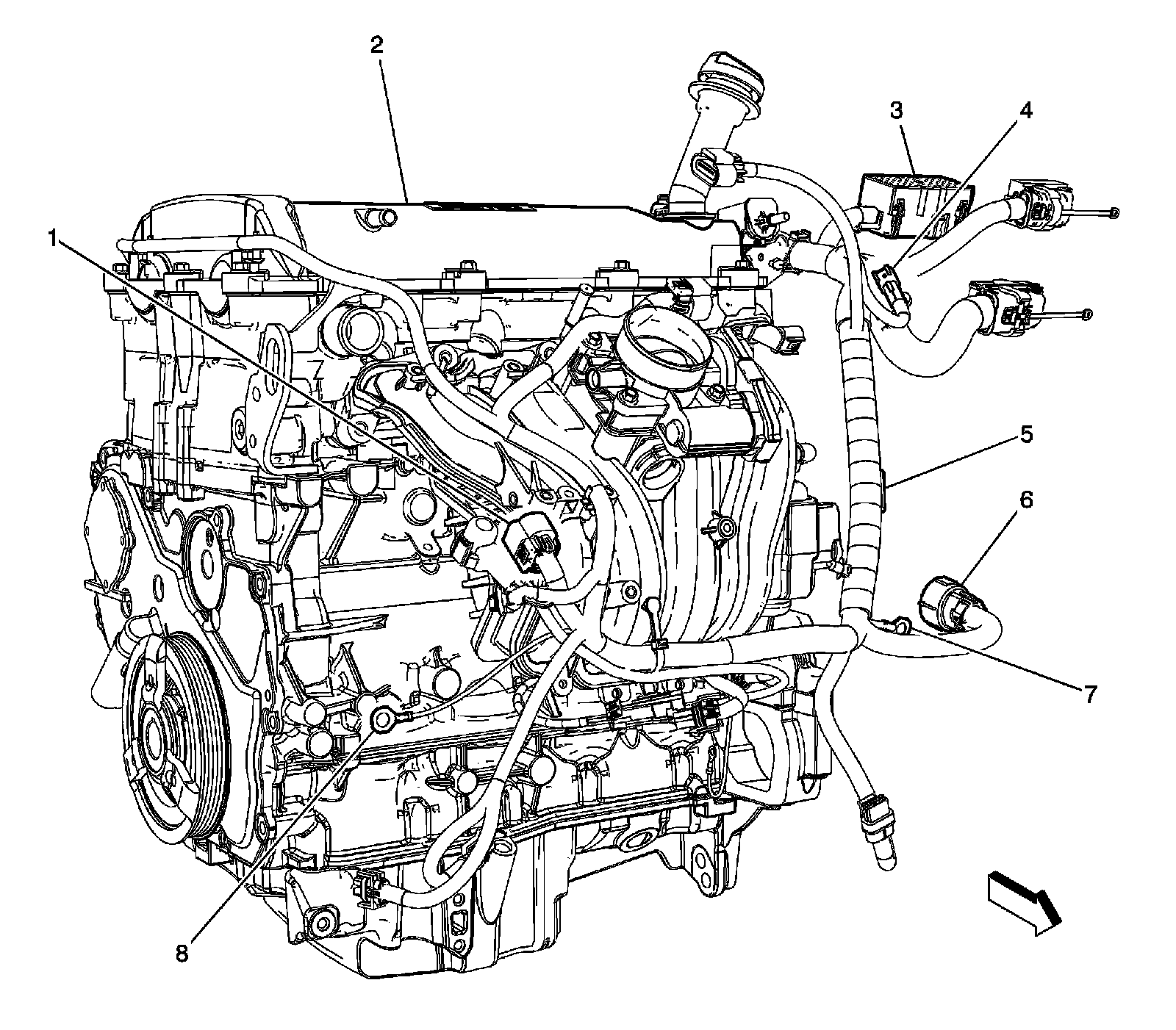

Engine Harness - Front (L61-2.2L)
1 - X160
2 - Engine Valve Cover
3 - Fuse Block - Underhood X1
4 - X101
5 - J103
6 - X100 (MN5)
7 - G107
8 - G105

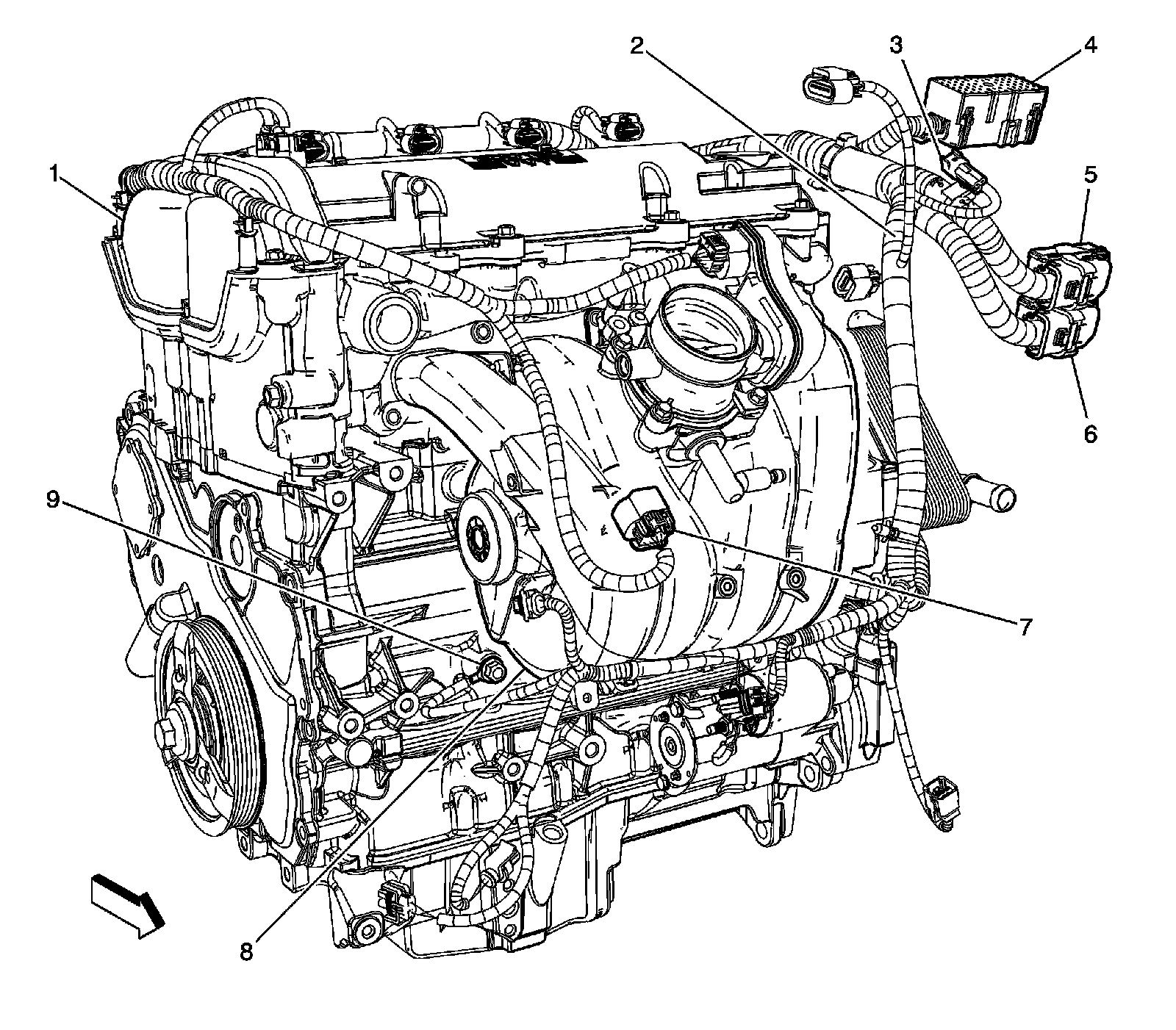

Engine Harness - Front (LE5-2.4L)
1 - Engine Cover
2 - J103
3 - X101
4 - Fuse Block - Underhood X1
5 - Engine Control Module X2
6 - Engine Control Module X3
7 - X160
8 - Intake Manifold
9 - G105

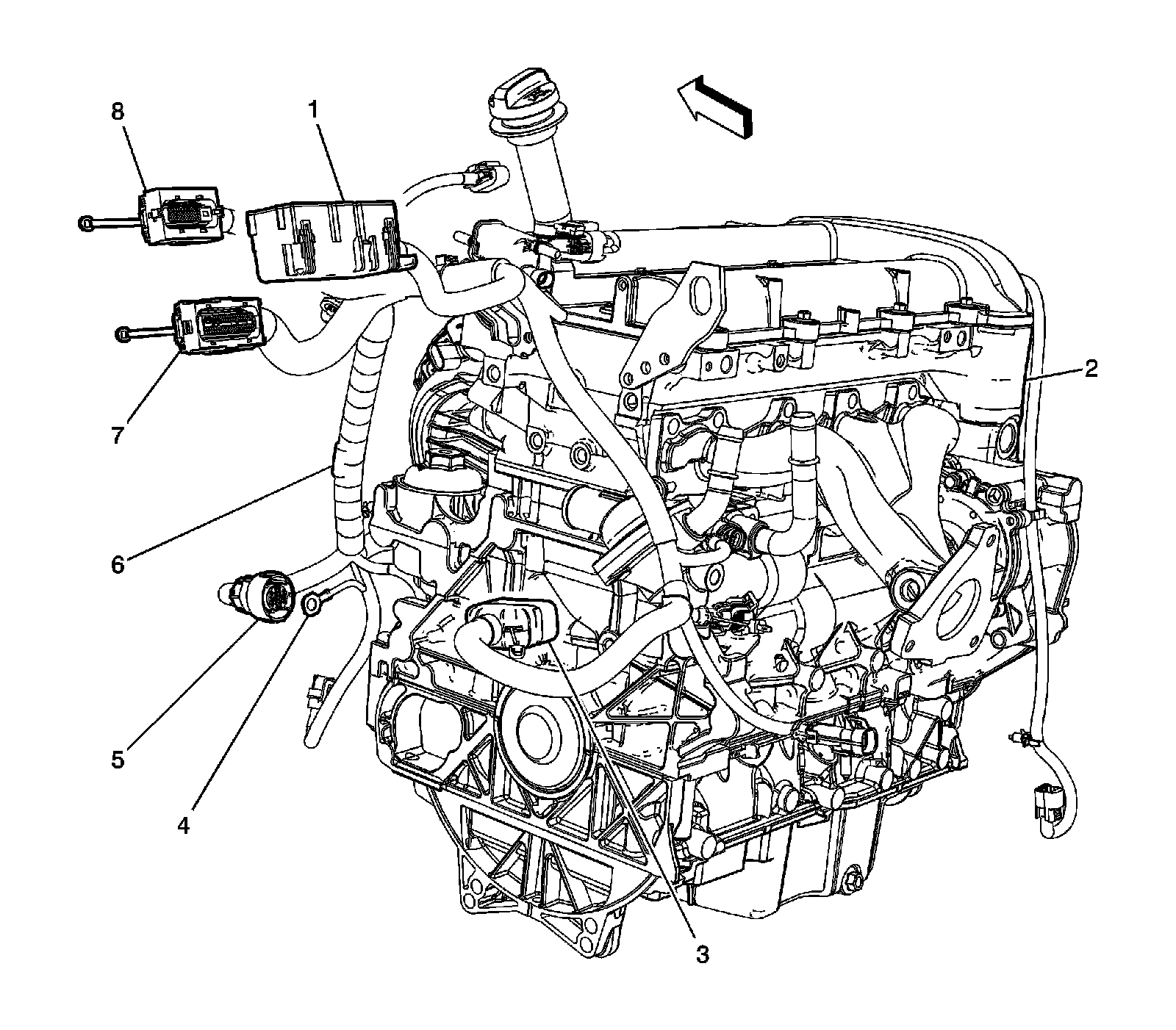

Engine Harness - Rear (L61-2.2L)
1 - Fuse Block - Underhood X1
2 - Engine Block
3 - Neutral Safety Backup Switch Connector
4 - G107
5 - X100
6 - J103
7 - Engine Control Module Connector
8 - Transmission Control Module Connector

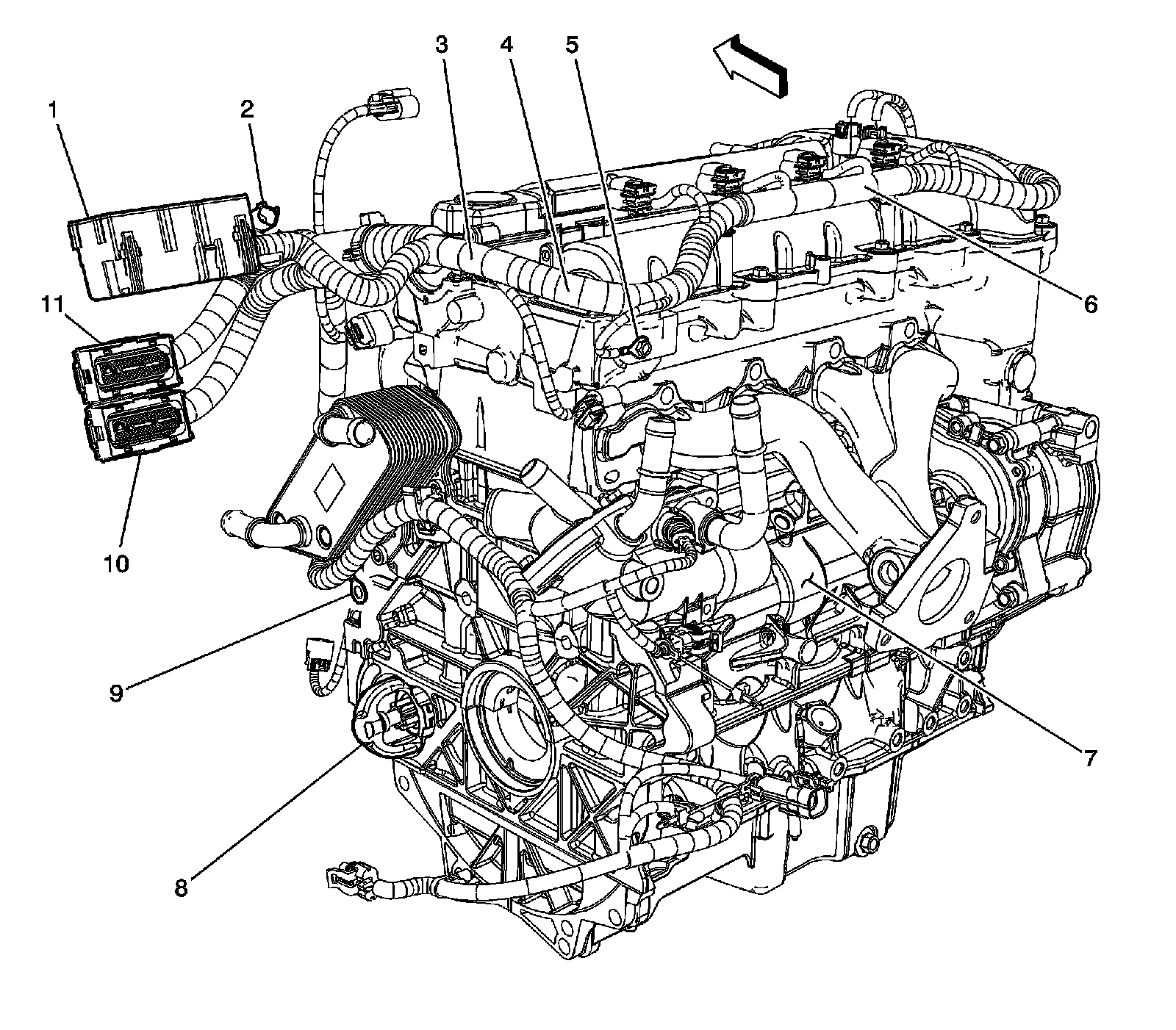

Engine Harness - Rear (LE5-2.4L)
1 - Fuse Block - Underhood X1
2 - X101
3 - J106
4 - J105
5 - G108
6 - J107
7 - Engine Block
8 - Starter
9 - G107
10 - Engine Control Module X3
11 - Engine Control Module X2

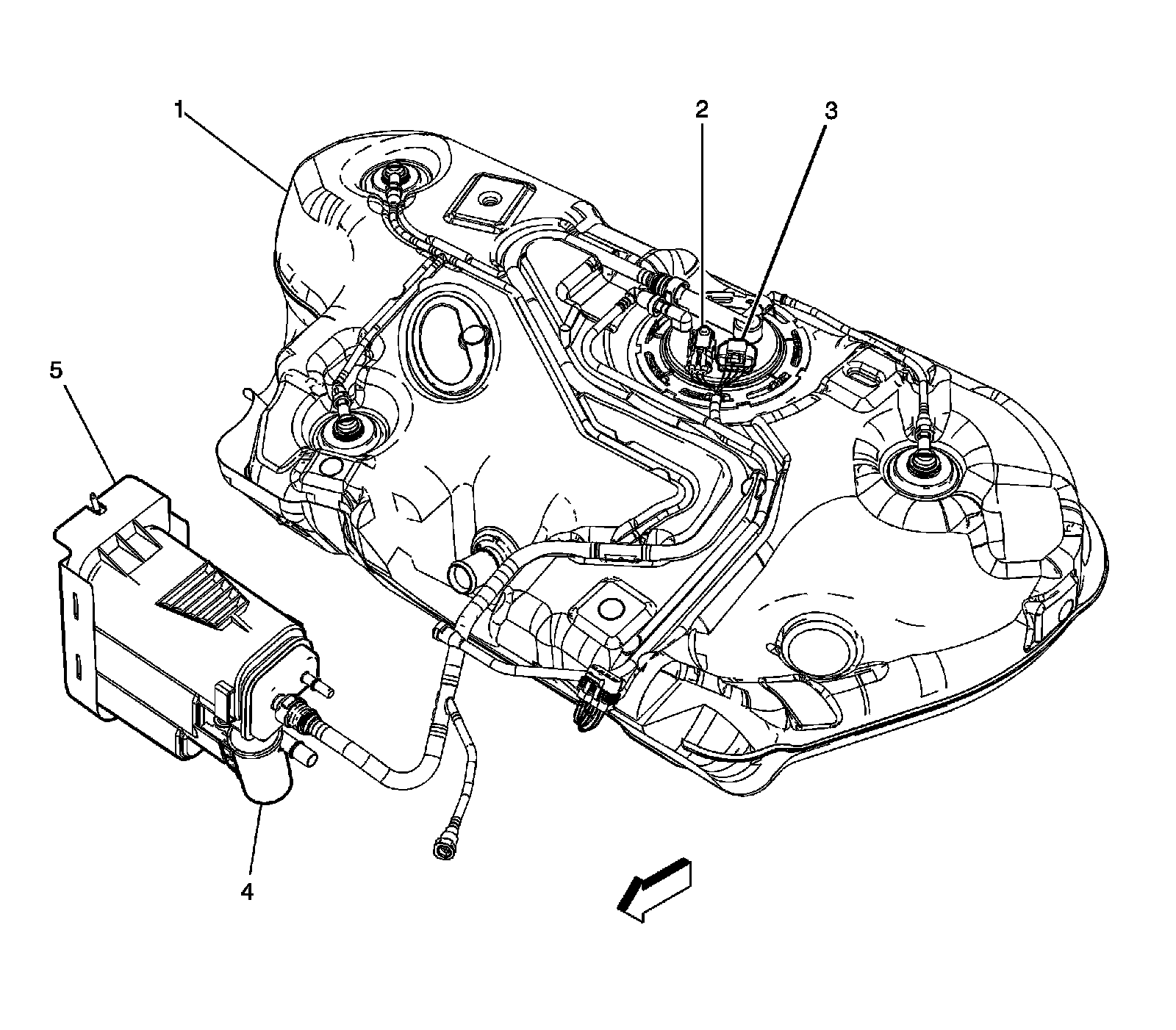

Fuel Tank Components
1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Evaporative Emission (EVAP) Canister

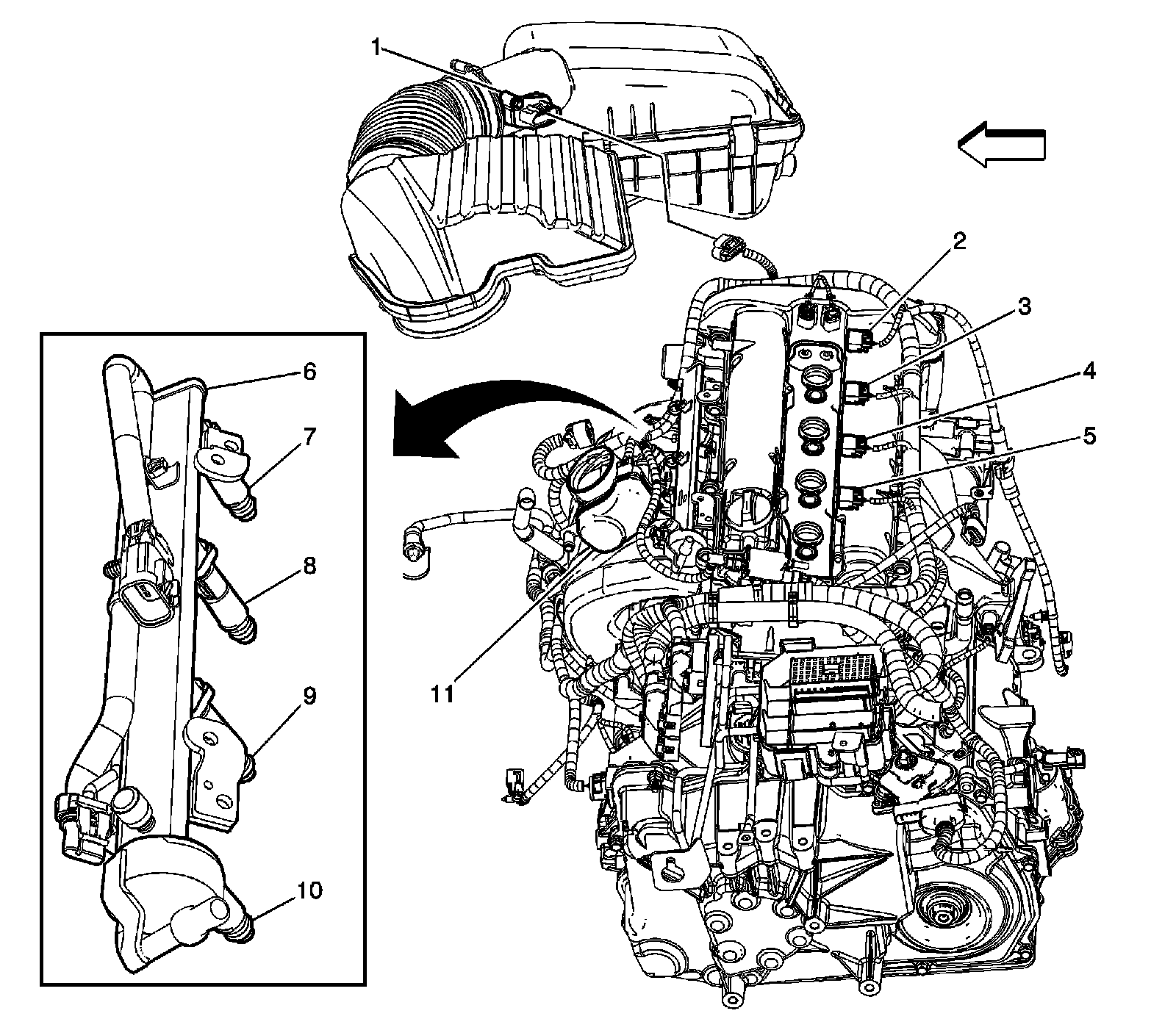

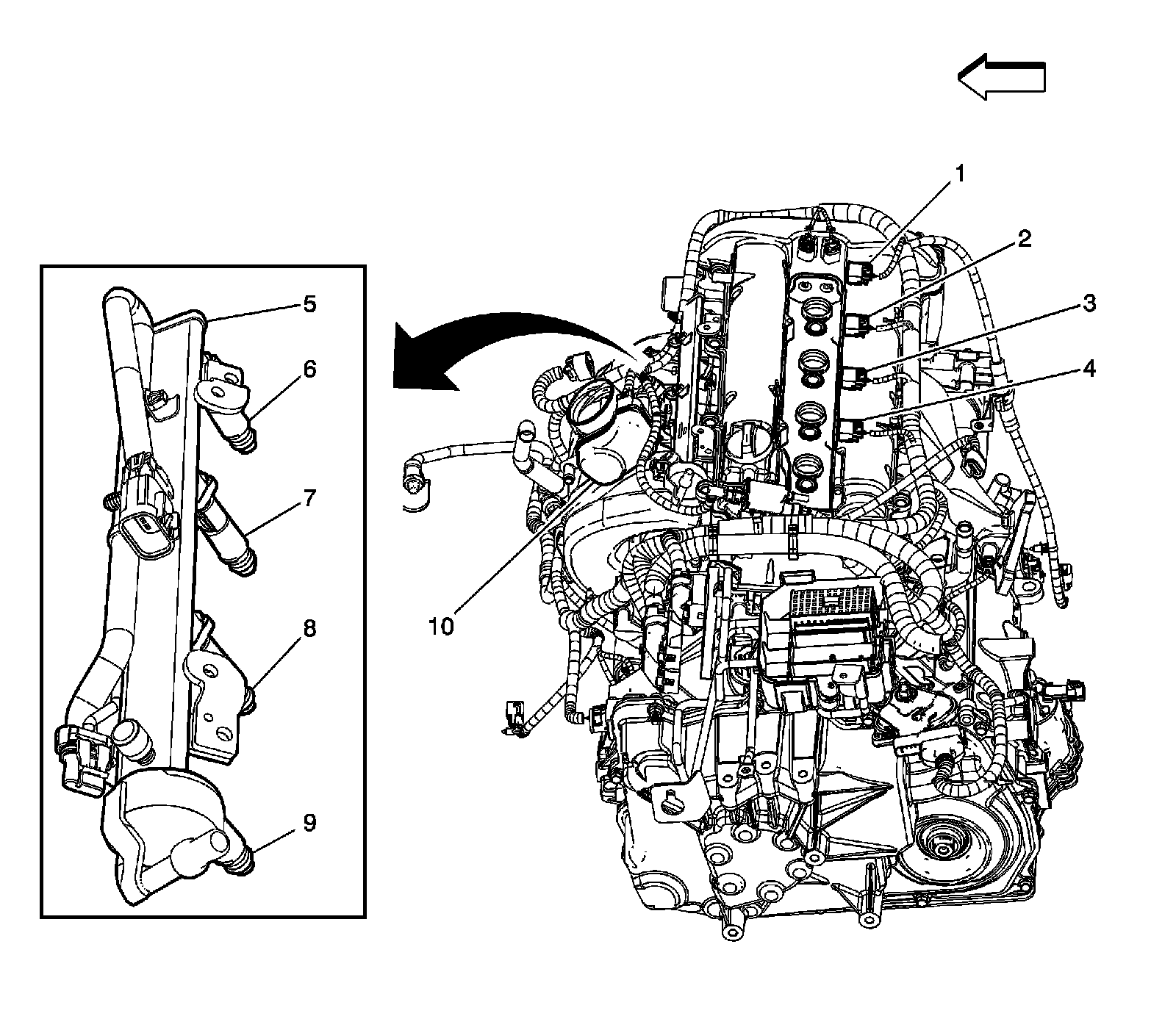

Left Side View of Engine
1 - MAF/IAT Sensor
2 - Ignition Coil Module 1
3 - Ignition Coil Module 2
4 - Ignition Coil Module 3
5 - Ignition Coil Module 4
6 - Fuel Rail
7 - Fuel Injector 1
8 - Fuel Injector 2
9 - Fuel Injector 3
10 - Fuel Injector 4
11 - Throttle Actuator Control (TAC) Module

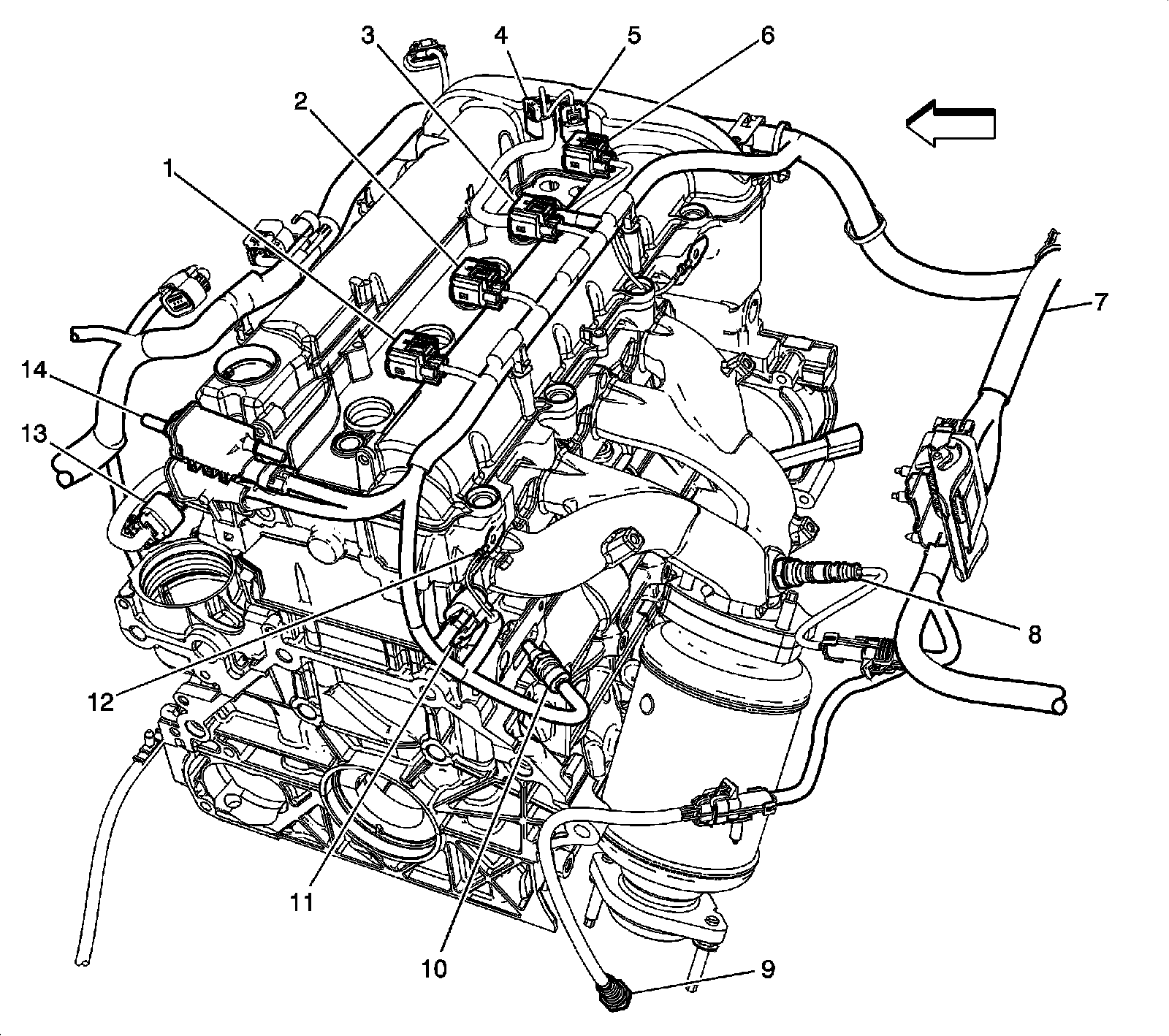

Rear View of Engine
1 - Ignition Coil Module 4
2 - Ignition Coil Module 3
3 - Ignition Coil Module 2
4 - Camshaft Position (CMP) Actuator Solenoid-Intake
5 - Camshaft Position (CMP) Actuator Solenoid-Exhaust
6 - Ignition Coil Module 1
7 - Engine Harness
8 - Heated Oxygen Sensor (HO2S) 1
9 - Heated Oxygen Sensor (HO2S) 2
10 - Engine Coolant Temperature (ECT) Sensor
11 - Camshaft Position (CMP) Sensor (Exhaust)
12 - G108
13 - Camshaft Position (CMP) Sensor (Intake)
14 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

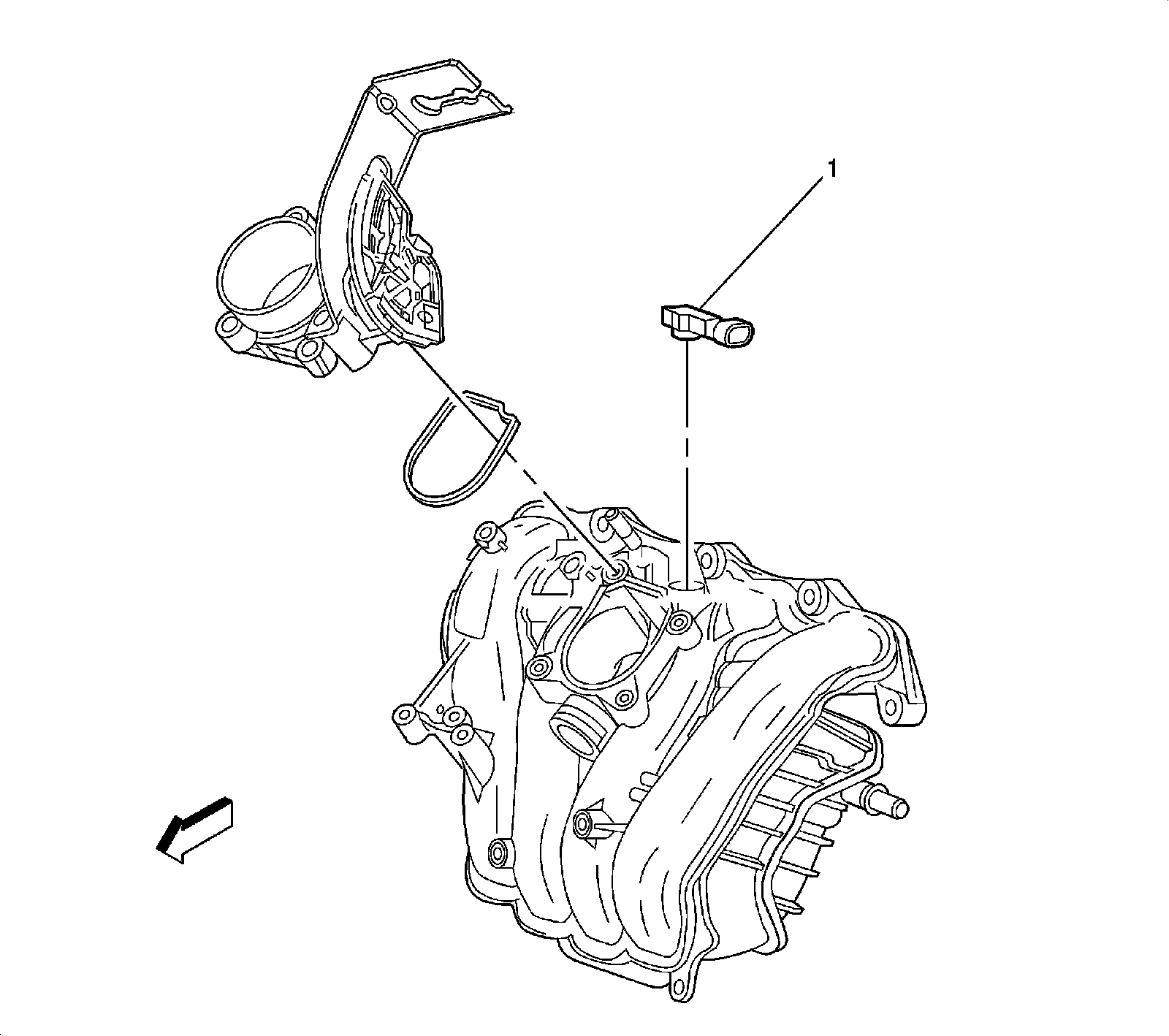

Manifold Absolute Pressue (MAP) Sensor (L61-2.2L)
1 - Manifold Absolute Pressue (MAP) Sensor

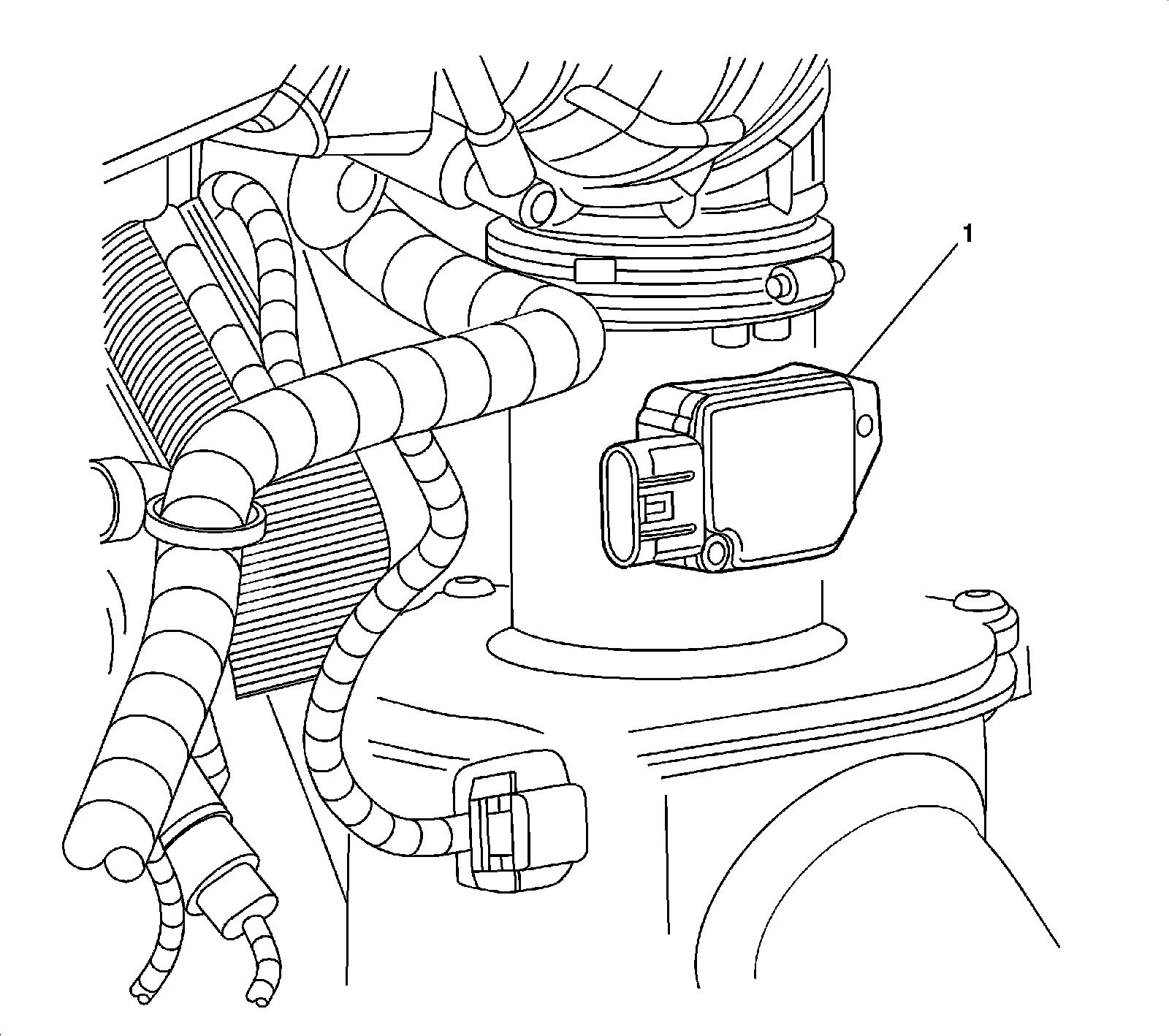

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

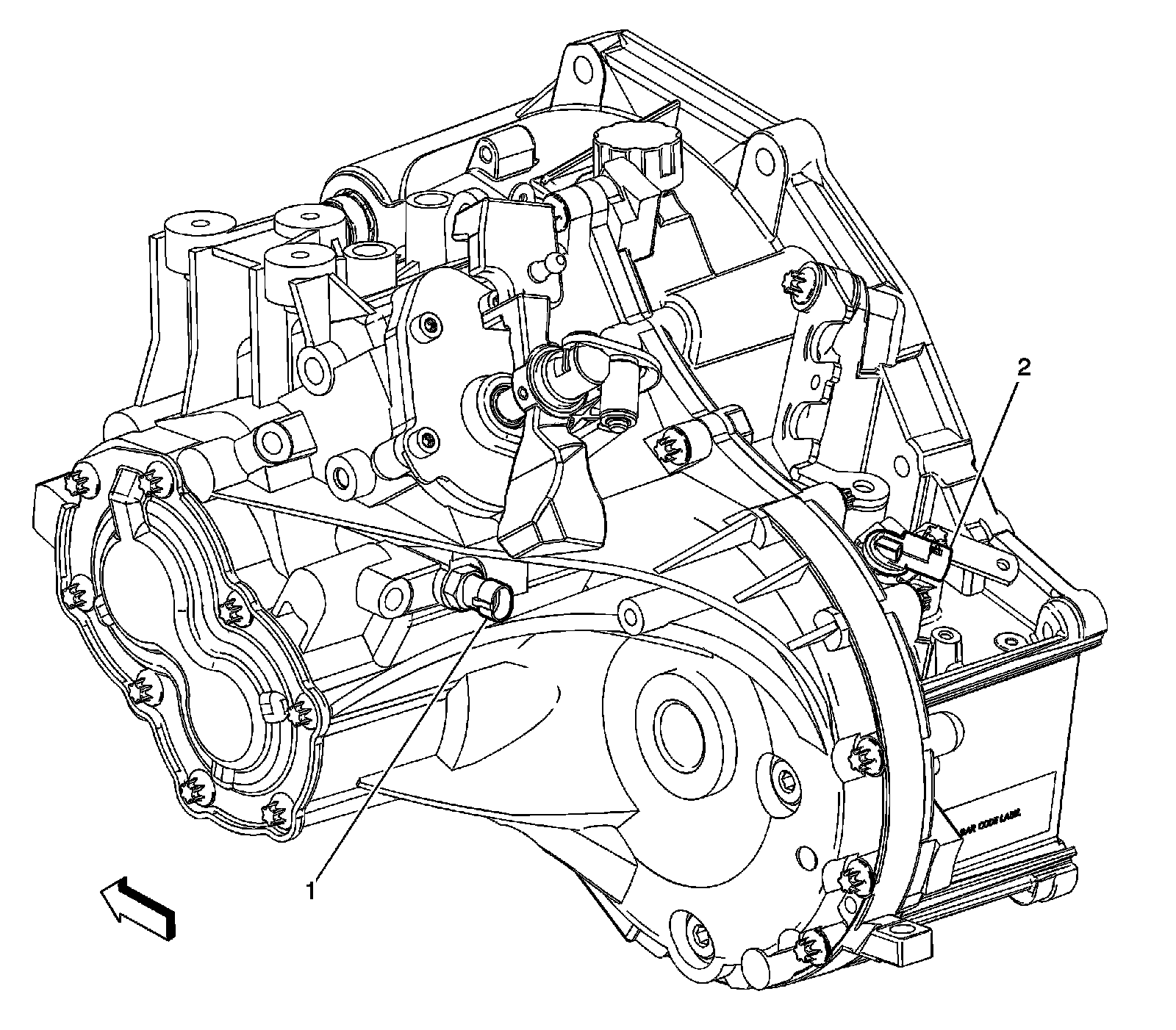

Manual Transmission (M86)
Manual Transmission (M86):
1 - Backup Lamp Switch
2 - Vehicle Speed Sensor

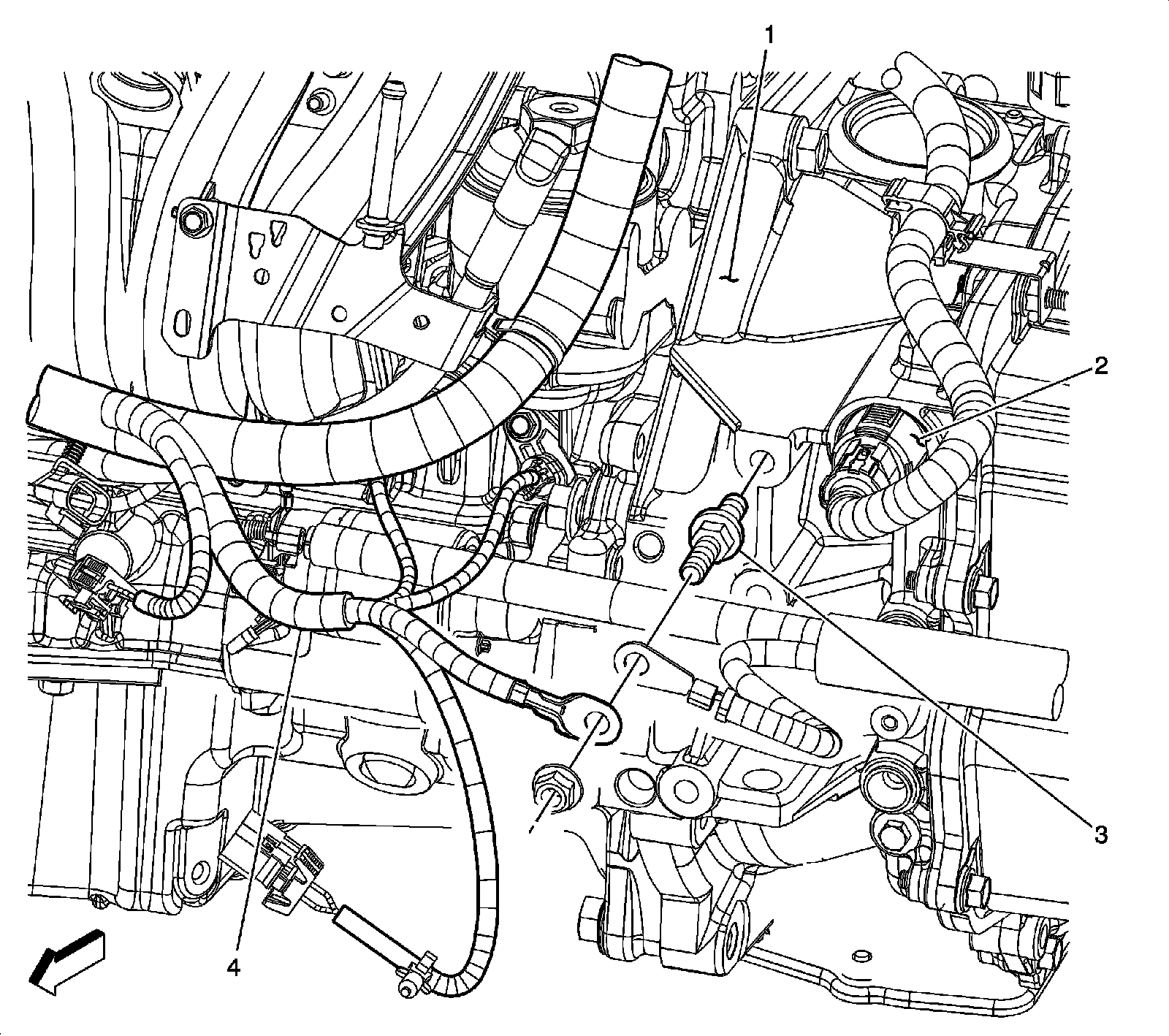

G107
1 - Transmission Case
2 - X100
3 - G107
4 - Engine Harness

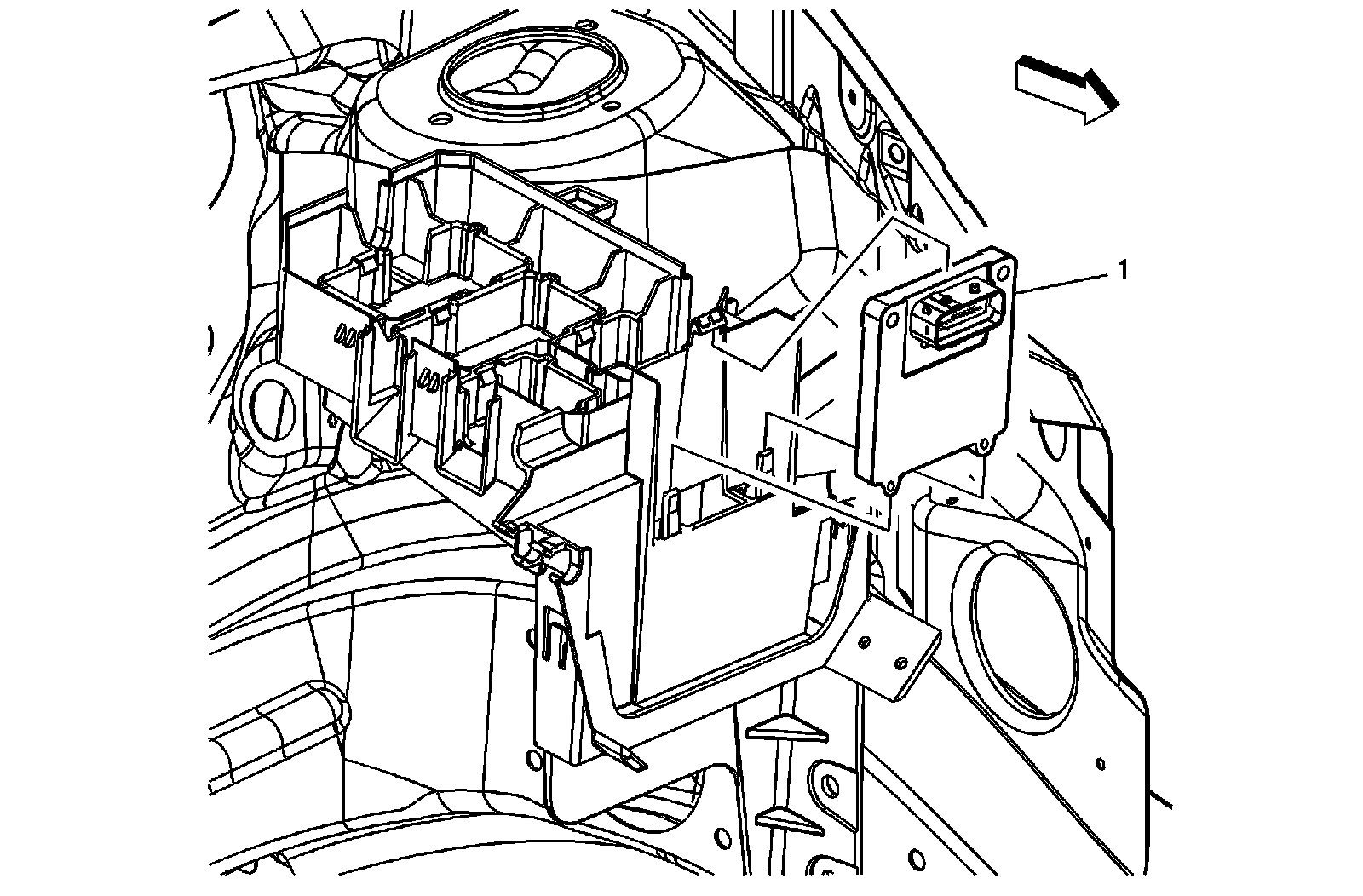

Transmission Control Module (TCM)
Transmission Control Module (TCM):
1 - Transmission Control Module (TCM)
Front of the Engine (L61-2.2L) (1 of 2)
1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Fuel Injector 4
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Camshaft Position (CMP) Sensor - Intake
8 - Knock Sensor (KS)
9 - Engine Oil Pressure (EOP) Switch
10 - Crankshaft Position (CKP) Sensor
11 - Starter Solenoid
12 - Starter
13 - Intake Manifold
Front of the Engine (L61-2.2L) (2 of 2)
1 - Throttle Actuator Control (TAC) Module
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Engine Oil Pressure (EOP) Switch
4 - Crankshaft Position (CKP) Sensor
5 - Knock Sensor (KS)
6 - Starter
7 - Starter Solenoid
Left Side View of Engine
1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3
4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module
