Fuel Injector

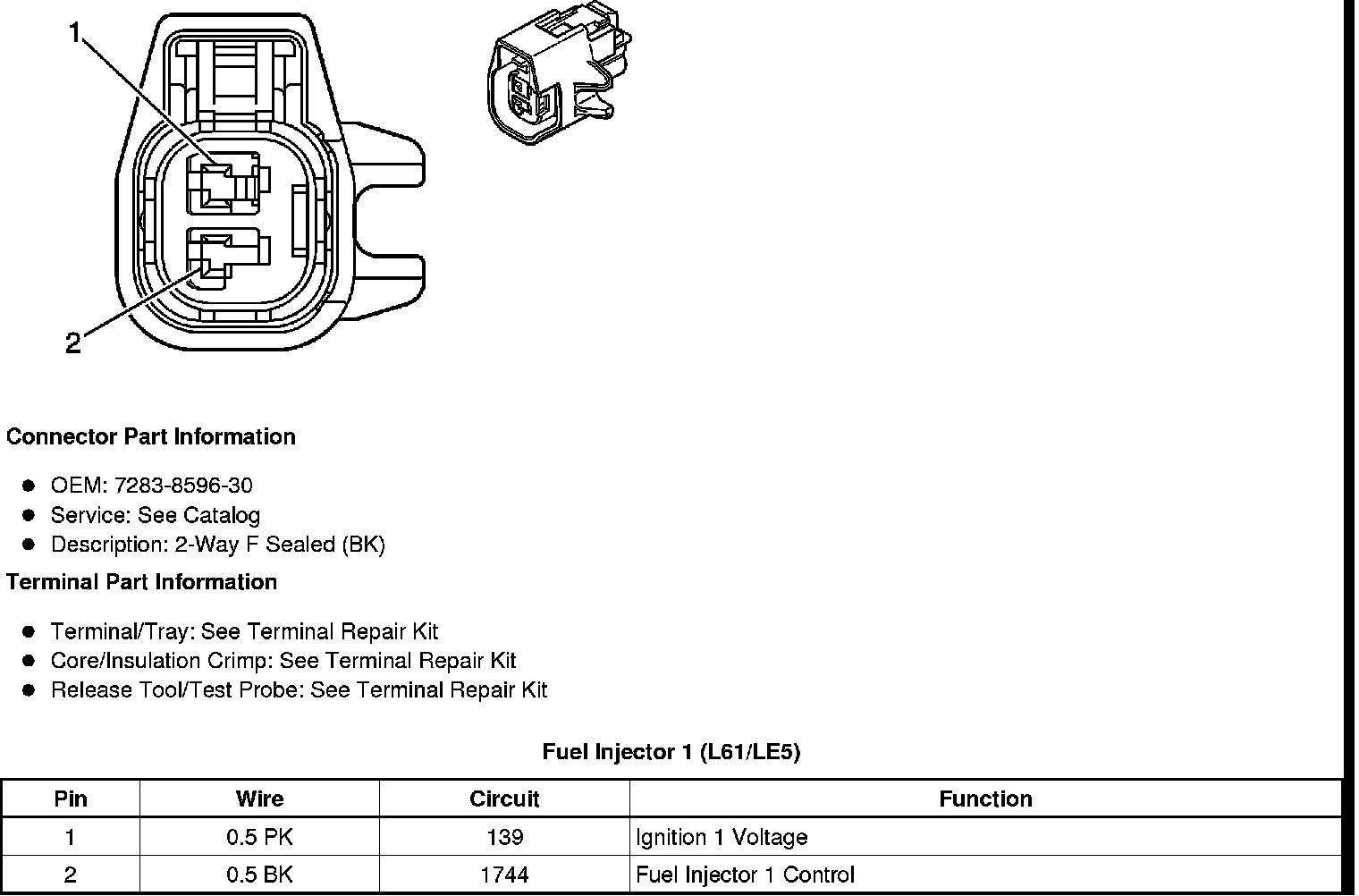

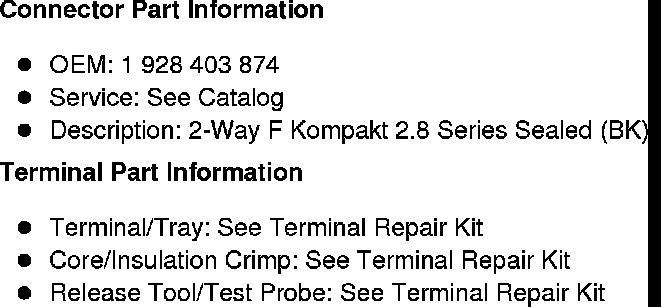

Fuel Injector 1 (L61/LE5)

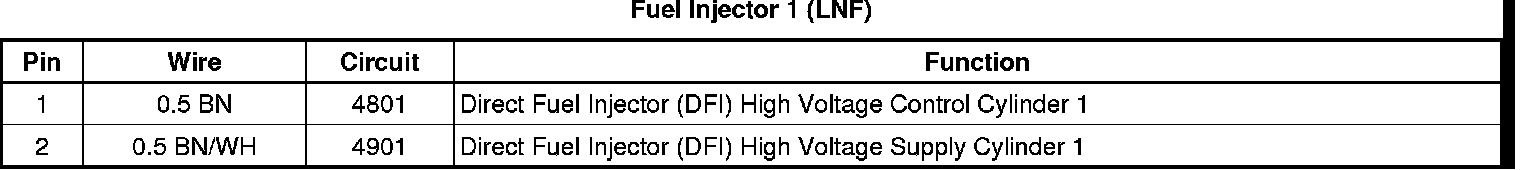

Fuel Injector 1 (LNF)

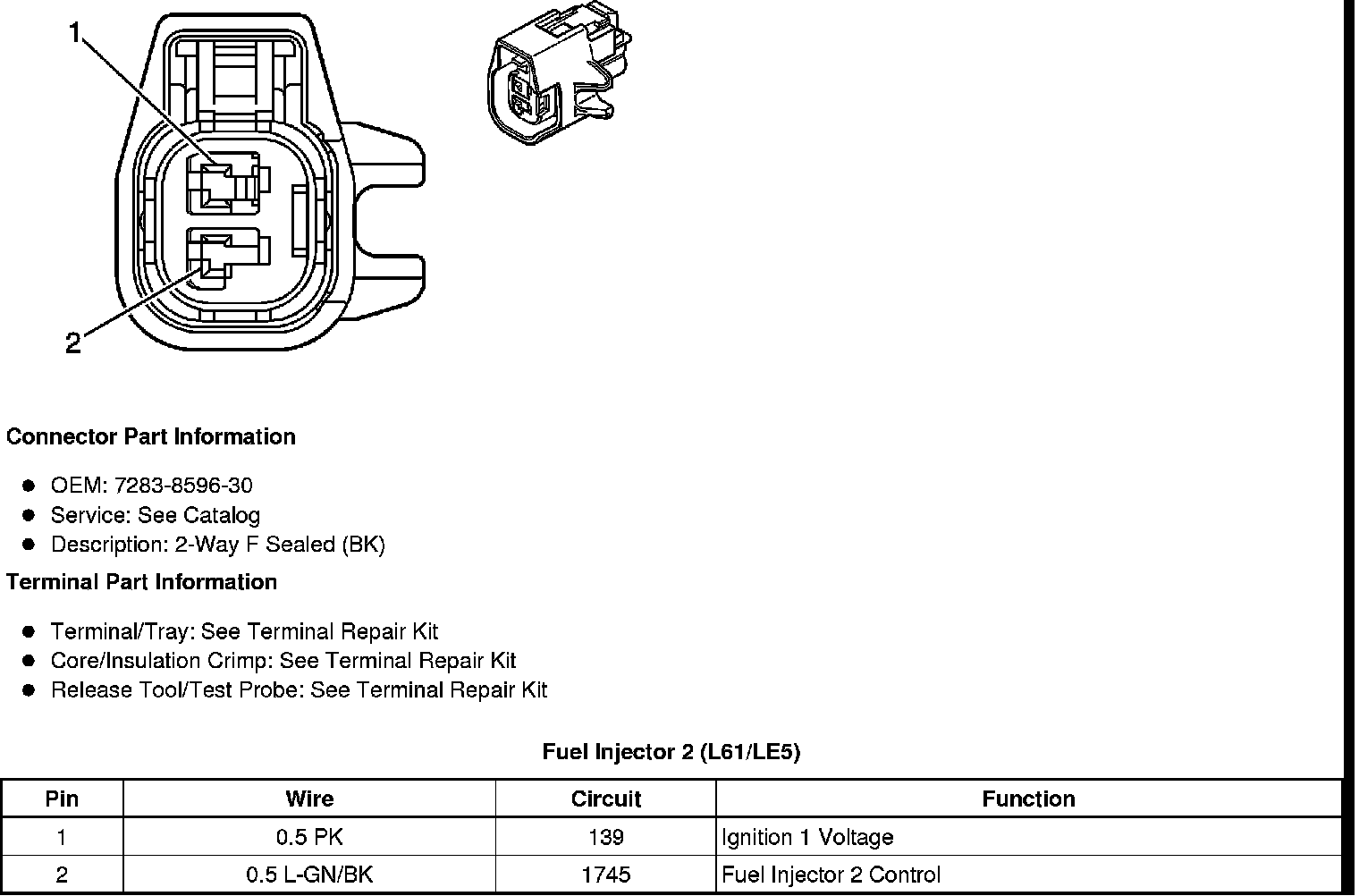

Fuel Injector 2 (L61/LE5)

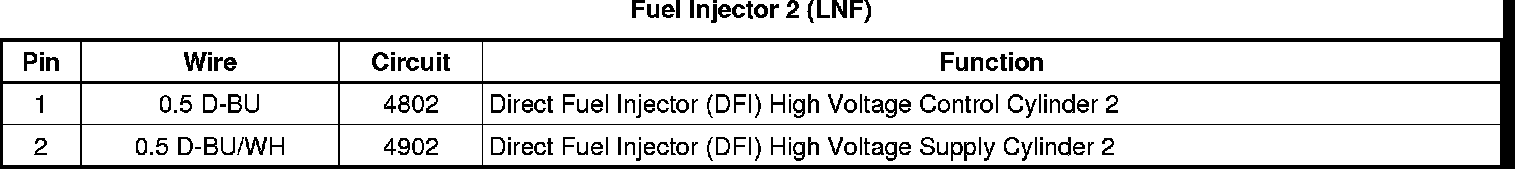

Fuel Injector 2 (LNF)













Fuel Injector 3 (L61/LE5)

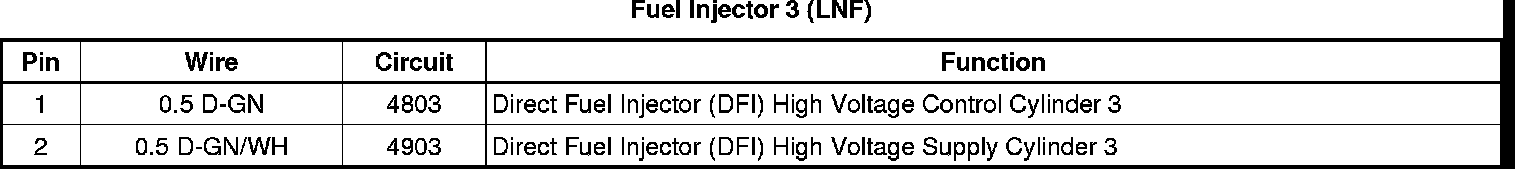

Fuel Injector 3 (LNF)














Fuel Injector 4 (L61/LE5)






Fuel Injector 4 (LNF)
