Power Window Switch

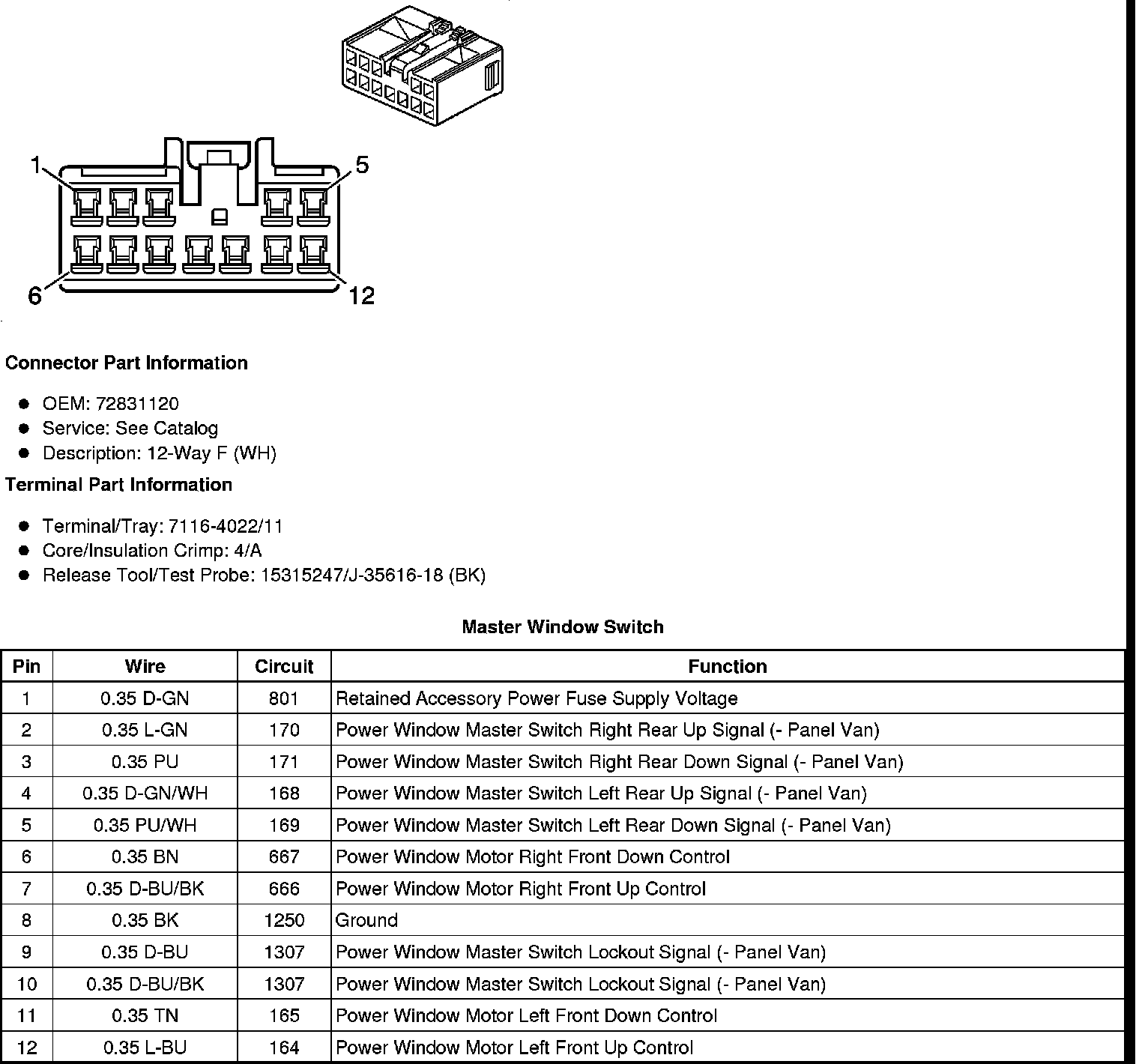

Master Window Switch







Window Switch - Left Rear (without Panel Van)

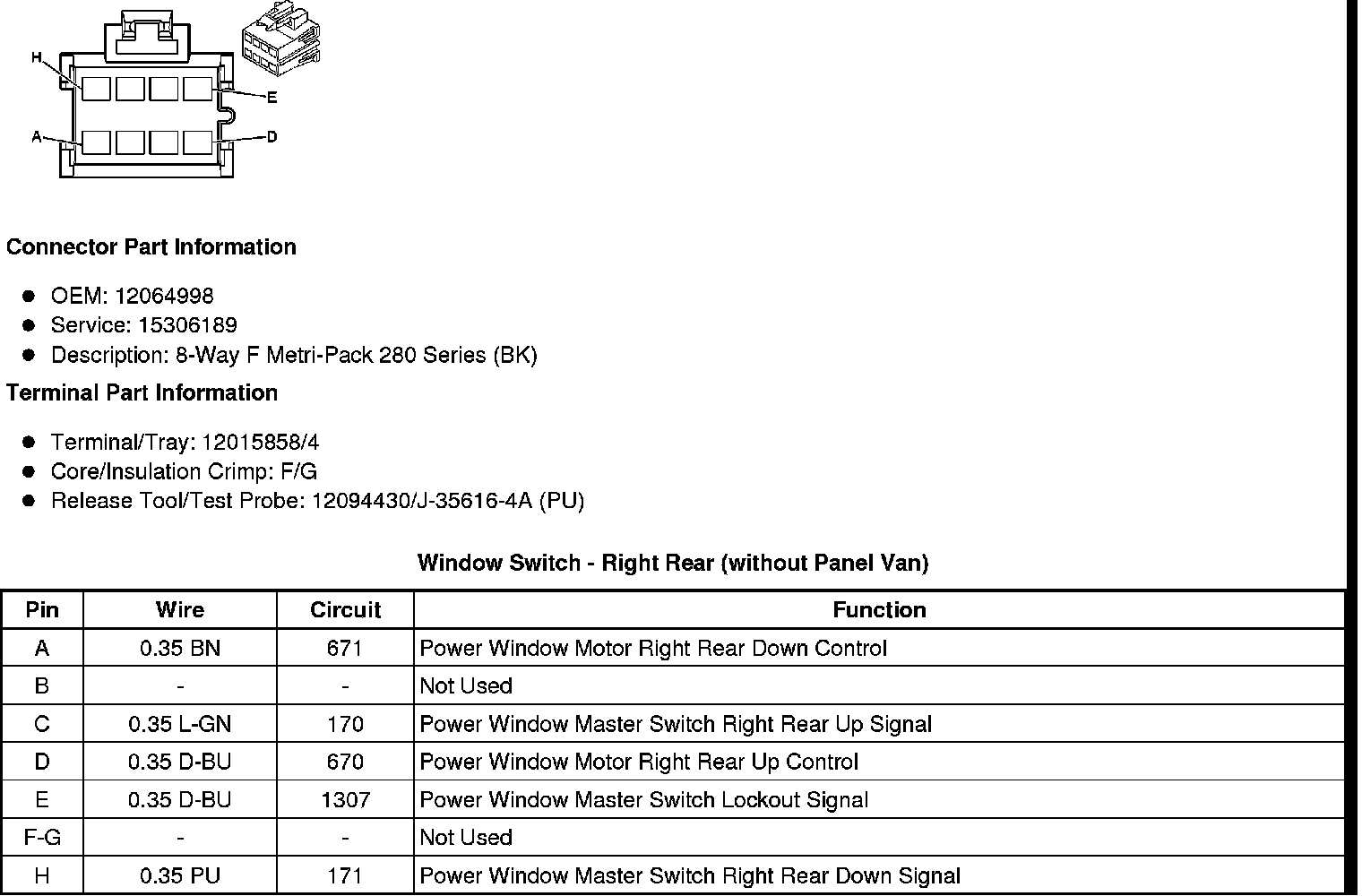

Window Switch - Right Rear (without Panel Van)
