Body Control Systems



Body Control System Schematics

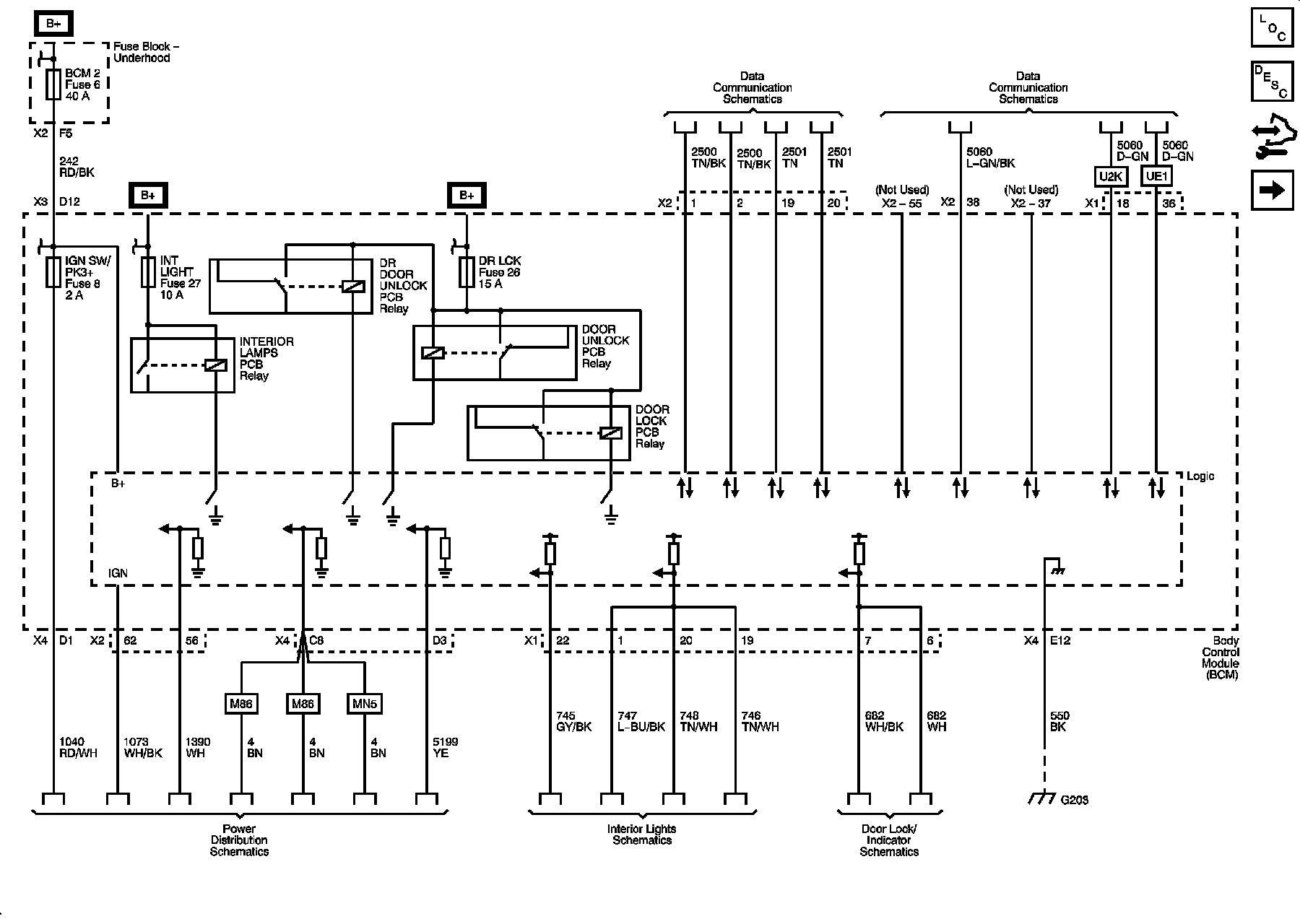

Door Lock Indicators, Power, Ground, Data Link, and Engine References

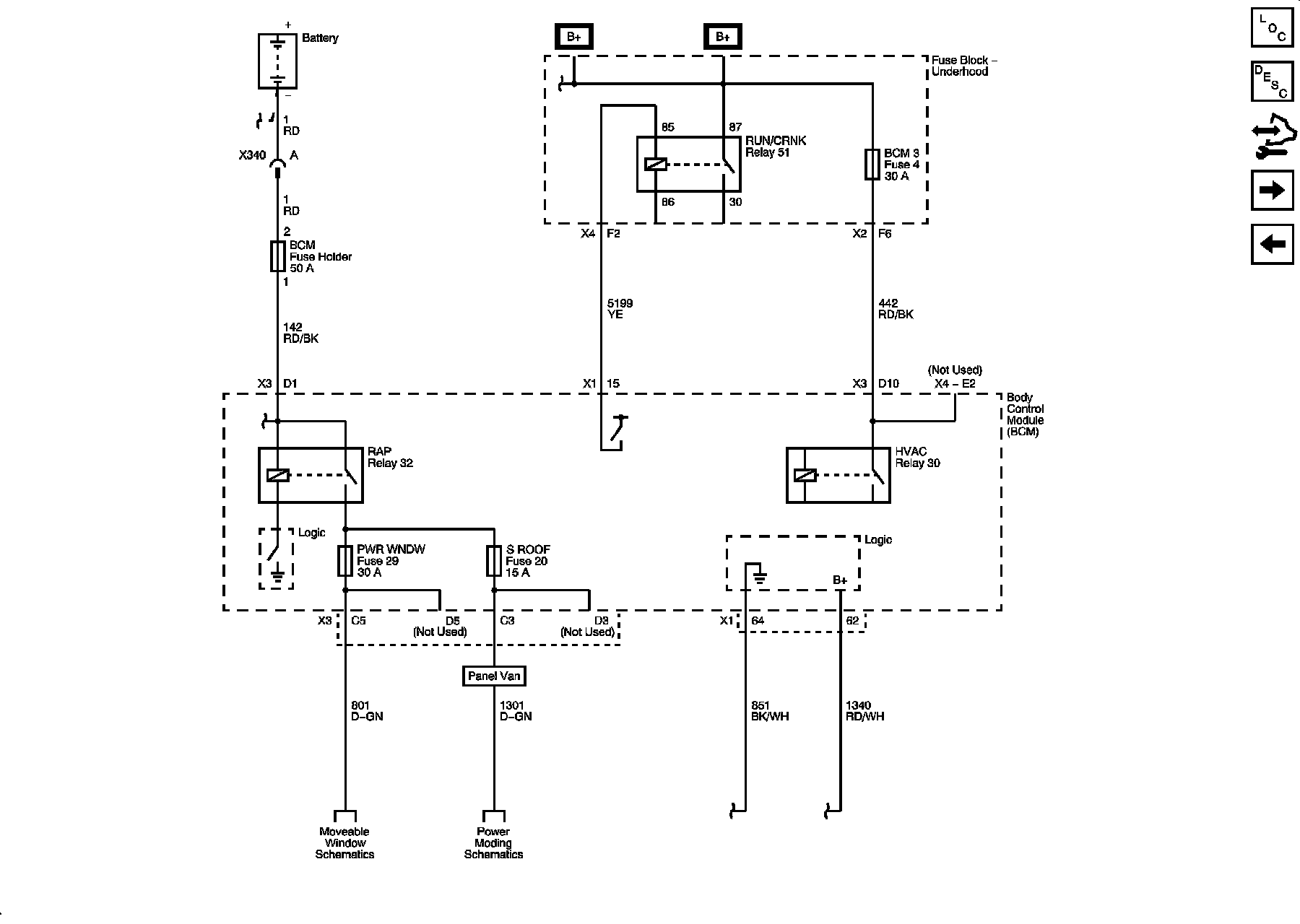

RUN/CRANK, RAP, HVAC Relays, BCM3, PWR Windows, Sunroof Fuses

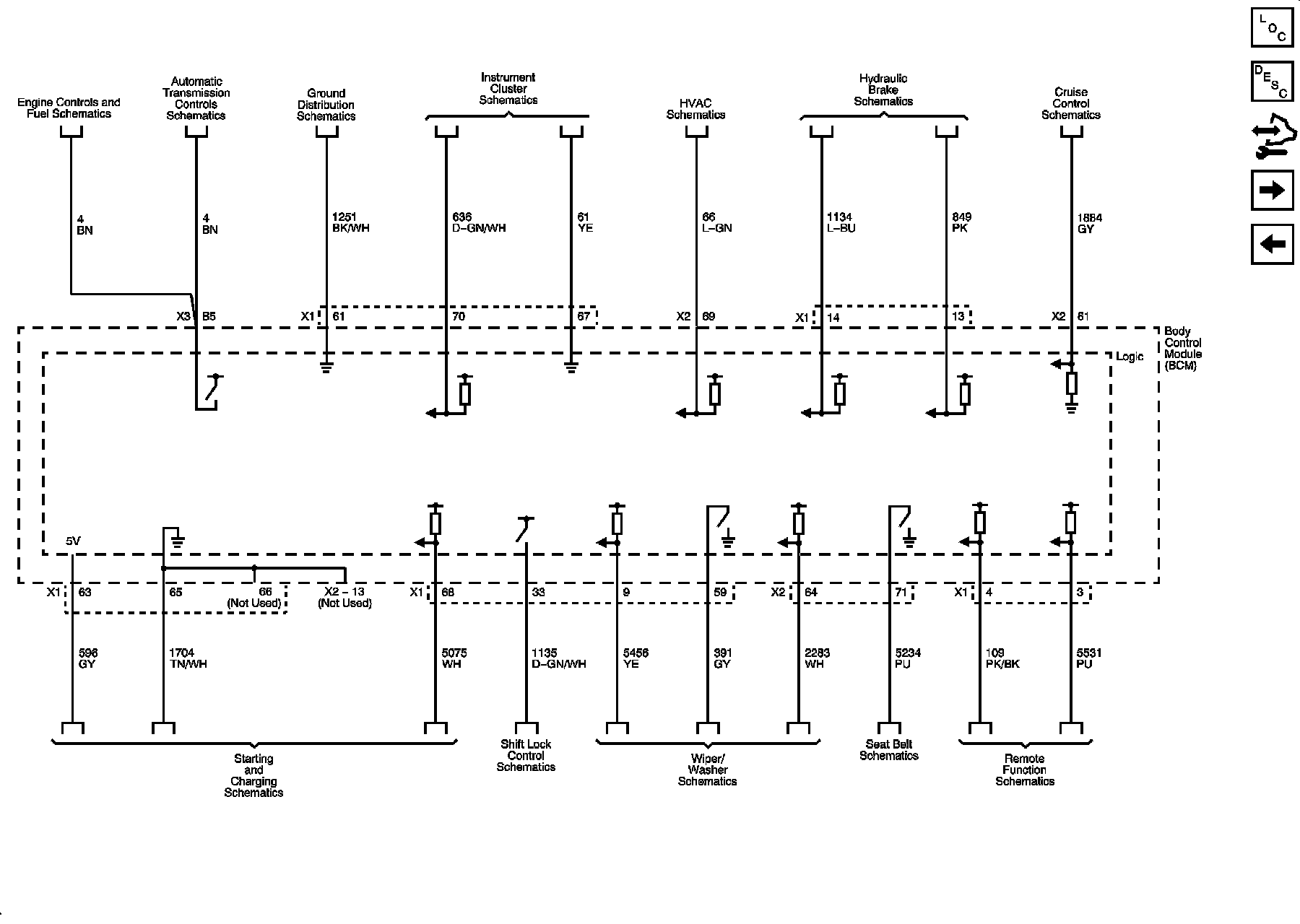

SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls

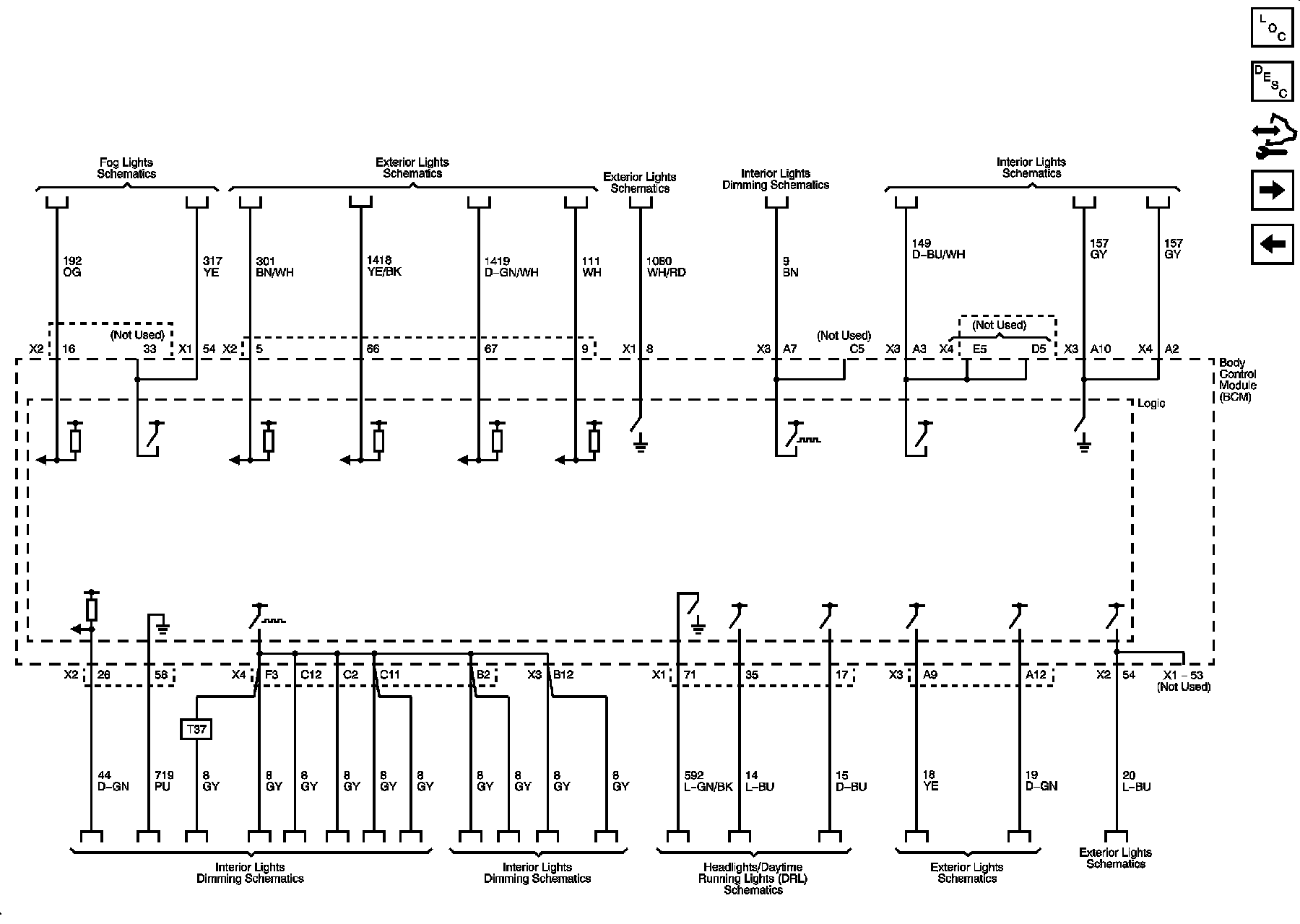

Lighting System References

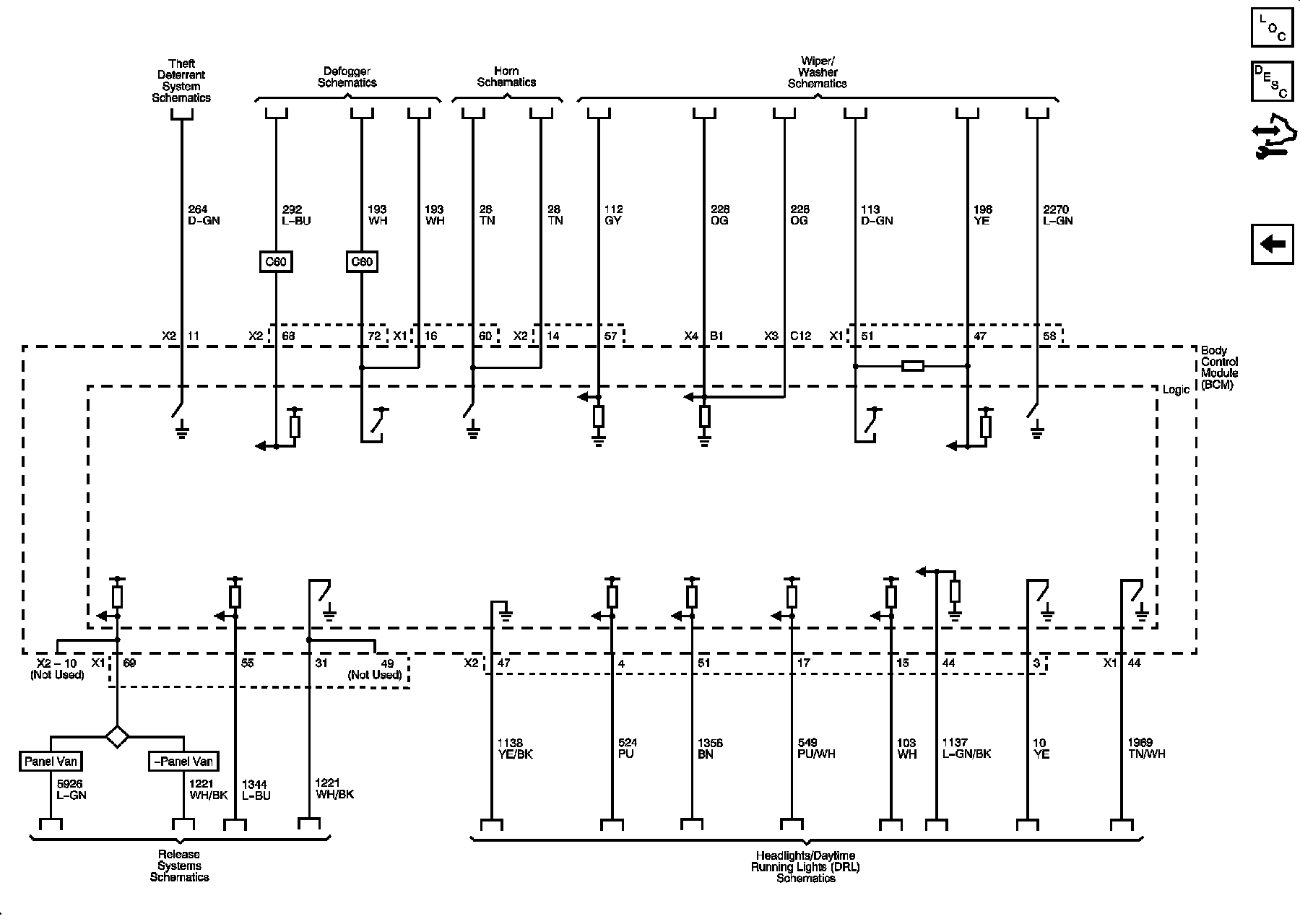

Body Rear End, Defogger, Headlights, DRL, Horns, and Wiper/Washer References
