Component Location

Component Location

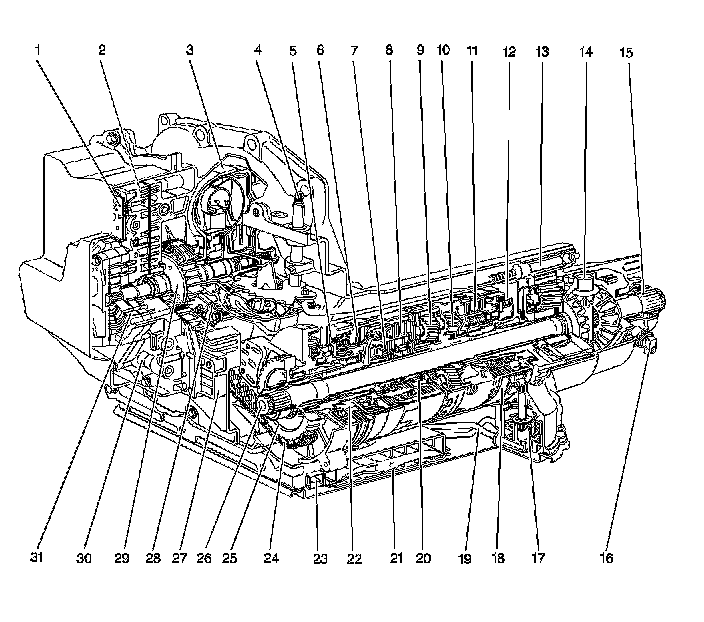

Transmission Major Components

Transmission Major Components:

1 - TFP Manual Valve Position Switch Assembly
2 - Control Valve Body Assembly
3 - Torque Converter Assembly
4 - Manual Shaft and Detent Lever Assembly
5 - 2nd Clutch
6 - Reverse Clutch
7 - Coast Clutch
8 - Direct Clutch
9 - Reaction Planetary Gear Set
10 - Input Planetary Gear Set
11 - Forward Clutch
12 - Lo Roller Clutch
13 - Parking Lock Actuator Assembly
14 - Differential and Final Drive Assembly
15 - Output Stub Shaft
16 - Output Speed Sensor
17 - Lo/Reverse Servo Assembly
18 - Lo/Reverse Band
19 - Oil Feed Tube Assembly
20 - Input Sprag Clutch Assembly
21 - Oil Filter Assembly
22 - 2nd Roller Clutch
23 - Oil Level Control Valve
24 - Drive Link Assembly
25 - Driven Sprocket
26 - Output Shaft
27 - Channel Plate Assembly
28 - Input Speed Sensor
29 - Drive Sprocket
30 - Control Valve Body Assembly
31 - Oil Pump Assembly

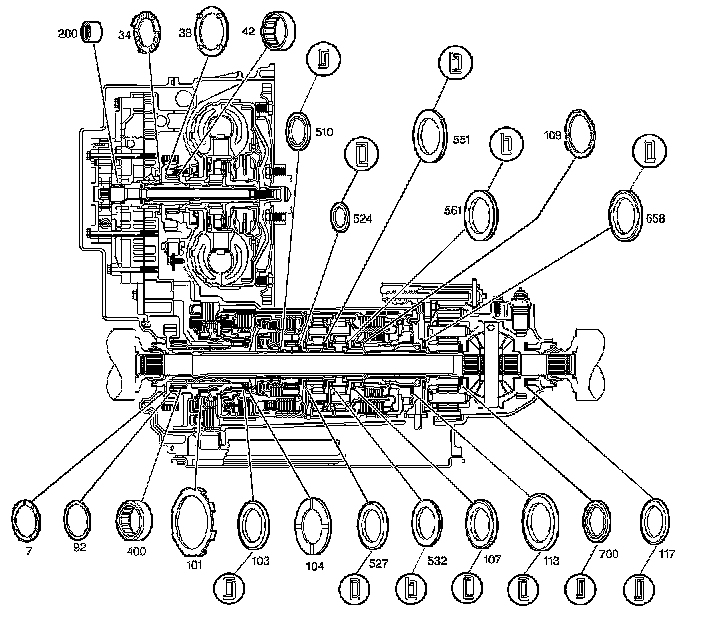

Bushings, Bearings and Washers

Bushings, Bearings and Washers:

7 - Thrust Washer (Side Cover to Driven Sprocket)
34 - Thrust Washer (Channel Plate to Drive Sprocket)
38 - Thrust Washer (Drive Sprocket to Support)
42 - Drive Sprocket Support Bearing
92 - Thrust Washer (Driven Sprocket to Support)
101 - Thrust Washer (Support to Reverse Input Clutch)
103 - Thrust Bearing
104 - Selective Thrust Washer
107 - Thrust Bearing
109 - Thrust Washer
113 - Thrust Bearing
117 - Thrust Bearing
200 - Oil Pump Bearing and Seal Assembly
400 - Driven Sprocket Support Bearing
510 - Thrust Bearing
524 - Thrust Bearing
527 - Thrust Bearing (Carrier Shaft to Shell)
532 - Thrust Bearing (Reaction Carrier to Sun Gear)
551 - Thrust Bearing
561 - Thrust Bearing
658 - Thrust Bearing (Forward Support to Park Gear)
700 - Thrust Bearing

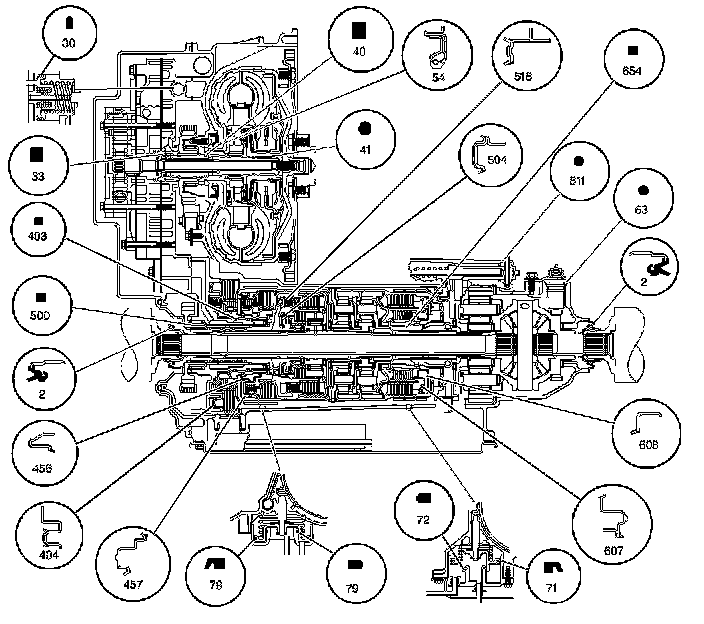

Seals

Seals:

2 - Axle Oil Seal
2 - Axle Oil Seal
30 - Accumulator Piston Seal (1-2, 2-3 and 3-4)
33 - Seal (Turbine Shaft to Channel Plate Sleeve)
40 - O-Ring Seal (Turbine Shaft to Support)
41 - O-Ring Seal (Torque Converter)
54 - Converter Seal
63 - O-Ring Seal (Output Speed Sensor)
71 - Servo Piston Seal (Lo/Reverse)
72 - Servo Cover Seal (Lo/Reverse)
78 - Servo Piston Seal (Intermediate/4th)
79 - Servo Cover Seal (Intermediate/4th)
403 - Oil Seal Ring
404 - 2nd Clutch Piston Assembly
456 - Reverse Clutch Center Retainer and Seal Assembly
457 - Reverse Clutch Piston Assembly
500 - Oil Seal Ring- Input Shaft
504 - Coast Clutch Piston Assembly
518 - Direct Clutch Piston Assembly
607 - Forward Clutch Piston Assembly
608 - Forward Clutch Inner Seal and Sleeve Assembly
654 - Oil Seal Ring (Forward Clutch Support)
811 - Actuator Guide Seal
