Cruise Control Schematics

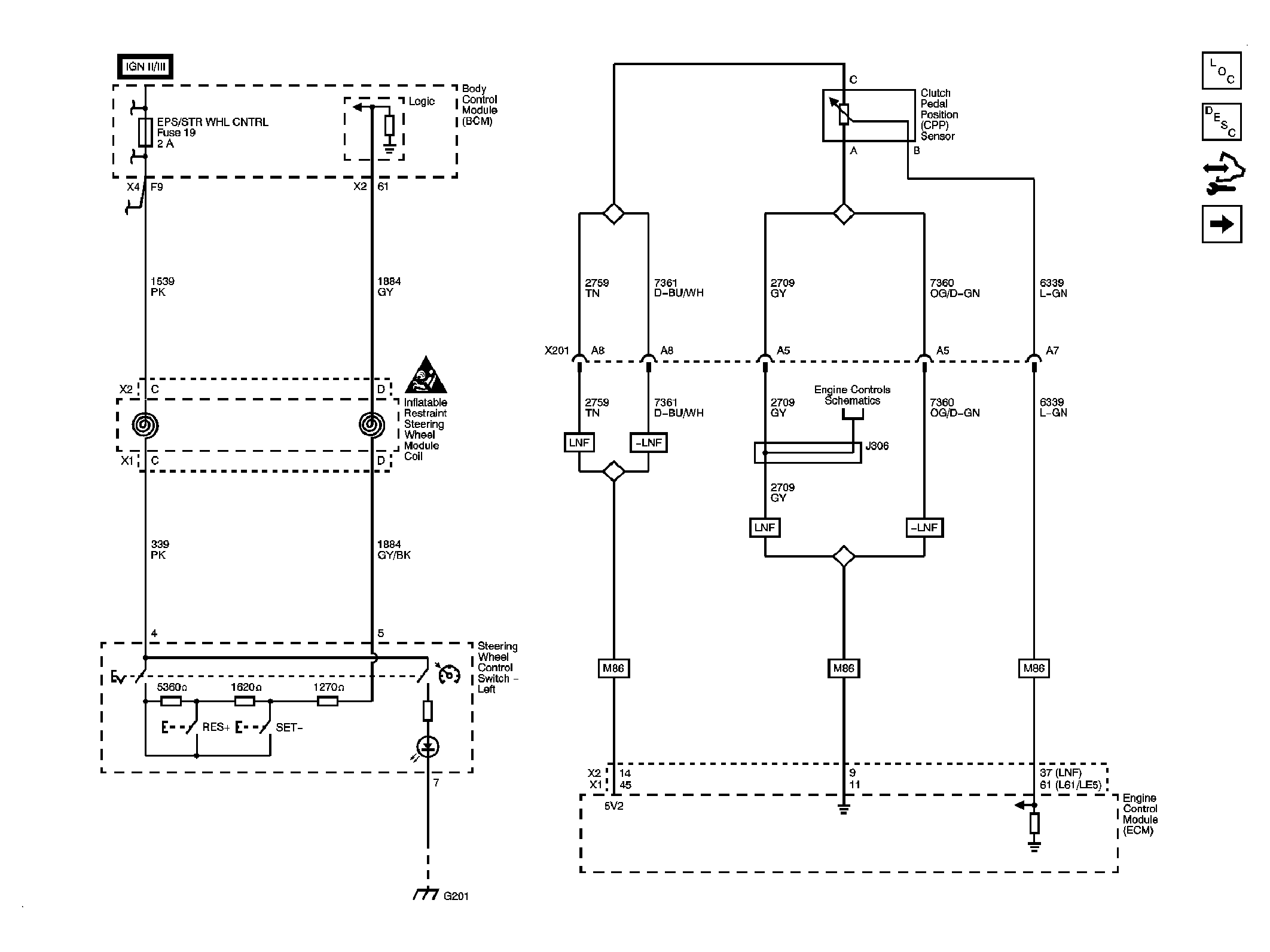

Fig 1: Power, Ground, And Switches Schematic
GM1887489Courtesy of GENERAL MOTORS CORP.

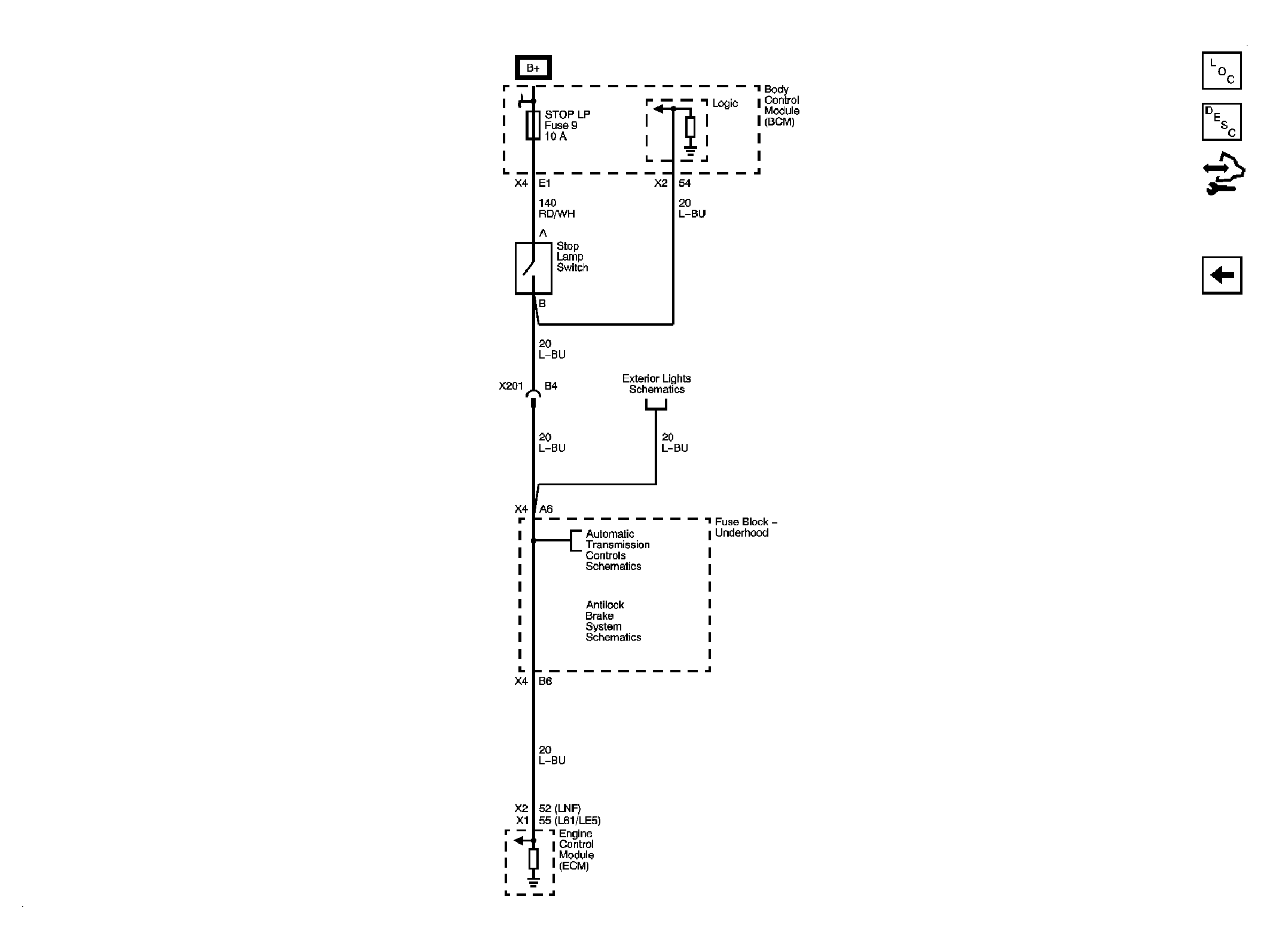

Fig 2: Stop Lamp Switch Schematic
GM1887491Courtesy of GENERAL MOTORS CORP.
