Installation Procedure

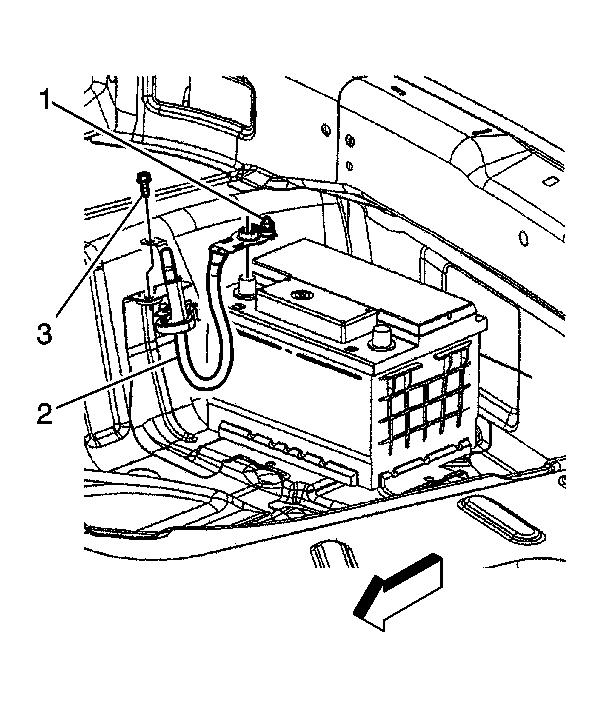

    Fig 1: Battery Negative Cable
    GM1631517Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable (2).
    2. NOTE: Refer to Fastener Notice .
  2. Install the negative battery cable bolt (3) at the support.

    Tighten:  Tighten the bolt to 20 N.m (15 lb ft).

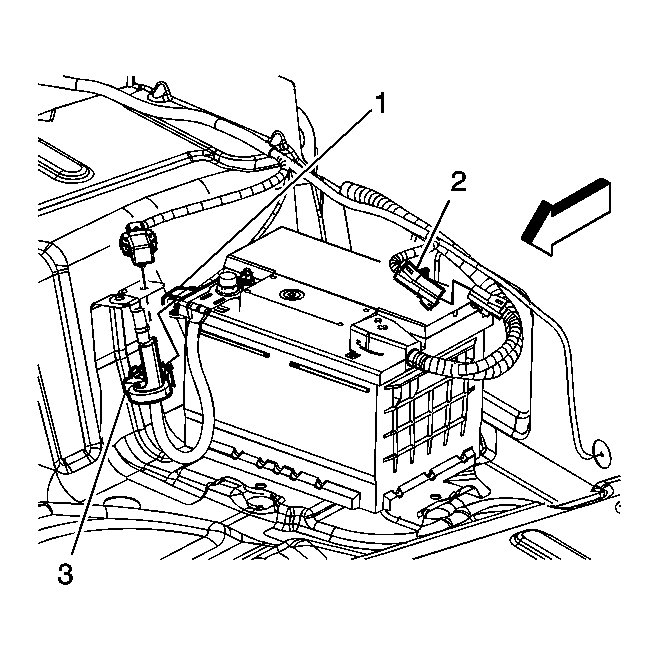

    3. Fig 2: Body Harness Electrical Connector
    GM1631519Courtesy of GENERAL MOTORS CORP.
  3. Connect the body harness electrical connector (1) to the battery current sensor (3).
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
