Powertrain Component Views

Fig 1: Transaxle Electronic Components
GM1982293Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 TFP Manual Valve Position Switch Assembly
2 1-2 Shift Solenoid Valve
3 2-3 Shift Solenoid Valve
4 Output Speed Sensor
5 Input Speed Sensor
6 Pressure Control Solenoid
7 TCC Control PWM Solenoid
Fig 2: View Of Rear Of Engine - L61
GM1394466Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) 1
2 Heated Oxygen Sensor (HO2S) 2
Fig 3: Engine - Rear (LNF)
GM2003400Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Camshaft Position (CMP) Sensor Exhaust
3 Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
4 Turbocharger Wastegate Solenoid (LNF)
5 Turbocharger
6 Heated Oxygen Sensor (HO2S) 2
7 Heated Oxygen Sensor (HO2S) 1
Fig 4: Engine - Top (LNF)
GM2003405Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 2
2 Ignition Coil 3
3 Ignition Coil 4
4 Fuel Injector 4
5 Fuel Injector 3
6 Fuel Injector 2
7 Fuel Injector 1
8 Camshaft Position (CMP) Actuator Solenoid Exhaust
9 Camshaft Position (CMP) Actuator Solenoid Intake
10 Ignition Coil 1

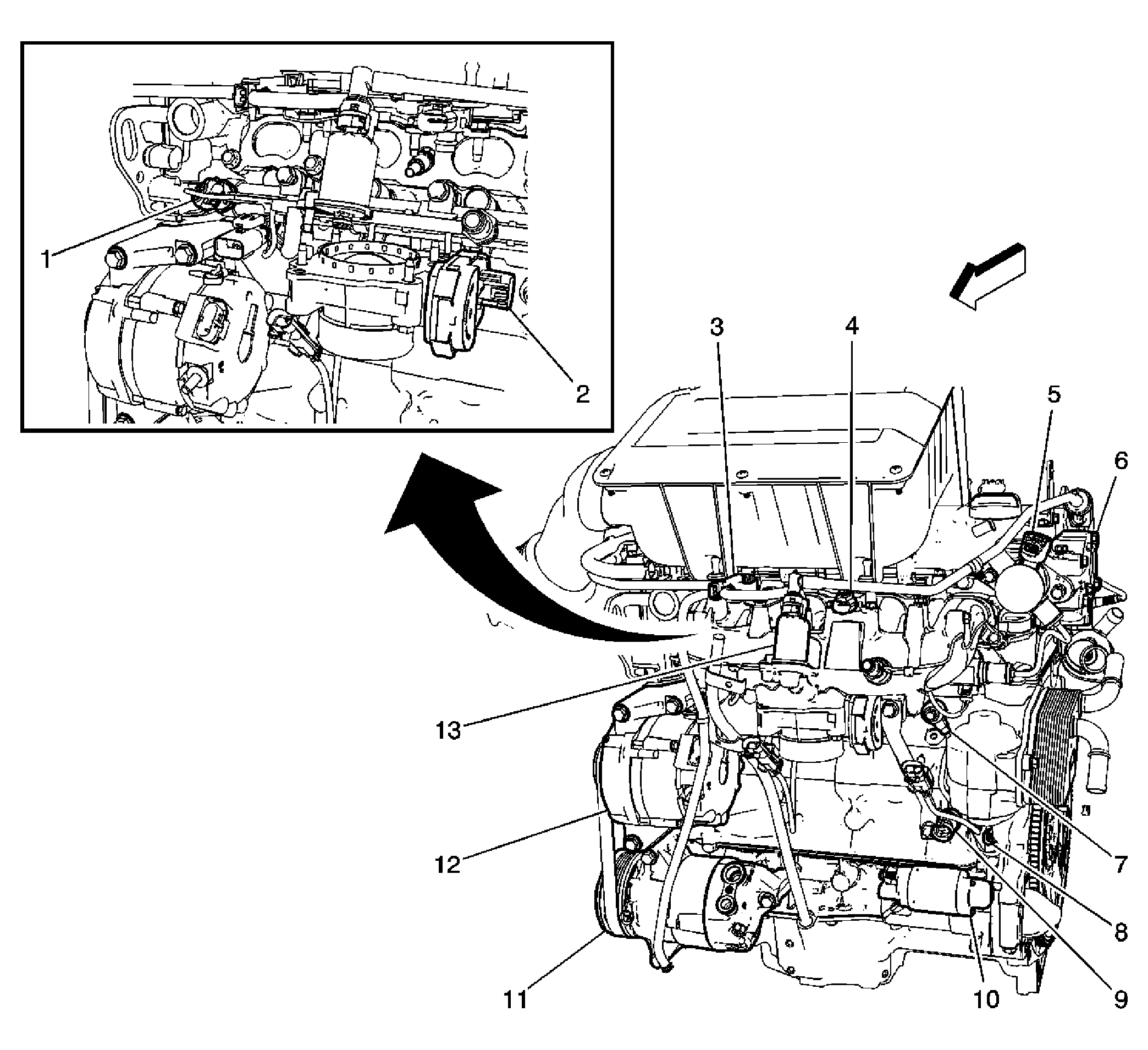

Fig 5: Engine - Front (LNF)
GM2003407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Rail Pressure Sensor (FPS) (LNF)
2 Throttle Actuator Control (TAC) Module
3 Turbo Bypass Valve Solenoid (LNF)
4 Manifold Absolute Pressure (MAP) Sensor
5 High Pressure Fuel Pump (LNF)
6 Camshaft Position (CMP) Sensor Intake
7 Knock Sensor (KS) 1 (LNF)
8 Crankshaft Position (CKP) Sensor
9 Engine Oil Pressure (EOP) Switch
10 Starter
11 A/C Compressor Clutch
12 Generator
13 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Fig 6: Engine With Transmission (LNF/MN5)
GM2004458Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X100 (MN5)
2 Engine (LNF)
3 Heated Oxygen Sensor (HO2S) 1
4 Vehicle Speed Sensor (OSS/VSS) (MN5)
5 Heated Oxygen Sensor (HO2S) 2
6 Park Neutral Position (PNP) Switch (MN5)
7 Transmission (MN5)
Fig 7: Engine With Transmission (LNF/MU3)
GM2004516Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission (MU3)
2 Backup Lamp Switch (MU3)
3 Engine (LNF)
4 Heated Oxygen Sensor (HO2S) 1
5 Vehicle Speed Sensor (VSS) (MU3)
6 Heated Oxygen Sensor (HO2S) 2
Fig 8: Top Front Of Engine Component View
GM1540536Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Fuel Injector 4
Fig 9: Rear Of The Engine Block (L61)
GM1546086Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Engine Block
Fig 10: Left Side Of The Engine Compartment
GM1546023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM) (MN5)
2 Left Front Strut Tower
3 Engine Control Module (ECM)
4 Electronic Brake Control Module (EBCM) (JM4/JL9)
5 Fuse Block - Underhood Bracket
Fig 11: Front Of The Engine
GM1555577Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Manifold Absolute Pressure (MAP) Sensor
5 Fuel Injector 4
6 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
7 Camshaft Position (CMP) Sensor - Intake
8 Knock Sensor (KS)
9 Engine Oil Pressure (EOP) Switch
10 Crankshaft Position (CKP) Sensor
11 Starter Solenoid
12 Starter
13 Intake Manifold

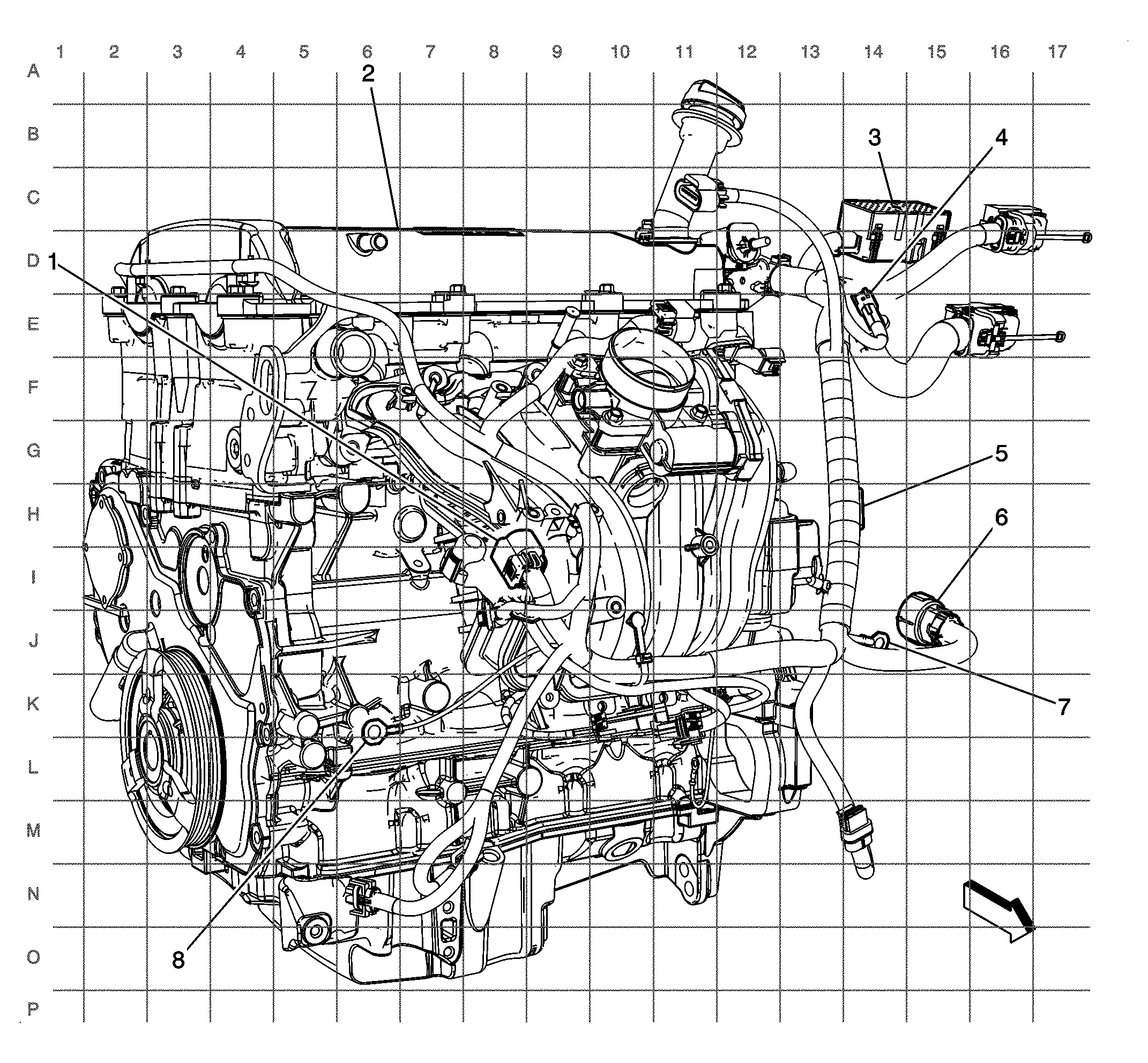

Fig 12: Engine Harness - Front (L61)
GM1592505Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X160
2 Engine Valve Cover
3 Fuse Block - Underhood X1
4 X101
5 J103
6 X100 (MN5)
7 G107
8 G105

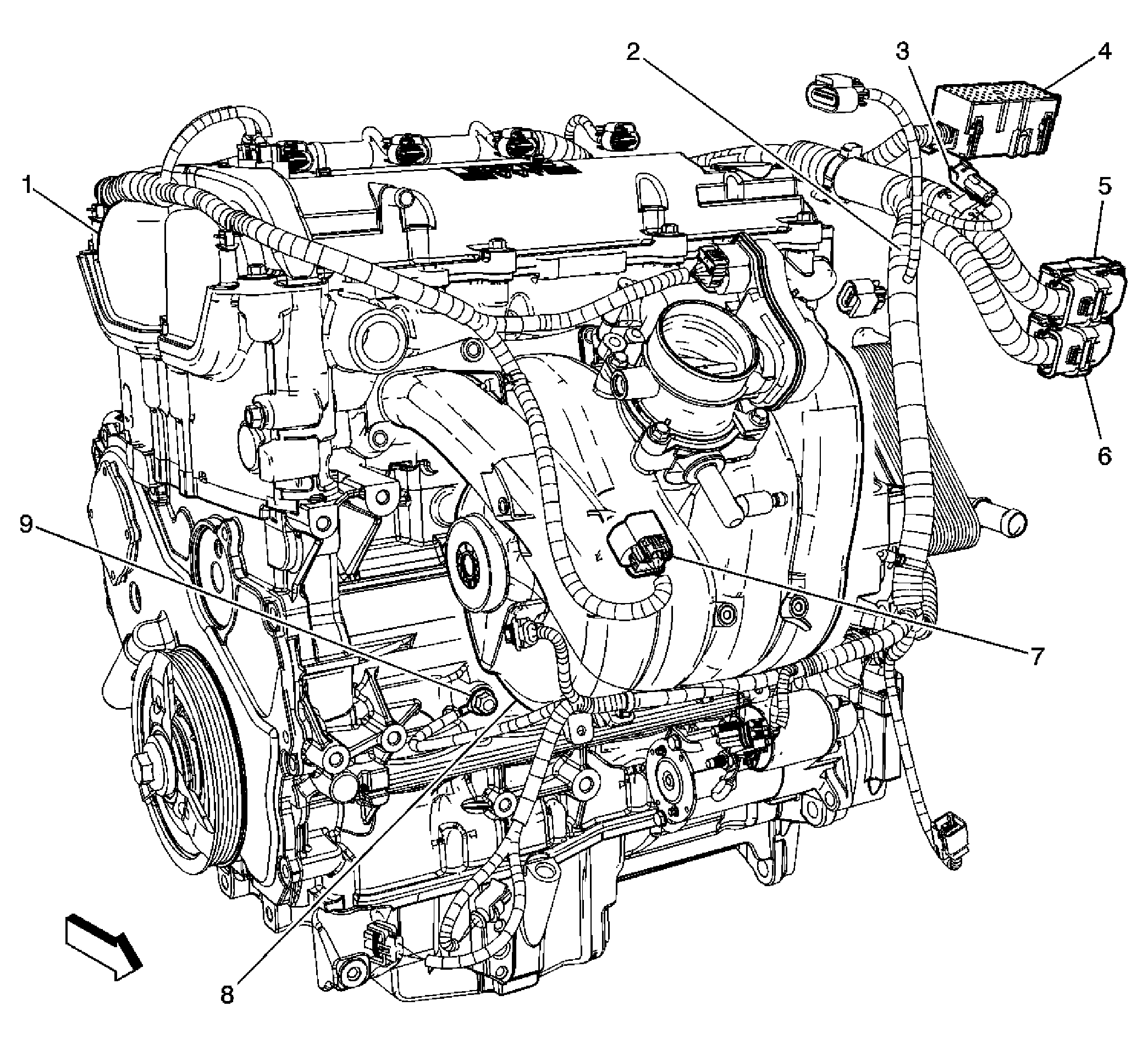

Fig 13: Engine Harness - Front (LE5)
GM1592499Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cover
2 J103
3 X101
4 Fuse Block - Underhood X1
5 Engine Control Module X2
6 Engine Control Module X3
7 X160
8 Intake Manifold
9 G105

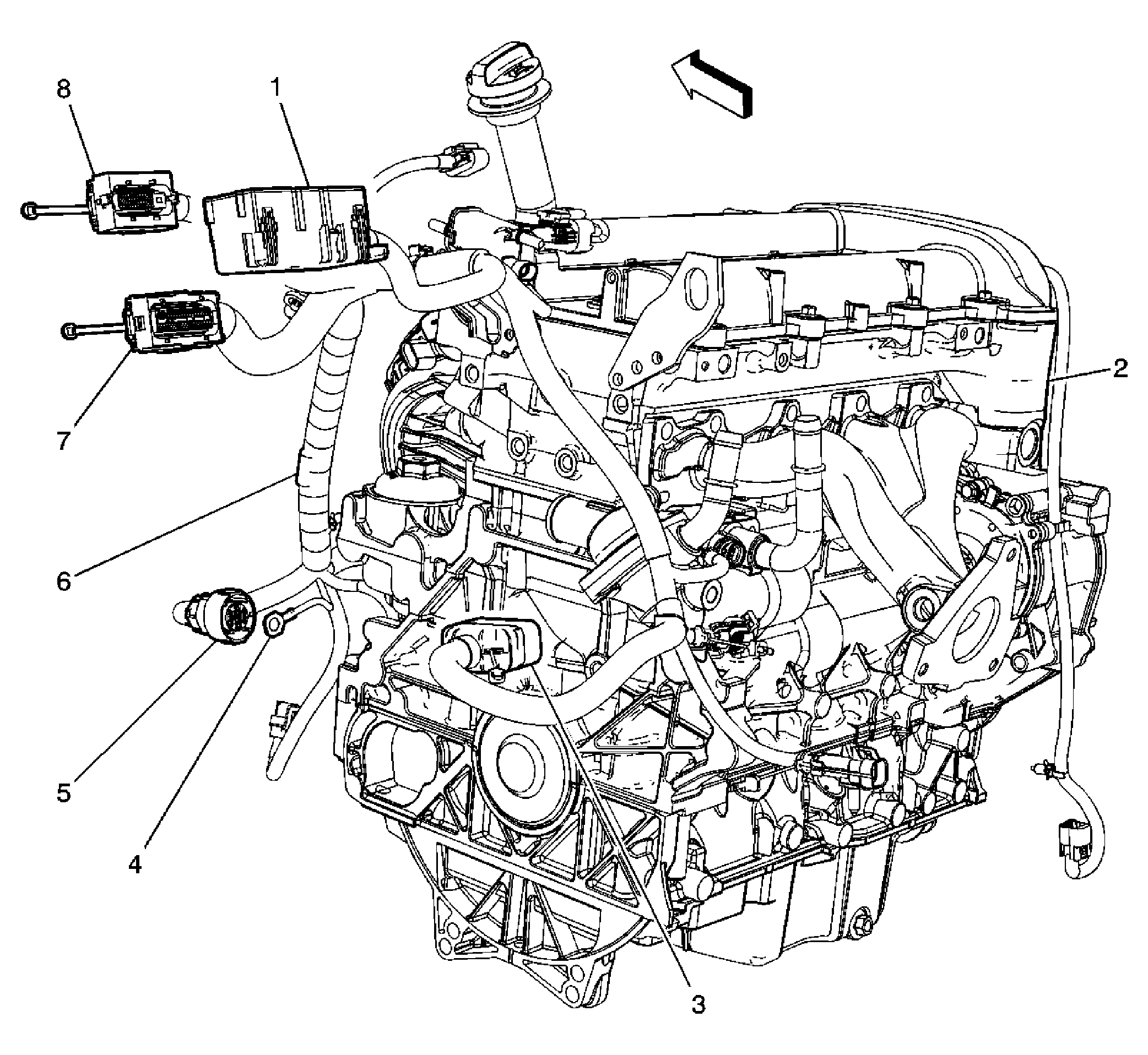

Fig 14: Engine Harness - Rear (L61)
GM1592508Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood X1
2 Engine Block
3 Neutral Safety Backup Switch Connector
4 G107
5 X100
6 J103
7 Engine Control Module Connector
8 Transmission Control Module Connector

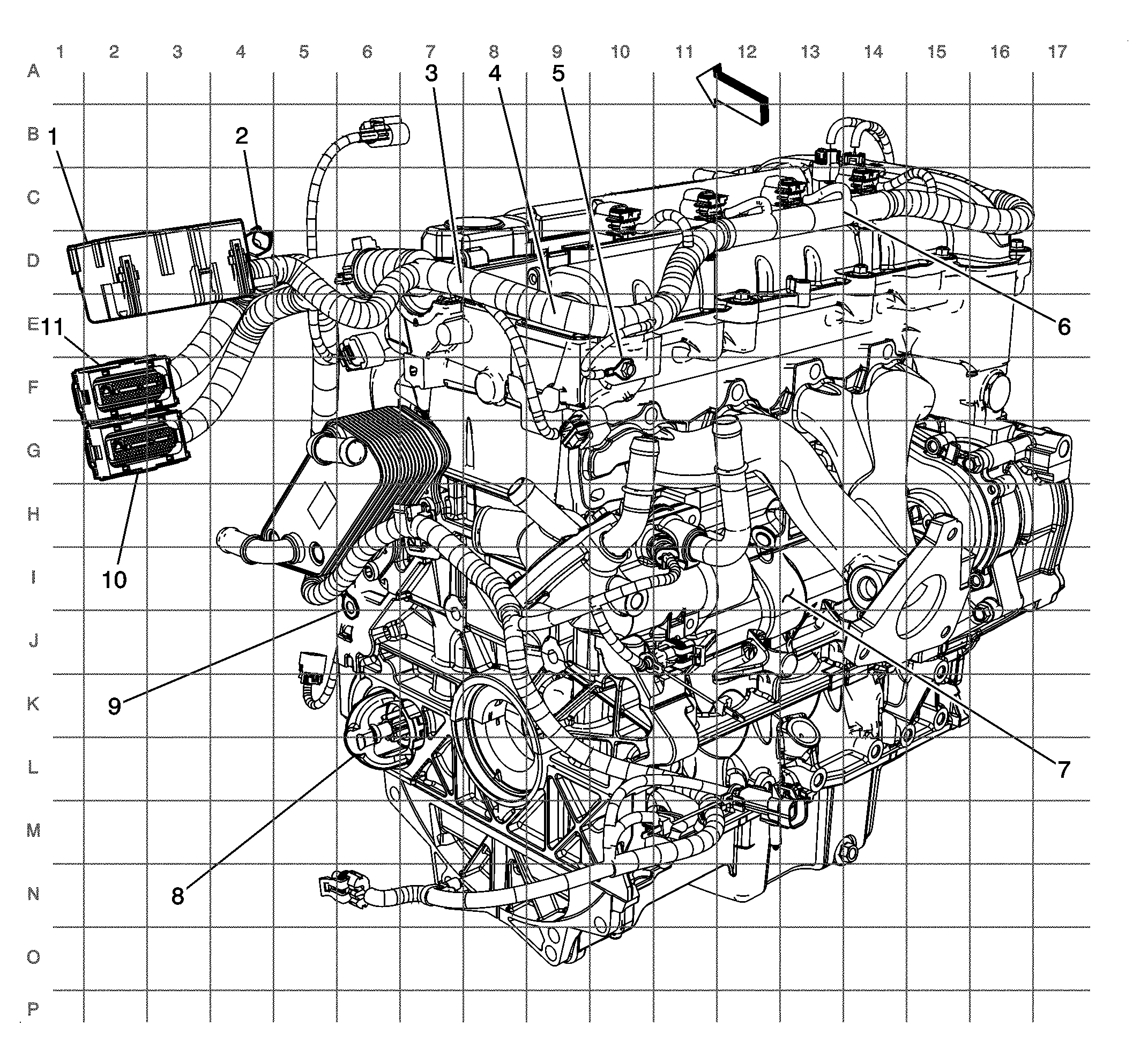

Fig 15: Engine Harness - Rear (LE5)
GM1592501Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood X1
2 X101
3 J106
4 J105
5 G108
6 J107
7 Engine Block
8 Starter
9 G107
10 Engine Control Module X3
11 Engine Control Module X2
Fig 16: Fuel Tank Components
GM1652140Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank
2 Fuel Pump and Sender Assembly
3 Fuel Tank Pressure Sensor
4 Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 Evaporative Emission (EVAP) Canister
Fig 17: Left Side View Of Engine
GM1614920Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 MAF/IAT Sensor
2 Ignition Coil Module 1
3 Ignition Coil Module 2
4 Ignition Coil Module 3
5 Ignition Coil Module 4
6 Fuel Rail
7 Fuel Injector 1
8 Fuel Injector 2
9 Fuel Injector 3
10 Fuel Injector 4
11 Throttle Actuator Control (TAC) Module
Fig 18: Rear View Of Engine
GM1659437Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil Module 4
2 Ignition Coil Module 3
3 Ignition Coil Module 2
4 Camshaft Position (CMP) Actuator Solenoid-Intake
5 Camshaft Position (CMP) Actuator Solenoid-Exhaust
6 Ignition Coil Module 1
7 Engine Harness
8 Heated Oxygen Sensor (HO2S) 1
9 Heated Oxygen Sensor (HO2S) 2
10 Engine Coolant Temperature (ECT) Sensor
11 Camshaft Position (CMP) Sensor (Exhaust)
12 G108
13 Camshaft Position (CMP) Sensor (Intake)
14 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Fig 19: Manifold Absolute Pressure (MAP) Sensor (L61)
GM1583757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure (MAP) Sensor
Fig 20: Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor
GM1583679Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Fig 21: Manual Transmission (M86)
GM1659162Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Backup Lamp Switch
2 Vehicle Speed Sensor

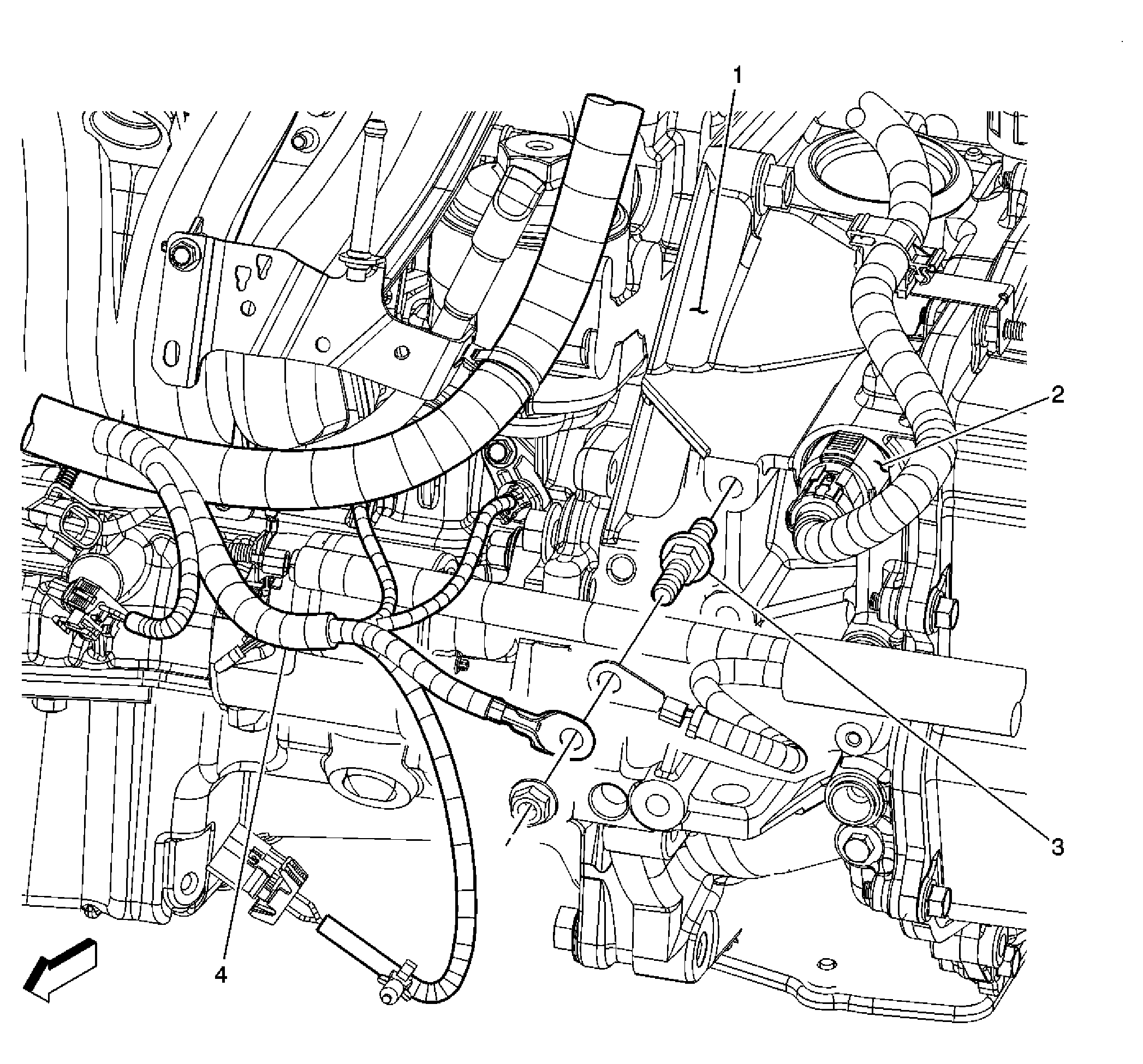

Fig 22: G107
GM1546027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Case
2 X100
3 G107
4 Engine Harness

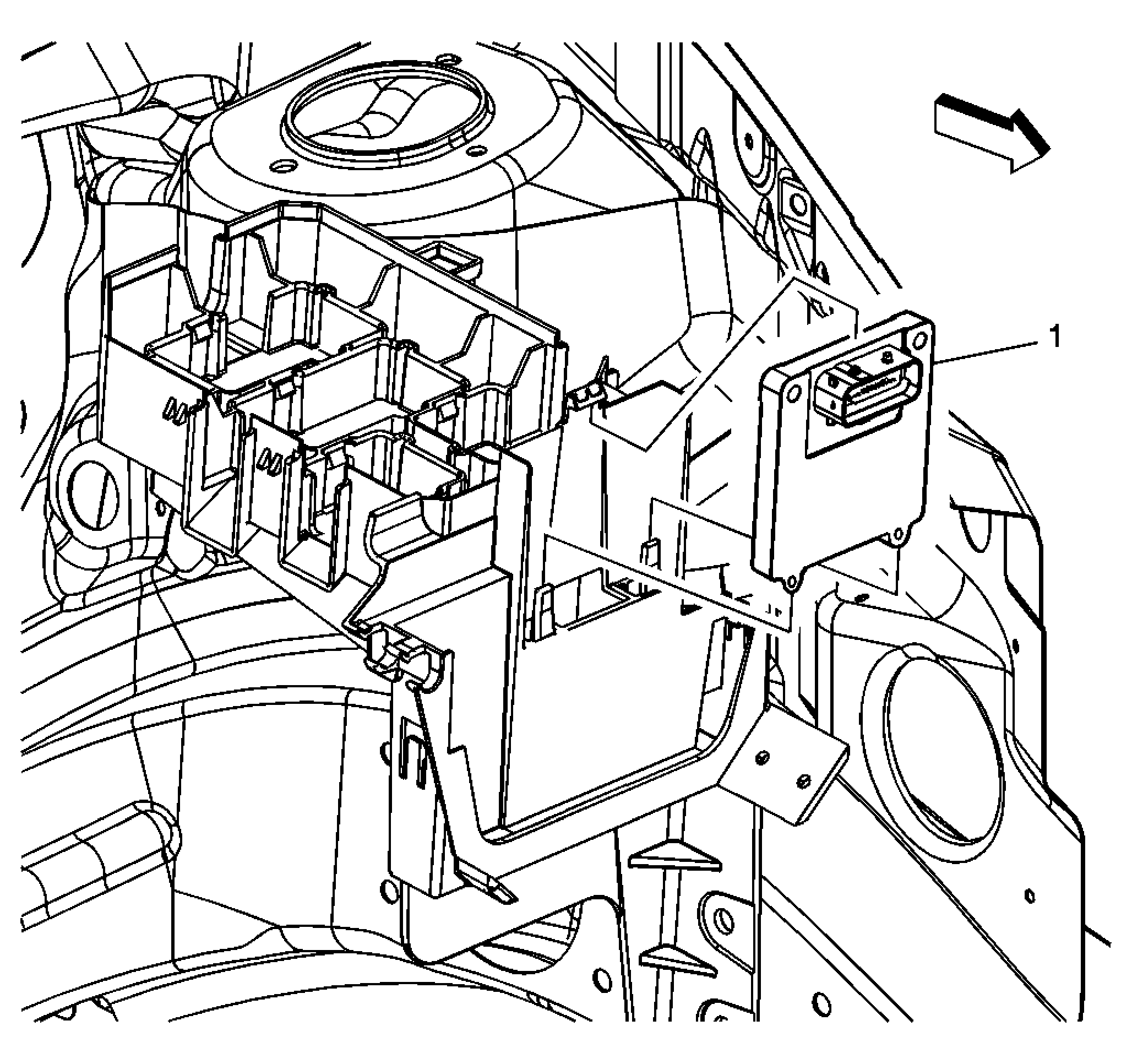

Fig 23: Transmission Control Module (TCM)
GM1748304Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM)
Fig 24: Front Of The Engine (L61) (1 Of 2)
GM1555577Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Manifold Absolute Pressure (MAP) Sensor
5 Fuel Injector 4
6 Evaporative Emission (EVAP) Canister Purge Solenoid
7 Camshaft Position (CMP) Sensor - Intake
8 Knock Sensor (KS)
9 Engine Oil Pressure (EOP) Switch
10 Crankshaft Position (CKP) Sensor
11 Starter Solenoid
12 Starter
13 Intake Manifold
Fig 25: Front Of The Engine (L61) (2 Of 2)
GM1751287Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Actuator Control (TAC) Module
2 Evaporative Emission (EVAP) Canister Purge Solenoid
3 Engine Oil Pressure (EOP) Switch
4 Crankshaft Position (CKP) Sensor
5 Knock Sensor (KS)
6 Starter
7 Starter Solenoid
Fig 26: Left Side View Of Engine
GM1751294Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil Module 1
2 Ignition Coil Module 2
3 Ignition Coil Module 3
4 Ignition Coil Module 4
5 Fuel Rail
6 Fuel Injector 1
7 Fuel Injector 2
8 Fuel Injector 3
9 Fuel Injector 4
10 Throttle Actuator Control (TAC) Module
