Automatic Transmission Input Shaft Speed (AT ISS) Sensor

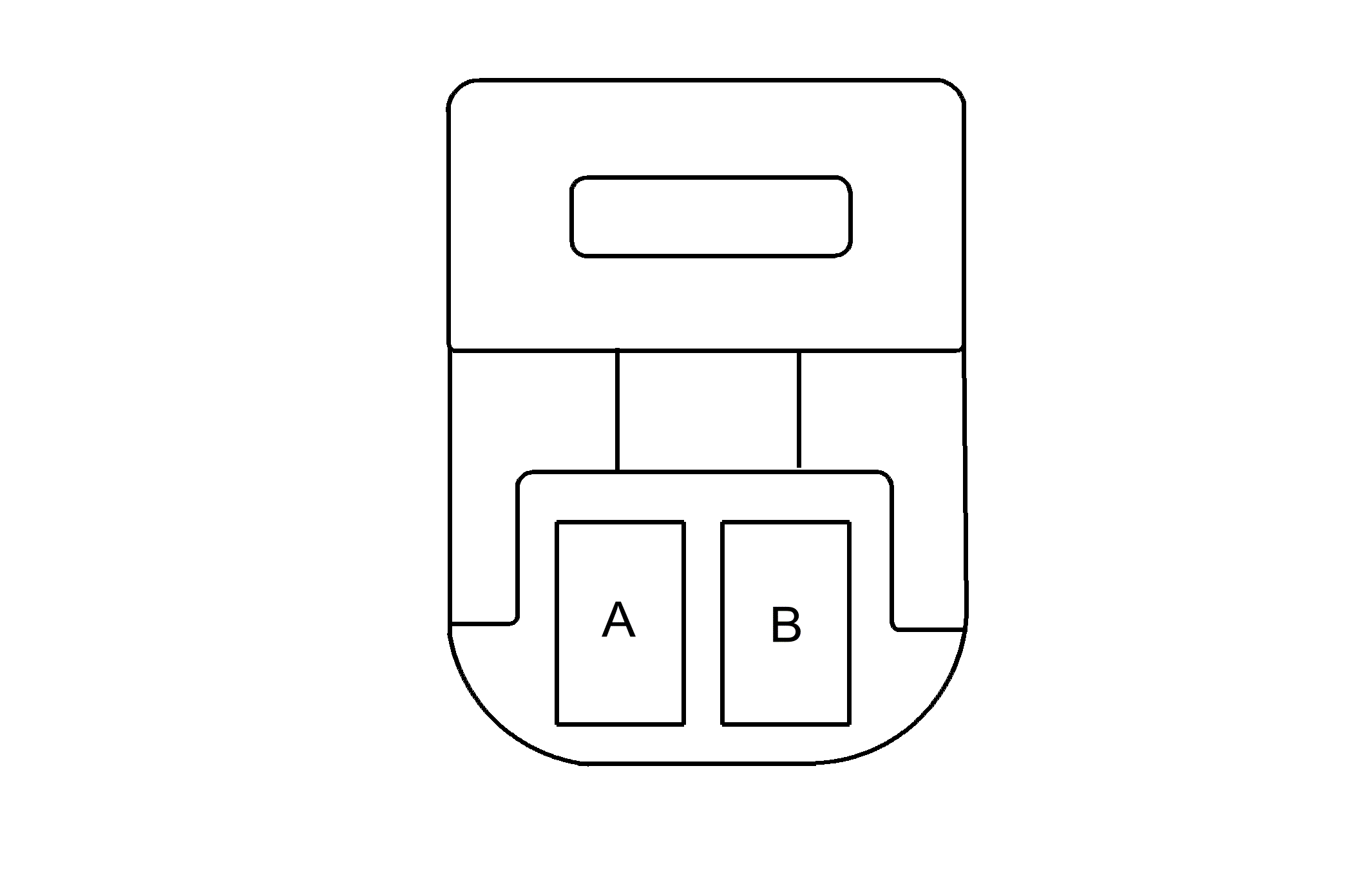

Fig 1: Automatic Transmission Input Shaft Speed (AT ISS) Sensor Connector End View
GM82337Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Input Shaft Speed (AT ISS) Sensor

Pin Wire Circuit Function
A 0.5 D-GN 1231 AT ISS Low Signal
B 0.5 BK 1230 AT ISS High Signal
Connector Part Information
  • OEM: 15473843
  • Service: See catalog
  • Description: 2-Way F Metri-Pack 150.2 Series (NA)

Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12180559-1/J-35616-14 (GN)
