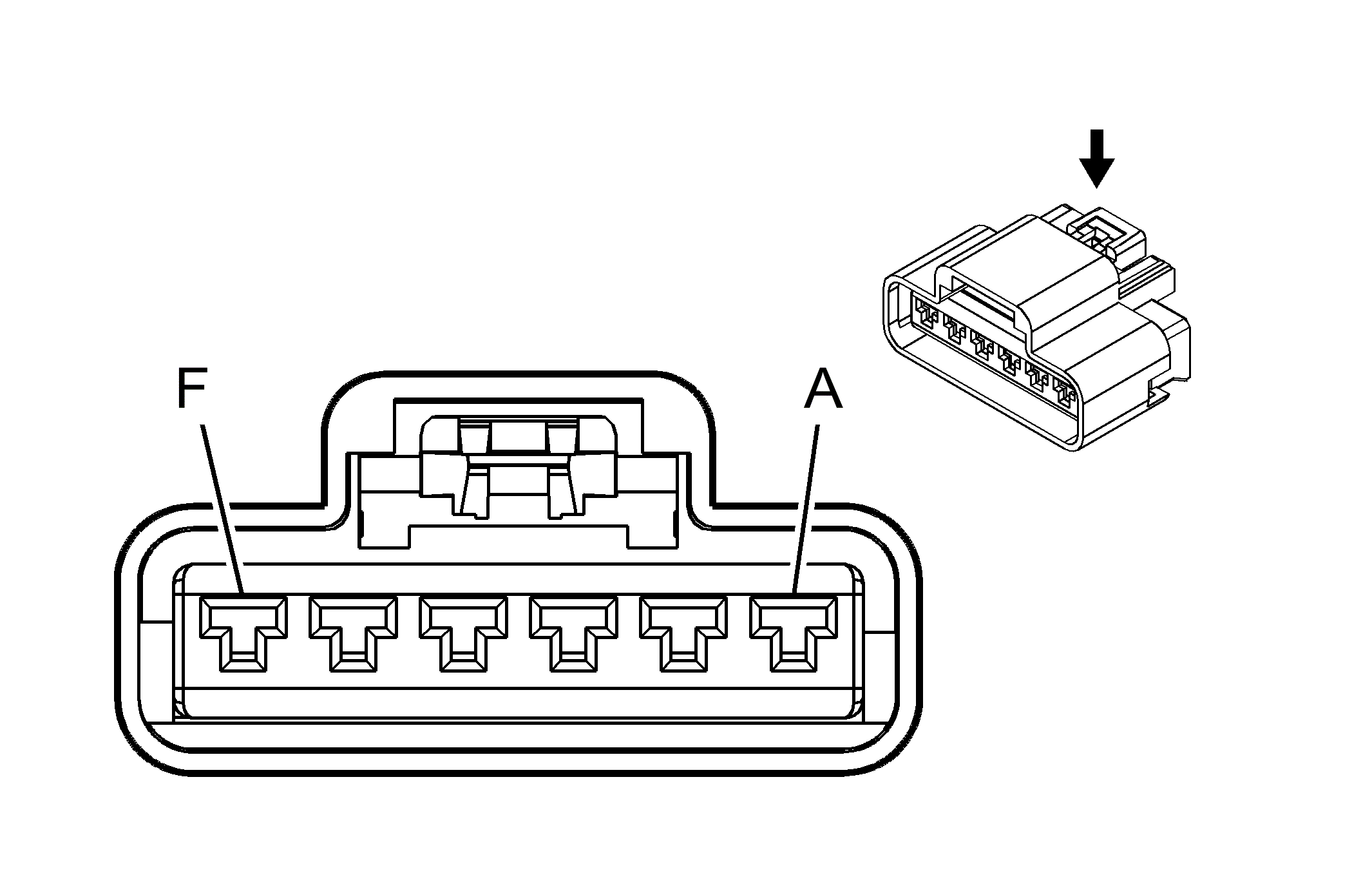

Window Switch - Driver X2
Courtesy of GENERAL MOTORS CORP. Window Switch - Driver X2
| Pin |
Wire |
Circuit |
Function |
| A |
2 BN |
165 |
Power Window Motor Left Front Down Control |
| B |
2 L-BU |
166 |
Power Window Master Switch Right Front Up Signal |
| C |
2 TN |
167 |
Power Window Master Switch Right Front Down Signal |
| D |
- |
- |
Not Used |
| E |
2 D-BU |
164 |
Power Window Motor Left Front Up Control |
| F |
0.35 GY |
8 |
Instrument Panel Lamp Supply Voltage |
Connector Part Information
- OEM: 15326900
- Service: 15306380
- Description: 6-Way F GT 280 Series (BK)
|
Terminal Part Information
- Pins: A, B, C, E
- Terminal/Tray: 15304713/19
- Core/Insulation Crimp: 4/4
- Release Tool/Test Probe: 15315247/J-35616-4A (PU)
- Pins: F
- Terminal/Tray: 15304711/8
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 15315247/J-35616-4A (PU)
|
