Pressure Control (PC) Solenoid Valve

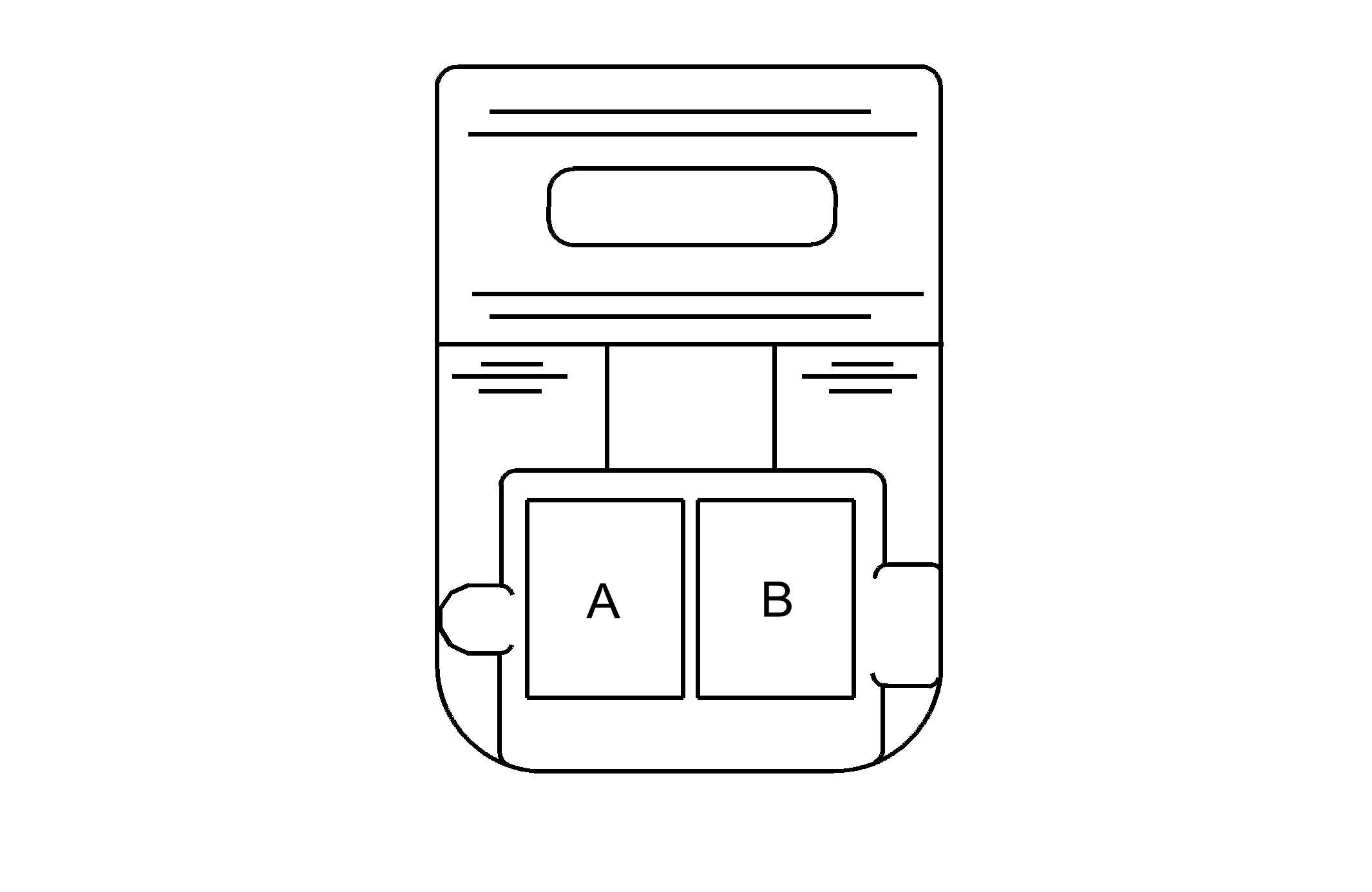

Fig 1: Pressure Control (PC) Solenoid Valve Connector End View
GM82345Courtesy of GENERAL MOTORS CORP.
Pressure Control (PC) Solenoid Valve

Pin Wire Circuit Function
A 0.5 PU 1228 PC Solenoid Valve High Control
B 0.5 L-BU 1229 PC Solenoid Valve Low Control
Connector Part Information
  • OEM: 15466861
  • Service: See Catalog
  • Description: 2-Way F Metri-Pack 150.2 Series (GY)

Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12180559-1/J-35616-14 (GN)
