Roof Rail Module - Right (AY1)

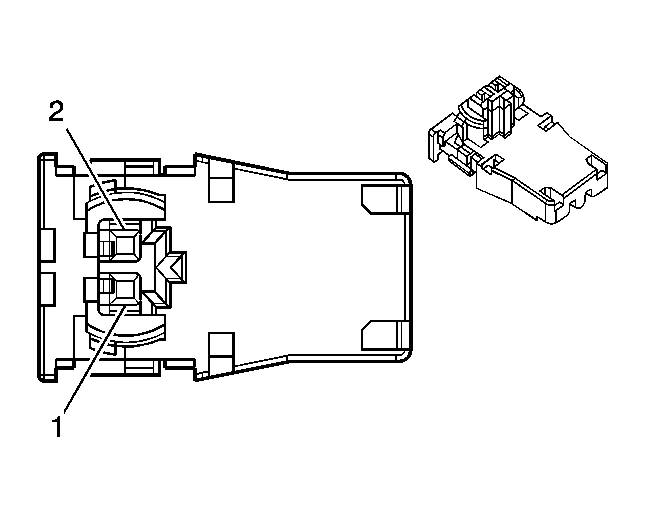

Fig 1: Roof Rail Module - Right (AY1) Connector End View
GM1542143Courtesy of GENERAL MOTORS CORP.
Roof Rail Module - Right (AY1)

Pin Wire Circuit Function
1 0.5 PK/BK 2135 Side Impact Module - Right - High Control
2 0.5 L-BU/RD 2136 Side Impact Module - Right - Low Control
Connector Part Information
  • OEM: 15454451
  • Service: See Catalog
  • Description: 2-Way F 90 Degree Lockable Squib (YE)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
