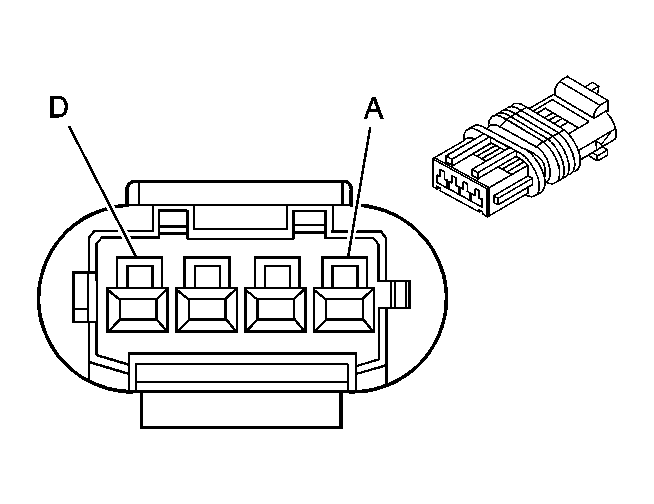

Valve Lifter Oil Manifold (VLOM) Assembly (LZ8)
Courtesy of GENERAL MOTORS CORP. Valve Lifter Oil Manifold (VLOM) Assembly (LZ8)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 GY |
5493 |
Cylinder Shut Off Solenoid Control 3 |
| B |
0.5 D-BU |
5491 |
Cylinder Shut Off Solenoid Control 1 |
| C |
0.5 PK/BK |
5291 |
Ignition 1 Voltage |
| D |
0.5 PK |
5495 |
Cylinder Shut Off Solenoid Control 5 |
Connector Part Information
- OEM: 15463214
- Service: See Catalog
- Description: 4-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 15326429/5
- Core/Insulation Crimp: E/4
- Release Tool/Test Probe: 15315247/J-35616-2A (GY)
|
