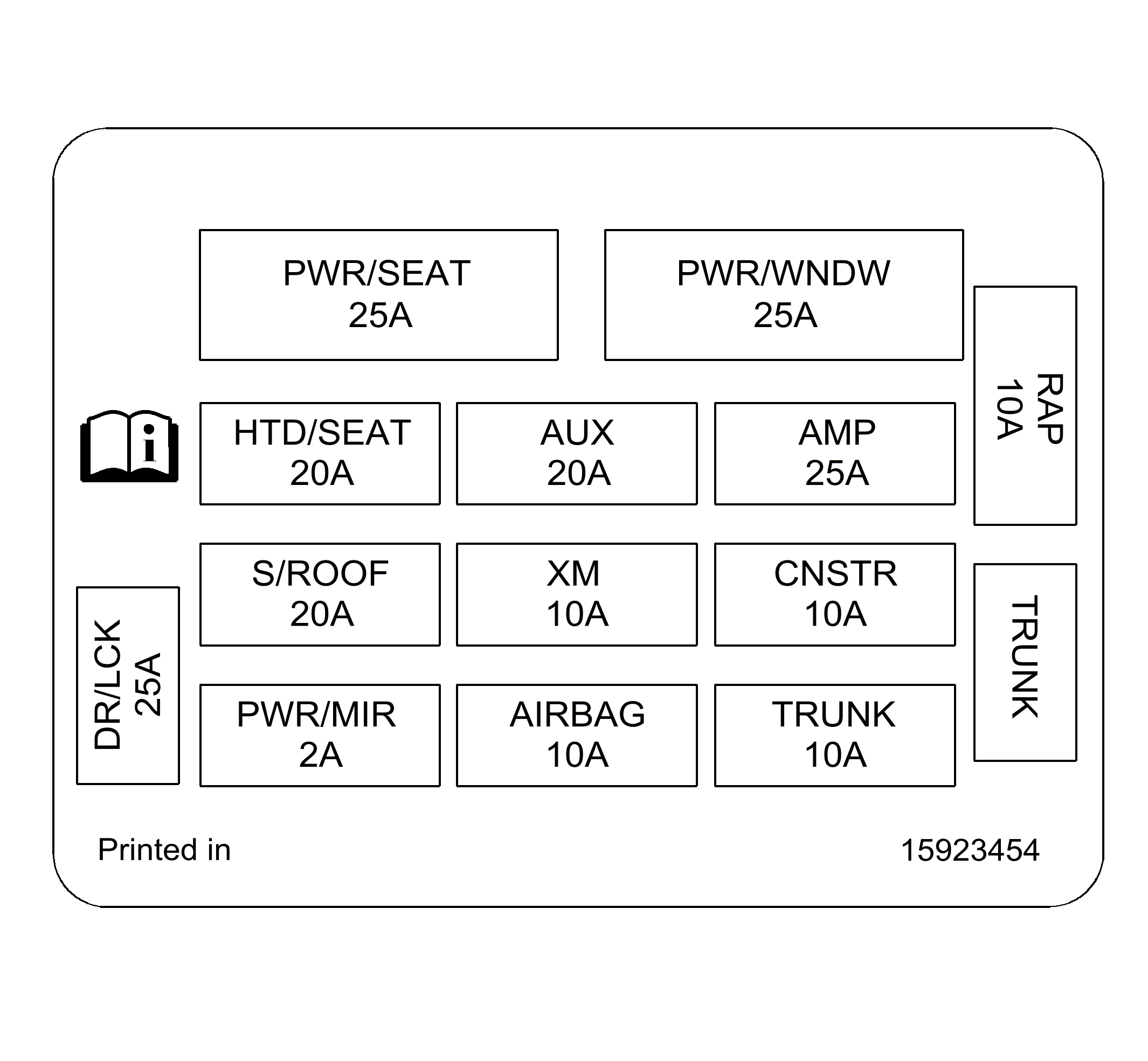

Fuse Block - I/P - Label
Fuse Block - I/P - Label Usage
| Device | Rating | Description |
|---|---|---|
| AIRBAG Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Front Passenger Presence System (PPS) Module |
| AMP Fuse | 25A | Audio Amplifier |
| AUX Fuse | 20A | Auxiliary Power Outlet - Seat, Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Front 2, Auxiliary Power Outlet - Rear |
| CNSTR Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid |
| DR/LCK Fuse | 25A | DOOR UNLOCK PCB Relay - Driver, DOOR UNLOCK PCB Relay, and DOOR LOCK PCB Relay |
| HTD/SEAT Fuse | 20A | Heated Seat Control Module (KA1), Emergency Vehicle Rear Compartment Lid Lamps Relay (T53) |
| PWR/MIR Fuse | 2A | Outside Rearview Mirror Switch |
| RAP Fuse | 10A | A/T Shift Lock Control Solenoid (w/Floor Shifter), Inside Rearview Mirror (DD6), Sunroof Motor (CF5) |
| S/ROOF Fuse | 20A | Sunroof Motor (CF5) |
| TRUNK Fuse | 10A | Rear Compartment Lid Release Actuator |
| PWR/SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Driver, Seat Adjuster Switch - Passenger |
| PWR/WNDW Circuit Breaker | 25A | Window Switch - Driver, Window Switch - Passenger (Coupe), Window Switch - Front Passenger (Sedan) |
| Trunk Relay | - | Trunk Fuse |
| XM Fuse | 10A | Digital Radio Receiver (U2K) |
| Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block. | ||
| DOOR LOCK PCB Relay | - | Door Locks (Sedan), Door Lock Actuators (Coupe) |
| DOOR UNLOCK PCB Relay | - | Door Lock - Front Passenger (Sedan), Door Lock - LR (Sedan), Door Lock - RR (Sedan), Door Lock Actuator - Front Passenger (Coupe) |
| DOOR UNLOCK PCB Relay - Driver | - | Door Lock - Driver (Sedan), Door Lock Actuator - Driver (Coupe) |
| RAP Relay | - | RAP Fuse |
