Fuse Block - I/P Top View

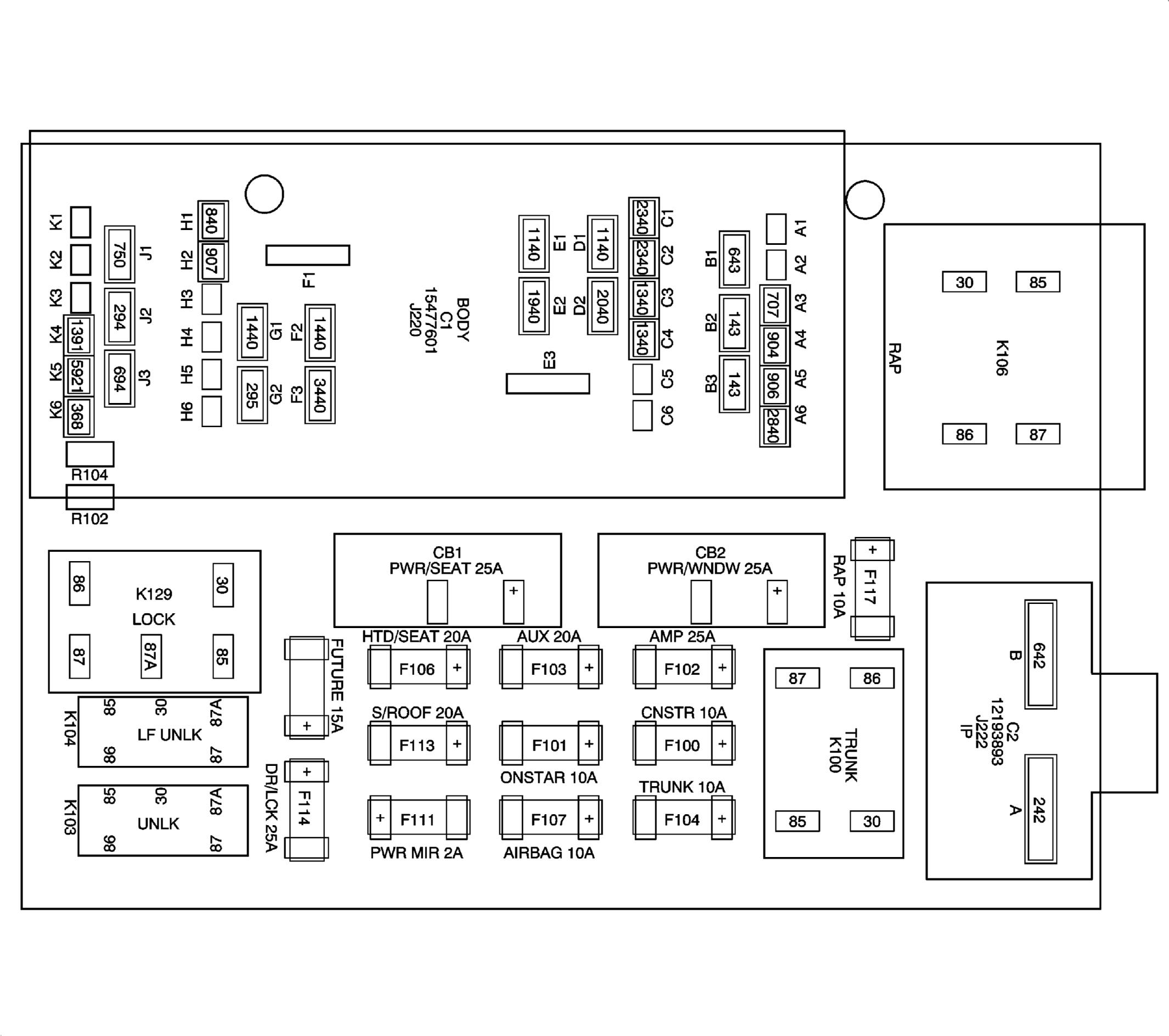

Fig 1: Fuse Block - I/P Top View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
