Control Module, A/T
Component Connector End Views - Continued

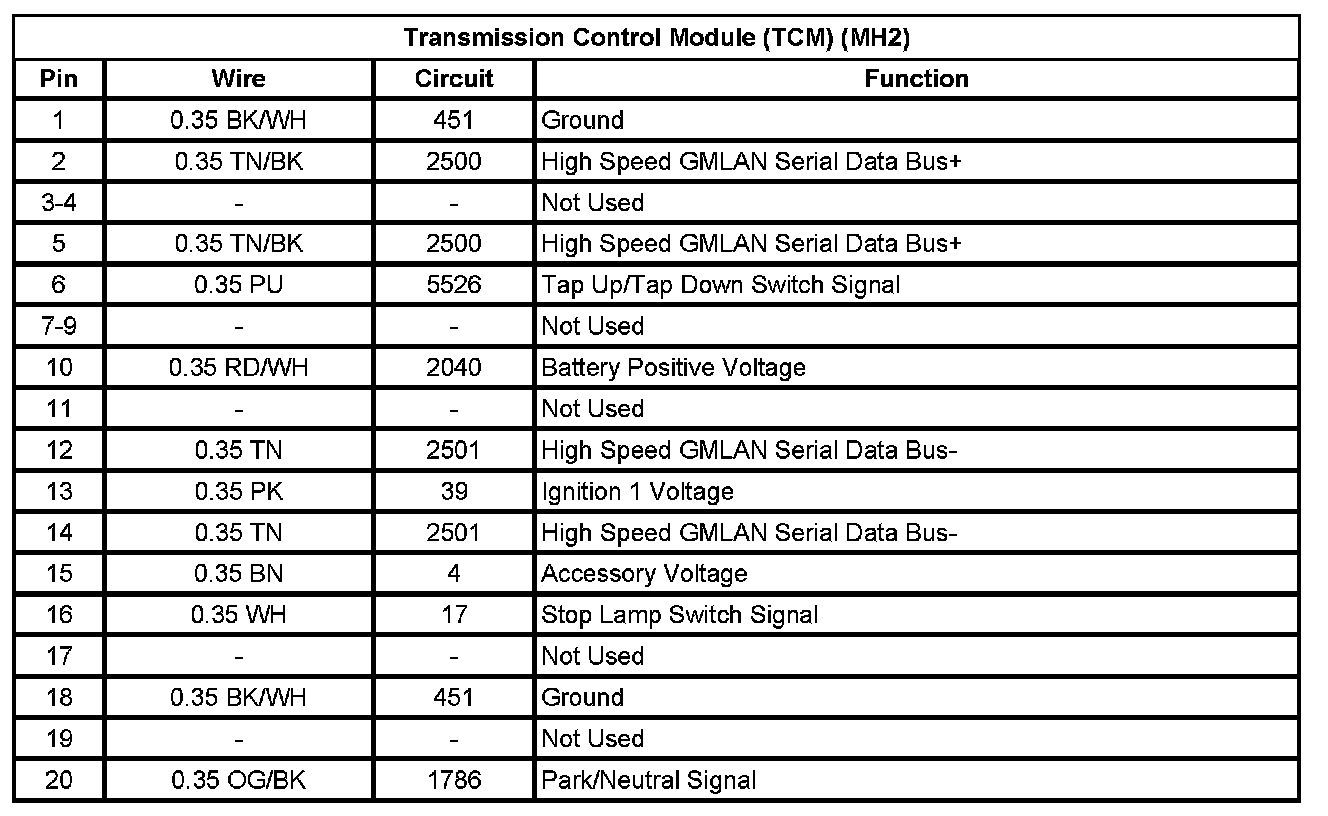

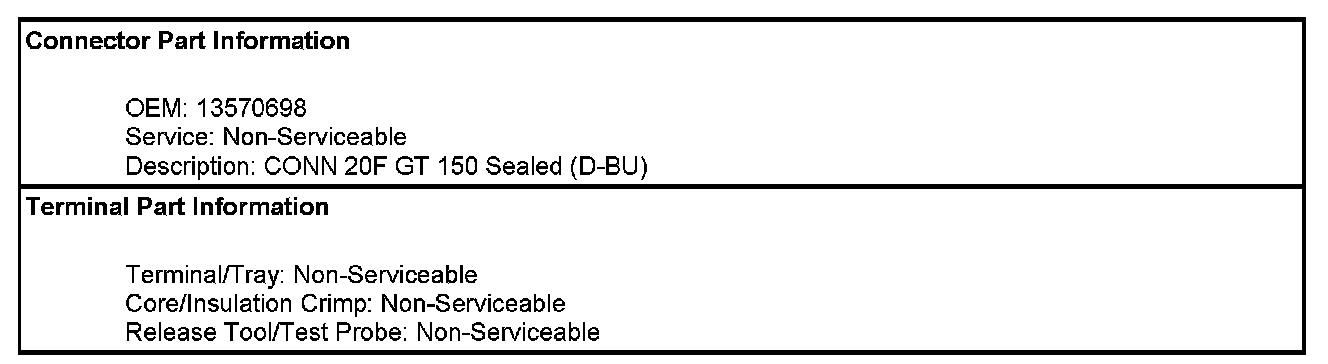

Transmission Control Module (TCM) (MH2)

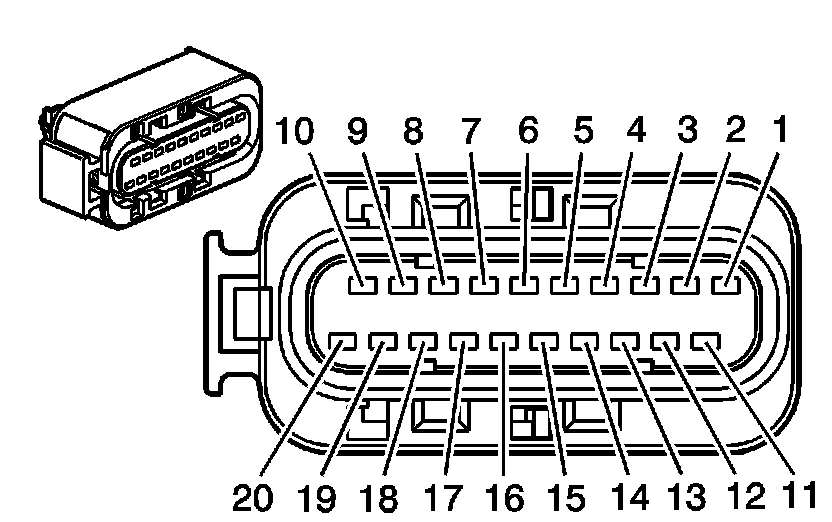

20-Way Transmission Pass-Through:

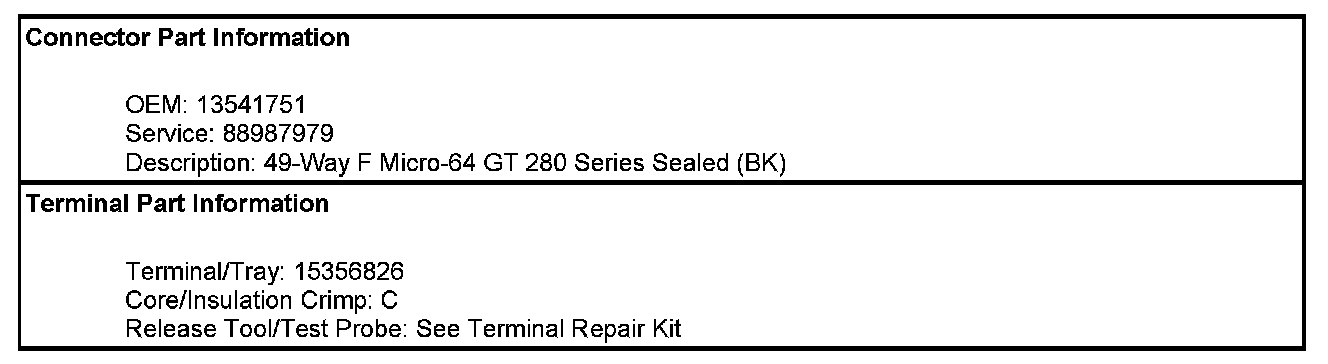

Transmission Control Module (TCM) (ME7)

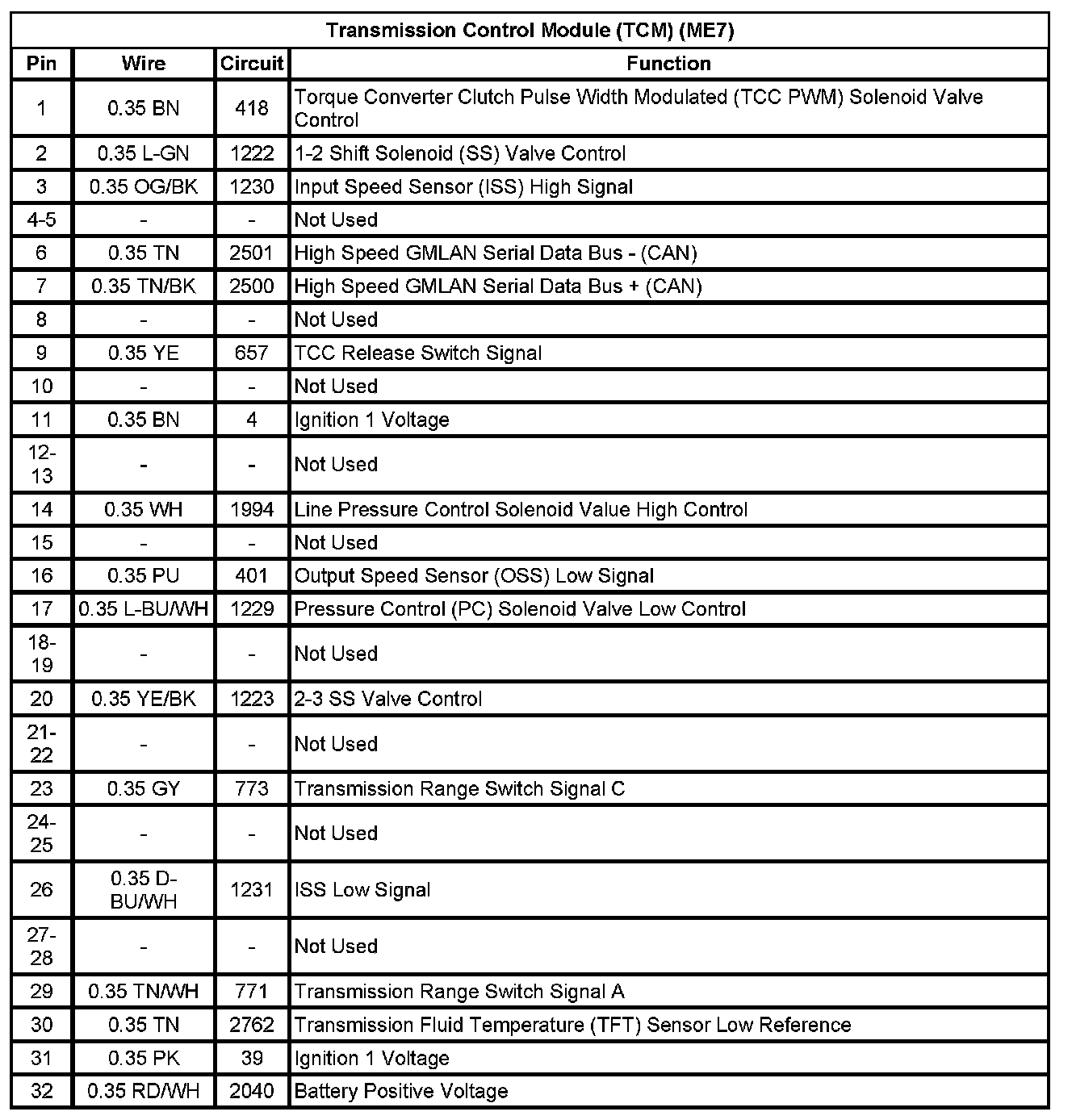

Transmission Control Module (TCM) (ME7) (Pin 1 To 32):

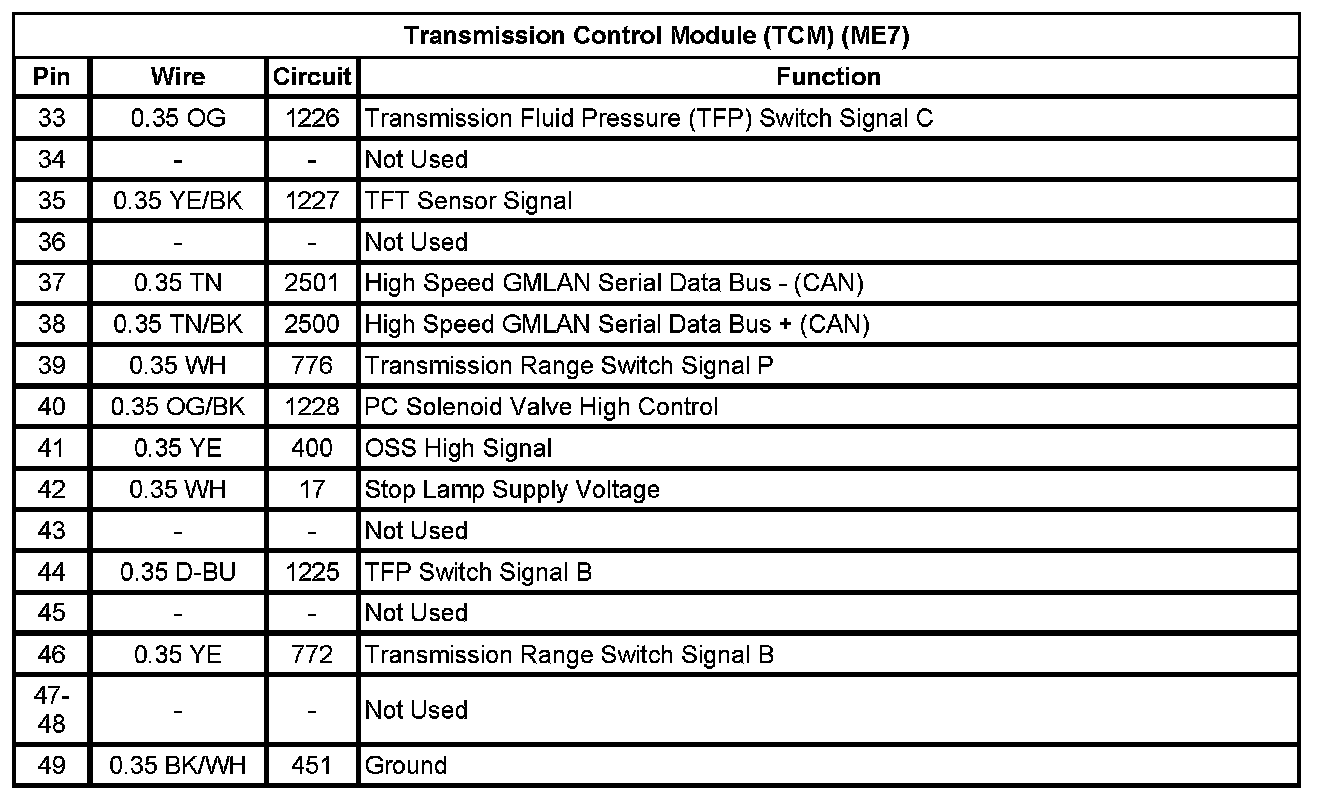

Transmission Control Module (TCM) (ME7) (Pin 33 To 49):

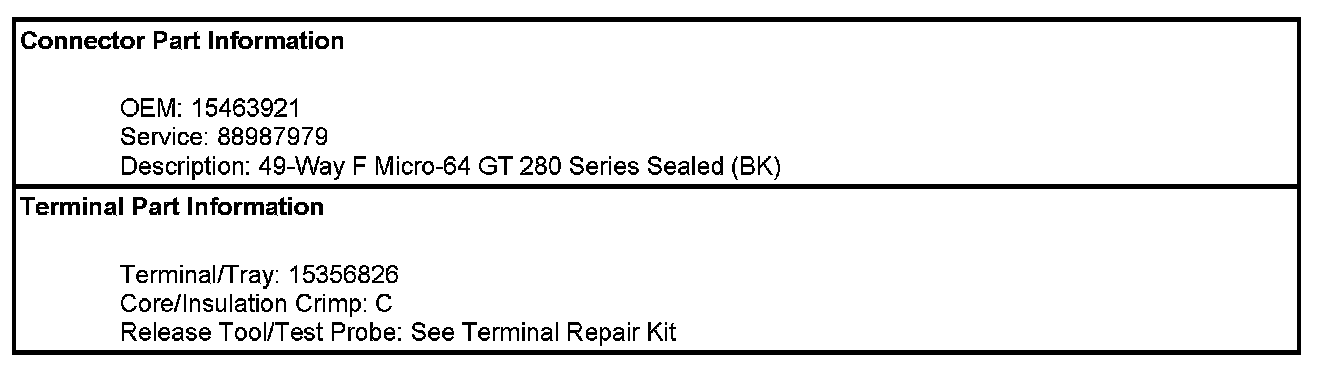

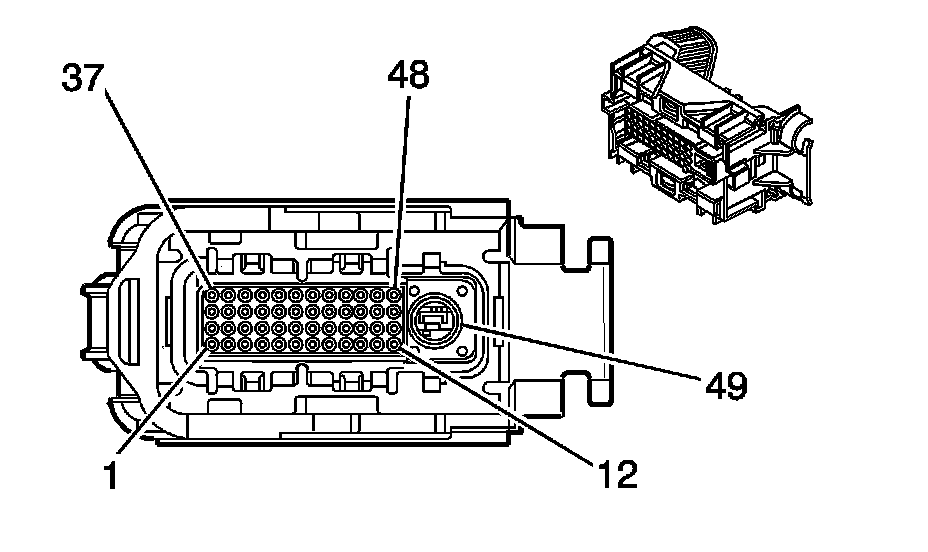

Transmission Control Module (TCM) (MN5)

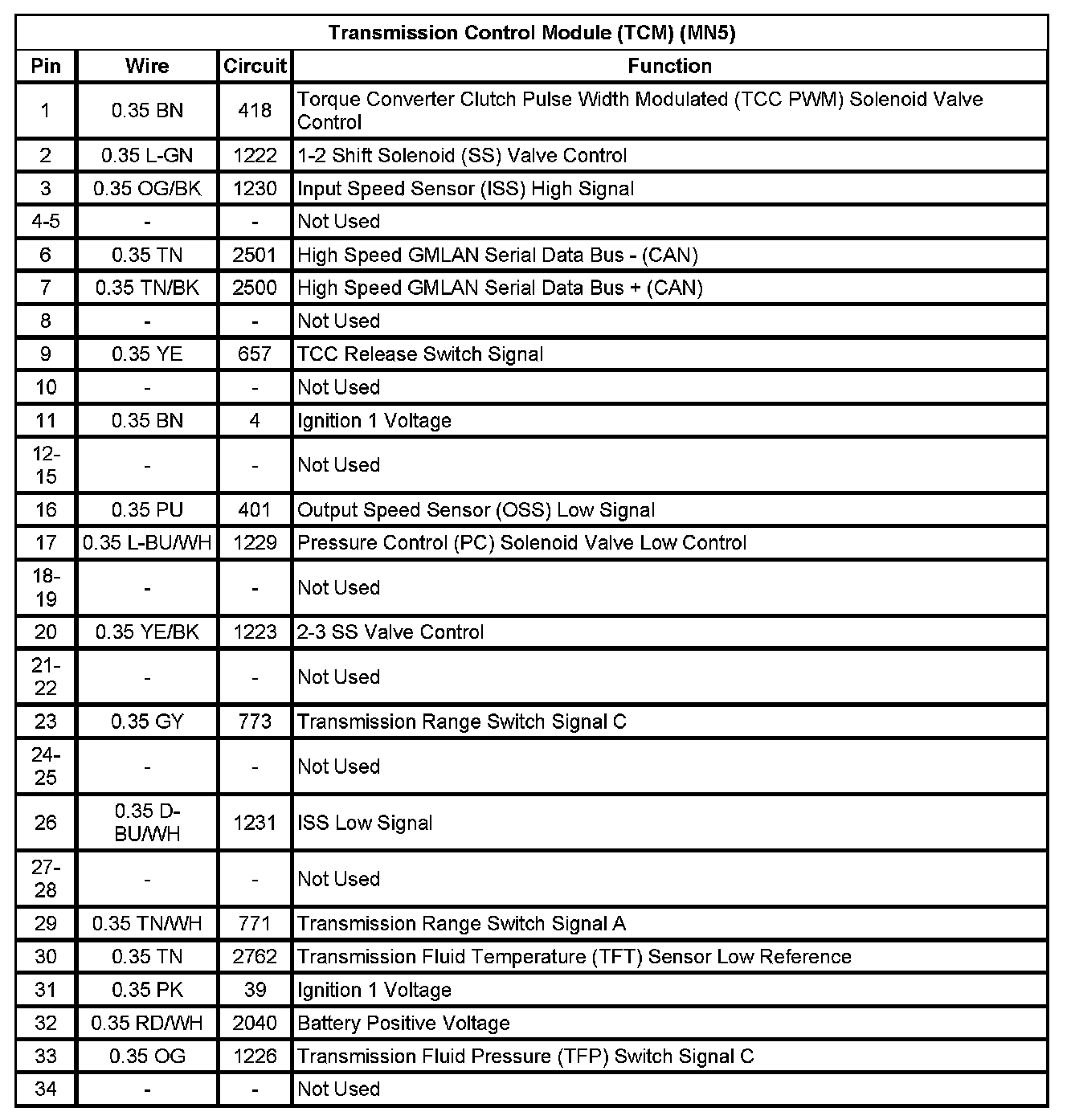

Transmission Control Module (TCM) (MN5) (Pin 1 To 34):

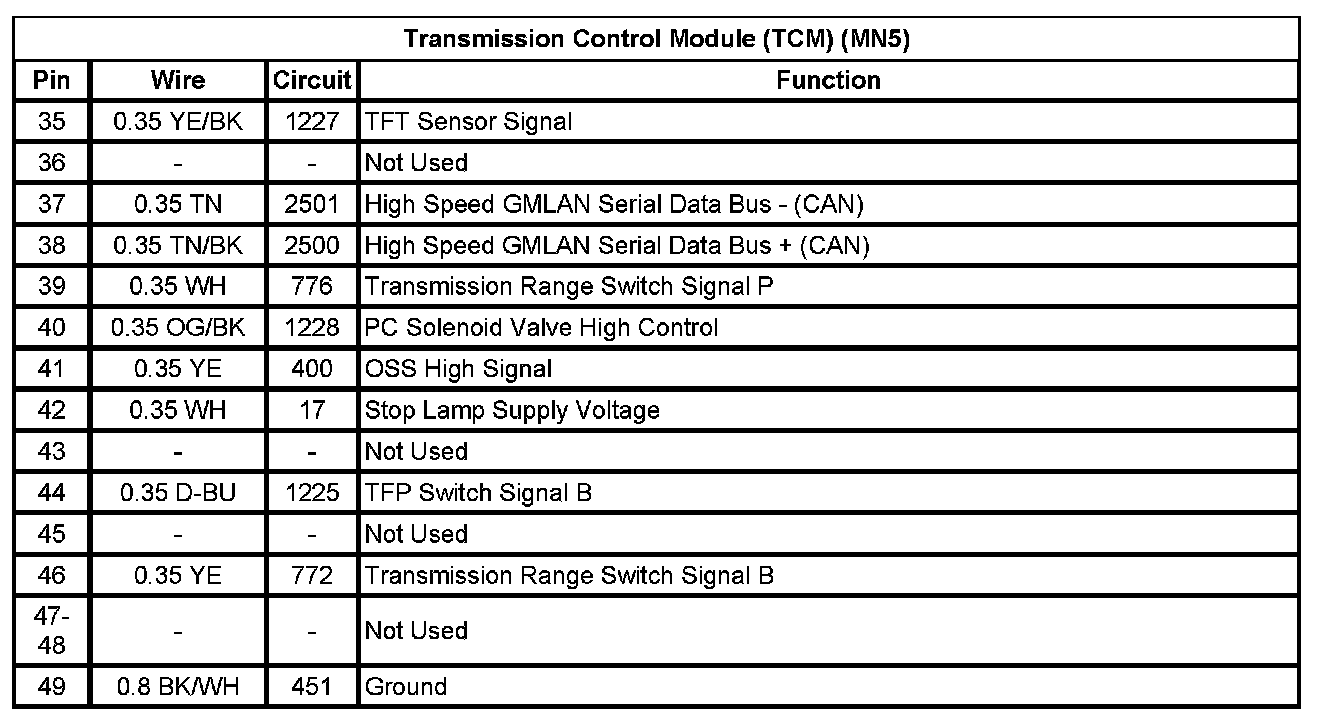

Transmission Control Module (TCM) (MN5) (Pin 35 To 49):
