Control Module HVAC: Locations

Instrument Panel/Center Console Component Views

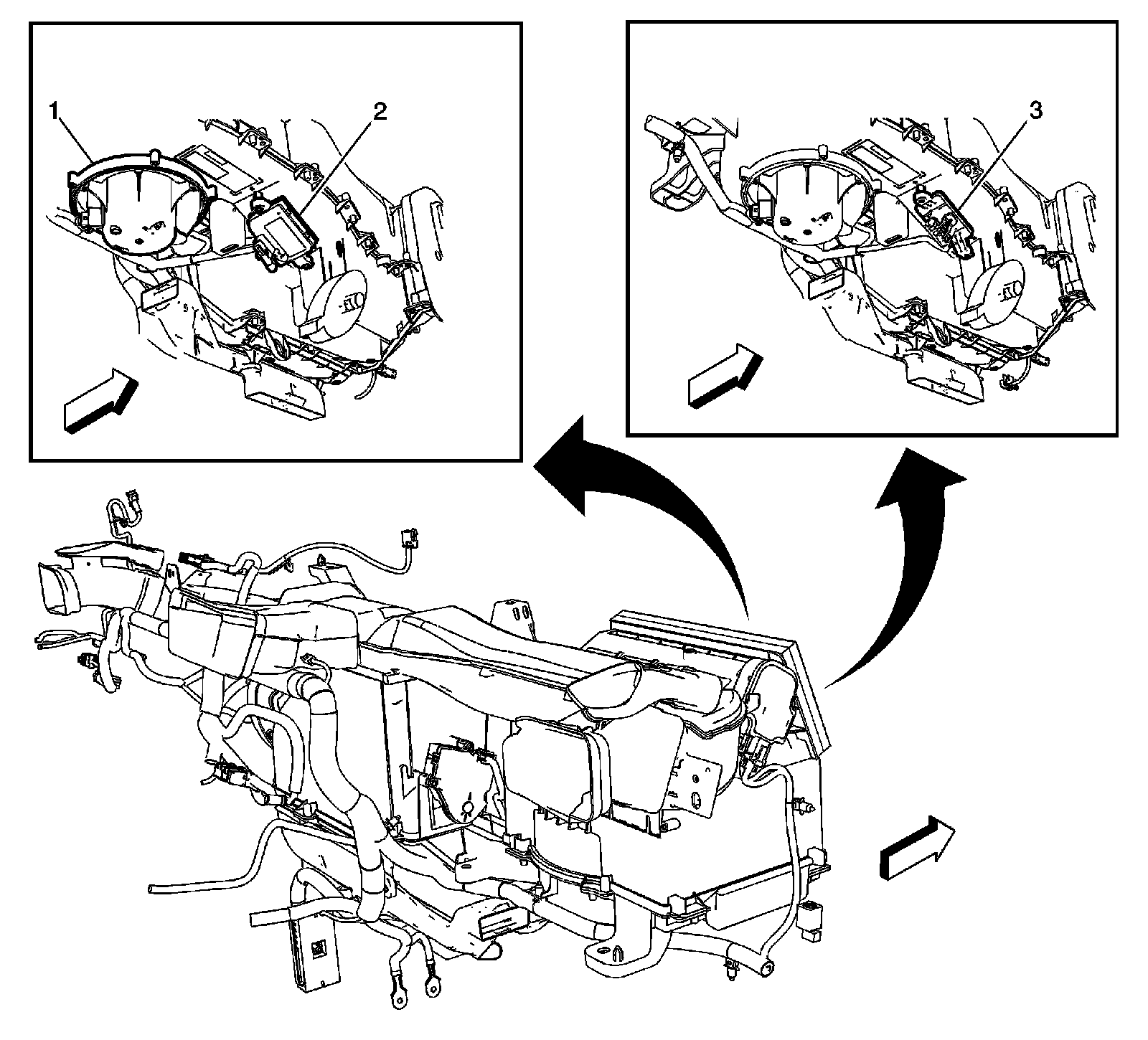

HVAC Module

1 - Blower Motor
2 - Blower Motor Control Module (C68)
3 - Blower Motor Resistor Assembly (C60)
