Throttle Actuator Control (TAC) Module (LAT/LE5)

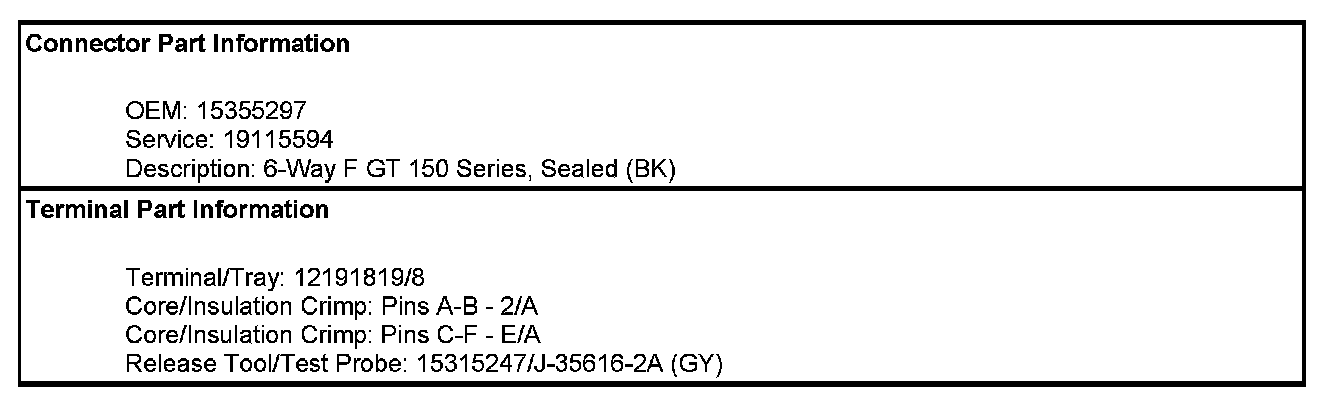

Component Connector End Views - Continued

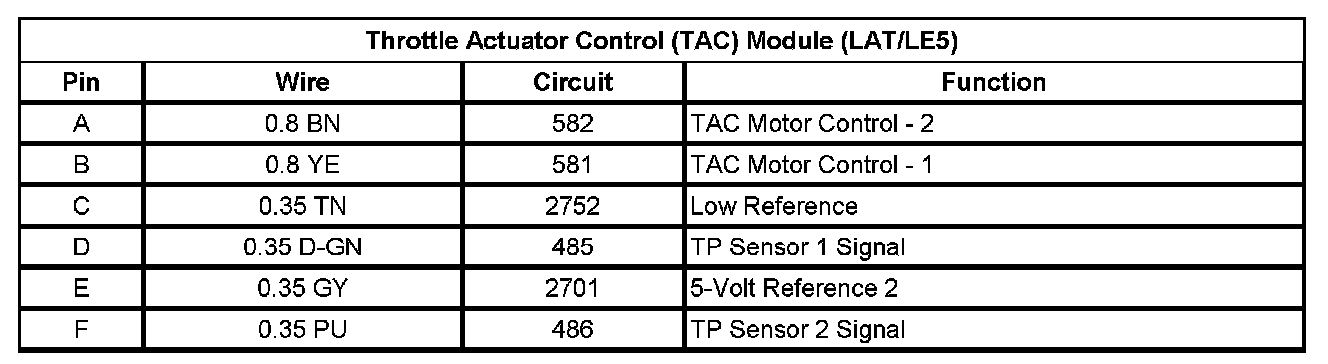

Throttle Actuator Control (TAC) Module (LAT/LE5)
