Power Steering Control Module

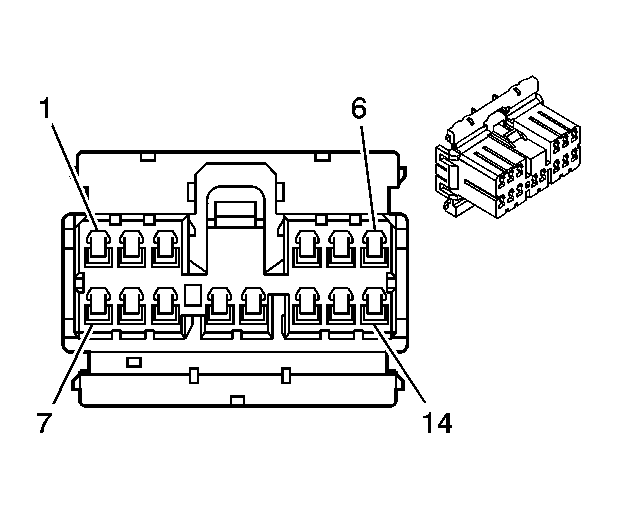

Fig 1: Power Steering Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Power Steering Control Module Connector Terminal Identification

Pin	Wire	Circuit	Function
1	0.5 L-BU	1738	Variable Effort Steering Acuator Supply Voltage
2	0.5 PU	1703	Variable Effort Steering Acuator Control
3	0.5 BK/WH	451	Steering Wheel Sensor Ground
4	-	-	Not Used
5	0.5 GY	1416	Battery Positive Voltage
6	0.5 D-GN/WH	817	Vehicle Speed Sensor (VSS) Signal
7	-	-	Not Used
8	0.3 PK	239	Ignition 1 Voltage
9	0.5 BN	956	Speed Sensitive Power Steering (SSPS) Warning Lamp Control
10	0.5 BK	1050	Ground
11-12	-	-	Not Used
13	0.5 D-BU	555	Serial Data
14	0.5 L-BU	1533	Steering Wheel Sensor Signal

Connector Part Information
