Tire Pressure Monitor System (TPMS) Module

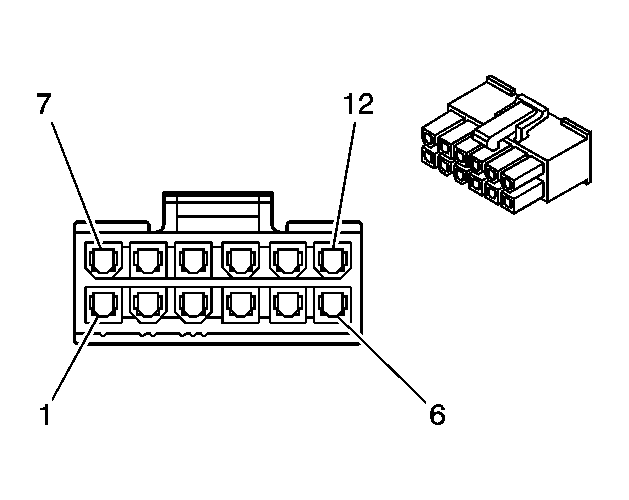

Courtesy of GENERAL MOTORS CORP. Tire Pressure Monitor System (TPMS) Module Connector Terminal Identification
| Pin |
Wire |
Circuit |
Function |
| 1 |
OG |
- |
Battery Positive Voltage |
| 2 |
D-GN/WH |
- |
Vehicle Speed Signal |
| 3 |
PU |
- |
Serial Data |
| 4 |
PU/WH |
- |
Brake Indicator Signal |
| 5 |
WH |
- |
Light Switch |
| 6 |
- |
- |
Not Used |
| 7 |
BN |
- |
Charge Indicator Signal |
| 8 |
PK |
- |
Ignition 2 Voltage |
| 9 |
BK |
- |
Horn Relay |
| 10 |
BN/WH |
- |
TPMS Indicator Control |
| 11 |
BK |
- |
Ground |
| 12 |
- |
- |
Not Used |
Connector Part Information
- OEM:
- Description: 12-Way F
|
