Instrument Panel/Center Console Component Views

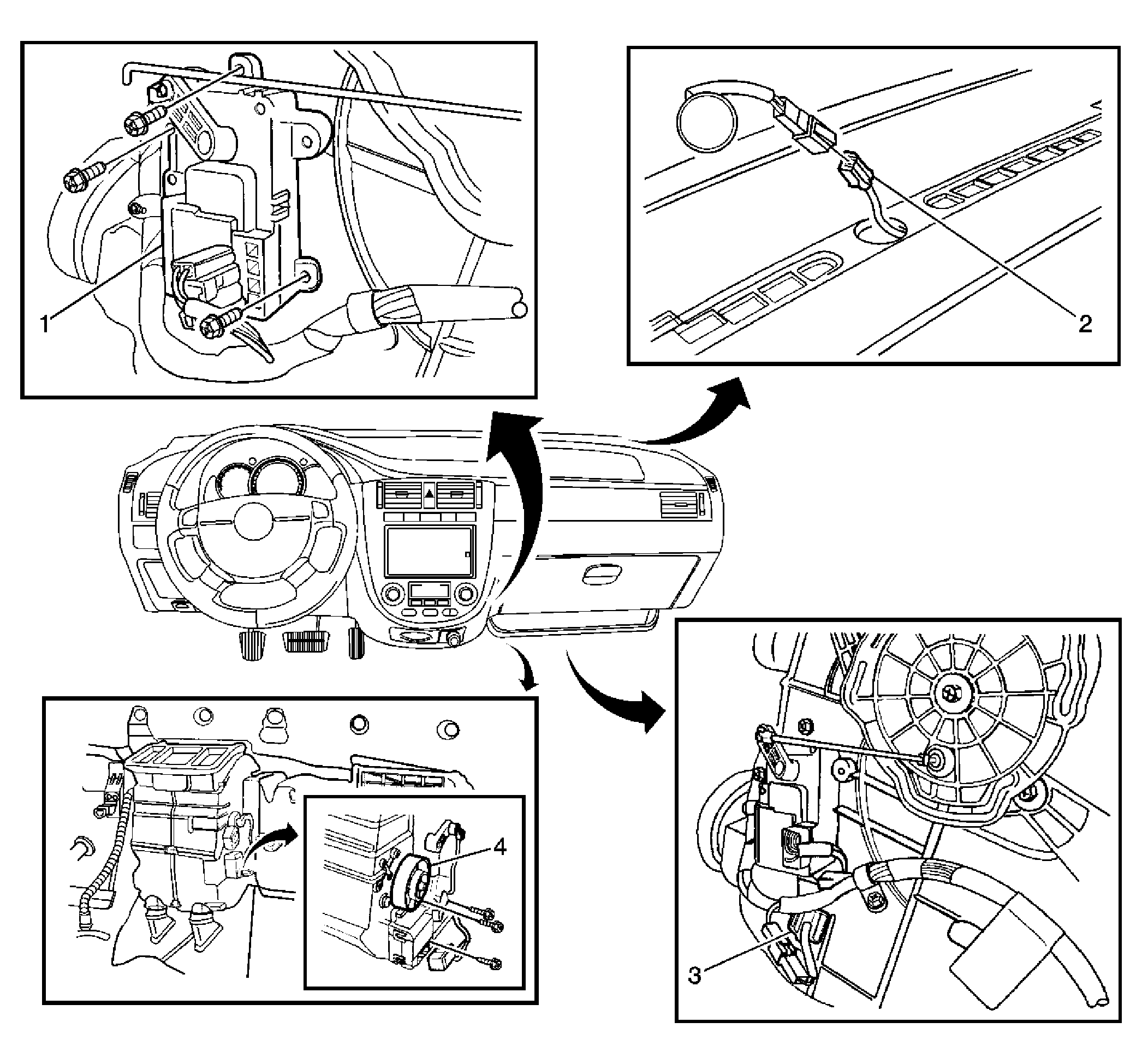

Fig 1: Identifying Anti-theft Tamper Switch, Theft Deterrent Control Module, Hood Ajar Switch And Alarm

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front (Tamper Switch) (Left Shown, Right Similar)
2	Theft Deterrent Control Module
3	Hood Ajar Switch
4	Theft Deterrent Alarm
5	Remote Door Lock Receiver

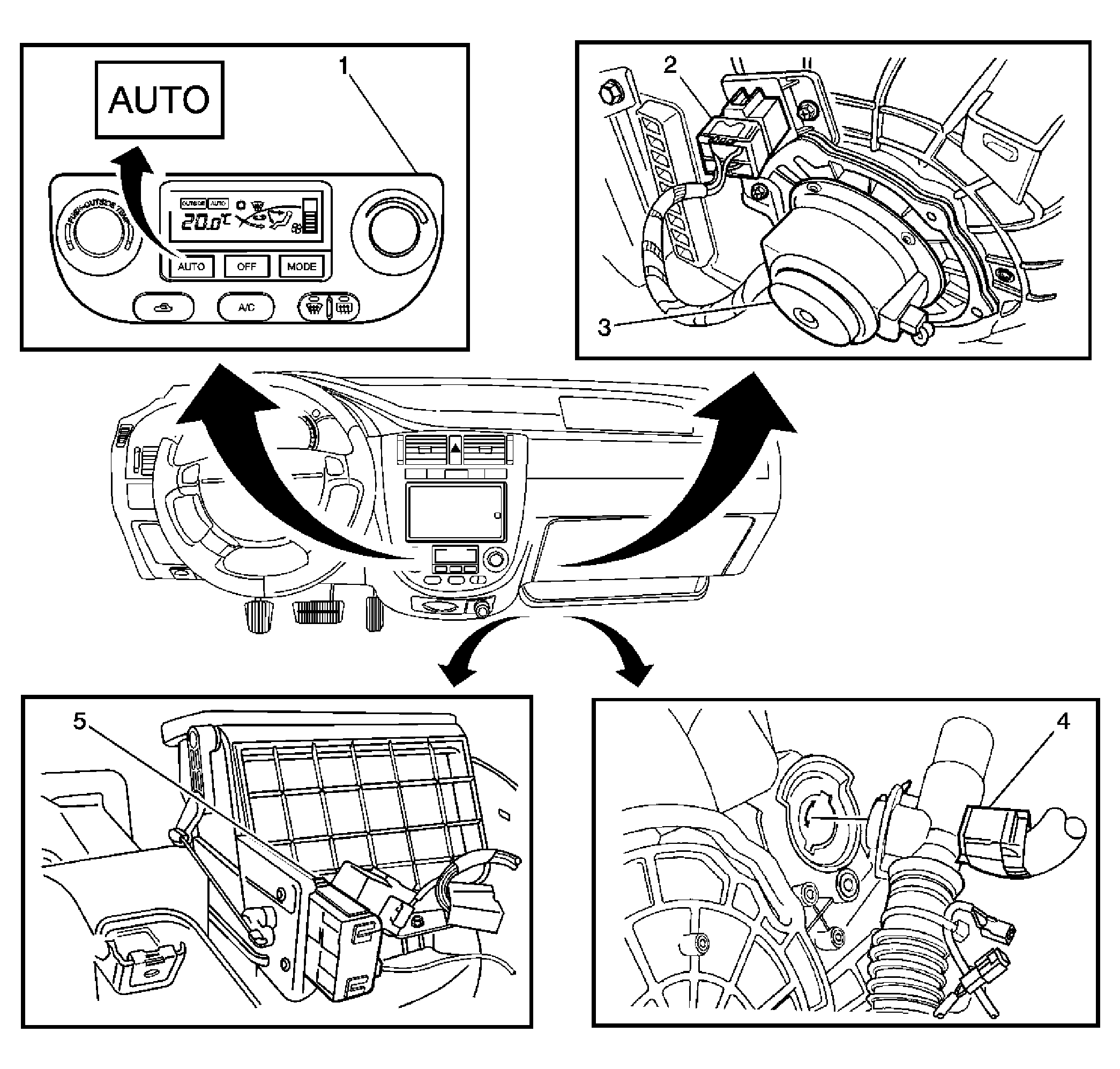

Fig 2: Identifying HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Sun Load Sensor Assembly
3	Coolant Temperature Sensor
4	Temperature Actuator

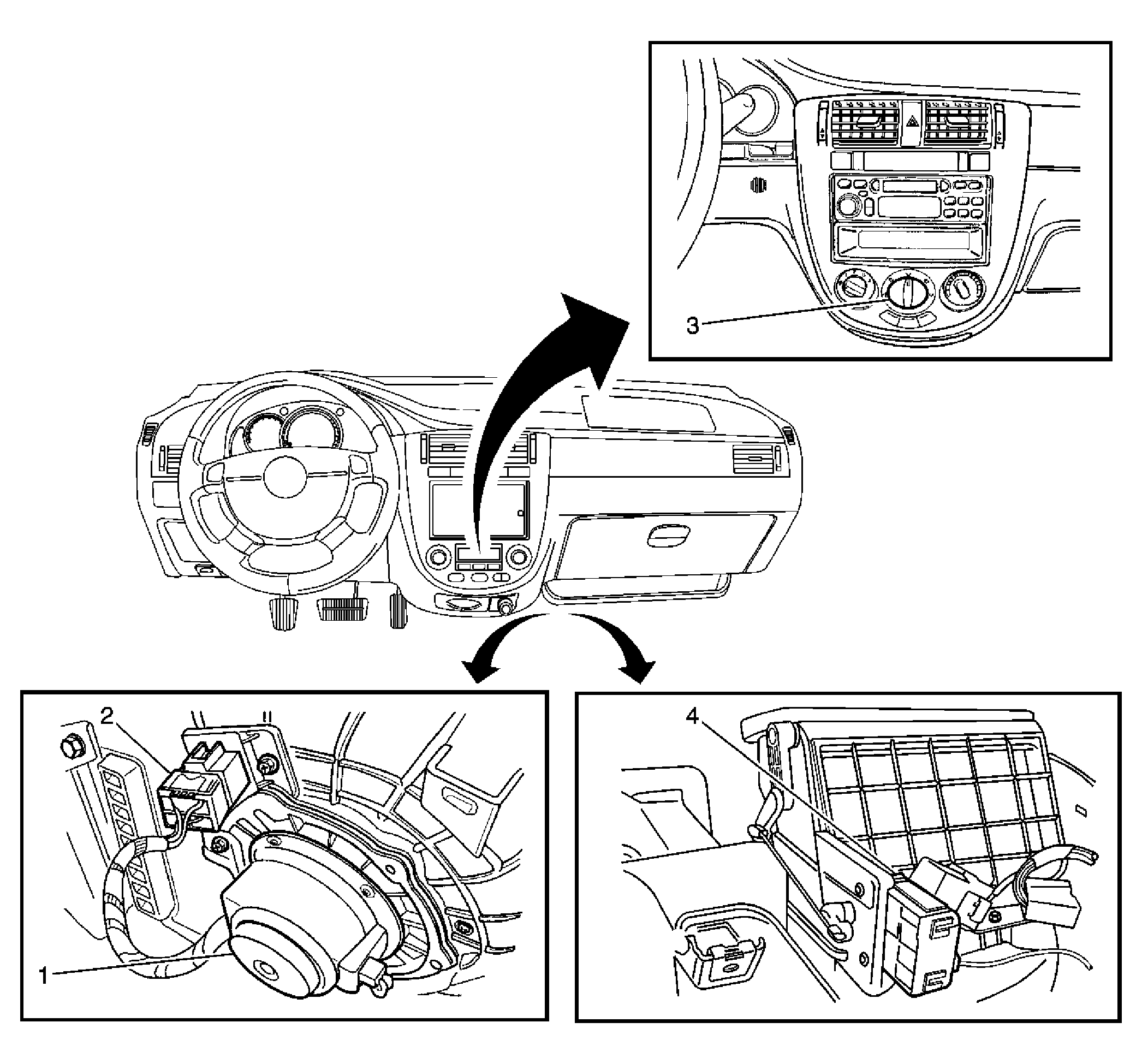

Fig 3: Identifying HVAC IP Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auto
2	Blower Motor Control Module
3	Blower Motor
4	Air Temperature Sensor - Inside
5	Recirculation Actuator

Fig 4: Identifying Cigar Lighter And Auxiliary Power Outlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Auxiliary Power Outlet

Fig 5: Identifying Clutch Pedal Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Nut
2	E-Ring
3	Pin
4	Clutch Master Cylinder
5	E-Ring
6	Clutch Pedal Shaft
7	Turn-Over Spring
8	Clutch Pedal
9	Clutch Pedal Buffer
10	Lock Nut
11	Nut
12	Bolt
13	Clutch Pedal Brace
14	Clutch Switch

Fig 6: Identifying Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Switch
2	Cruise Control Module

Fig 7: Identifying Daytime Relay Lamp (DRL), I/P Dimmer Switch And Ashtray

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Relay Lamp (DRL) Module
2	I/P Dimmer Switch
3	Ashtray Lamp
4	Reading Lamp
5	Dome Lamp

Fig 8: Identifying Data Link Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector

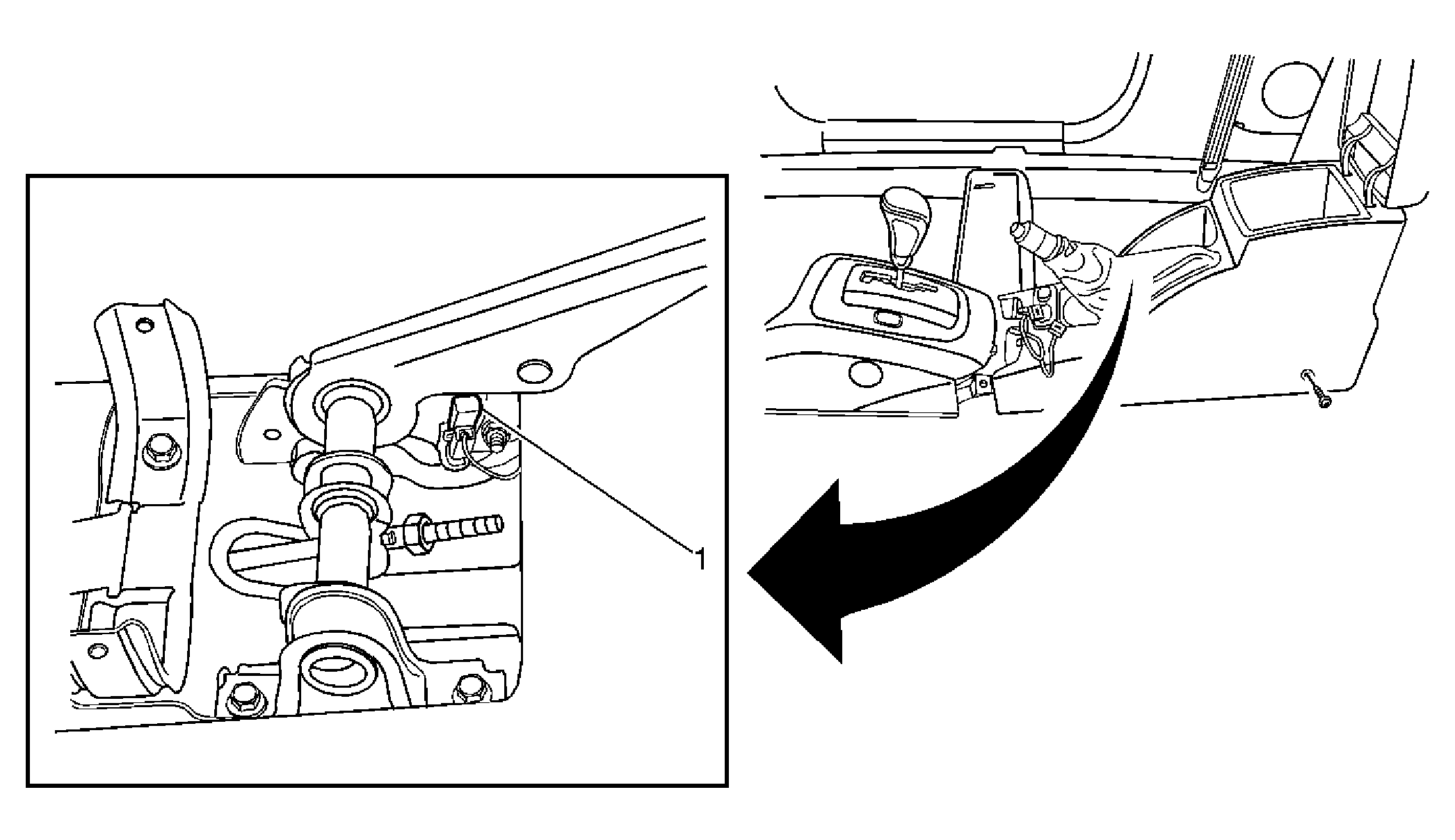

Fig 9: Identifying Hold Mode Switch (MLQ, MFA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Program Switch (Hold Mode)

Fig 10: Identifying HVAC IP Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor
2	Blower Motor Resistor
3	HVAC Control (Switch)
4	Recirculation Actuator

Fig 11: Identifying Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Ignition Key Alarm Switch
3	Clock
4	Turn Signal Switch
5	Headlamp Switch

Fig 12: Identifying Light Ring, Ignition Switch, Hazard Switch And Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Light Ring
2	Ignition Switch
3	Hazard Switch
4	Headlamp Leveling Switch (Except North America)

Fig 13: Identifying Control Module, Steering Actuator, Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
2	Variable Effort Steering Actuator
3	Steering Wheel Position Sensor

Fig 14: Identifying PRNDL Lamp, Multifunction Alarm Module And Defrost Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	PRNDL Lamp
2	Multifunction Alarm Module
3	Defrost Switch

Fig 15: Identifying Radio And Horn Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Horn Switches

Fig 16: Identifying Radio Antenna (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna - Front
2	Radio Antenna Module

Fig 17: Identifying Steering Wheel And Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	A/T Select Lever
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch

Fig 18: Identifying Speaker Tweeter Components - Front And Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker Front Door (Left and Right)
2	Speaker Rear Door (Left and Right)
3	Speaker Tweeter - Front and Rear Door (Left and Right)

Fig 19: Identifying Park Brake Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch

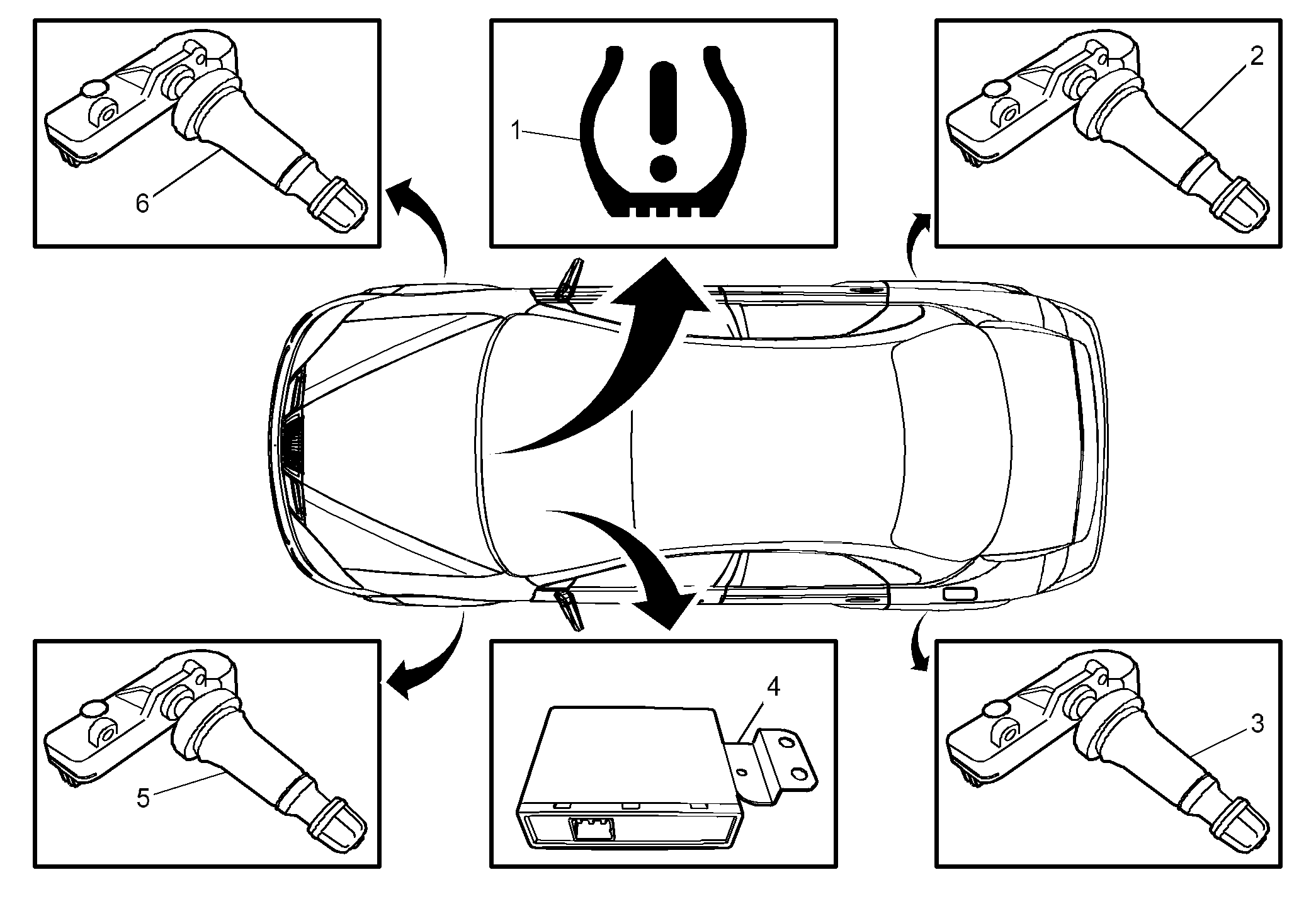

Fig 20: Identifying Tire Pressure Monitoring System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Warning Lamp
2	Right Rear Transmitter
3	Left Rear Transmitter
4	Tire Pressure Monitor System (TPMS) Receiver Module
5	Left Front Transmitter
6	Right Front Transmitter

Fig 21: Identifying Steering Column Components - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper Intermittent Switch (Optional)
2	Wiper Intermittent Switch and Rear Fog Lamp Switch (w/Rear Fog Lamps)
3	Wiper Switch
