Removal Procedure

  1. Disconnect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement .

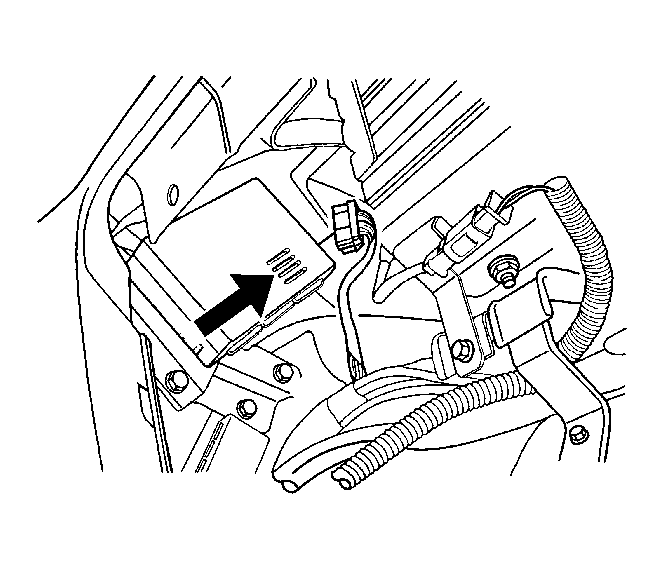

    3. Fig 1: View Of SSPS Control Module And Electrical Connector
    GM1290130Courtesy of GENERAL MOTORS CORP.
  3. Slide the speed sensitive power steering (SSPS) control module off of the control module bracket.
  4. Disconnect the electrical connector from the SSPS control module.
