Trailer Connector/Provision Schematics

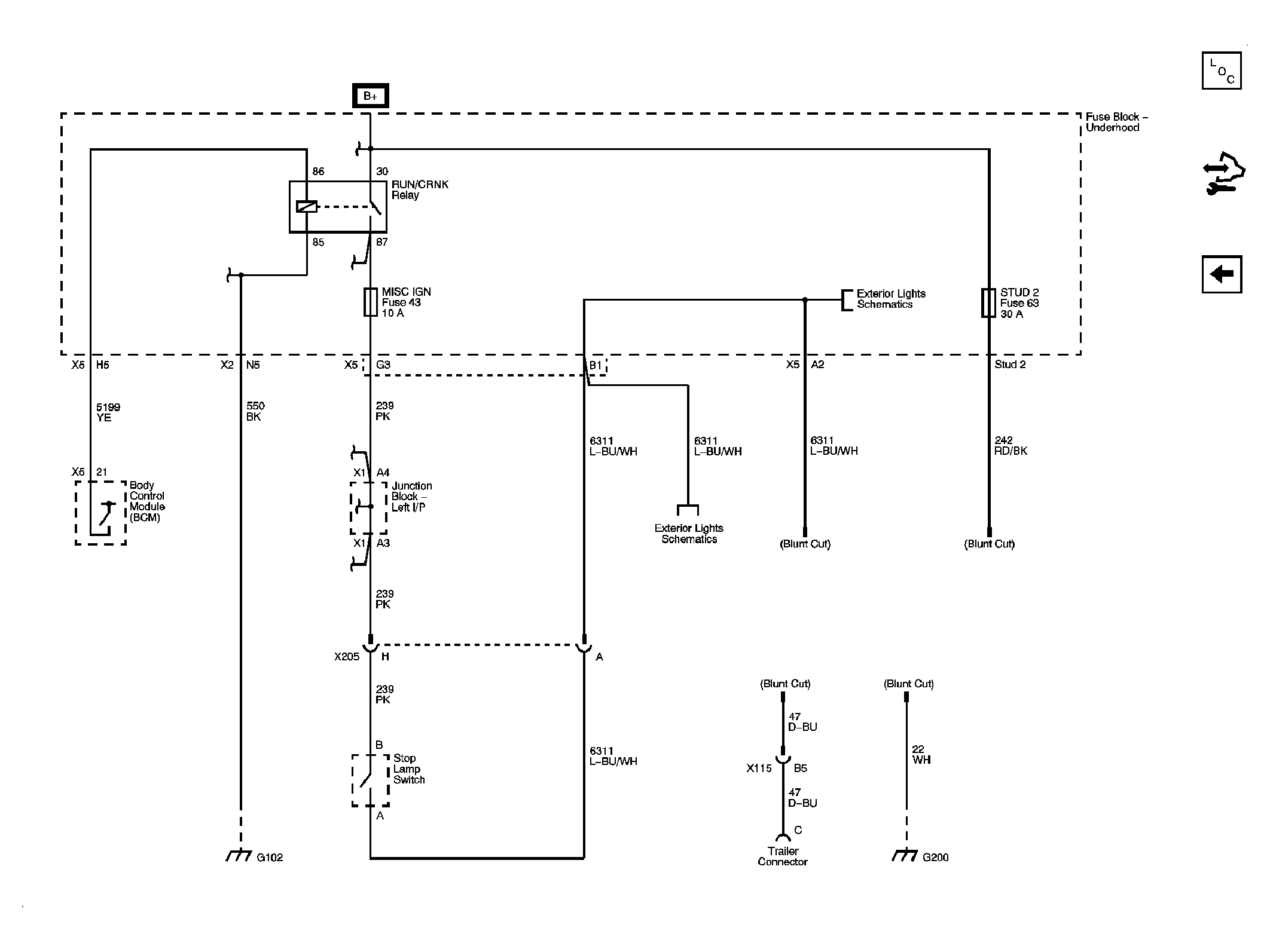

Fig 1: Trailer Lighting Control Schematic - 1 Of 2 (EXP) or 1 Of 1 (without EXP)

Courtesy of GENERAL MOTORS CORP.

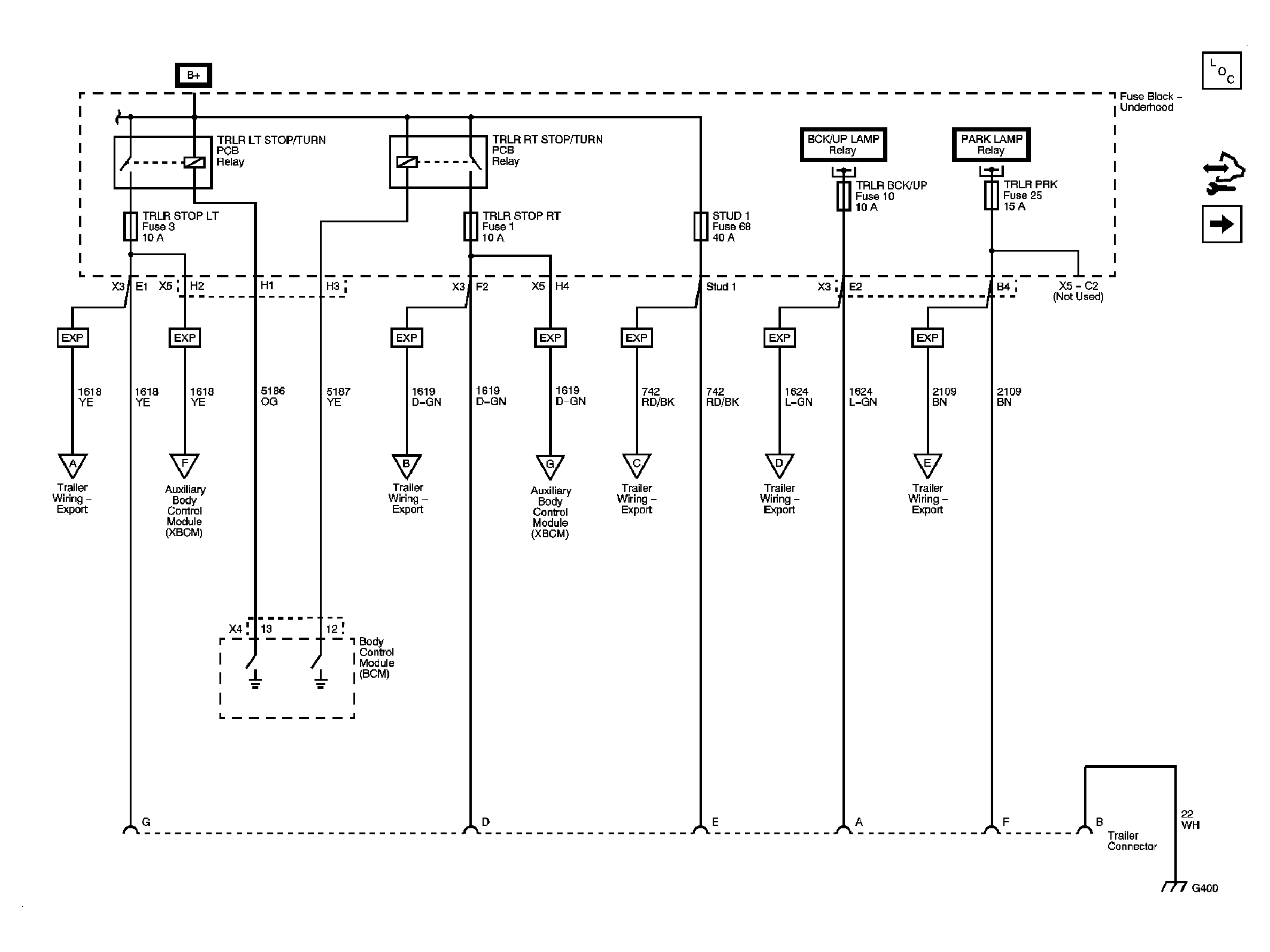

Fig 2: Trailer Wiring Schematic - 2 Of 2 EXP

Courtesy of GENERAL MOTORS CORP.

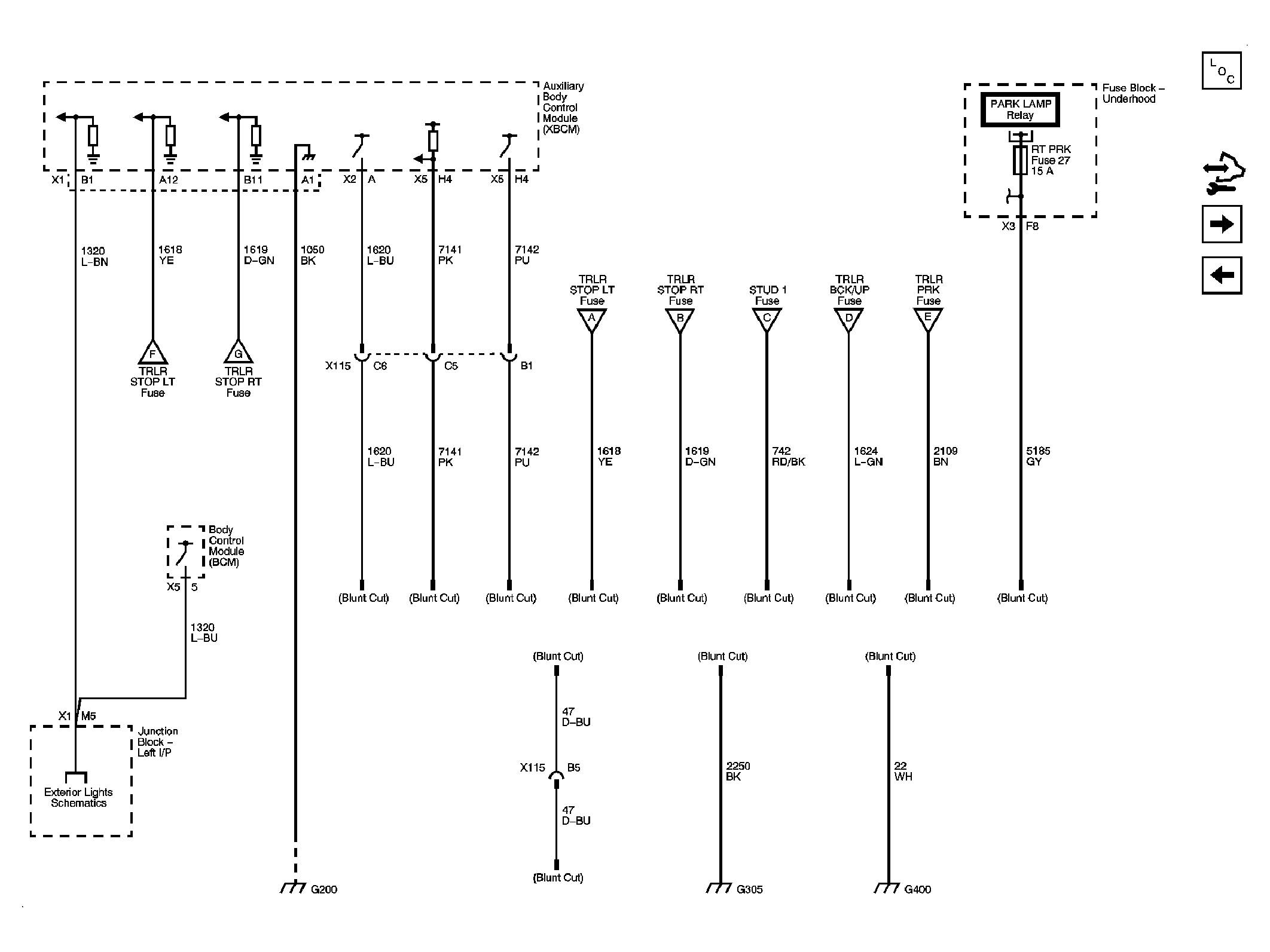

Fig 3: Trailer Brake Control Schematic without EXP

Courtesy of GENERAL MOTORS CORP.
