Power Window Motor

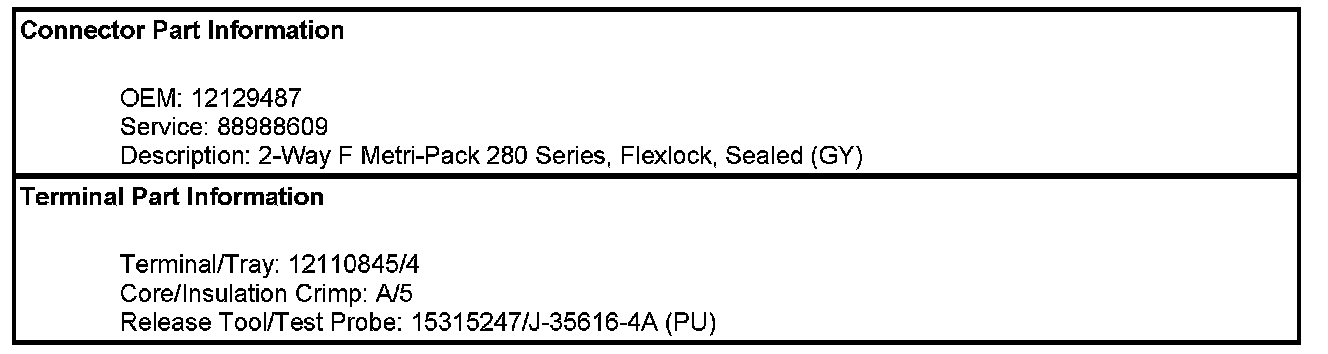

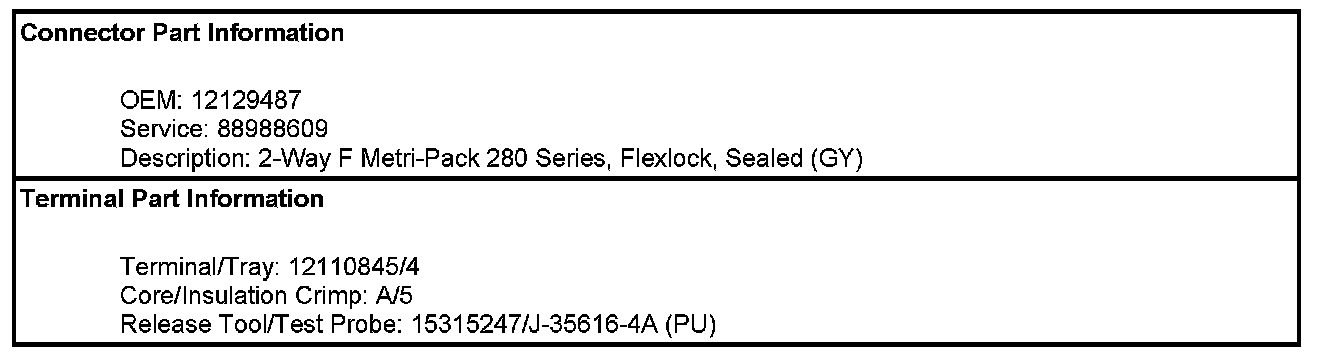

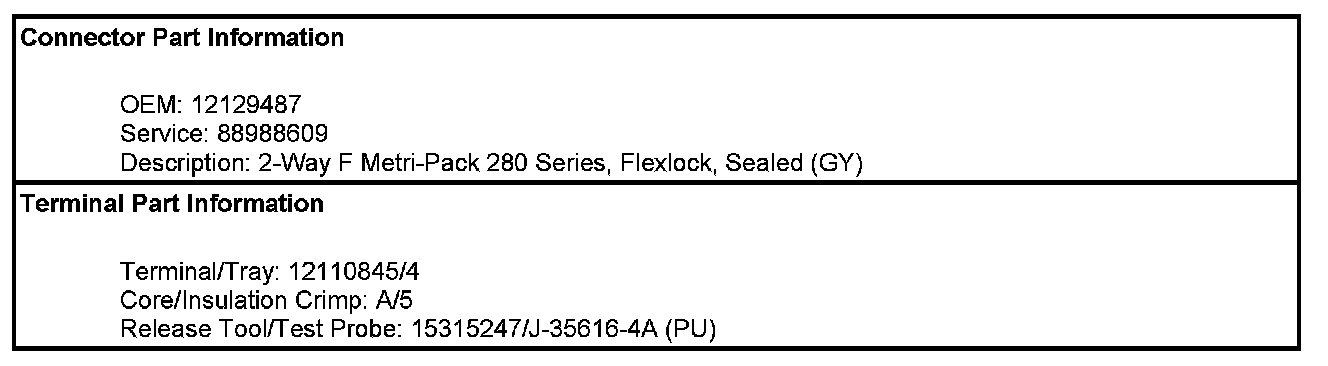

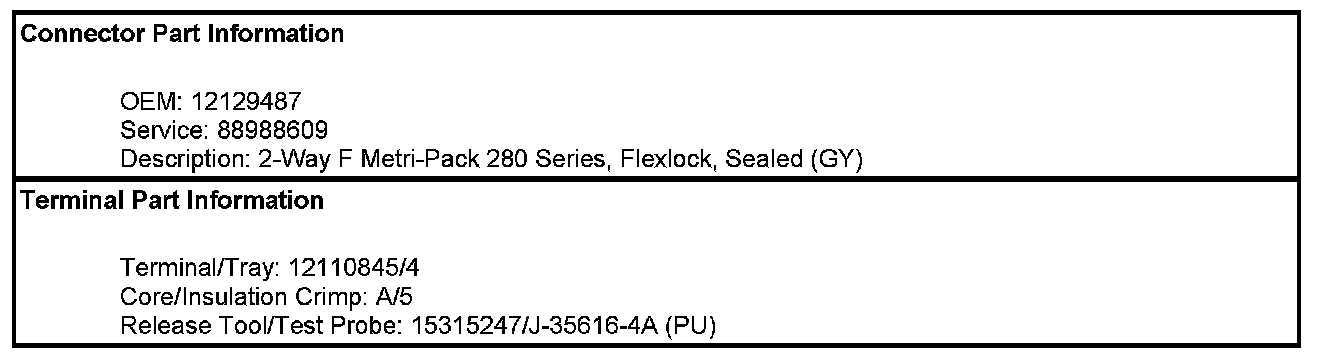

Component Connector End Views - Continued

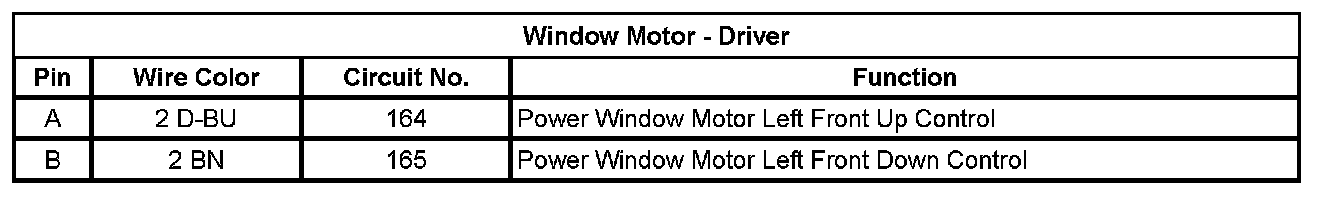

Window Motor - Driver

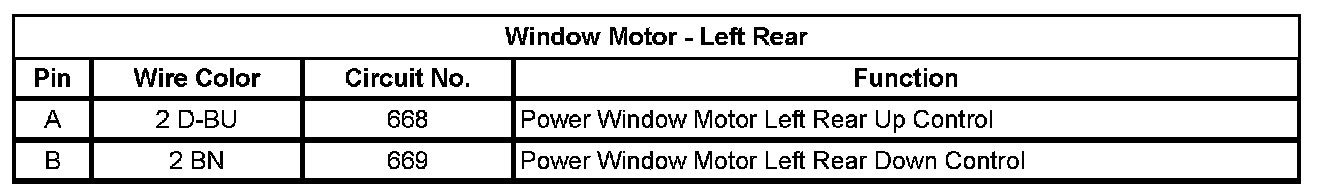

Window Motor - Left Rear

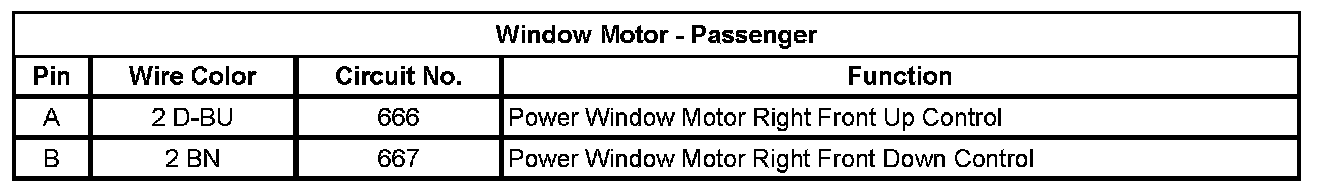

Window Motor - Passenger

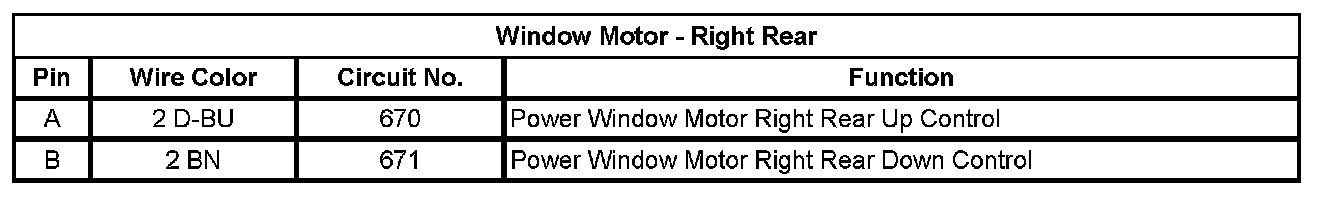

Window Motor - Right Rear
