Splice Locations



Master Electrical Component List

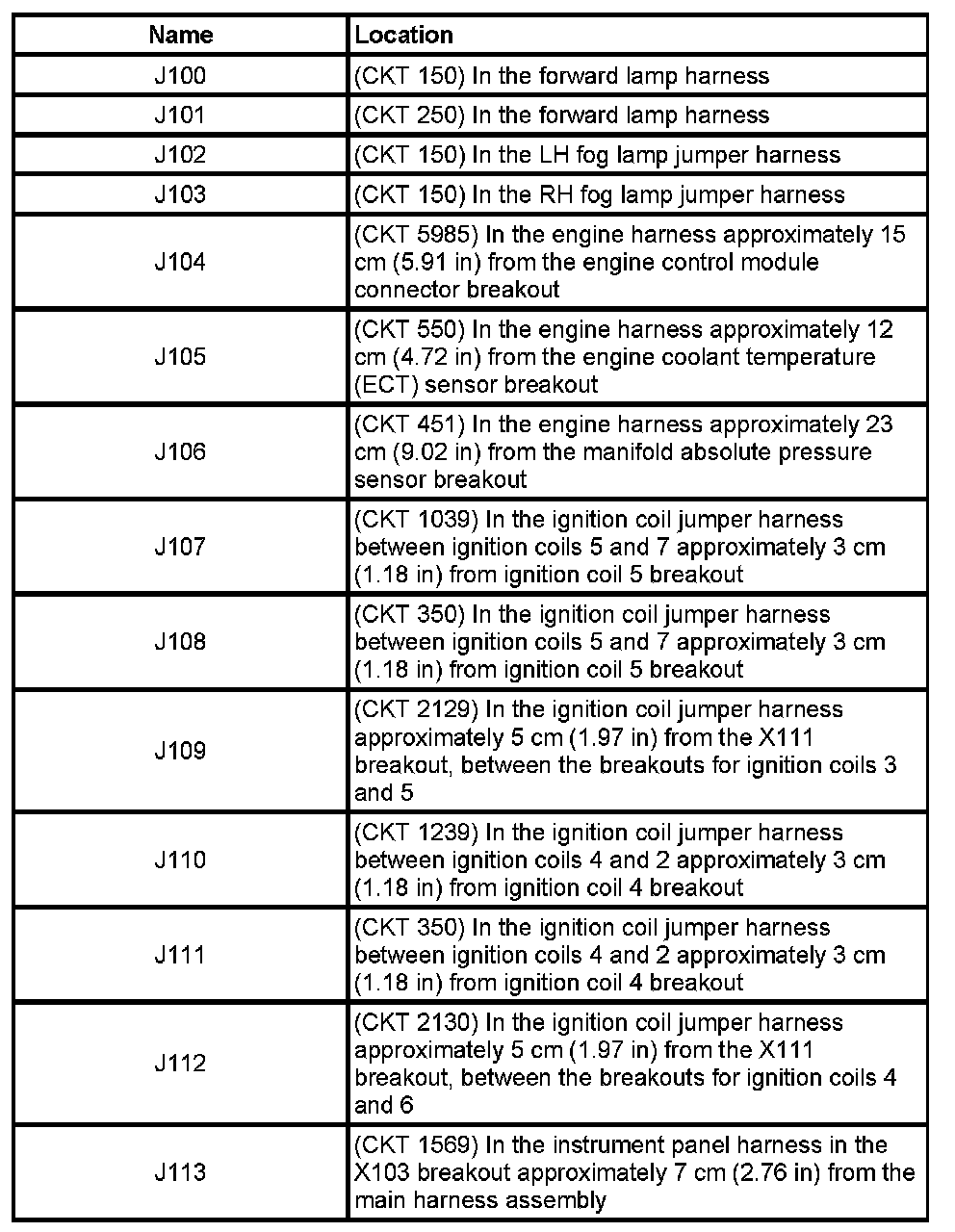

J100 - J113:

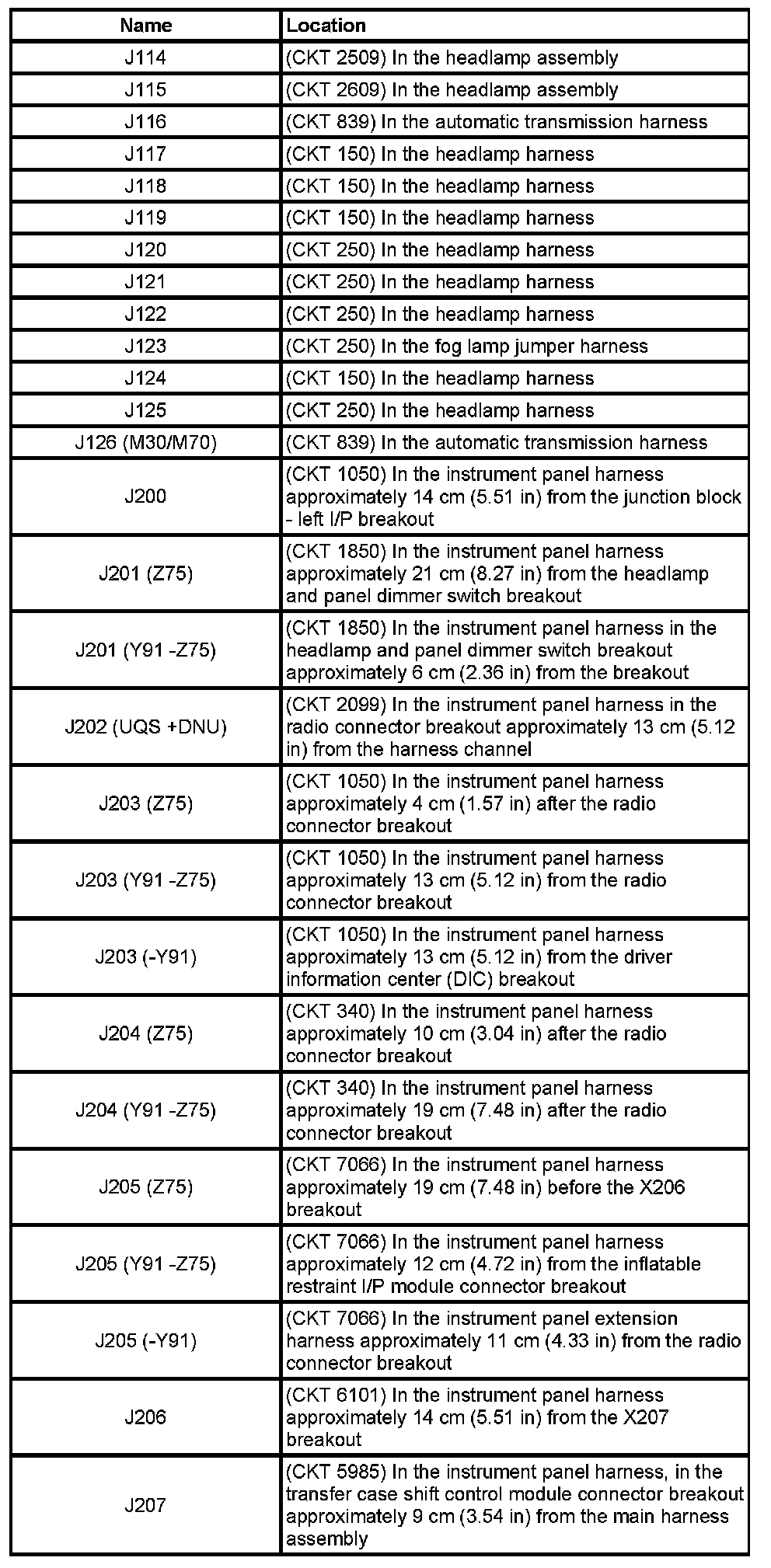

J114 - J207:

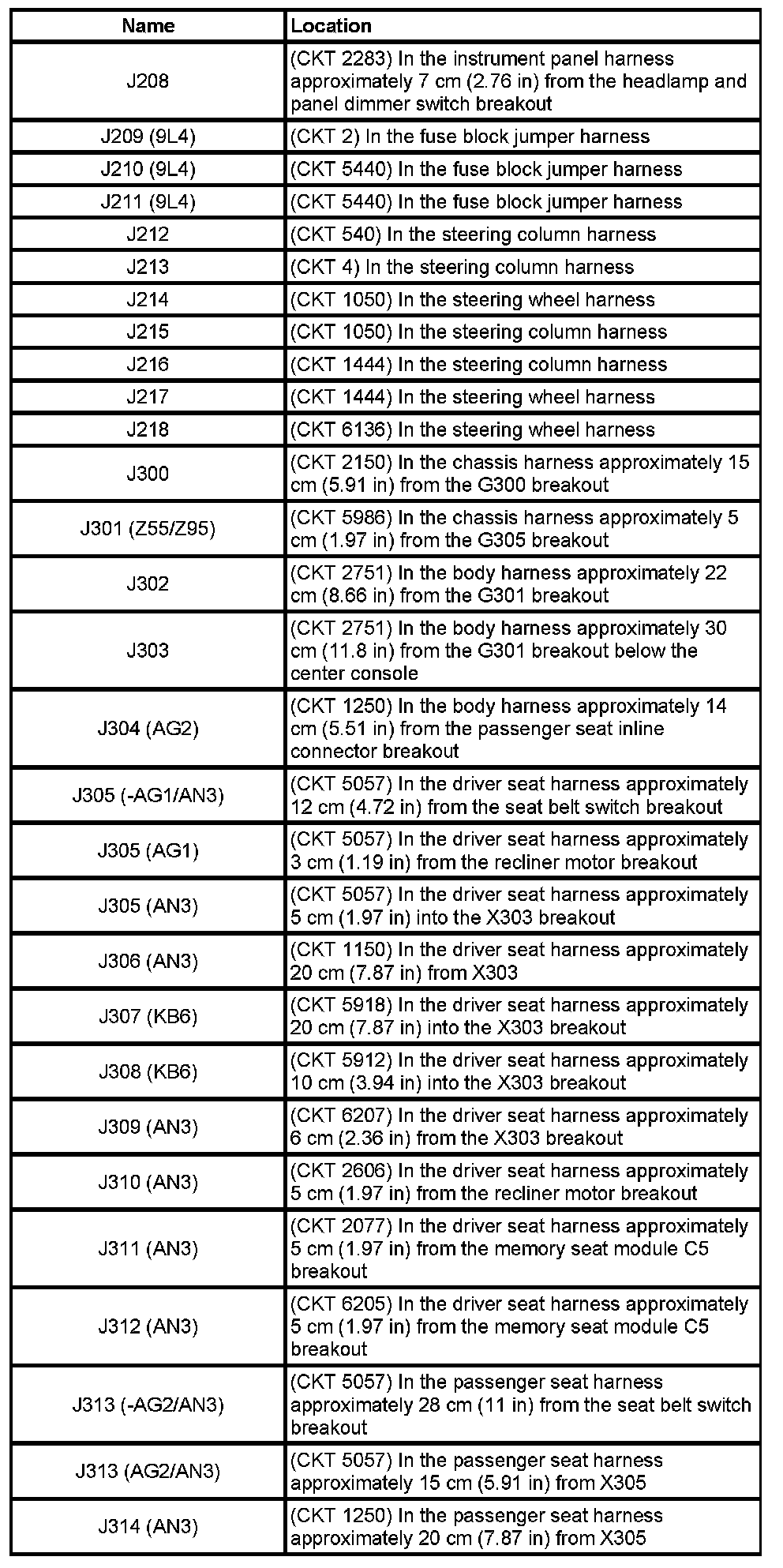

J208 - J314:

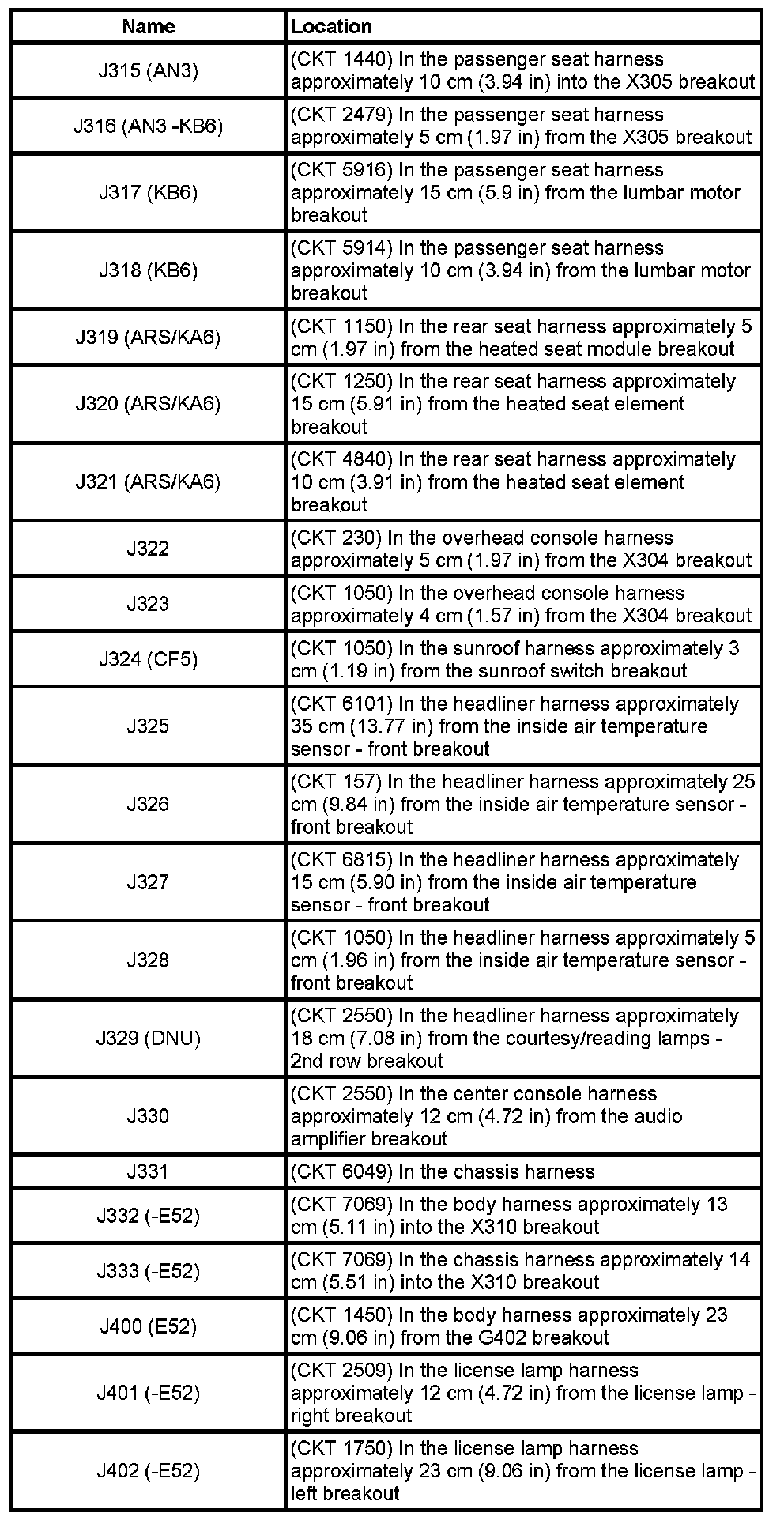

J315 - J402:

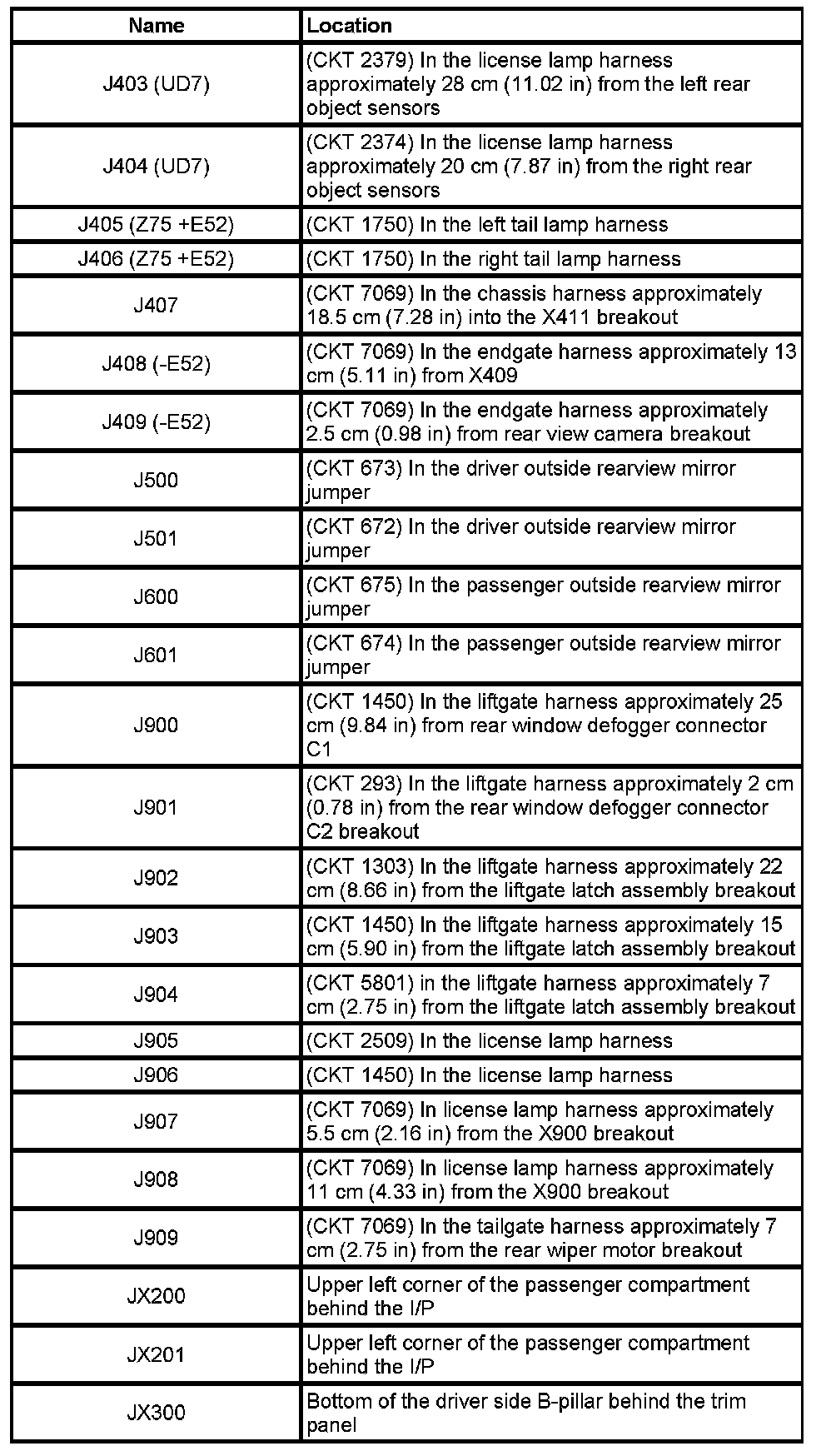

J403 - Jx300:
