Body Control Module



Component Connector End Views

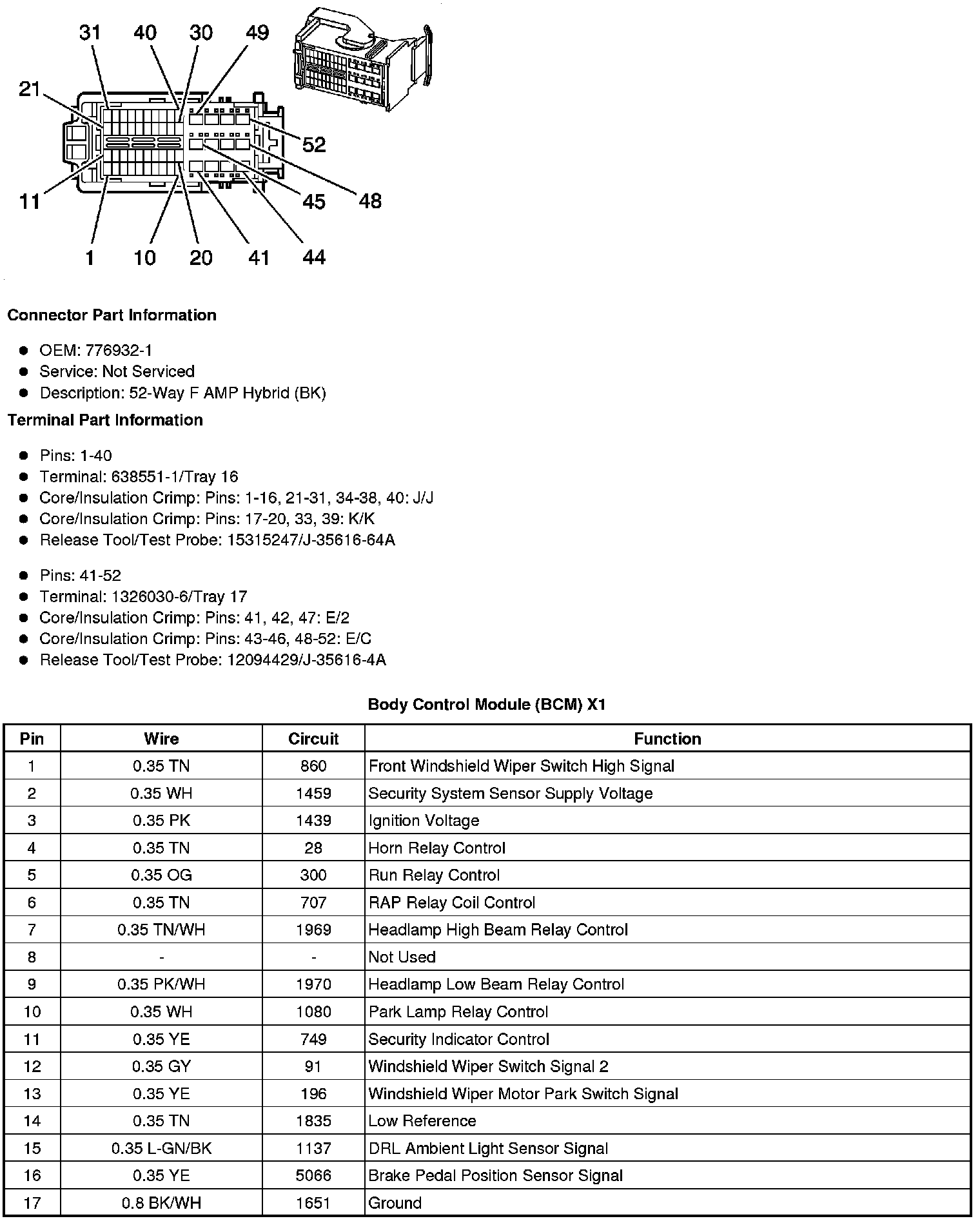

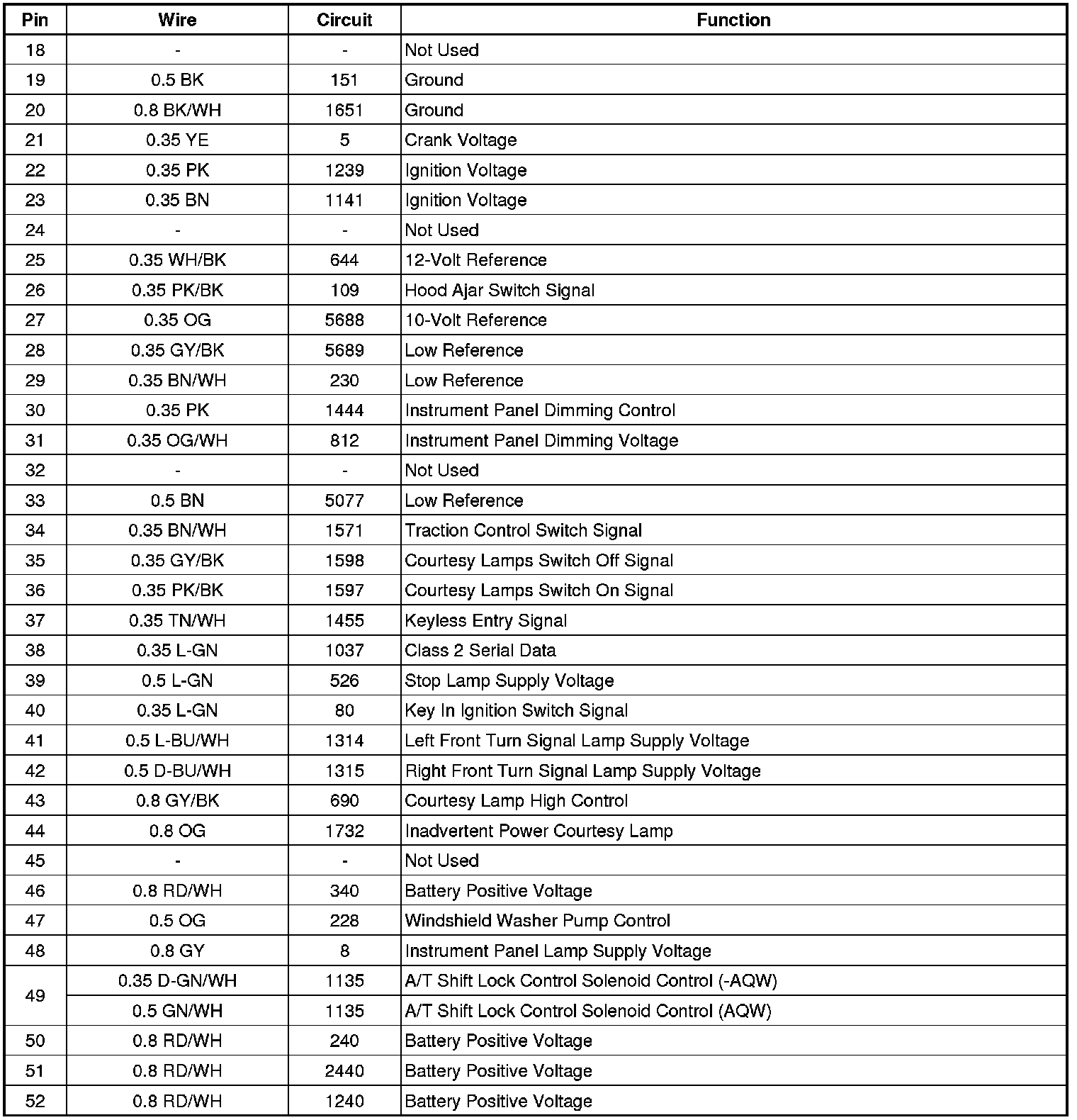

Body Control Module (BCM) X1

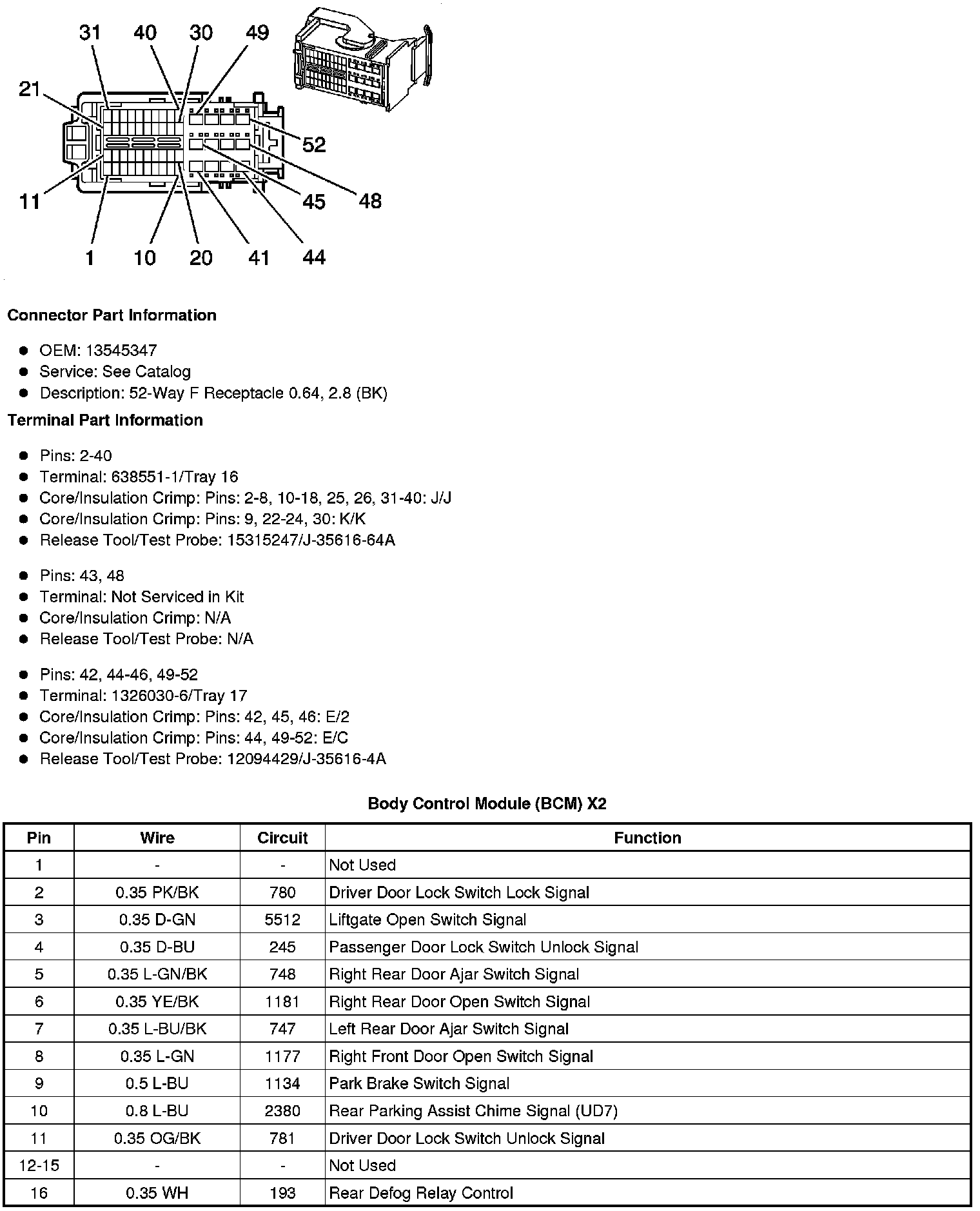

Body Control Module (BCM) X2

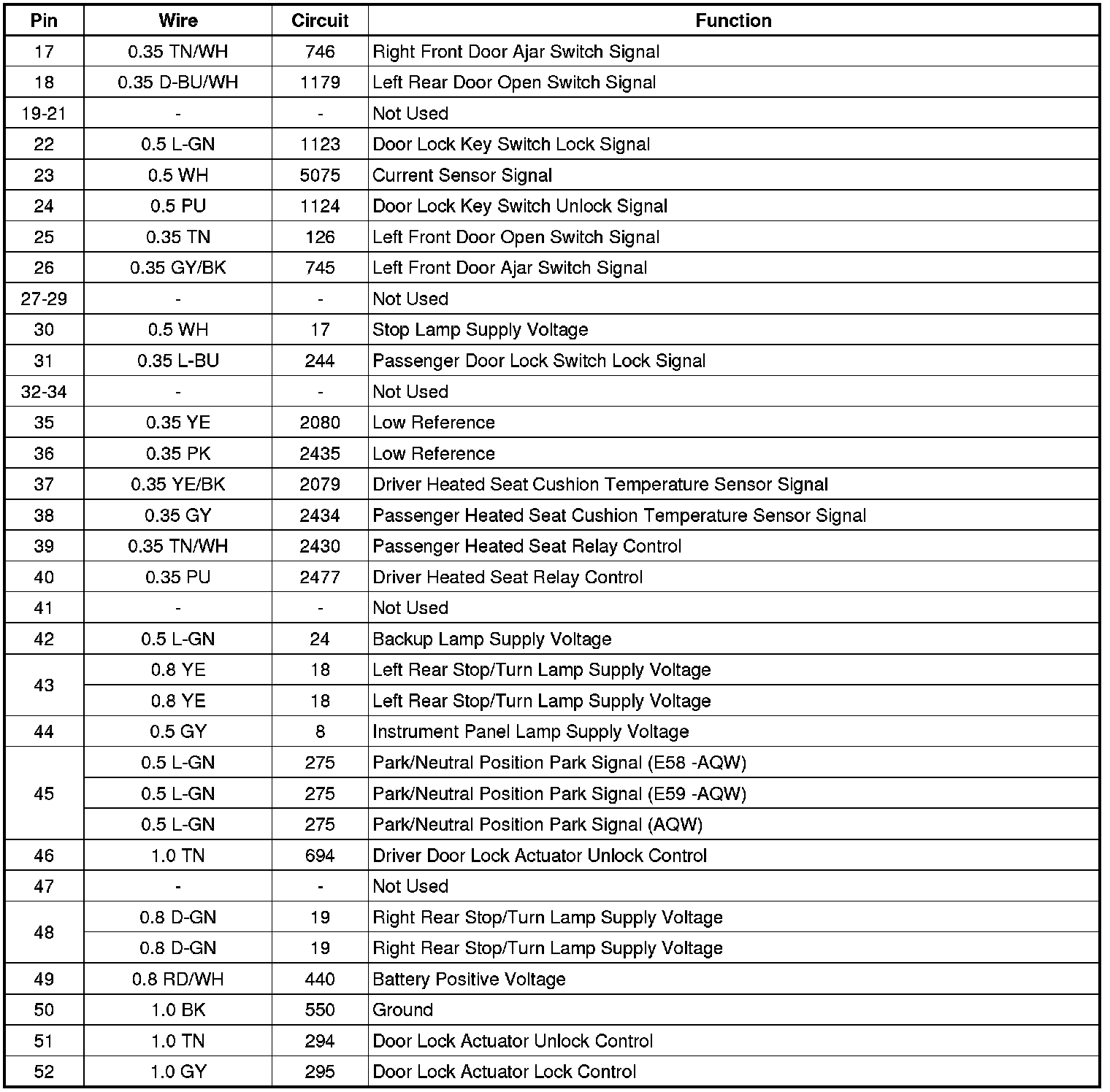

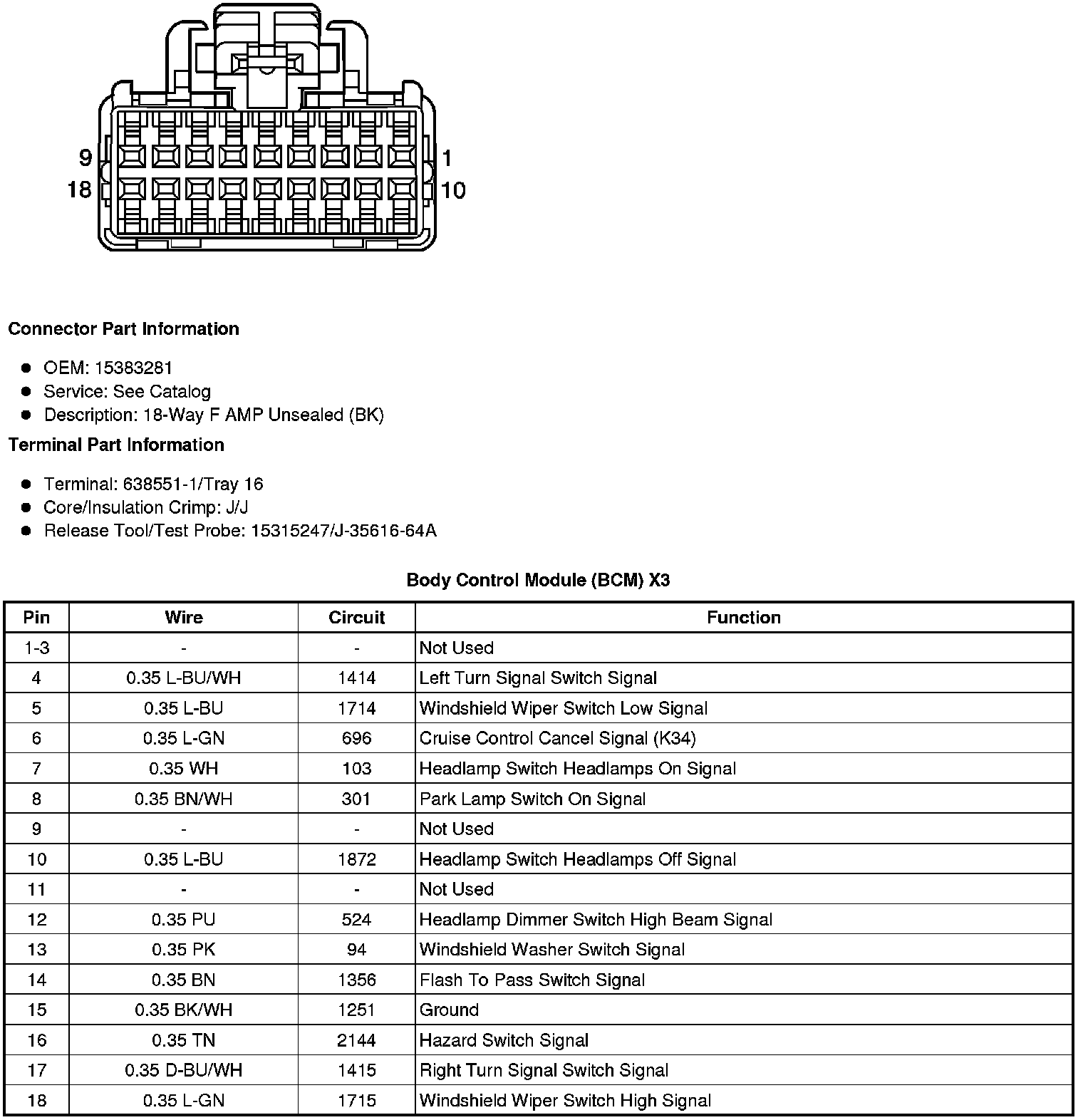

Body Control Module (BCM) X3
