Inflatable Restraint Sensing and Diagnostic Module (SDM)



Component Connector End Views

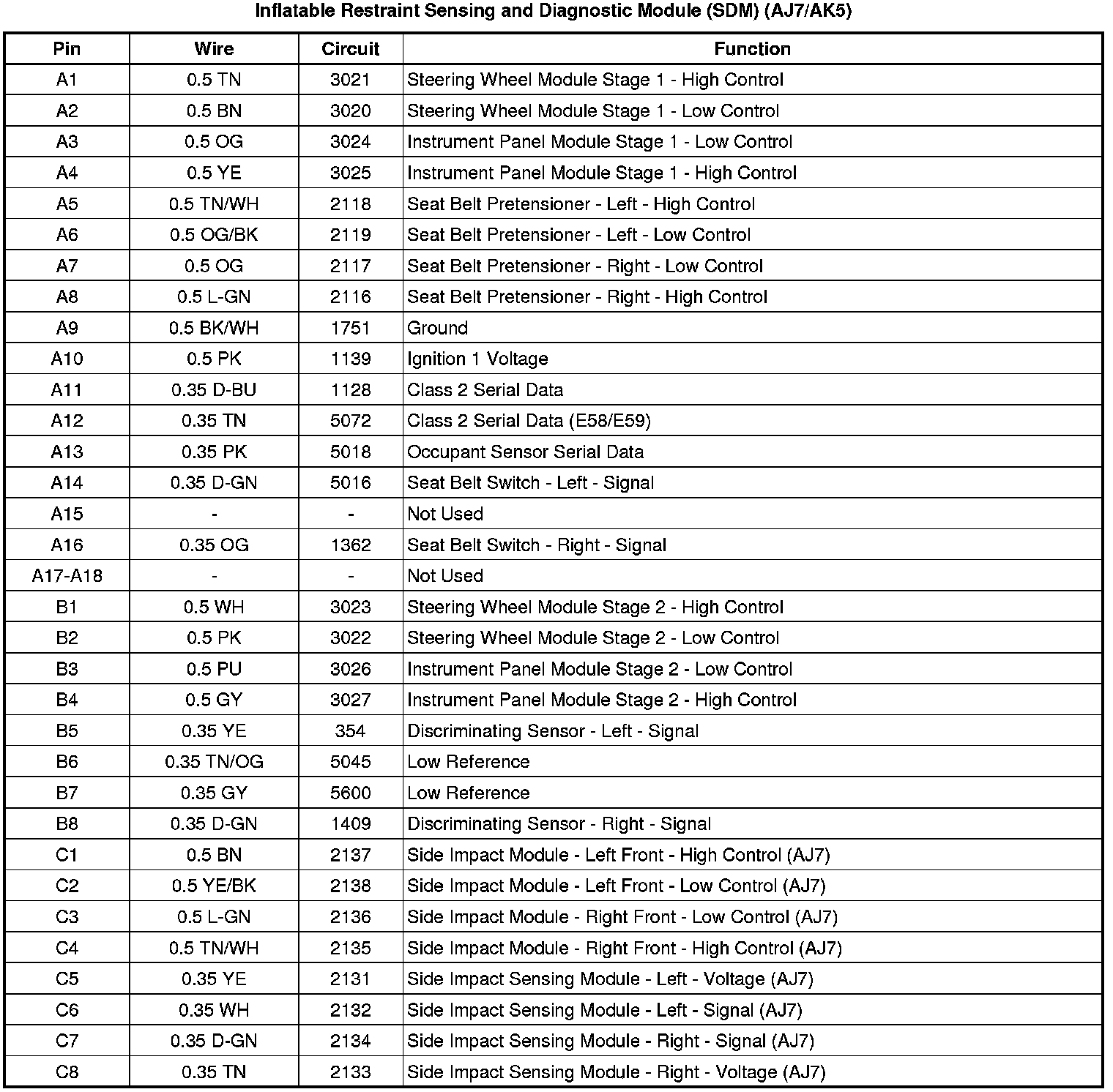

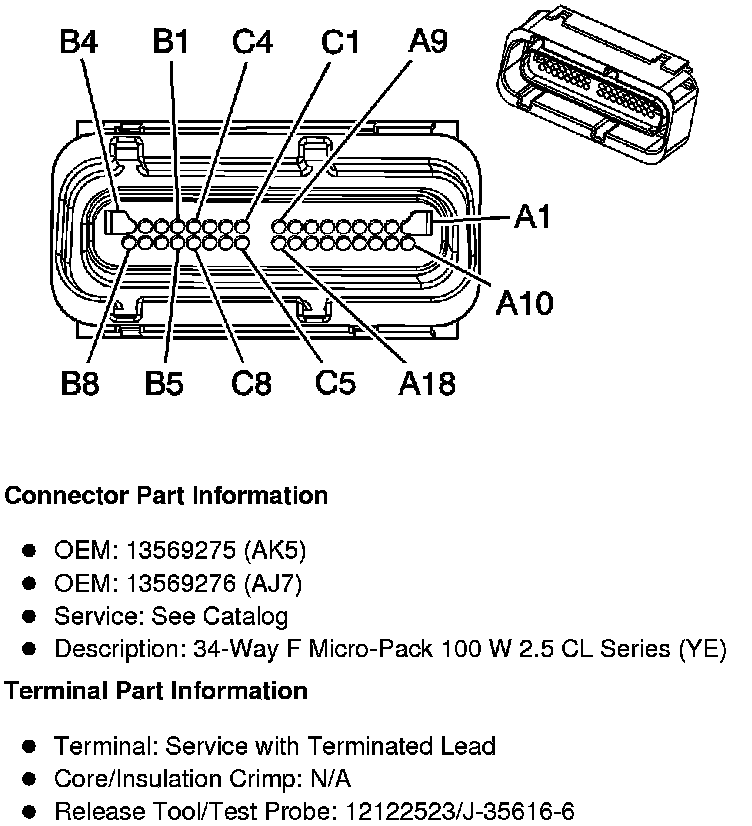

Inflatable Restraint Sensing and Diagnostic Module (SDM) (AJ7/AK5)

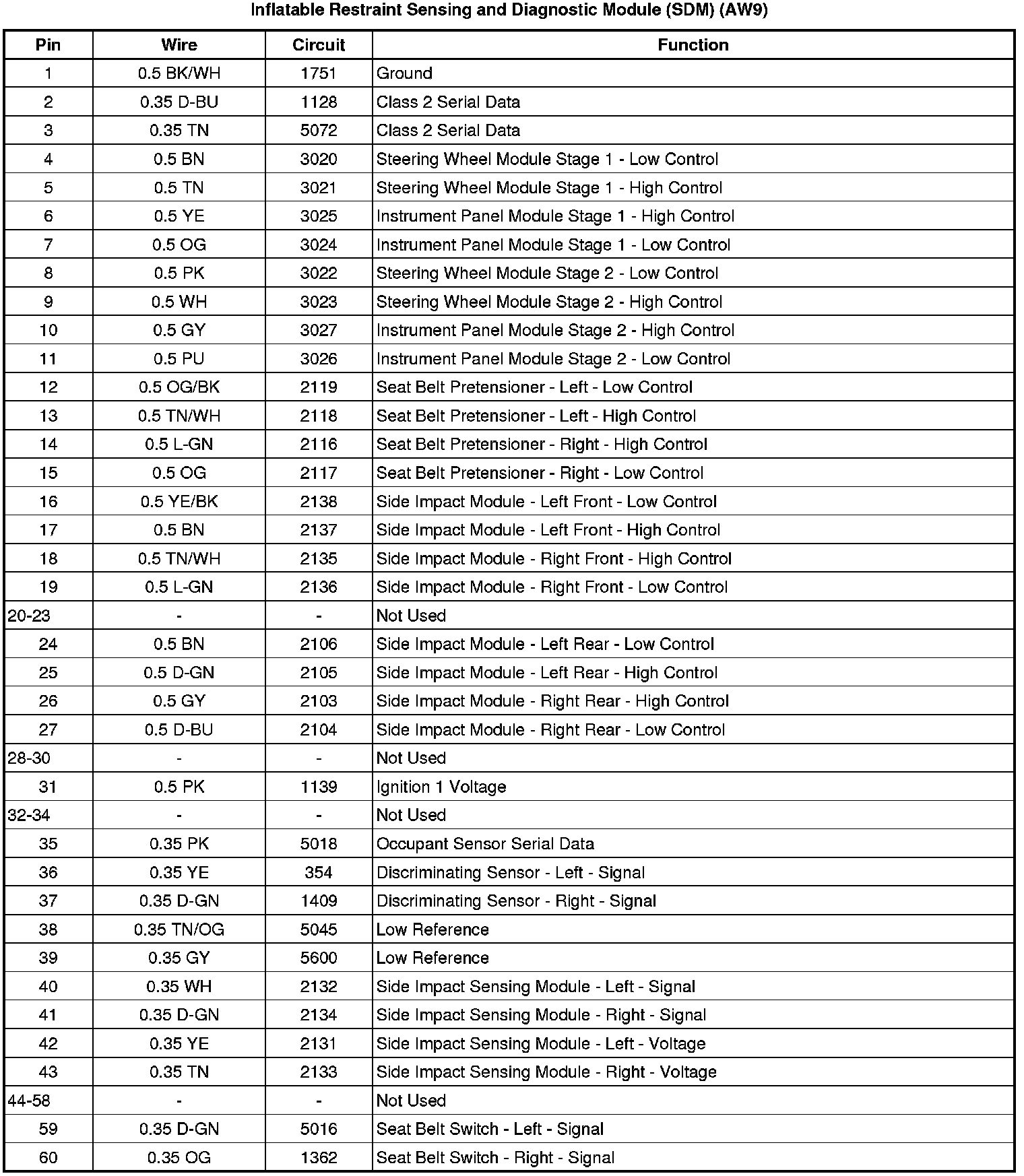

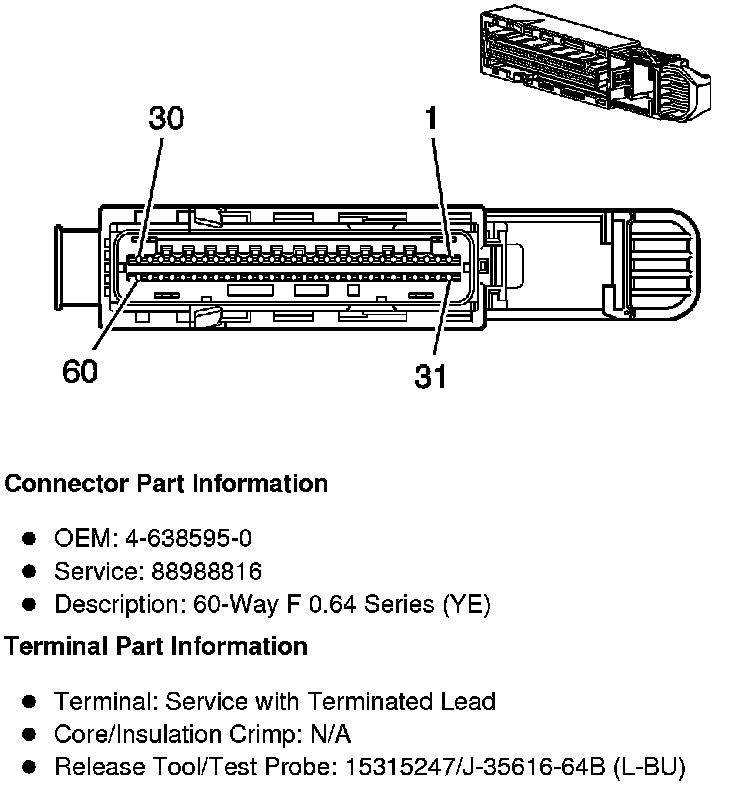

Inflatable Restraint Sensing and Diagnostic Module (SDM) (AW9)
