Inflatable Restraint Side Impact Sensing Module (SISM)

Component Connector End Views

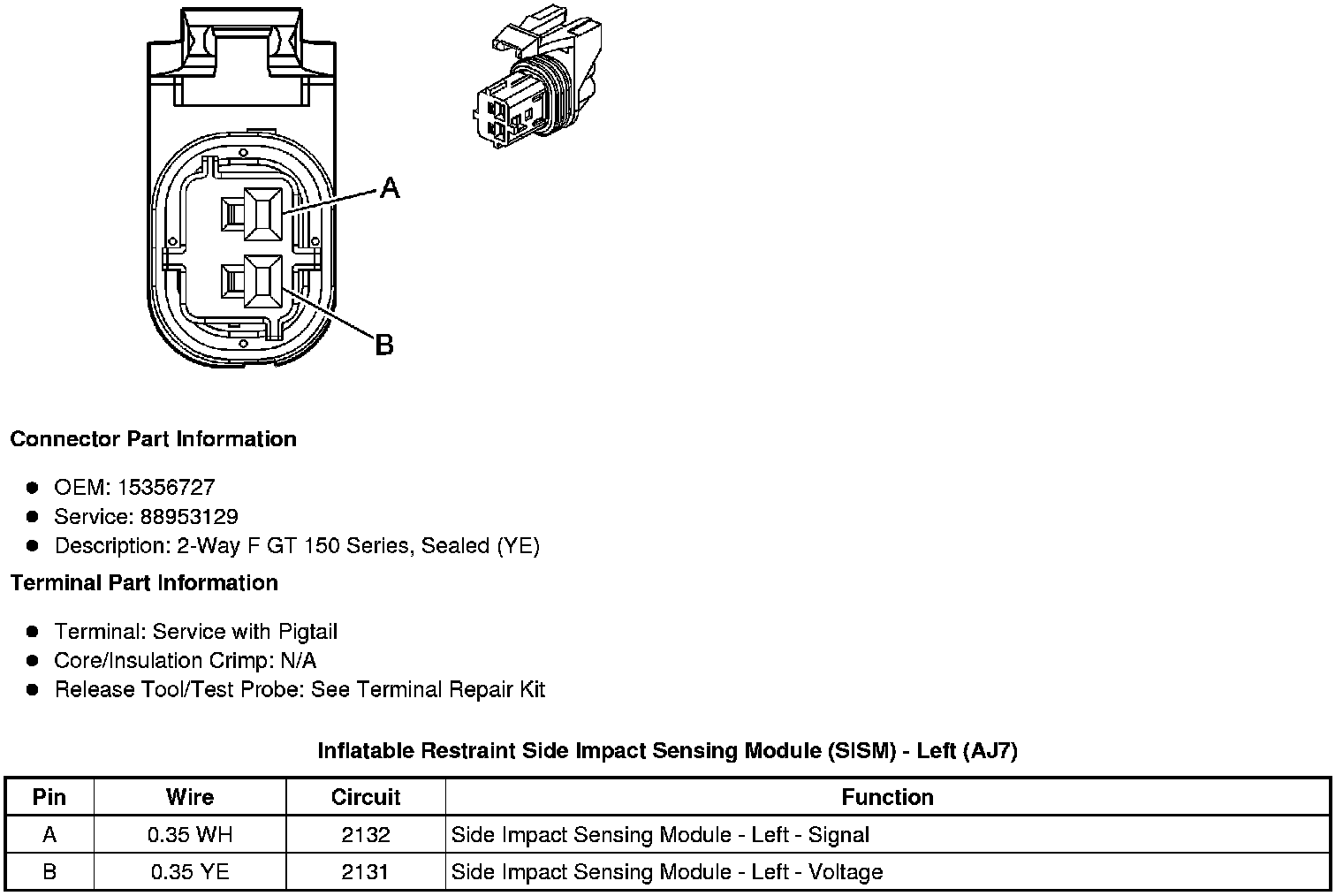

Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AJ7)

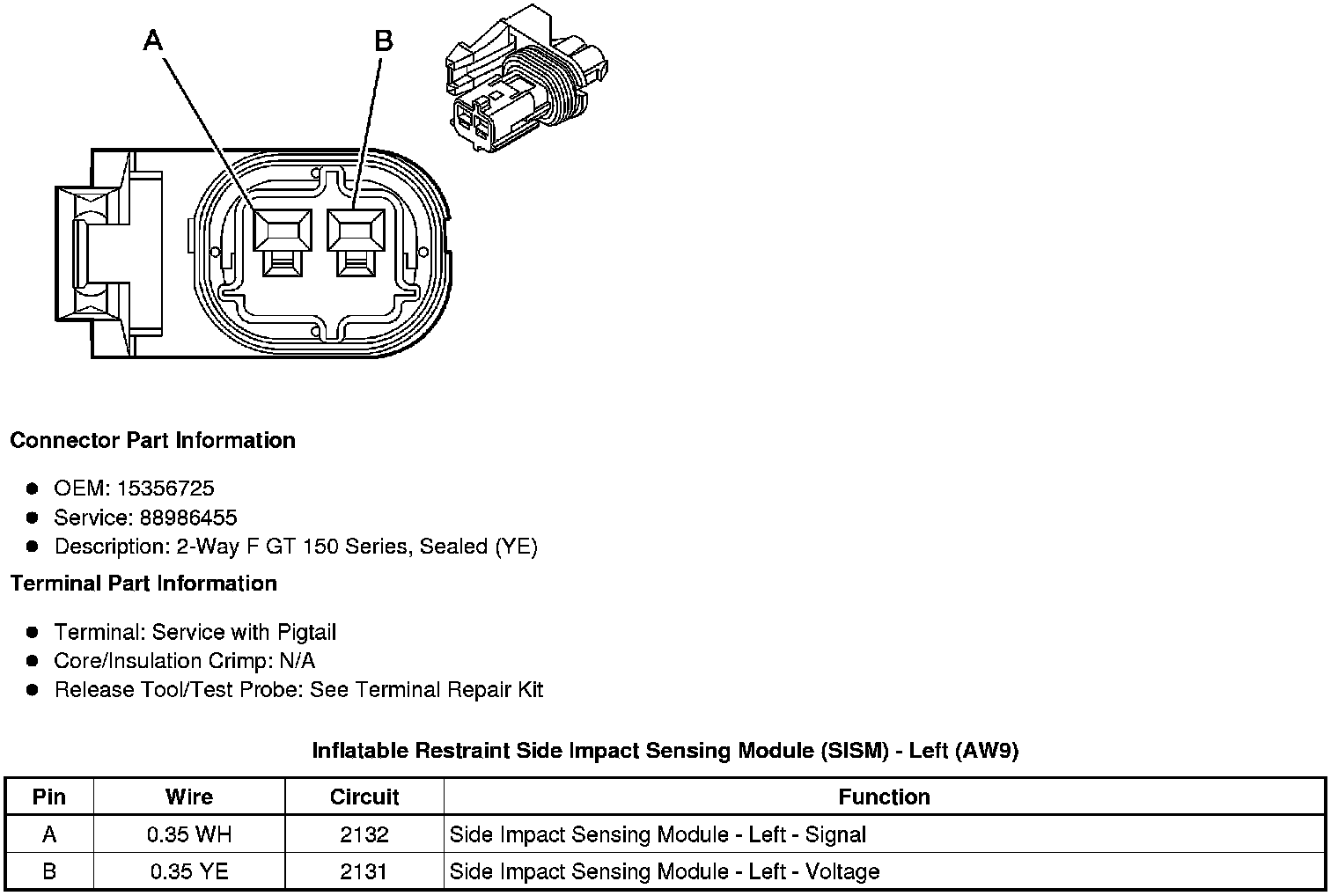

Inflatable Restraint Side Impact Sensing Module (SISM) - Left (AW9)

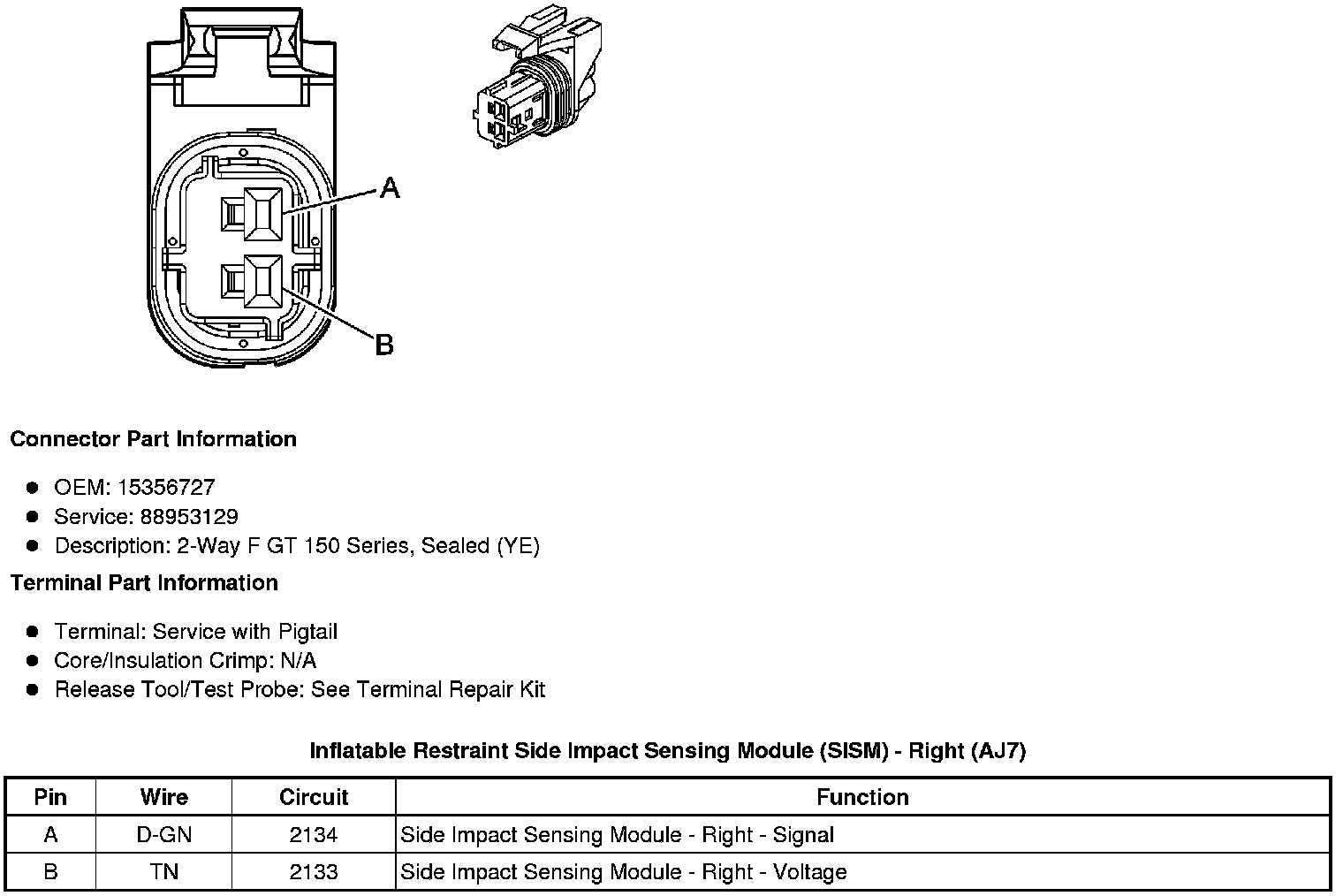

Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AJ7)

Inflatable Restraint Side Impact Sensing Module (SISM) - Right (AW9)
