Installation Procedure

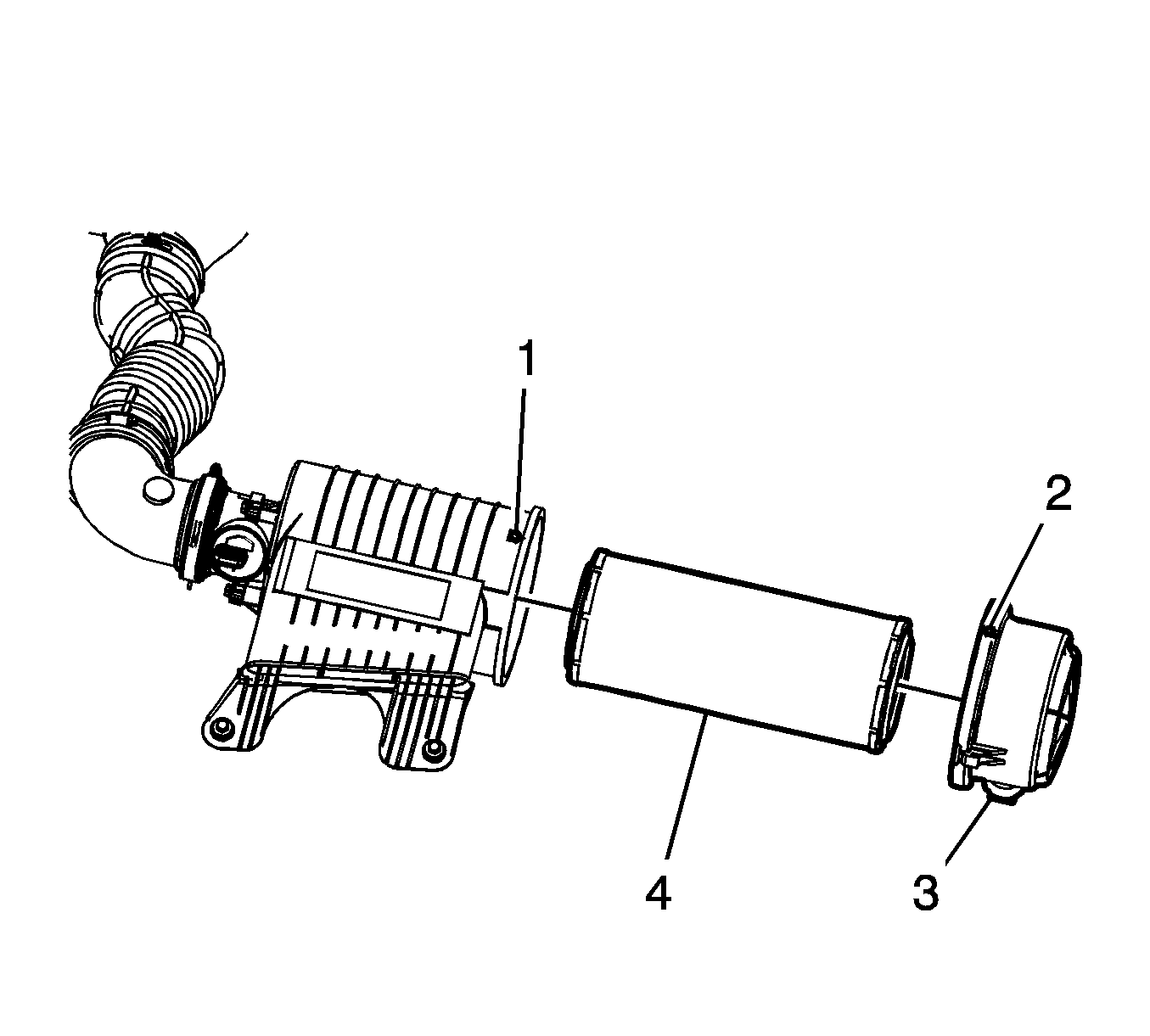

    Fig 1: Identifying Air Cleaner Housing Cover Retainers, Cover & Filter Element
    GM1950196Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW air filter element (4).
  2. Align that the arrow on the air cleaner housing cover (2) with the arrow (1) on the air cleaner housing.
  3. Install the air cleaner housing cover (3) to the air cleaner housing.

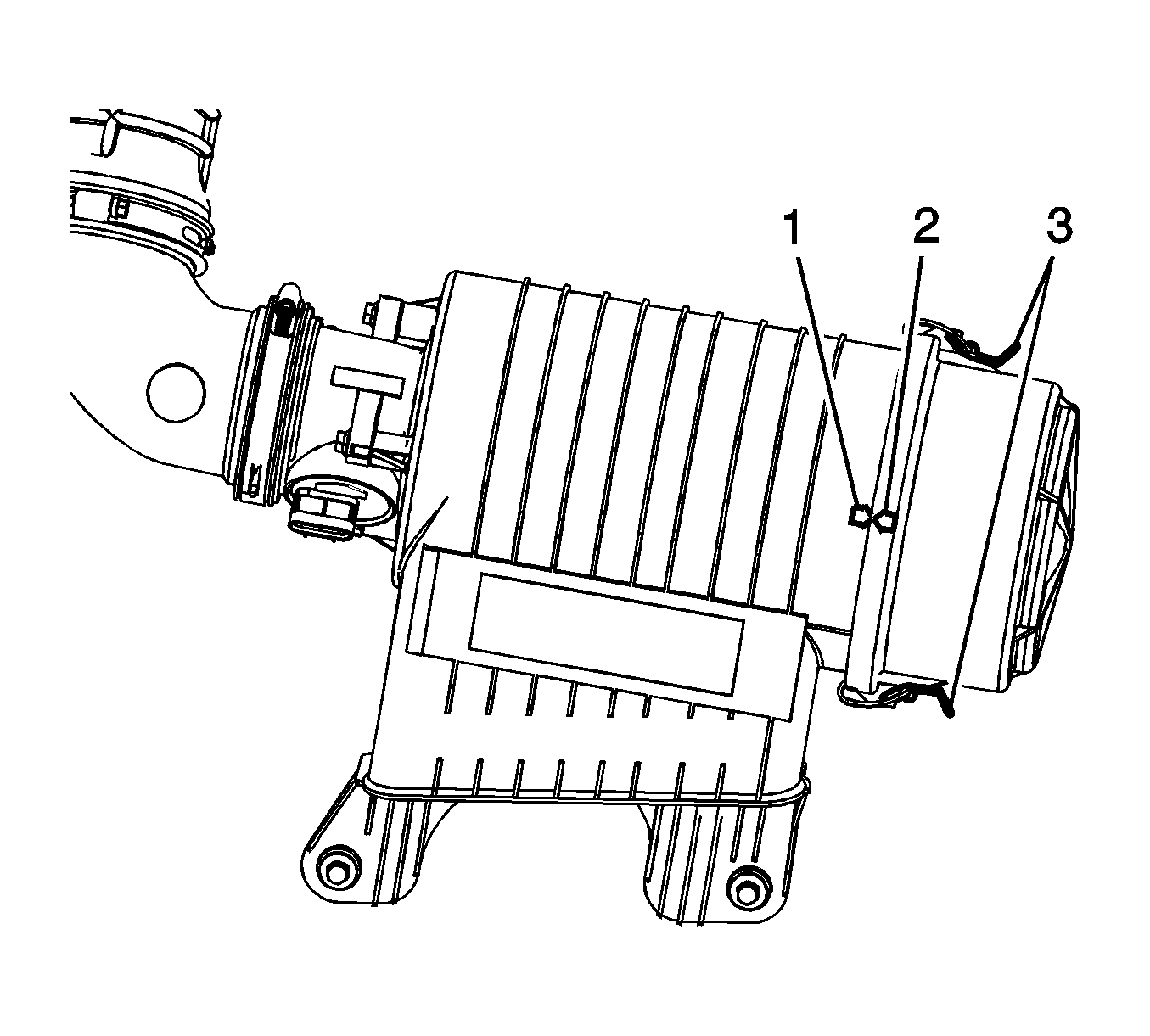

    4. Fig 2: Identifying Air Cleaner Housing Cover Retainers & Cover
    GM1950195Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the arrow on the housing (1) is still aligned with the arrow (2) on the cover.
  5. Secure the air cleaner housing cover by engaging the 2 air cleaner housing cover retainers (1).
