Axle Preload and Backlash Specifications (8.6 Inch Axle)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

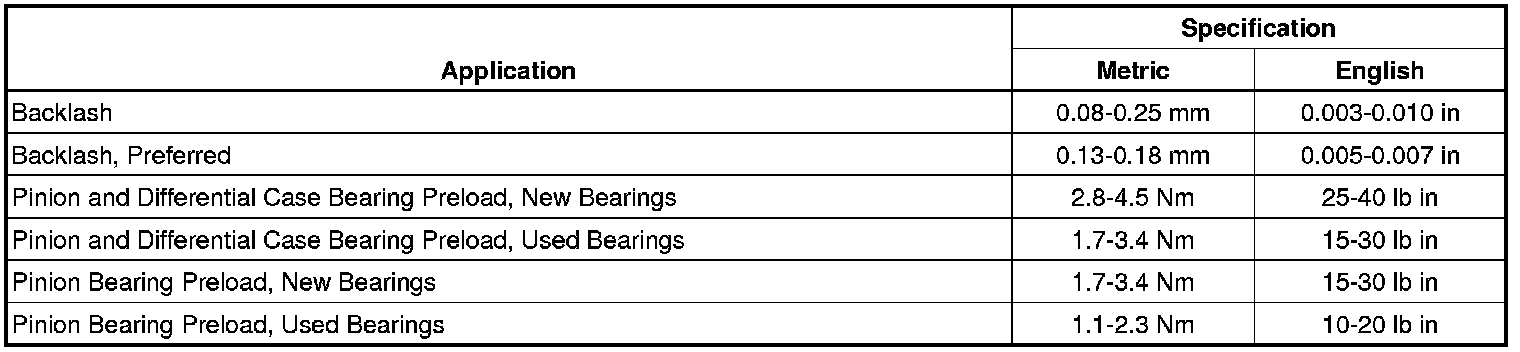

Axle Preload and Backlash Specifications (8.6 Inch Axle)
Axle Preload and Backlash Specifications (8.6 Inch Axle)
