Control Module, Transfer Case




Component Connector End Views

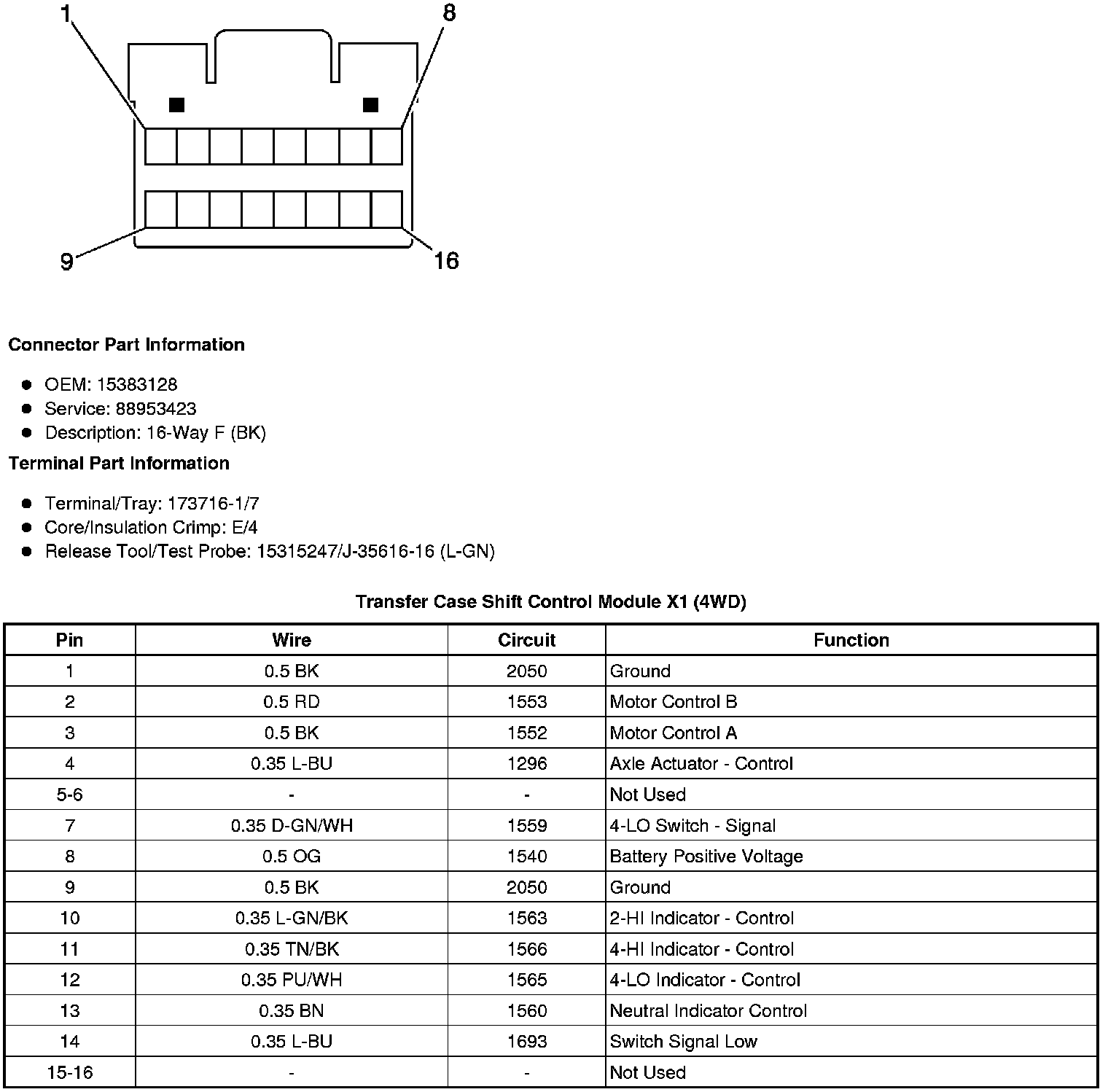

Transfer Case Shift Control Module X1 (4WD)

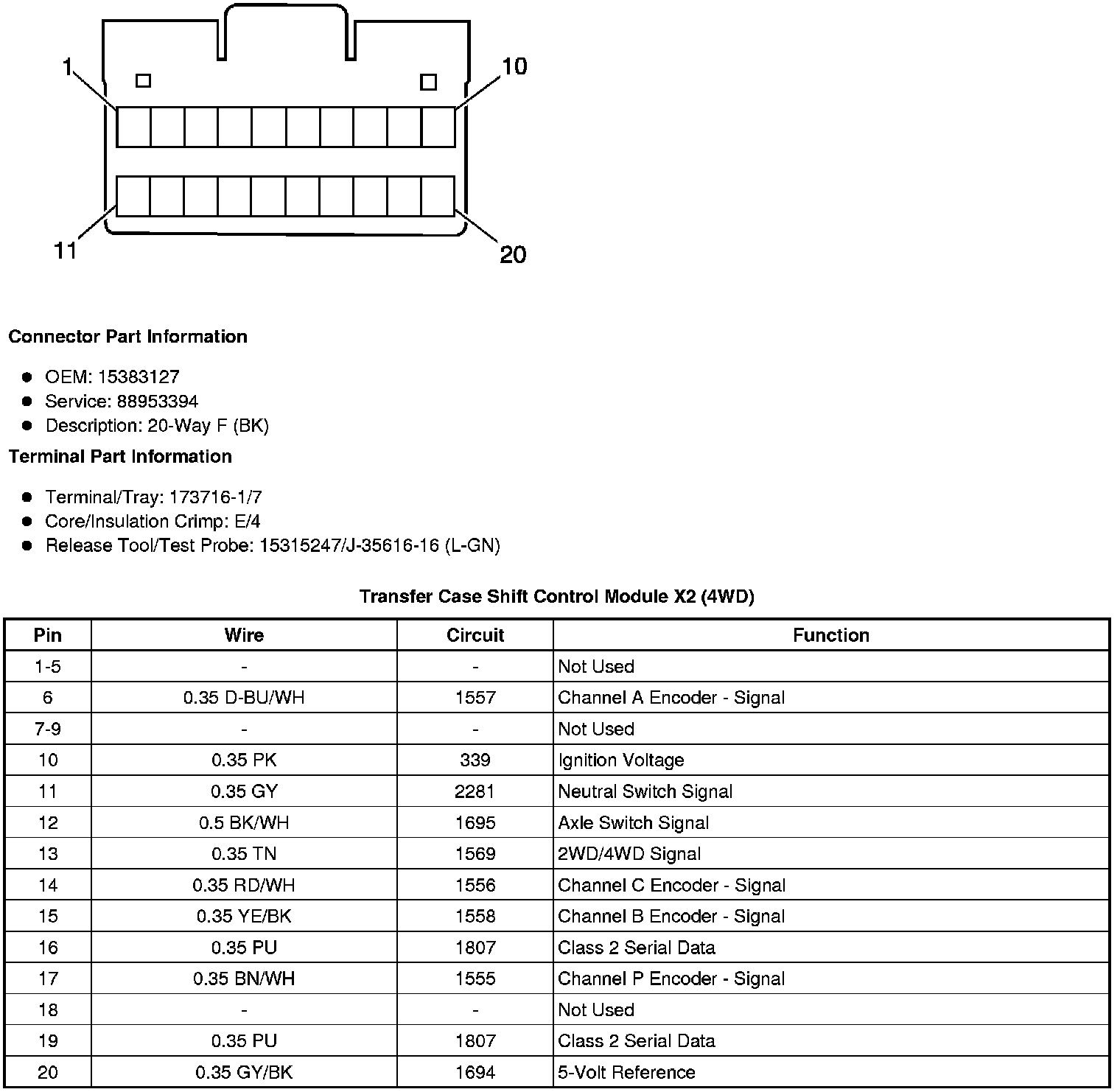

Transfer Case Shift Control Module X2 (4WD)
