Power Seat Motor

Component Connector End Views

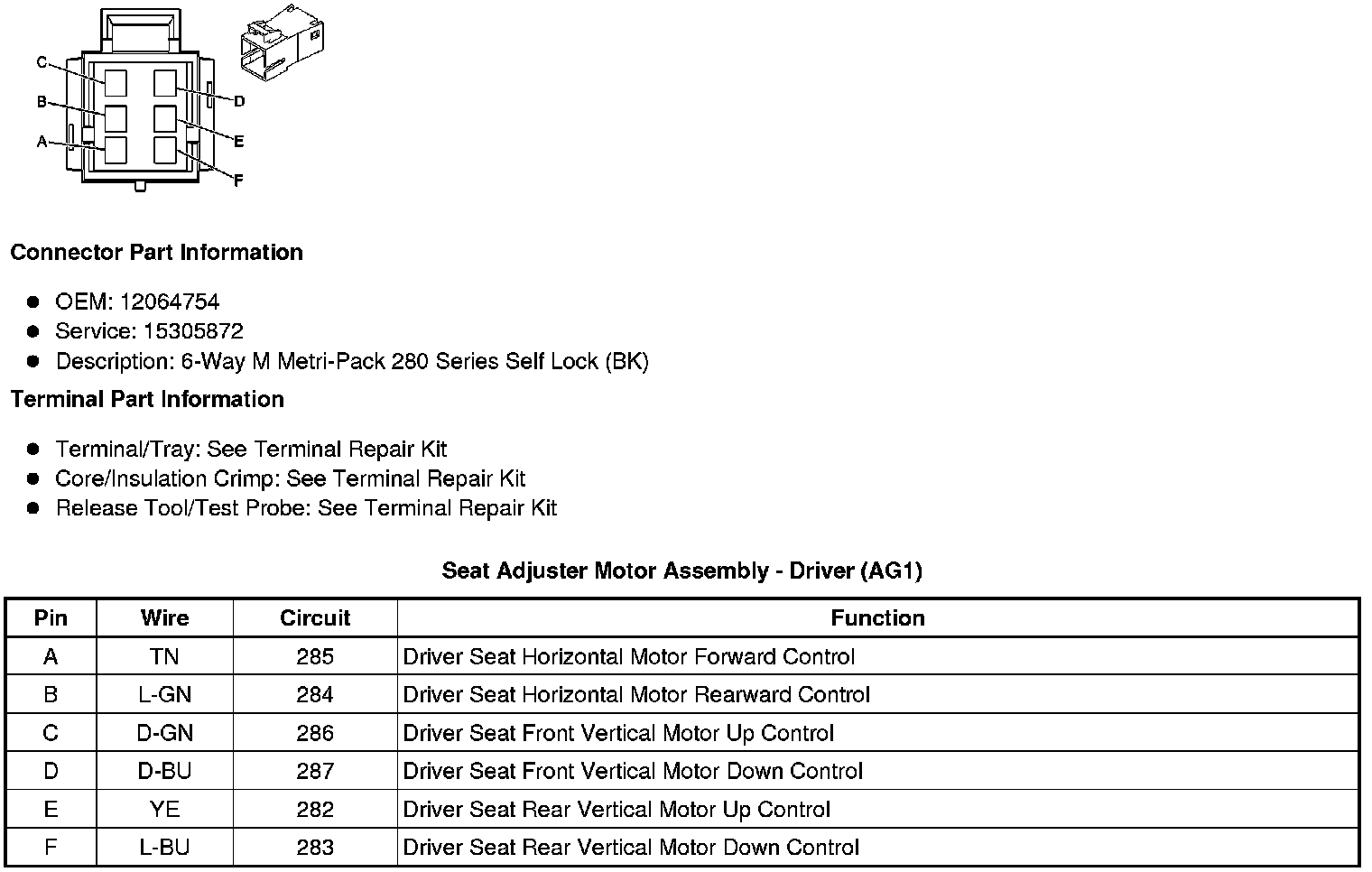

Seat Adjuster Motor Assembly - Driver (AG1)

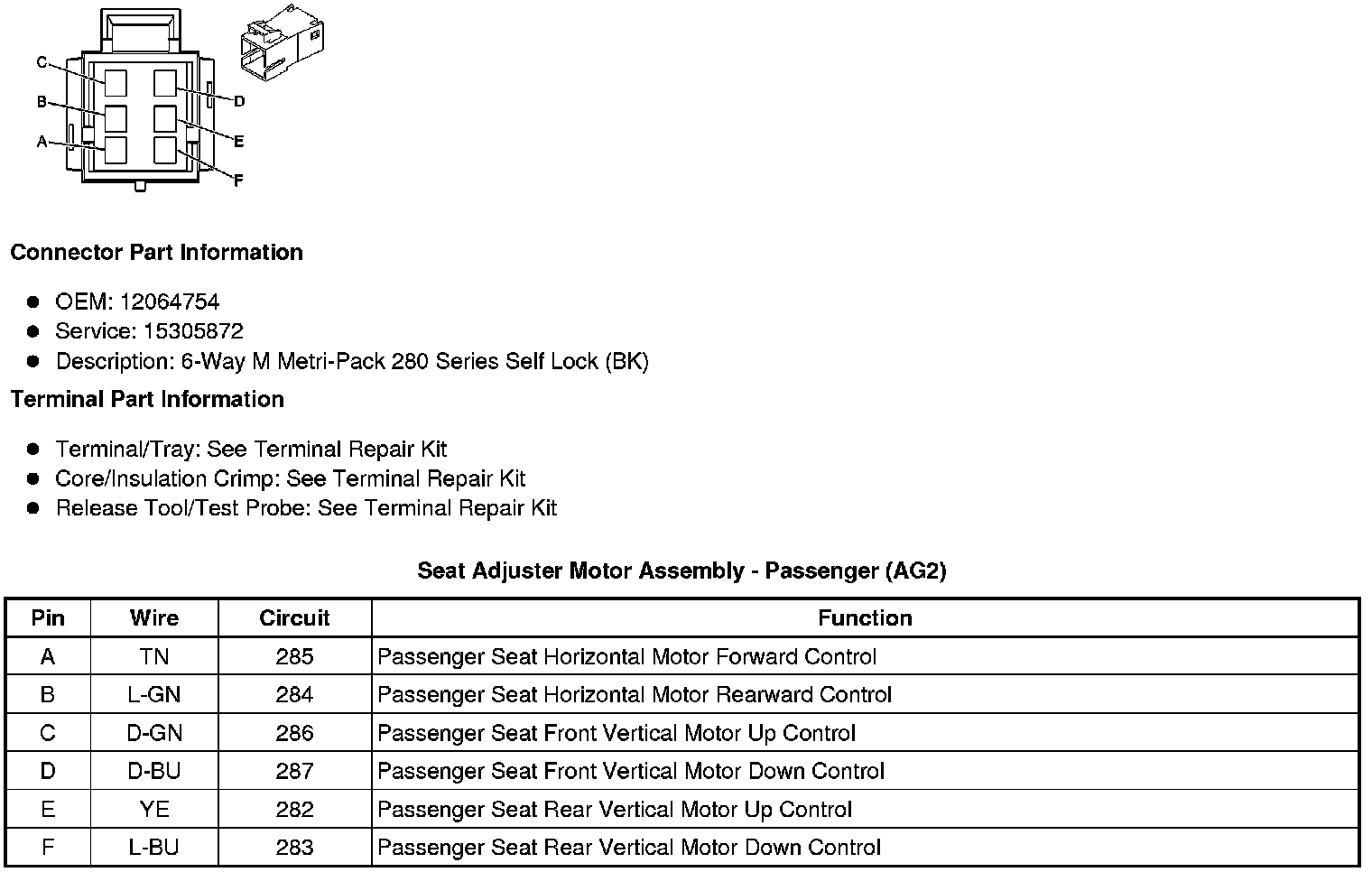

Seat Adjuster Motor Assembly - Passenger (AG2)

Seat Lumbar Motor - Driver (AR9)

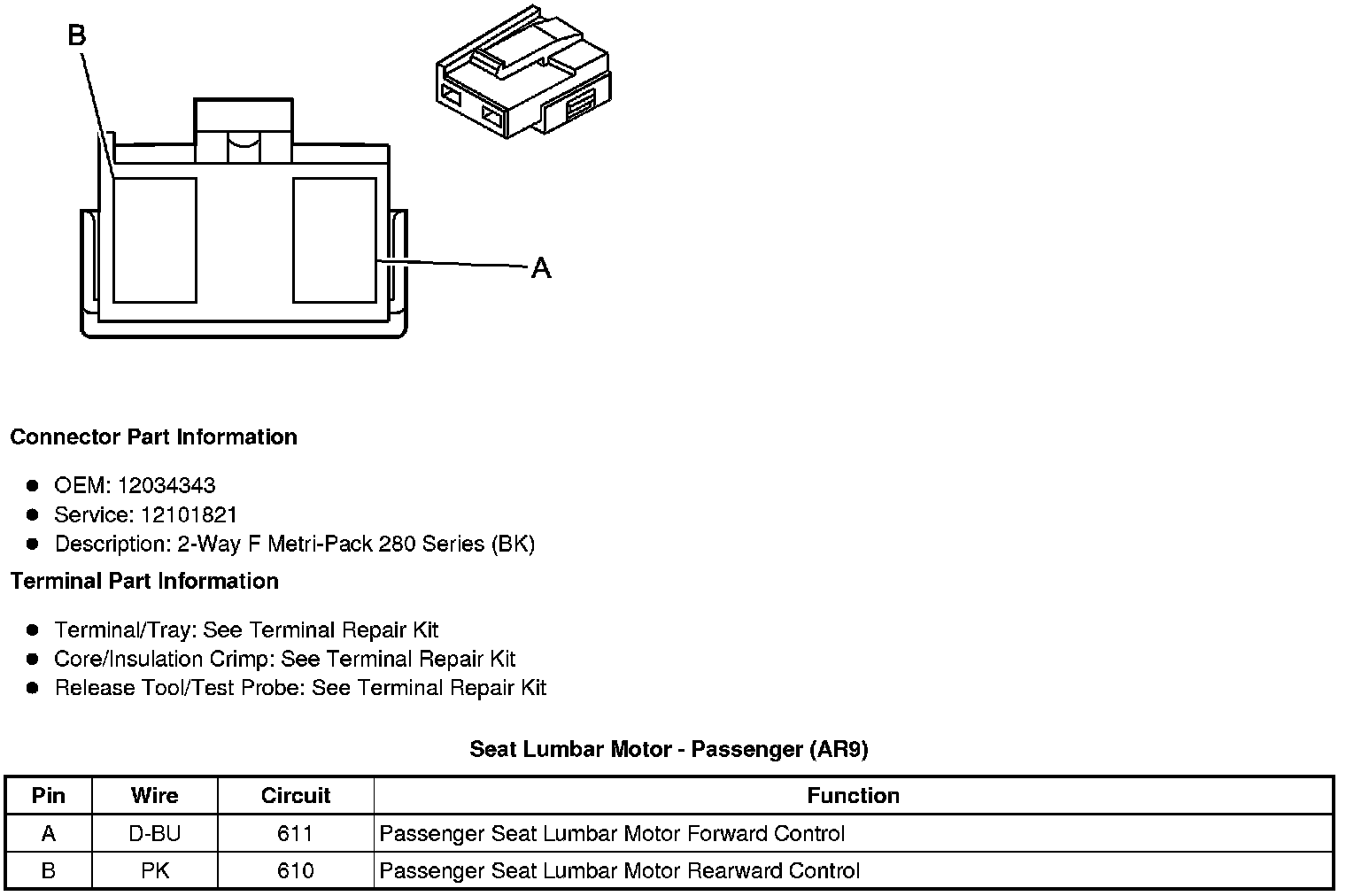

Seat Lumbar Motor - Passenger (AR9)

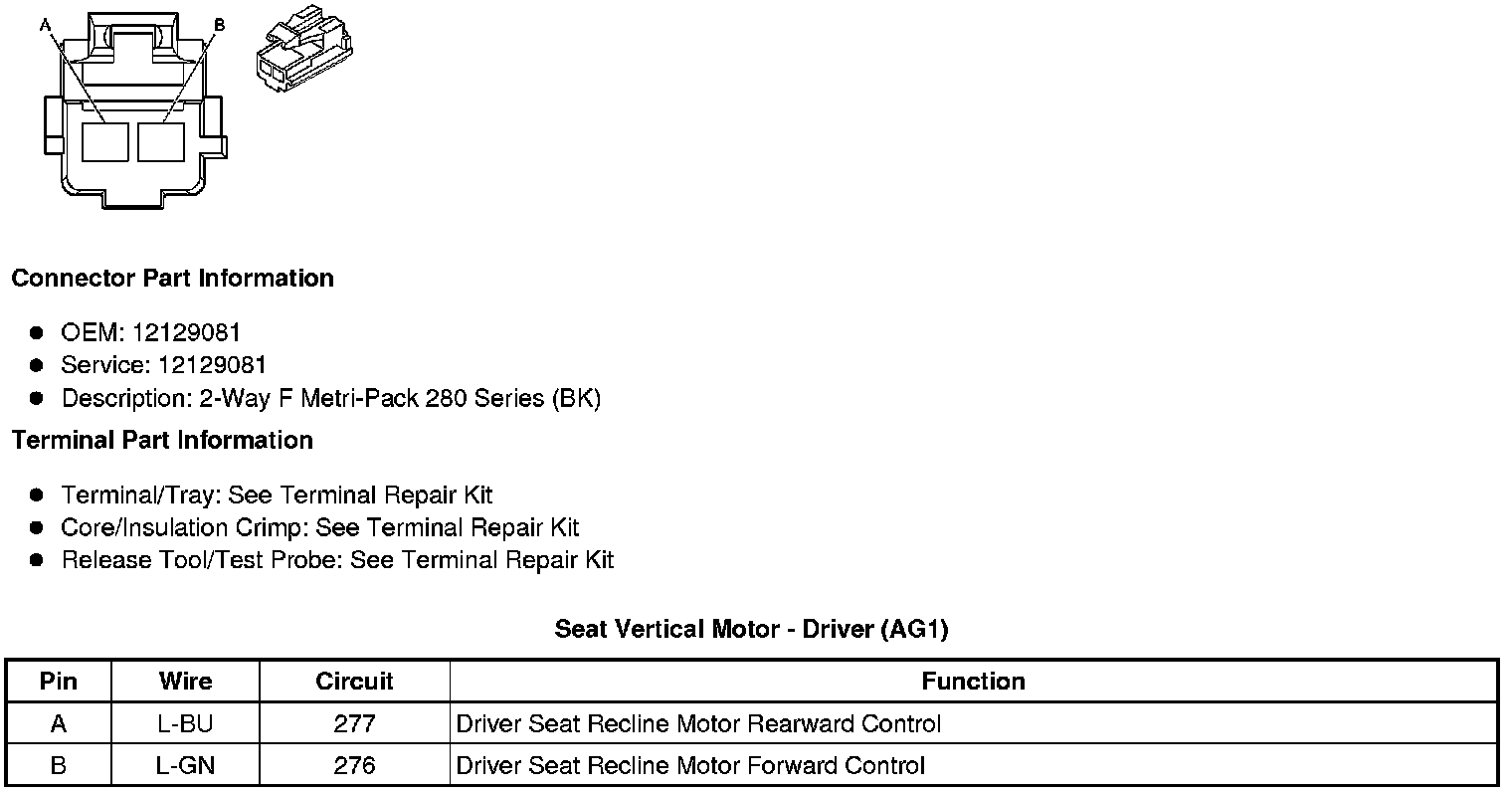

Seat Vertical Motor - Driver (AG1)
