Impact Sensor




Component Connector End Views

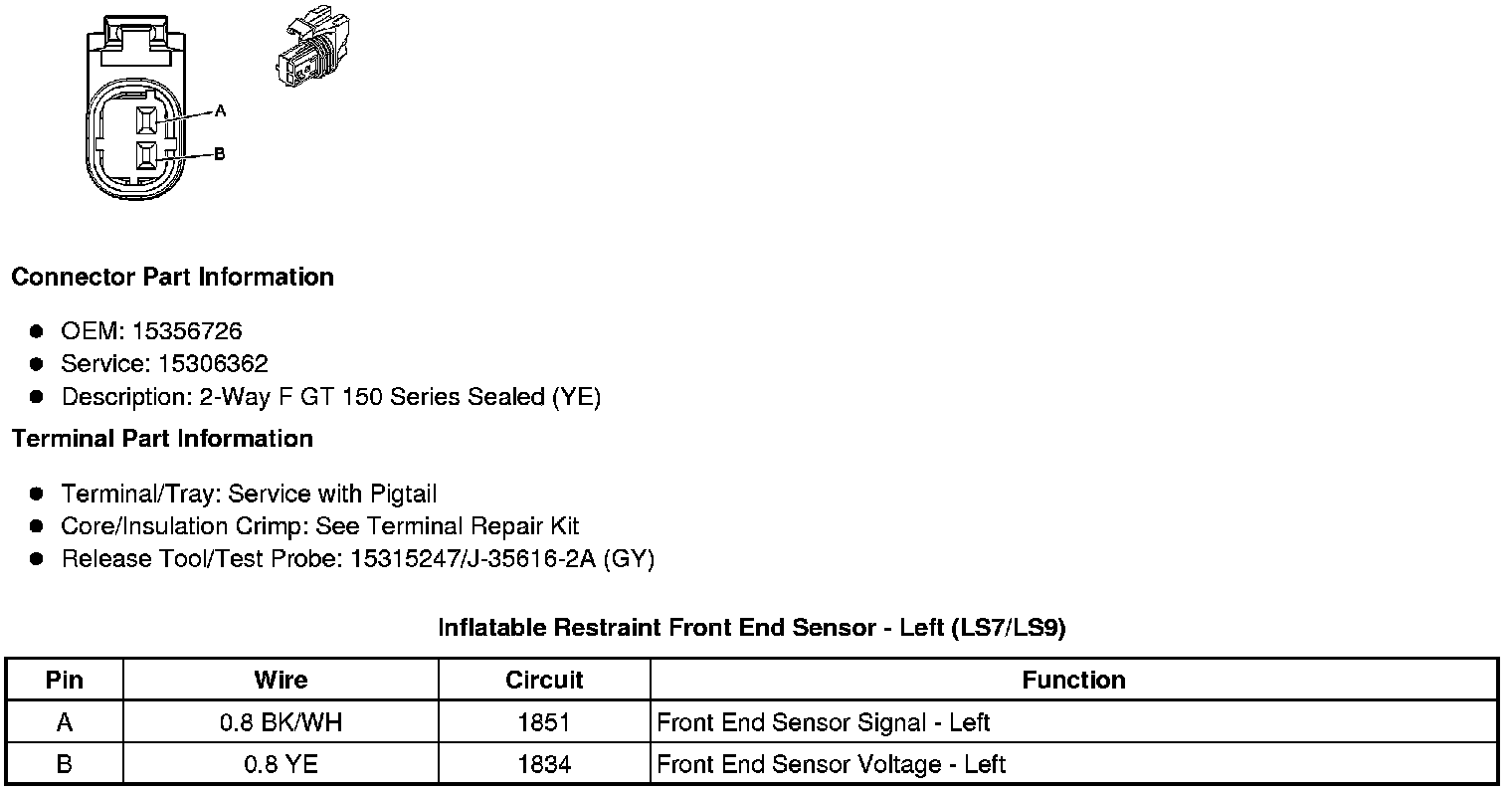

Inflatable Restraint Front End Sensor - Left (LS7/LS9)

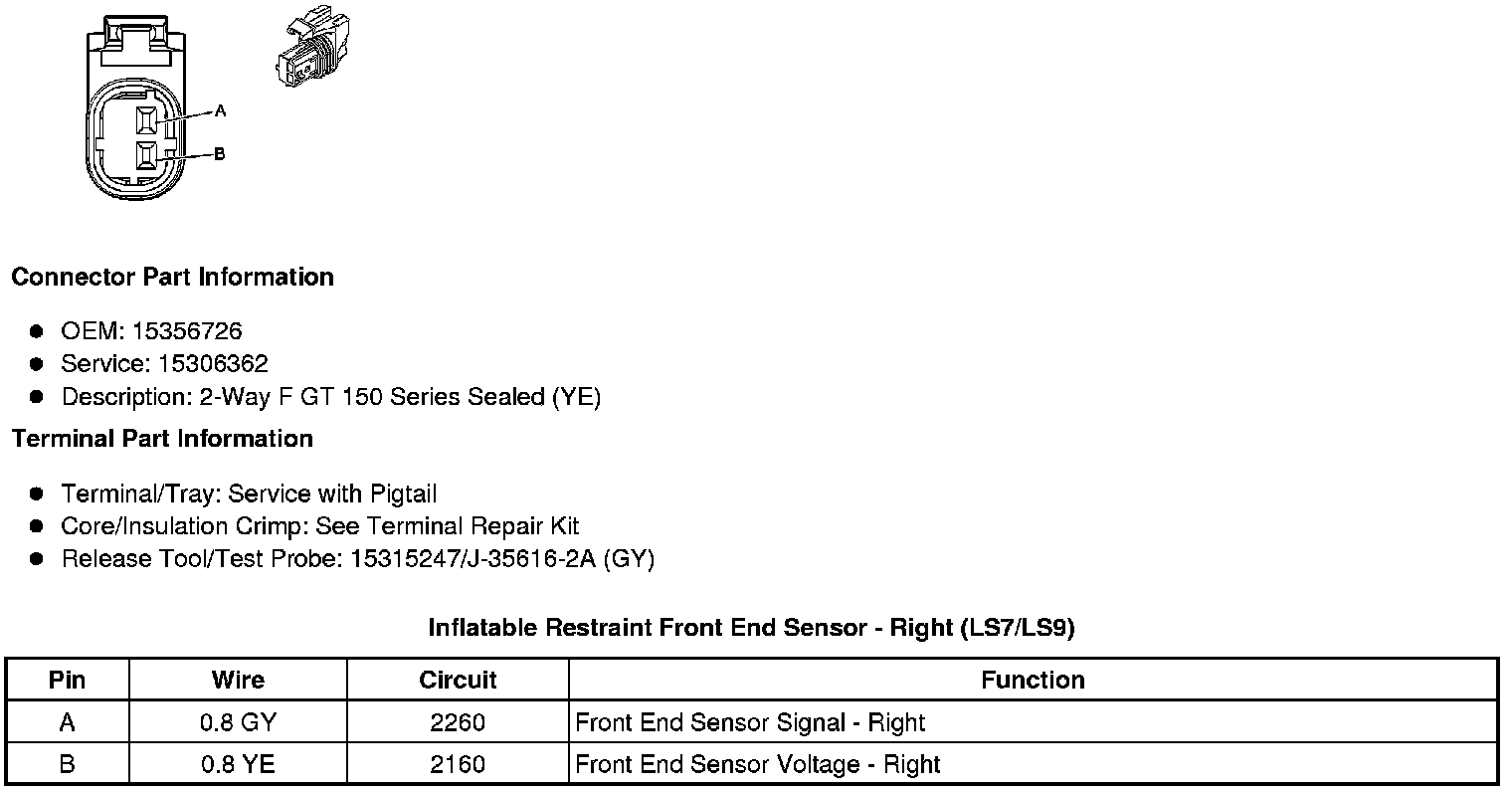

Inflatable Restraint Front End Sensor - Right (LS7/LS9)
