Combination Switch
Component Connector End Views

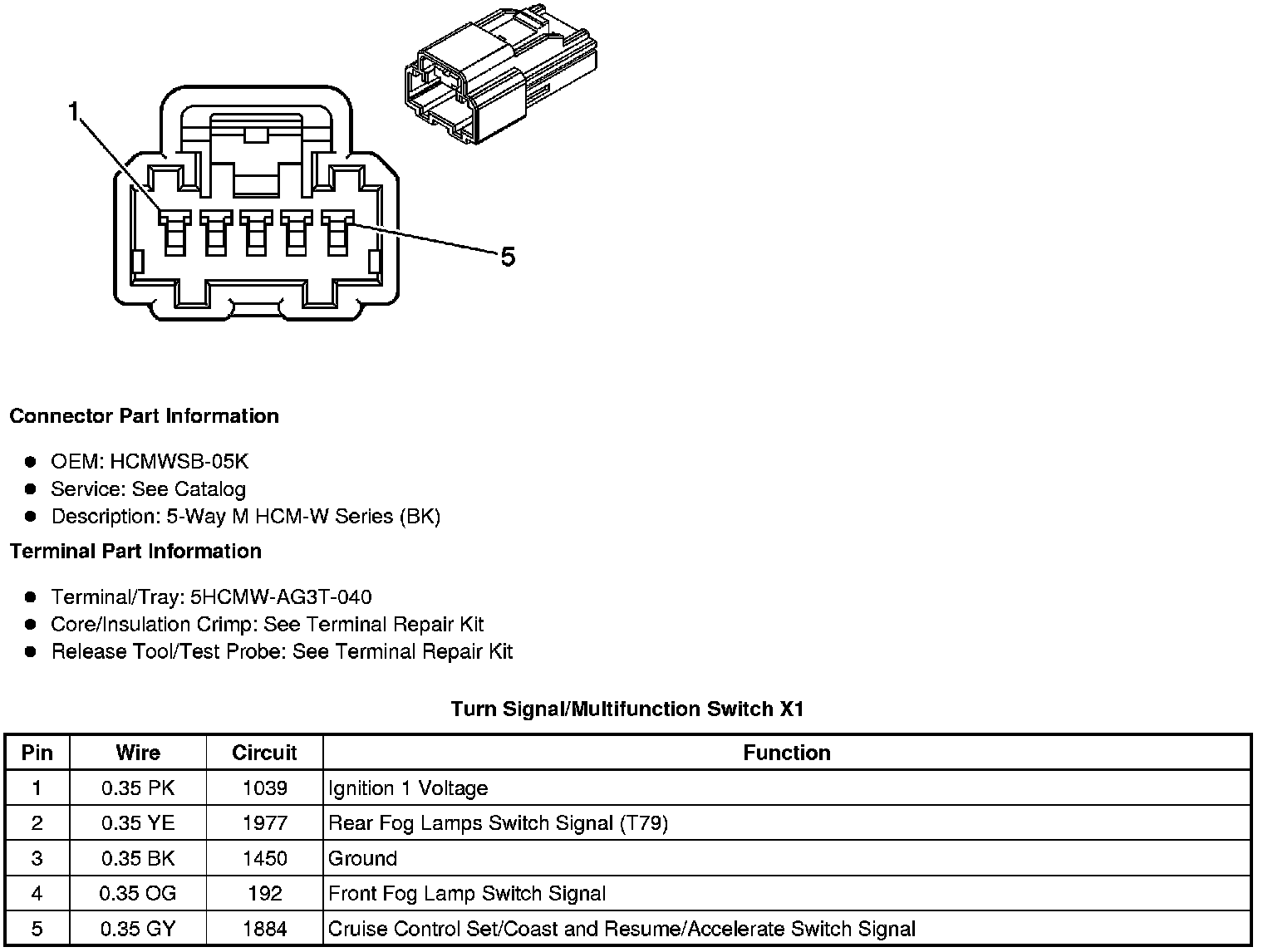

Turn Signal/Multifunction Switch X1

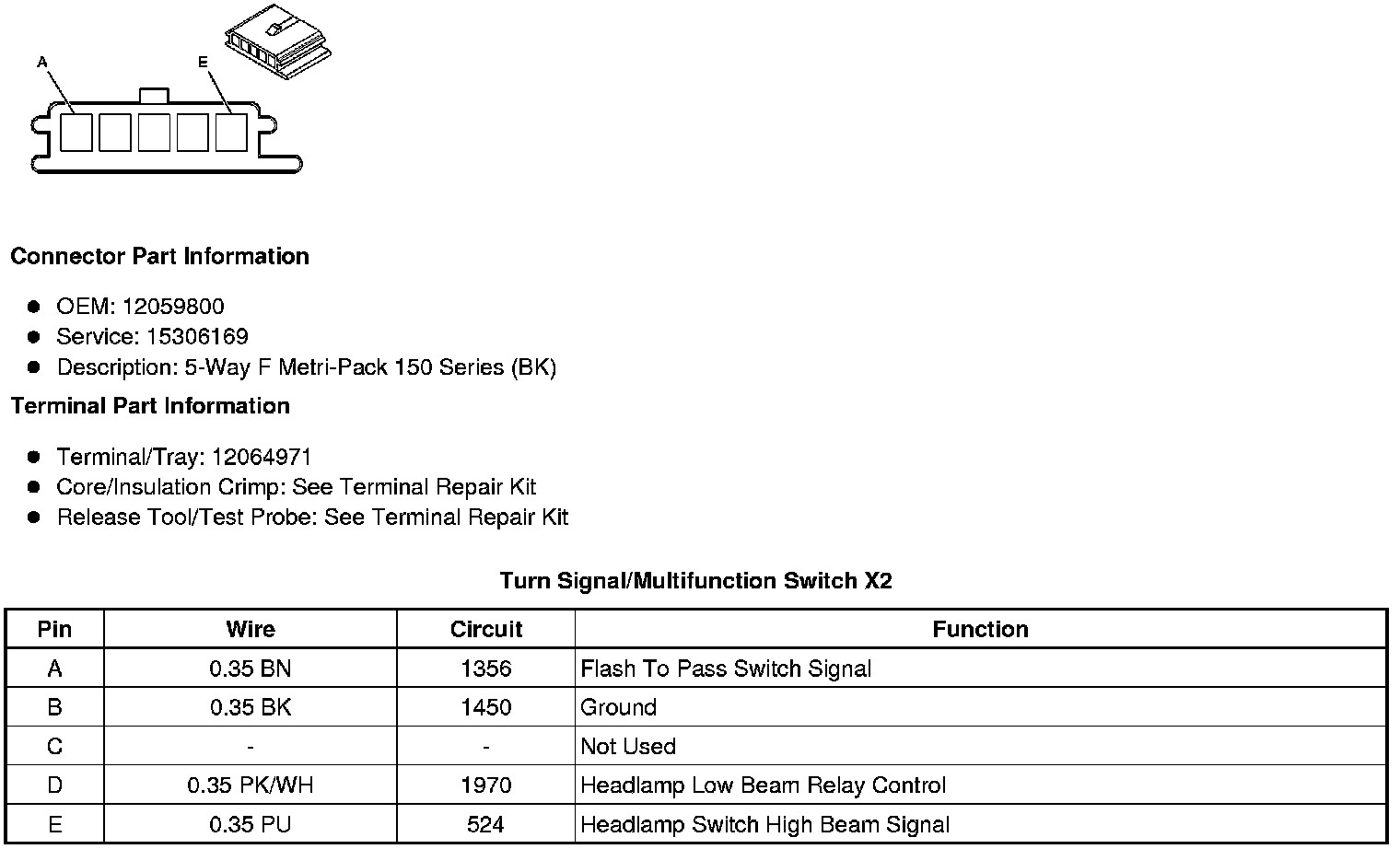

Turn Signal/Multifunction Switch X2

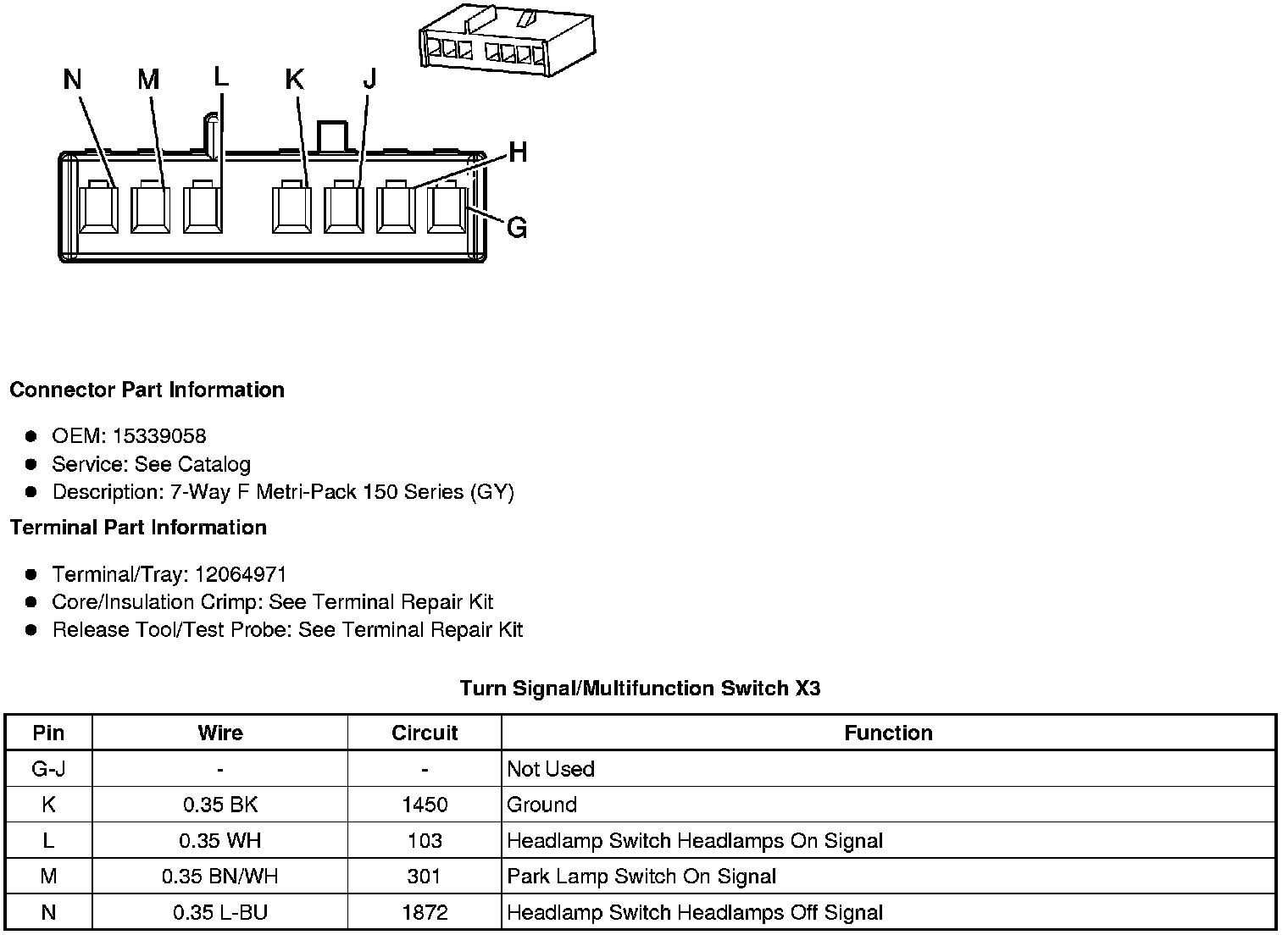

Turn Signal/Multifunction Switch X3

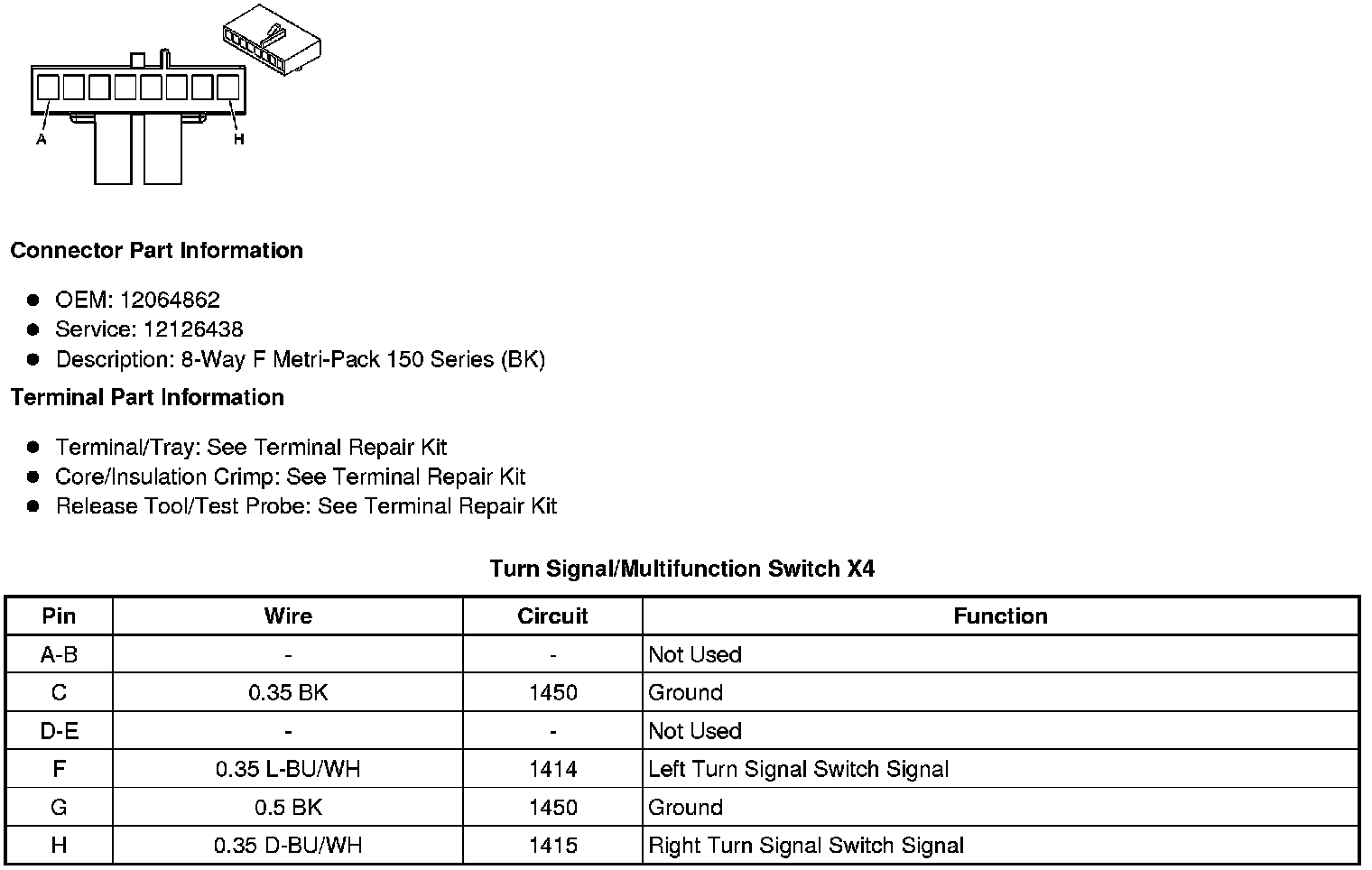

Turn Signal/Multifunction Switch X4
