Oil Pressure Sensor: Diagrams

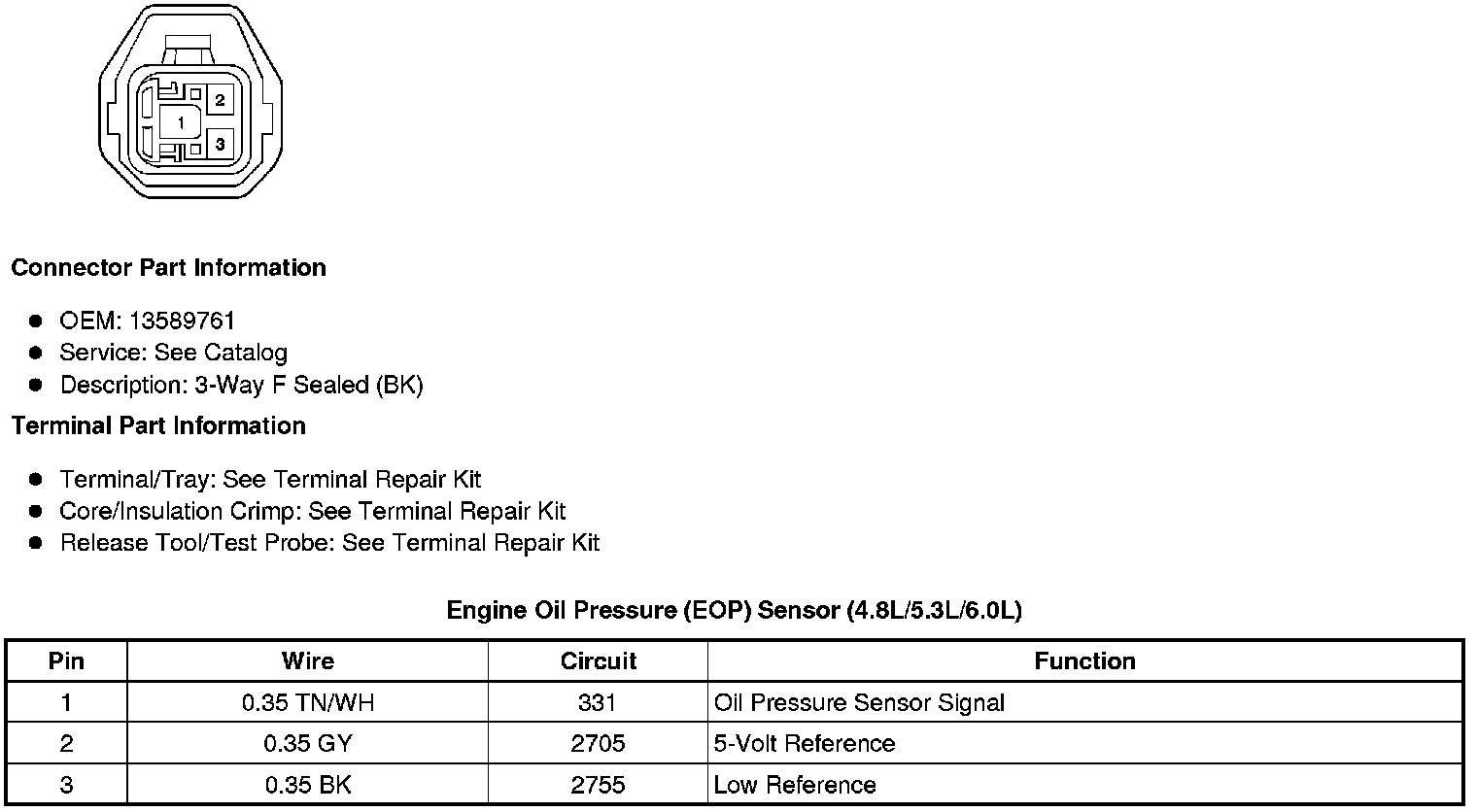

Component Connector End ViewsEngine Oil Pressure (EOP) Sensor (4.8L/5.3L/6.0L)
