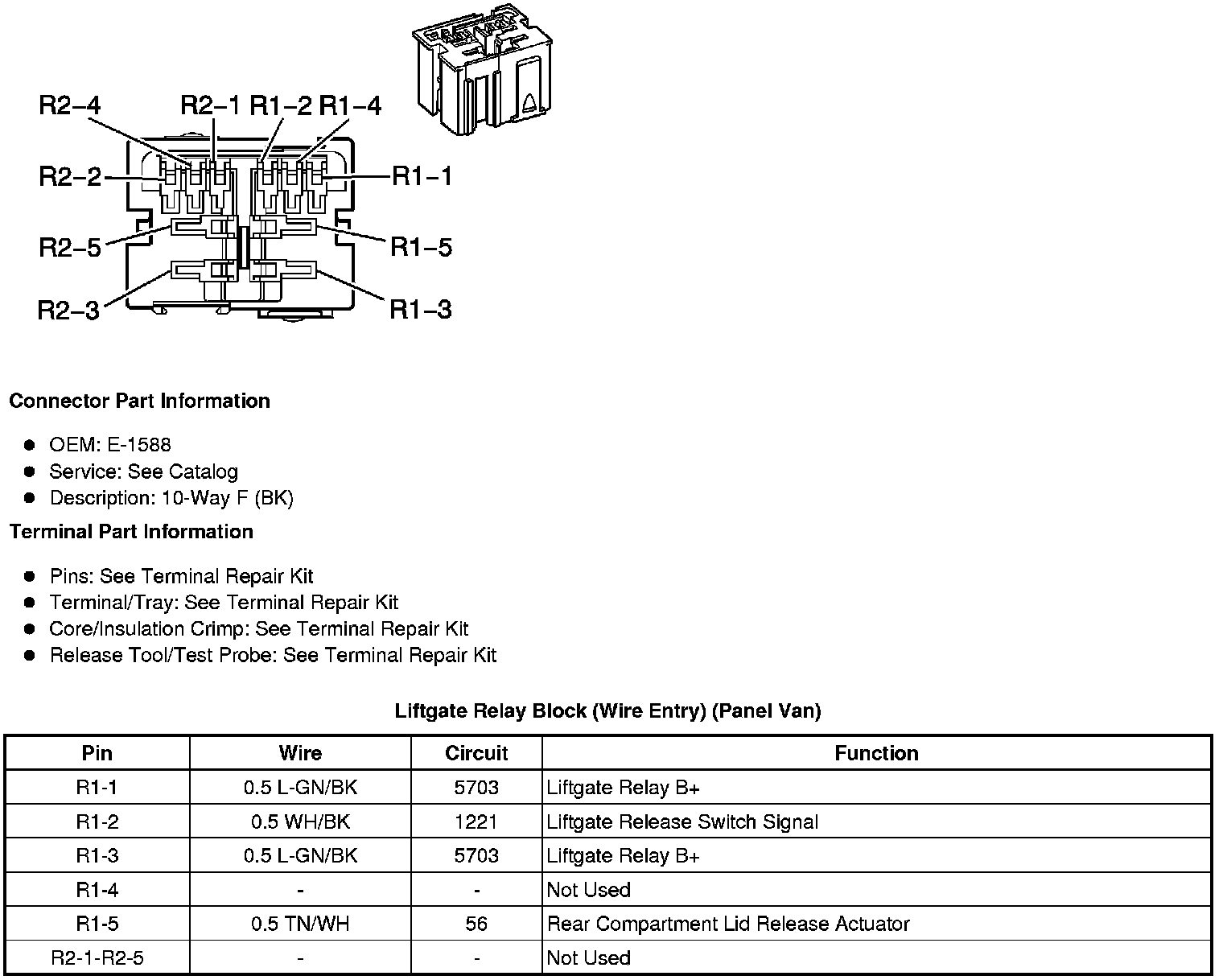

Liftgate Relay Block
Electrical Center Identification Views
Liftgate Relay Block (Wire Entry) (Panel Van)
