Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil Module 1






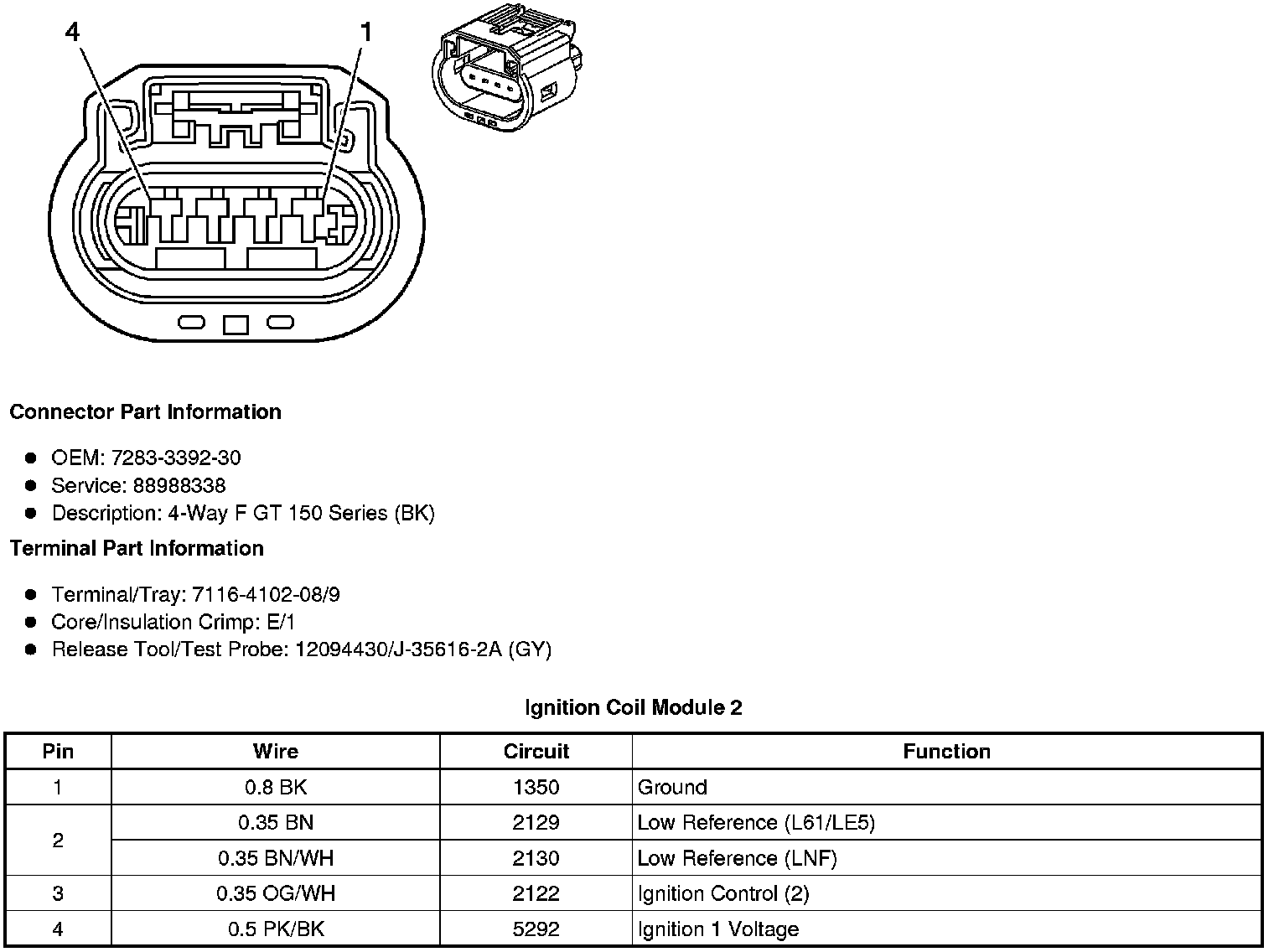

Ignition Coil Module 2






Ignition Coil Module 3

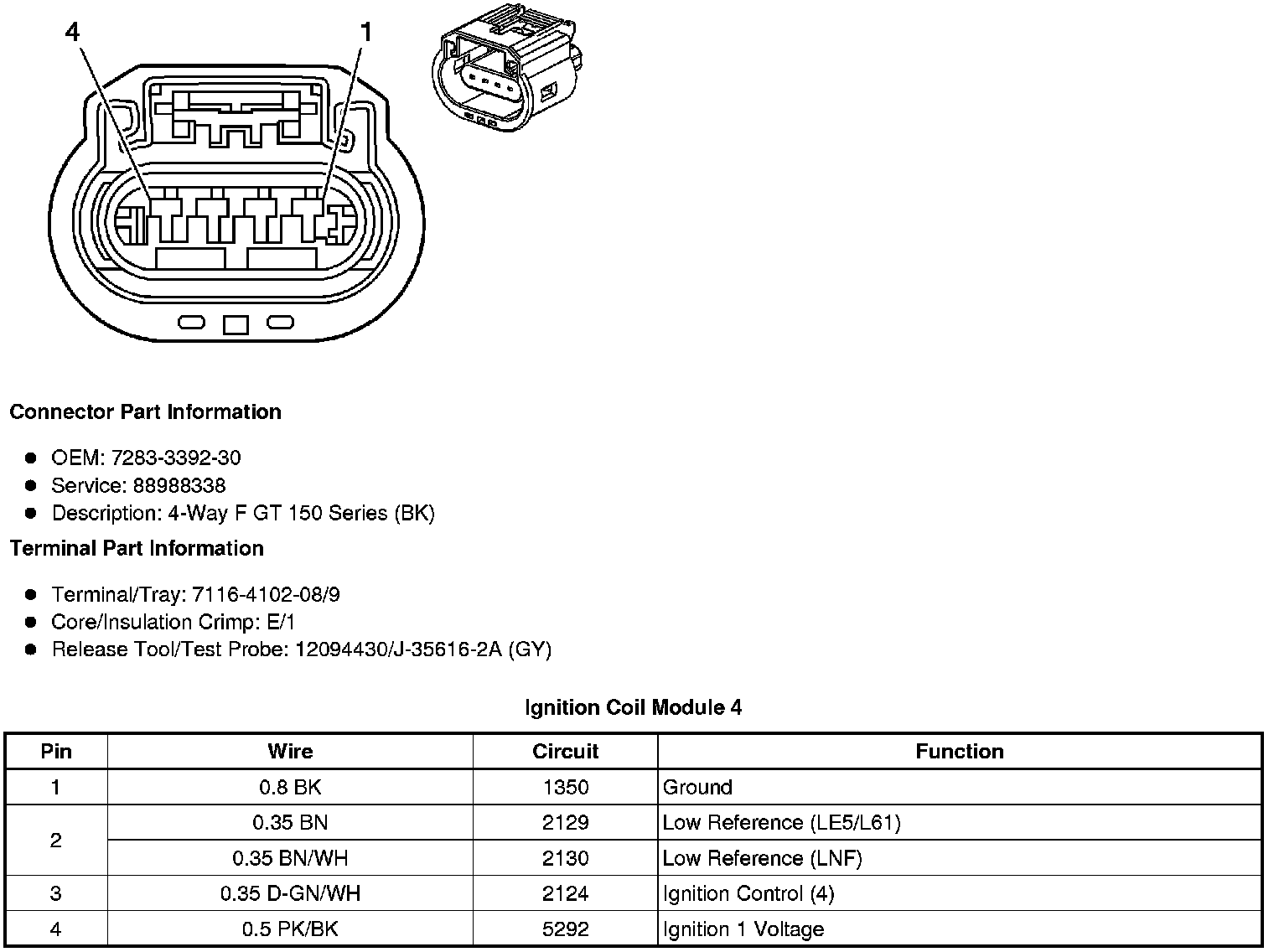

Ignition Coil Module 4
