Engine Compartment Components
WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

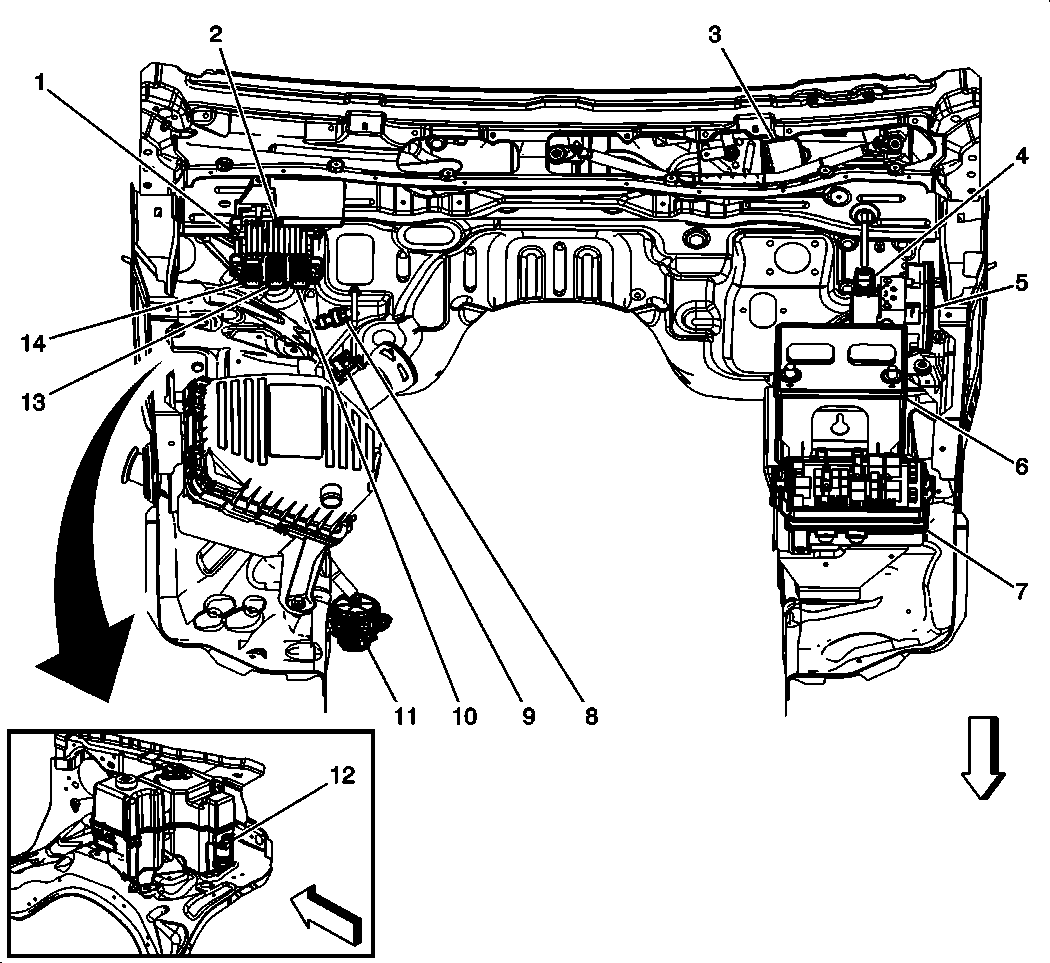

Engine Compartment Components
| Component Name | Callout |
|---|---|
| Engine Control Module (ECM) | 1 |
| Transmission Control Module (TCM) | 2 |
| Windshield Wiper Motor | 3 |
| Windshield Wiper Motor Connector | 4 |
| Electronic Brake Control Module (EBCM) | 5 |
| Battery | 6 |
| Fuse Block - Underhood | 7 |
| A/C Refrigerant Pressure Sensor | 8 |
| Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor | 9 |
| Engine Control Module (ECM) X3 | 10 |
| Windshield Washer Fluid Pump | 11 |
| Engine Control Module (ECM) X2 | 12 |
| Engine Control Module (ECM) X1 | 13 |
