Rear of Radiator Support Components Components

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
Rear of Radiator Support Components Components

Component Name Callout
Ambient Air Temperature Sensor (DF5) 1
Horn Assembly 2
Secondary Air Injection (AIR) Pump Relay (K18) 3
Fuse Block - Secondary Air Injection (AIR) Pump (K18) 4
Inflatable Restraint Front End Sensor - Right 5
Inflatable Restraint Front End Sensor - Left 6

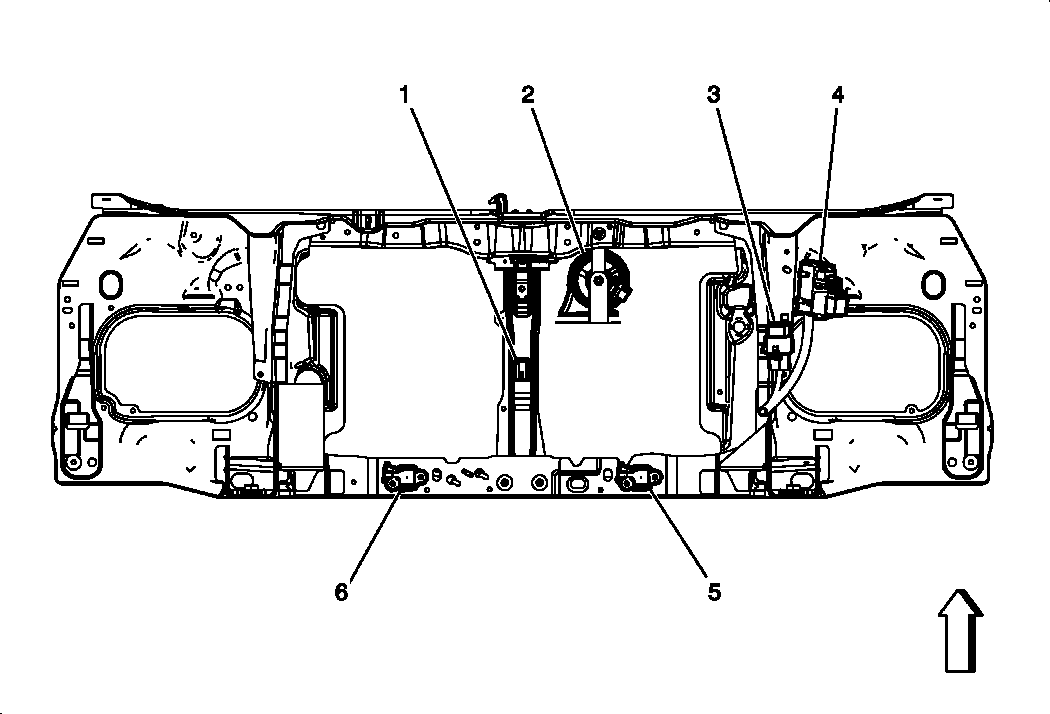

Fig 1: Rear of Radiator Support Components Components
GM2366753Courtesy of GENERAL MOTORS CORP.
