Front of Vehicle/Engine Compartment Component Views

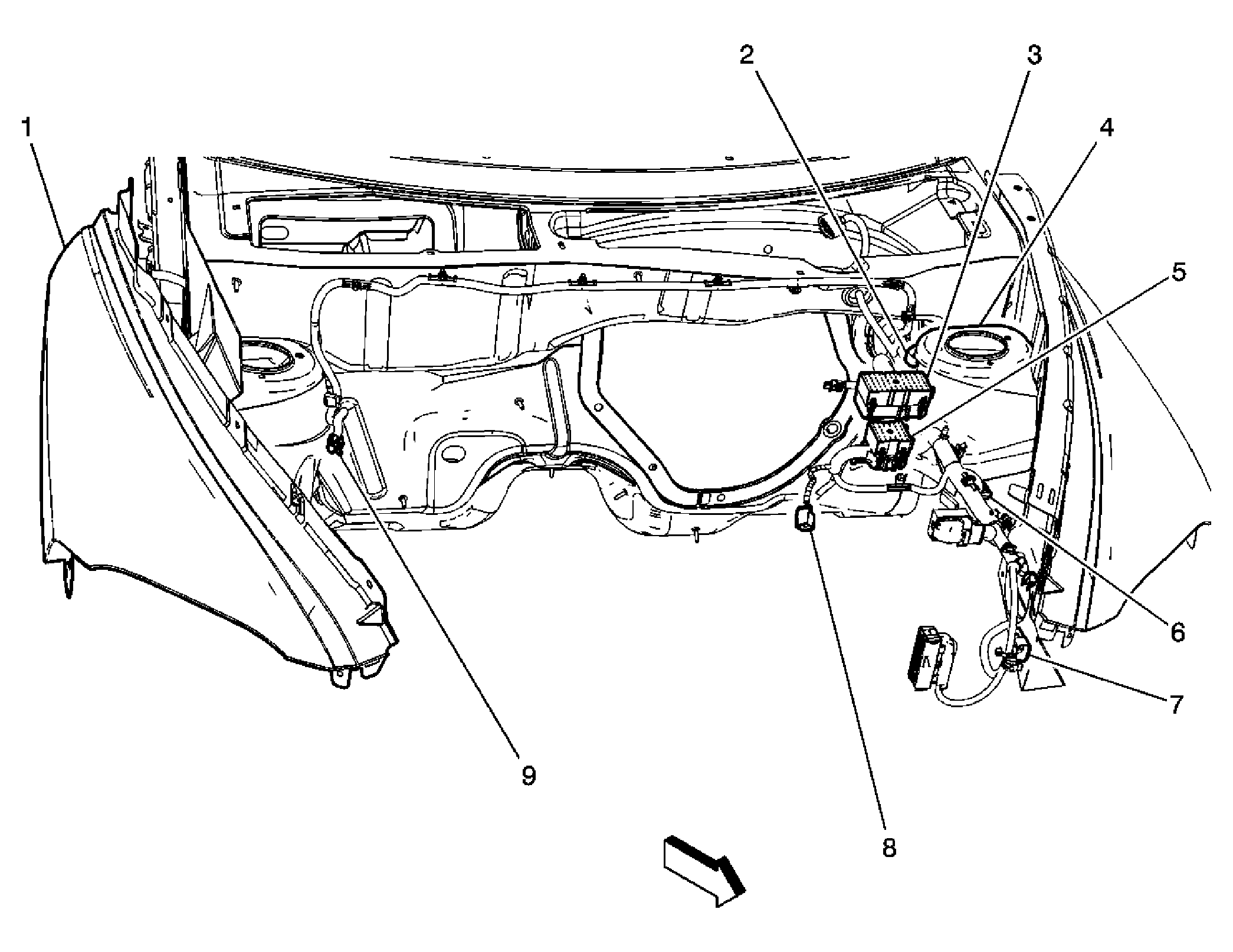

Fig 1: View Of Body Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Fender
2	X171 (JM4)
3	Fuse Block - Underhood X2
4	Left Front Strut Tower
5	Fuse Block - Underhood X4
6	G111
7	X121
8	X171 (JM4)
9	X170 (JM4)

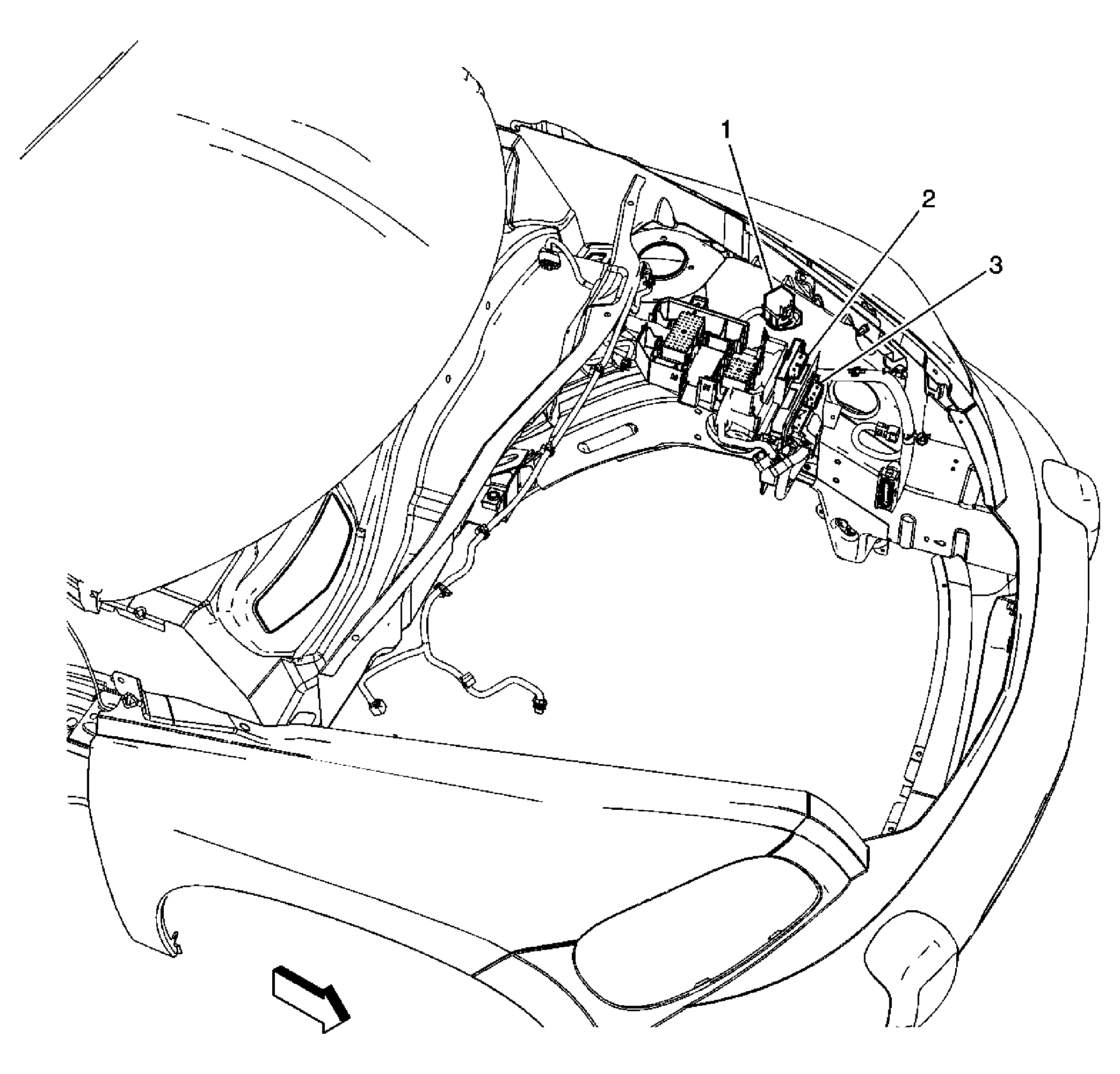

Fig 2: Identifying G103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	G103
3	Upper Radiator Support
4	Electronic Brake Control Module (EBCM)
5	Engine Control Module (ECM)

Fig 3: View Of Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Wiper Motor Assembly
3	Brake Fluid Level Switch
4	Fuse Block - Underhood
5	G111
6	Transmission Control Module (TCM) (MN5)
7	Engine Control Module (ECM)
8	Electronic Brake Control Module (EBCM)

Fig 4: View Of Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal/DRL Lamp - Right Front
2	Headlamp - Right
3	Headlamp - Left
4	Park/Turn Signal/DRL Lamp - Left Front
5	Marker Lamp - Left Front
6	Fog Lamp - Left Front (T37)
7	Fog Lamp - Right Front (T37)
8	Marker Lamp - Right Front

Fig 5: View Of LF Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Radio Support
2	Left Front Headlamp Assembly
3	Horn

Fig 6: View Of Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)
2	Inflatable Restraint Front End Sensor
3	Engine Cooling Fan
4	Radiator

Fig 7: View Of Lower Front Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Starter
3	A/C Refrigerant Pressure Sensor
4	A/C Compressor Clutch

Fig 8: Identifying Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

Fig 9: View Of Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Relay Block (Panel Van)
2	Transmission Control Module (TCM)
3	Engine Control Module (ECM)
