Data Communication Schematics

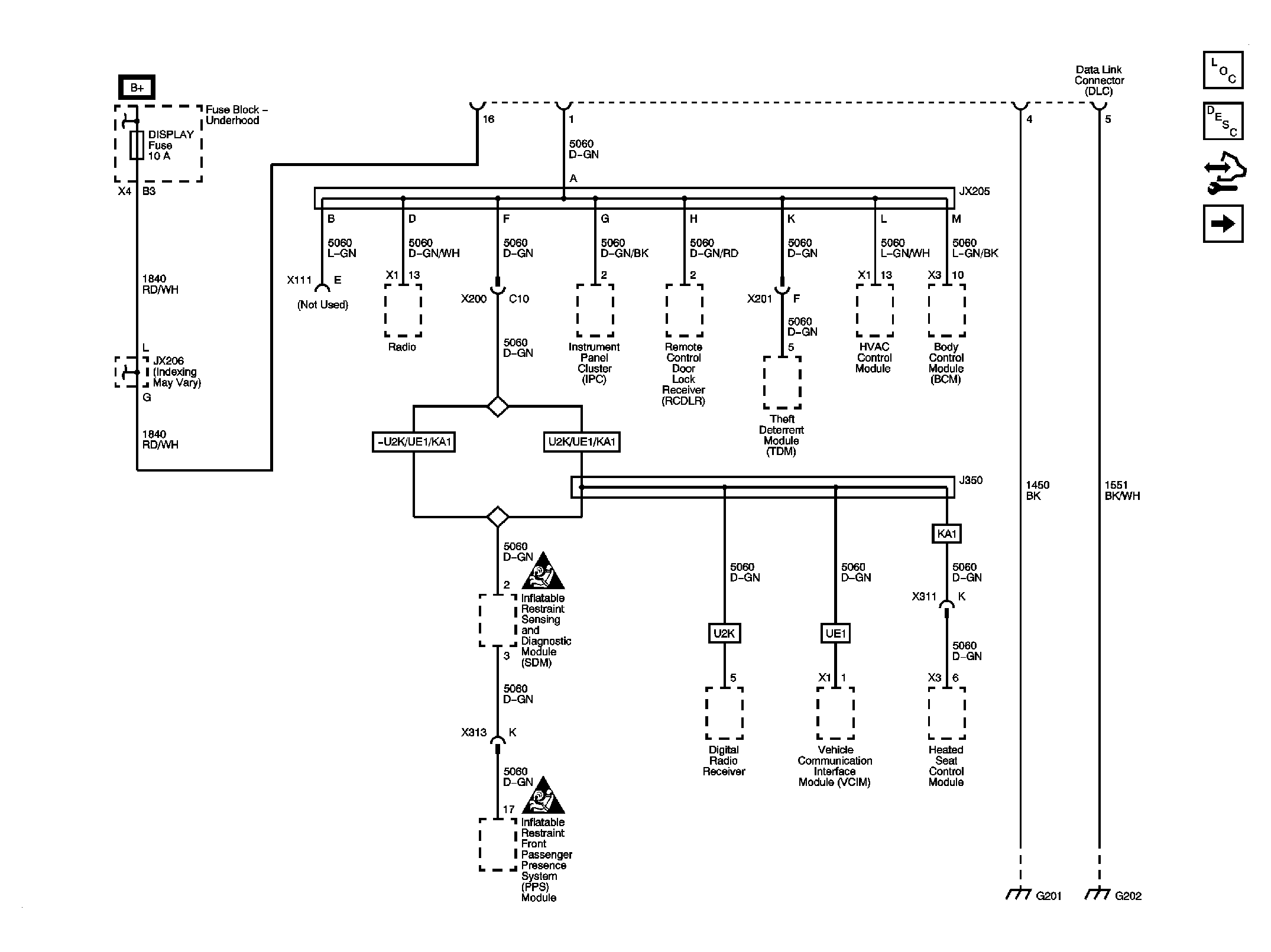

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data
GM2080053Courtesy of GENERAL MOTORS CORP.

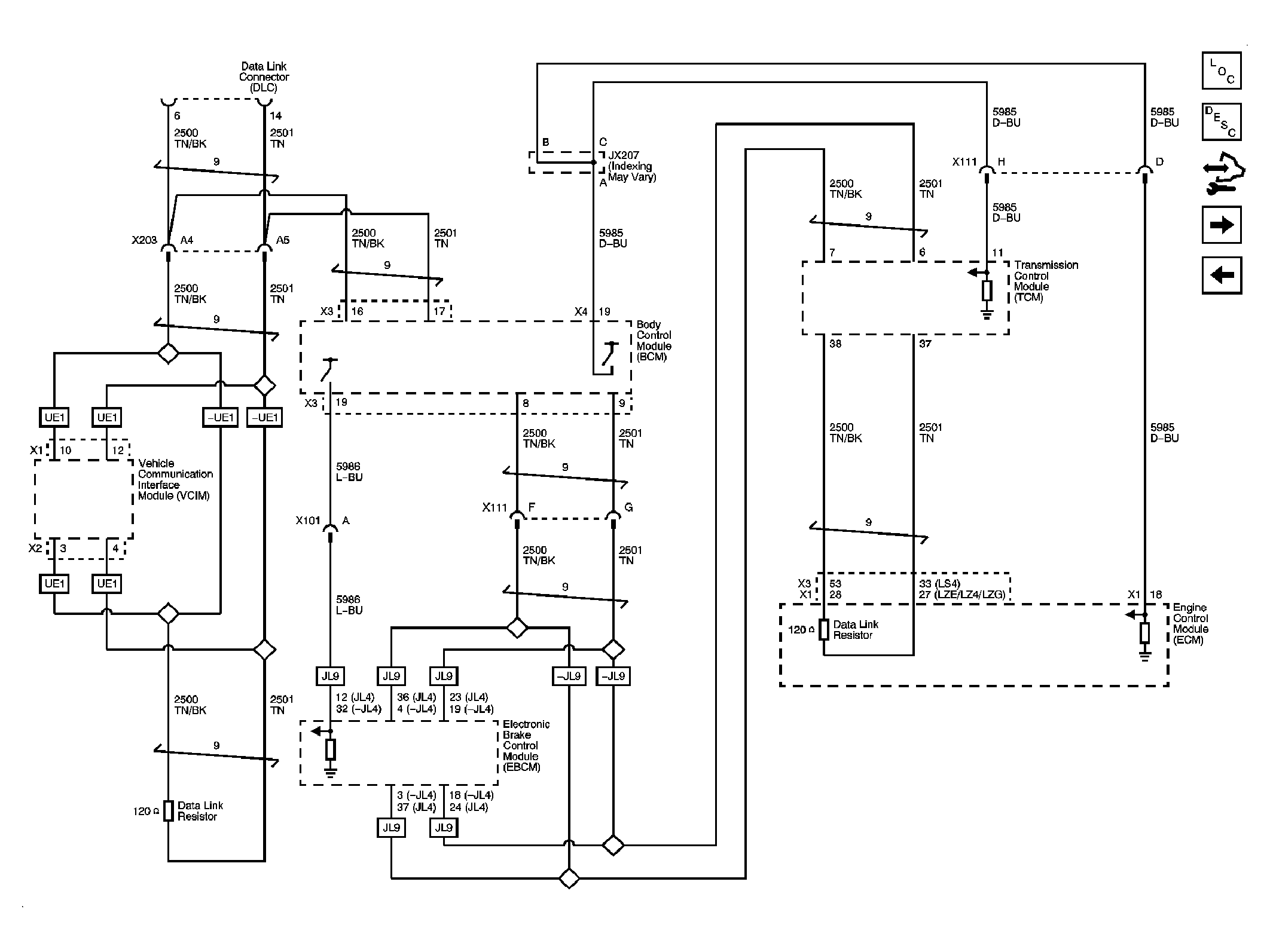

Fig 2: High Speed GMLAN Serial Data
GM2080056Courtesy of GENERAL MOTORS CORP.

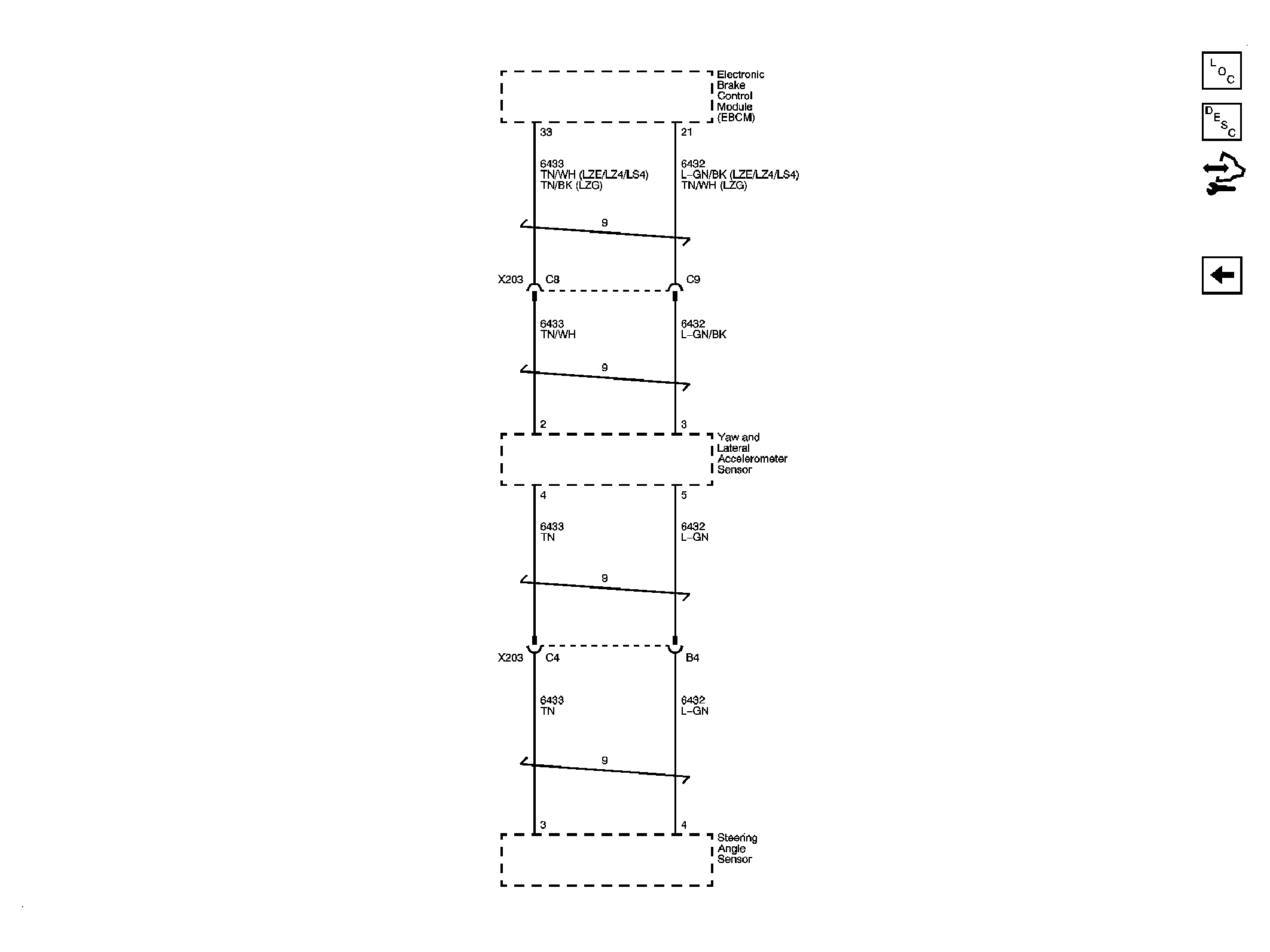

Fig 3: CAN Bus Serial Data - JL4
GM2080060Courtesy of GENERAL MOTORS CORP.
