Engine Control Module (ECM) X1 (LGD)

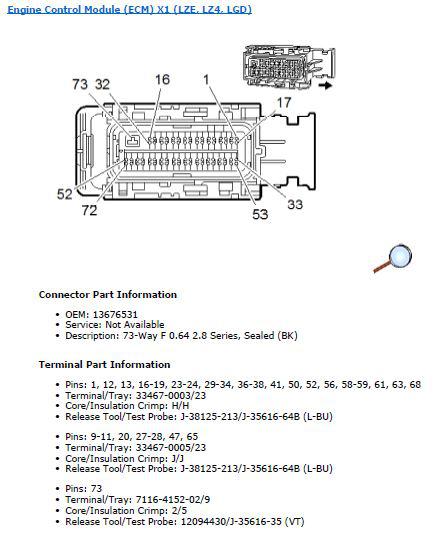

Fig 1: Engine Control Module (ECM) X1 (LGD) Connector End View
G00581378Courtesy of GENERAL MOTORS CORP.

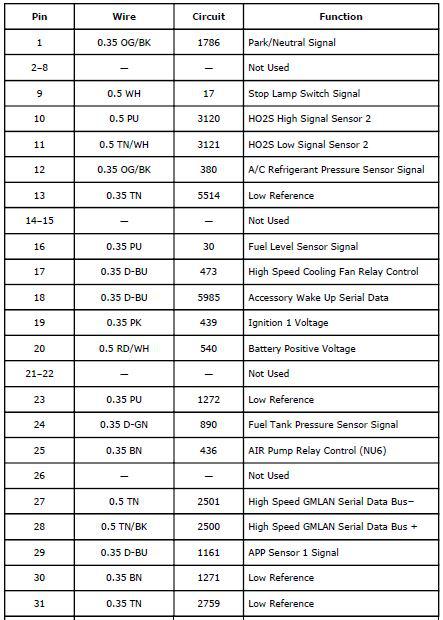

Fig 2: Engine Control Module (ECM) X1 (LGD) Connector End View Legend (1 of 3)
G00581379Courtesy of GENERAL MOTORS CORP.

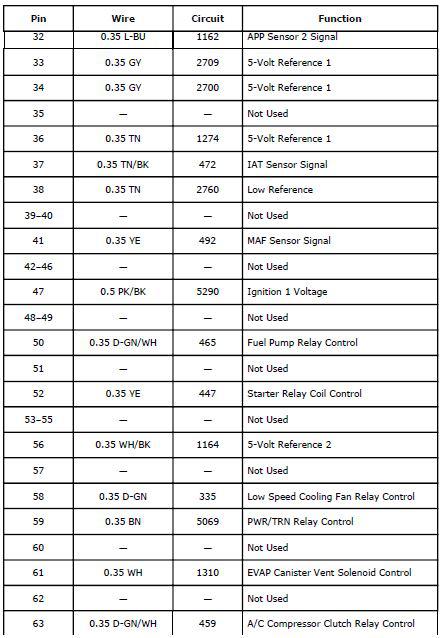

Fig 3: Engine Control Module (ECM) X1 (LGD) Connector End View Legend (2 of 3)
G00581380Courtesy of GENERAL MOTORS CORP.

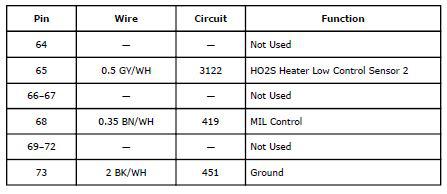

Fig 4: Engine Control Module (ECM) X1 (LGD) Connector End View Legend (3 of 3)
G00581381Courtesy of GENERAL MOTORS CORP.
