Ground Views

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

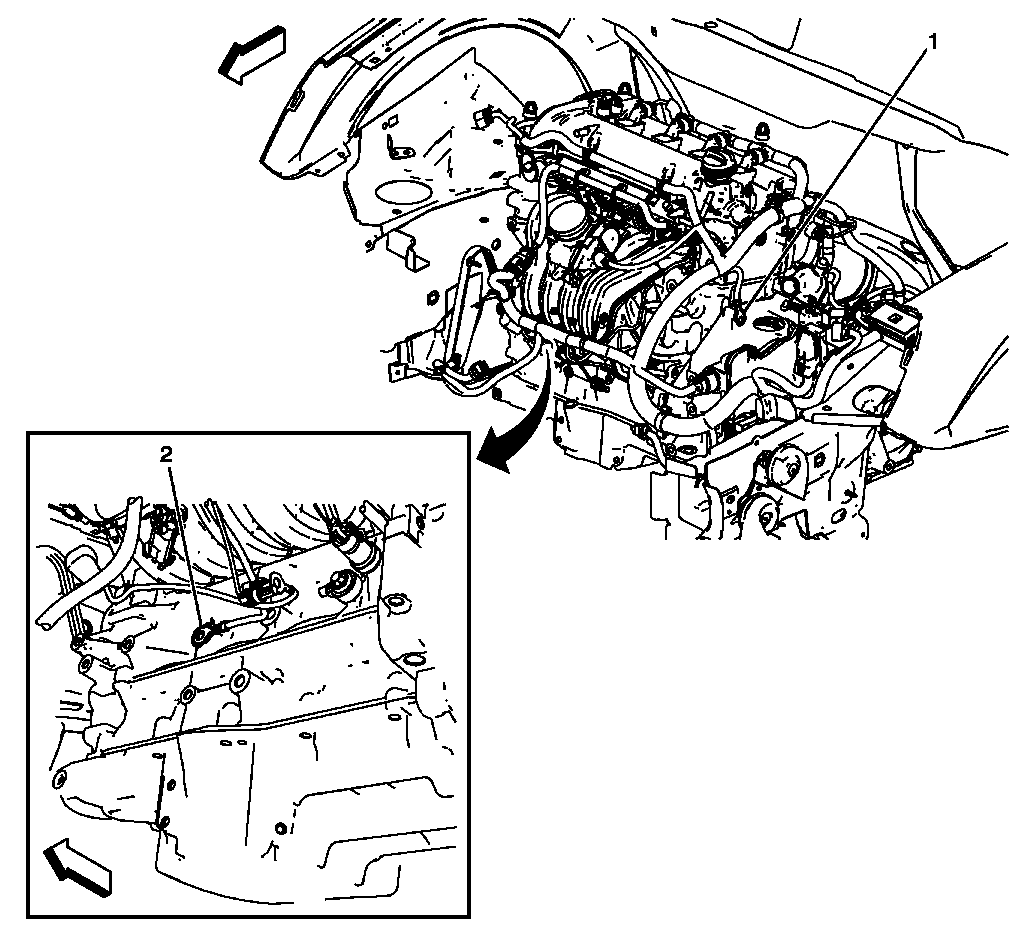

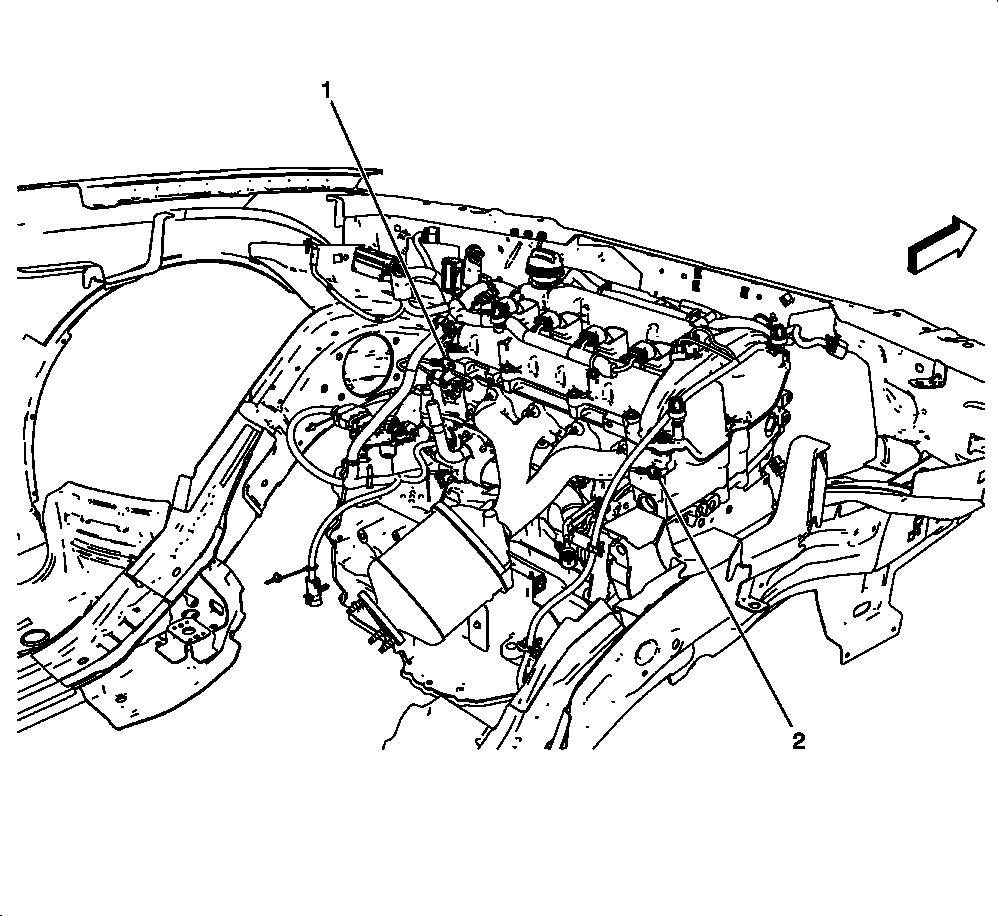

Fig 1: G101, G102, G104, and G109

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	G102
3	G109
4	G104

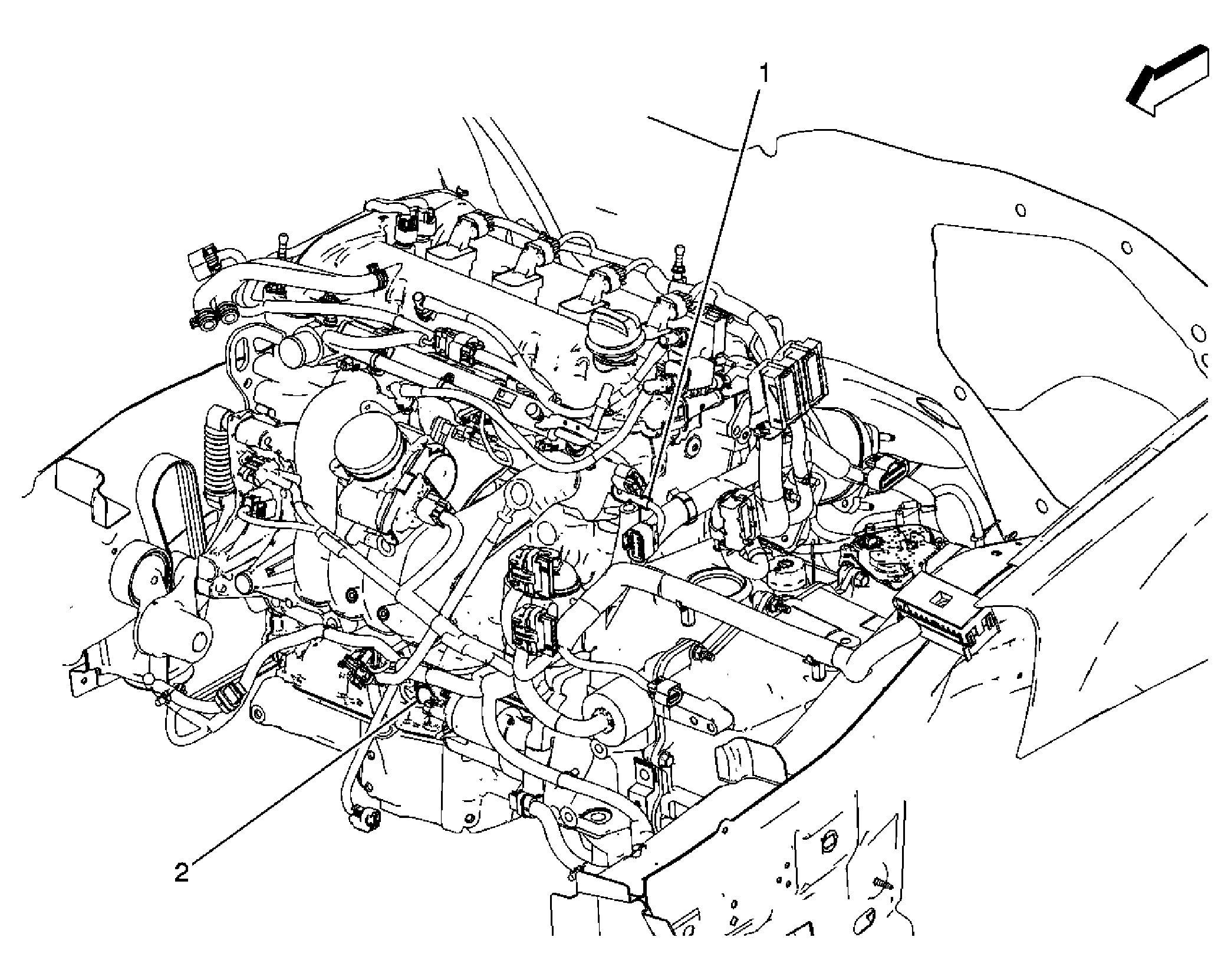

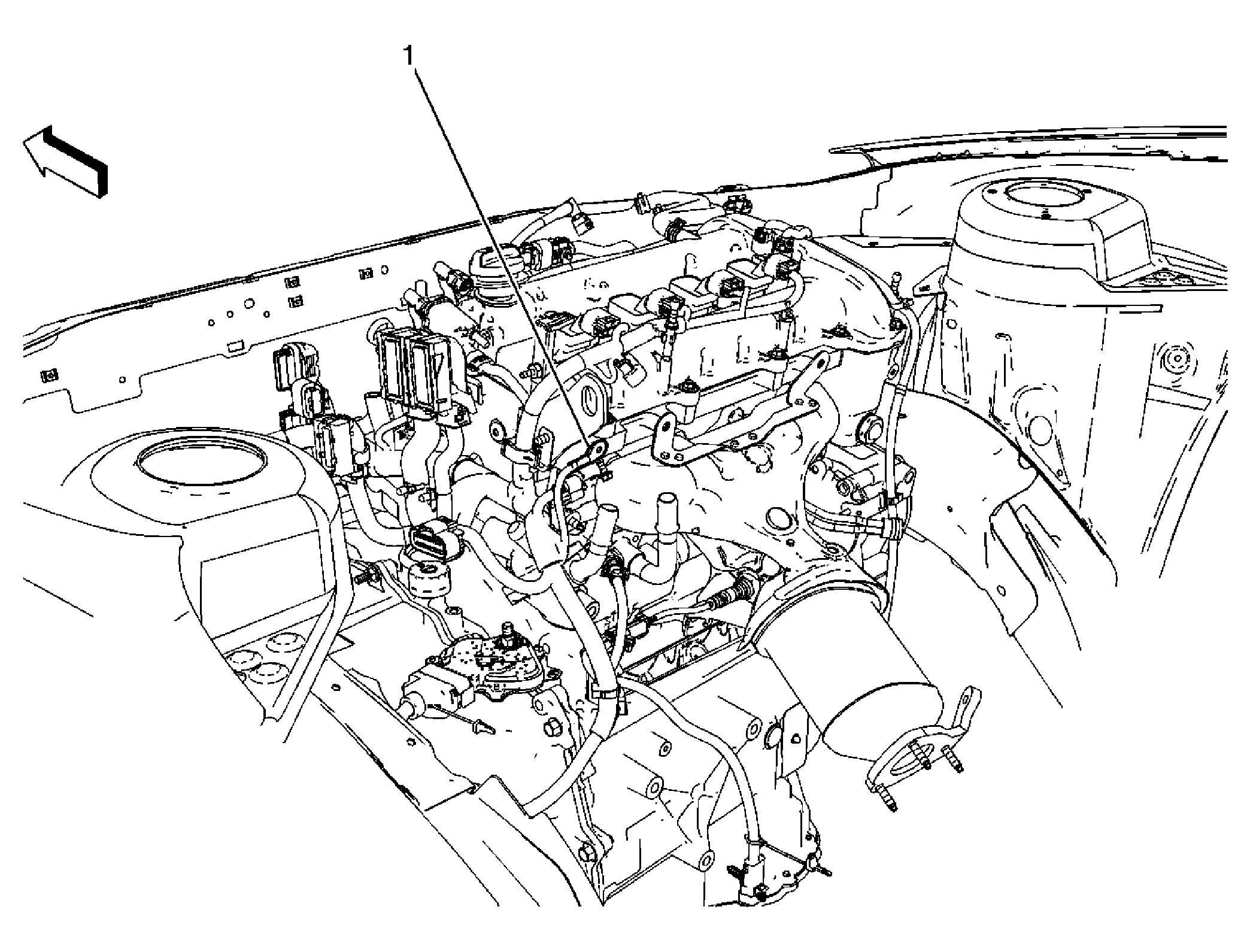

Fig 2: G103 and G104 (LAT or LE5 or LE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G103

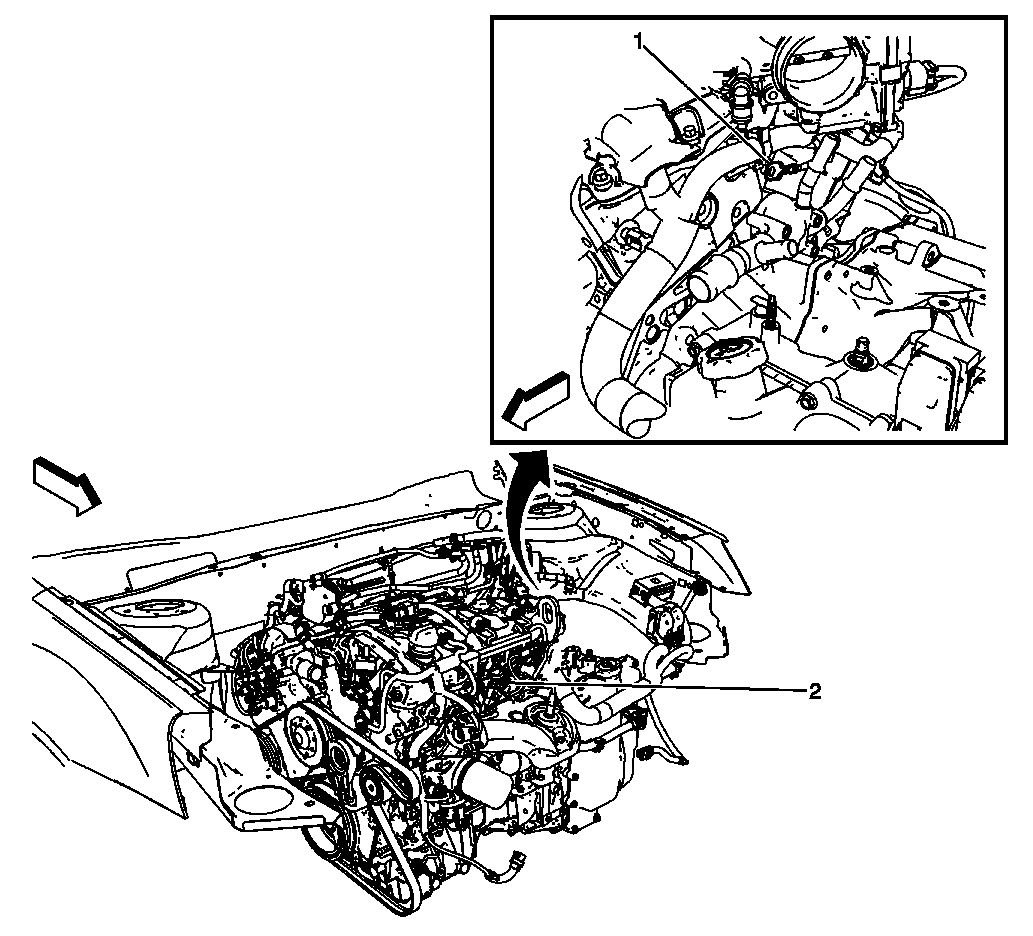

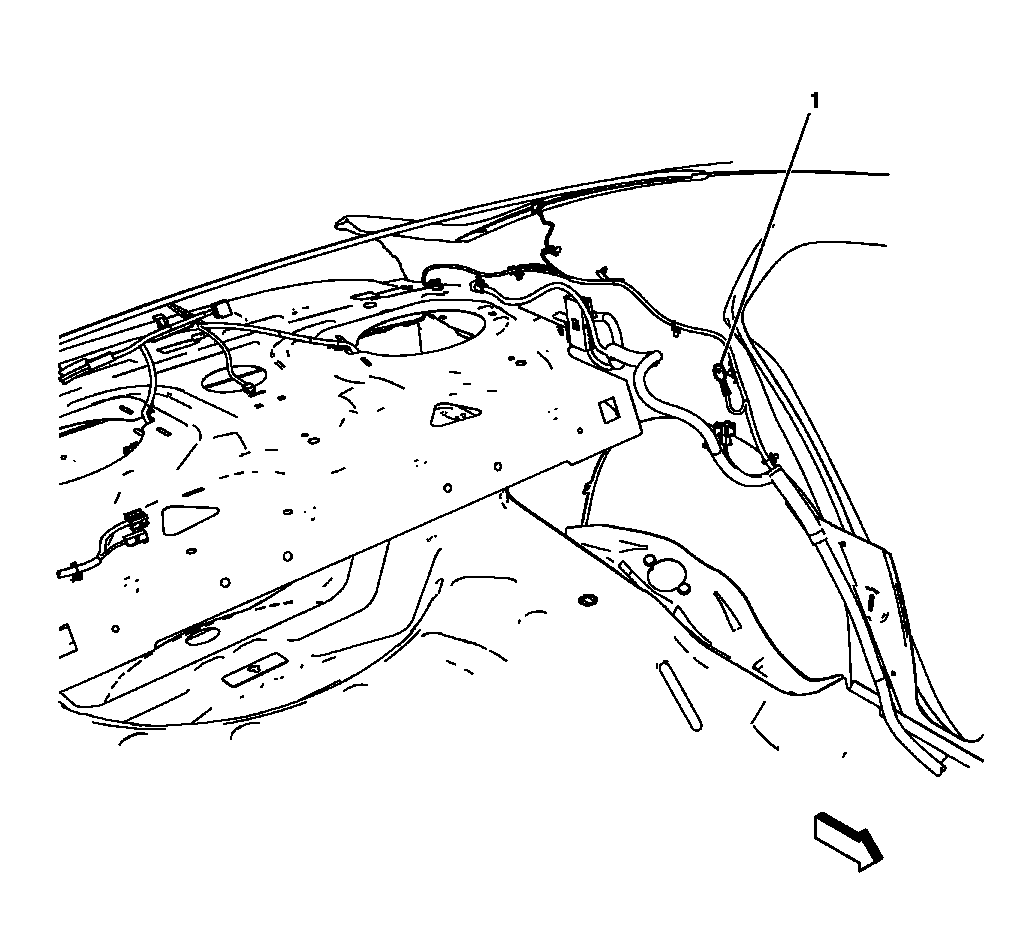

Fig 3: G105 and G106 (LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	G105

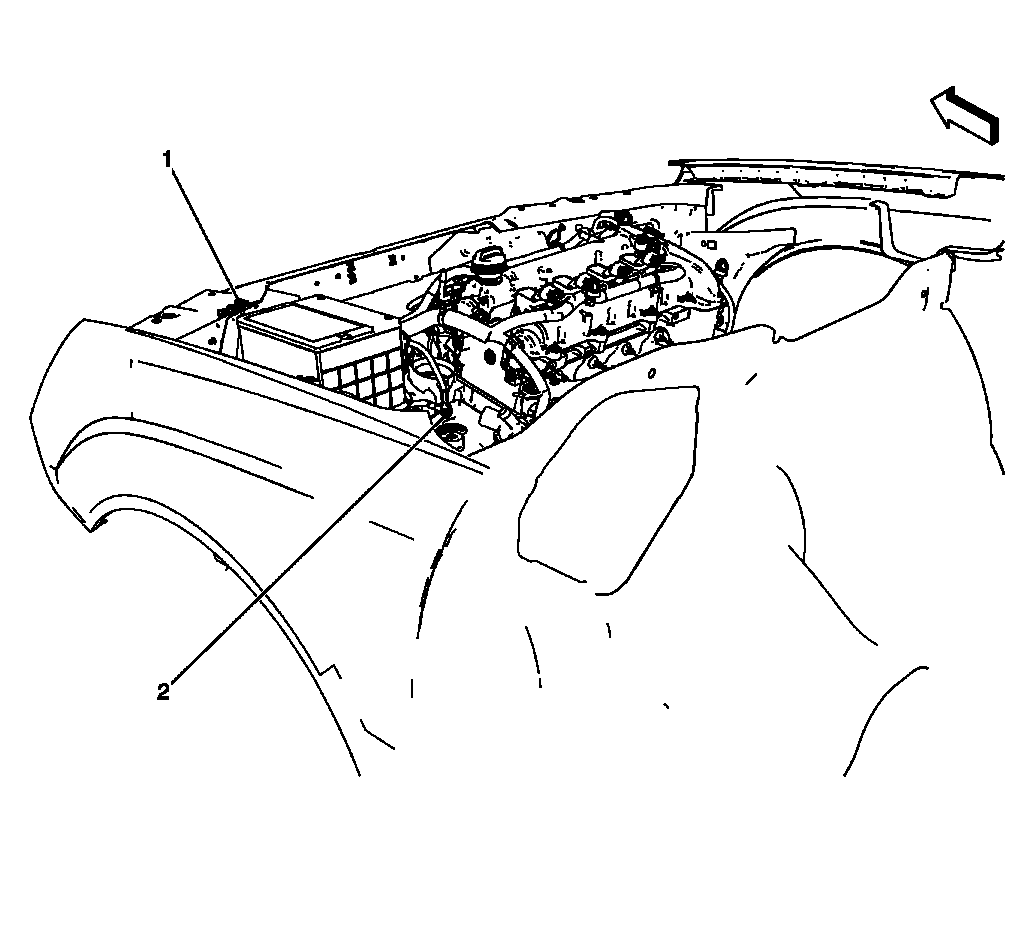

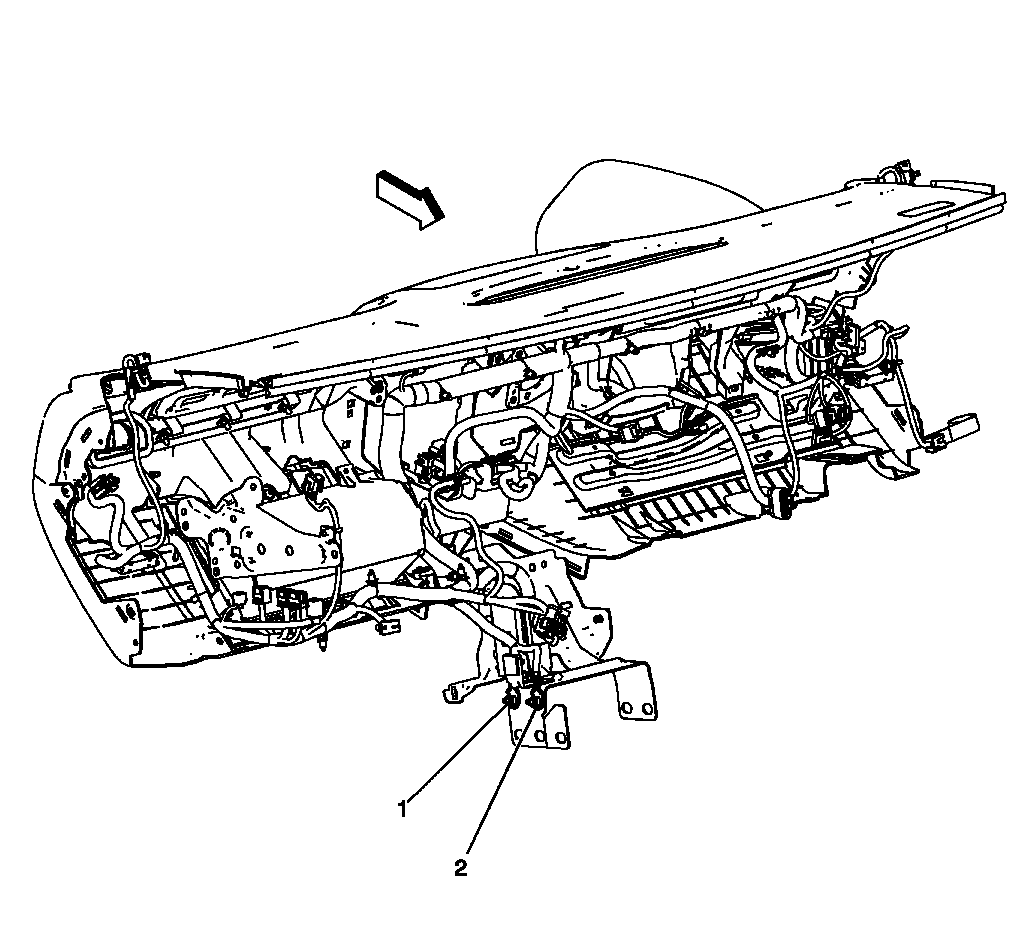

Fig 4: G106 and G107 (LE5 with MN5, or LE5 with MH8 without NU6, or LE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	G107

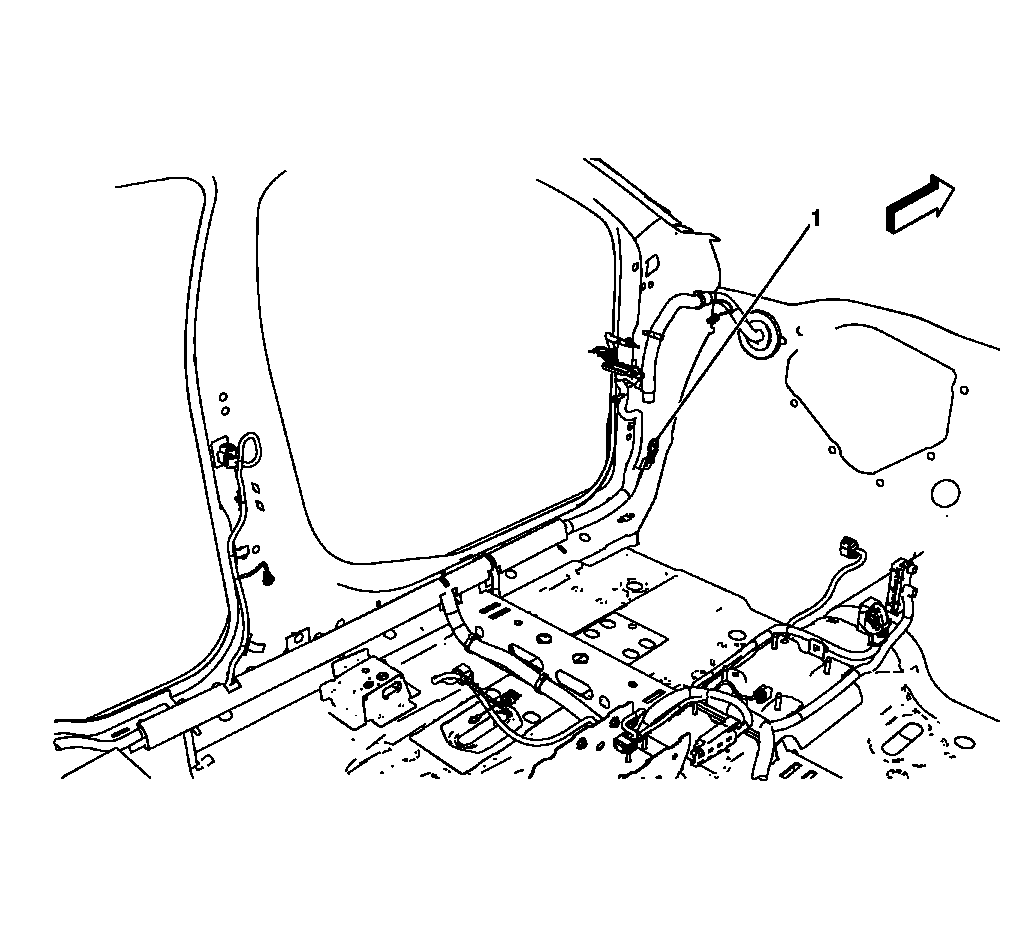

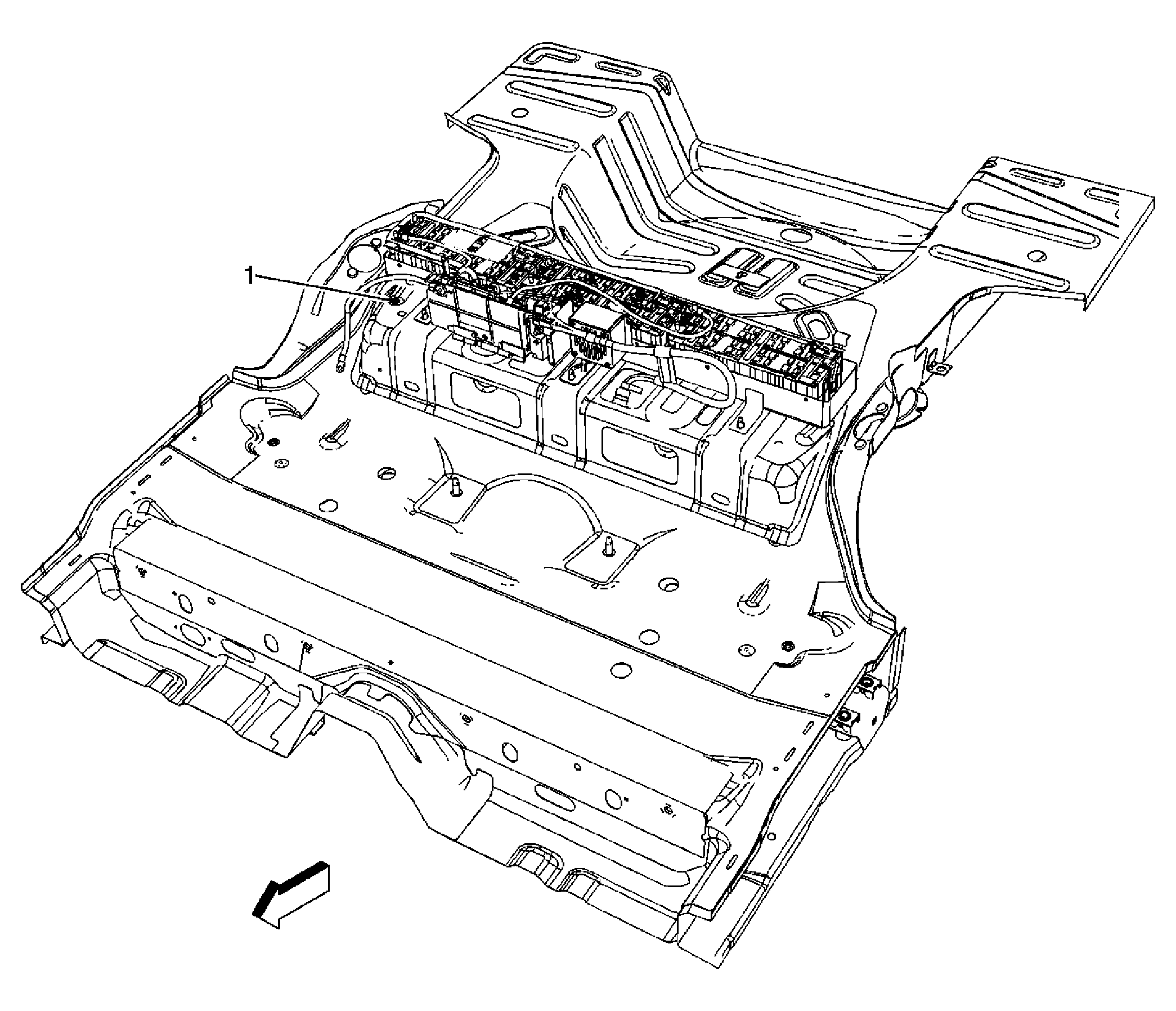

Fig 5: G106 and G107 (LZ4 or LZE)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105 and G107
2	G106

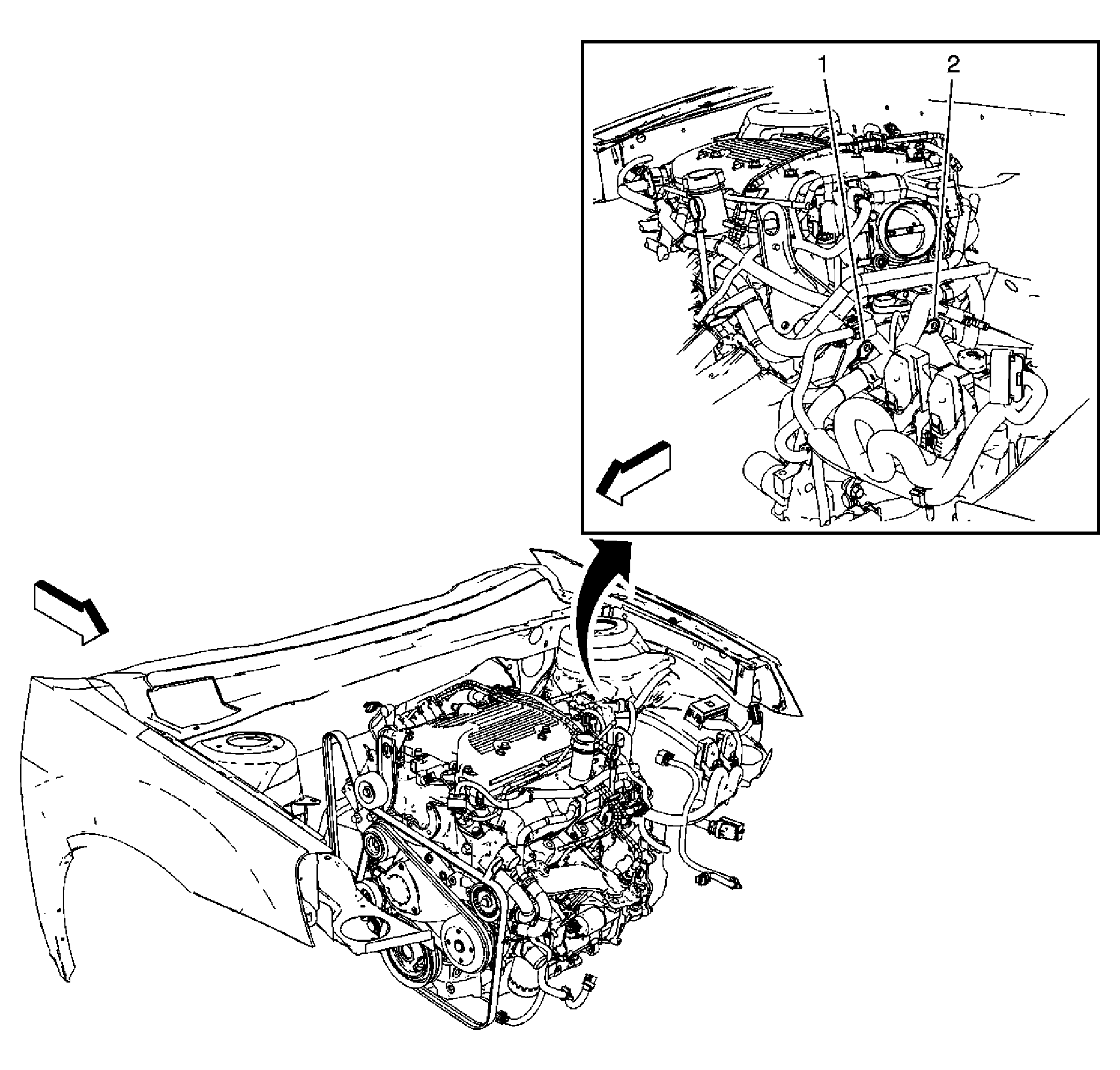

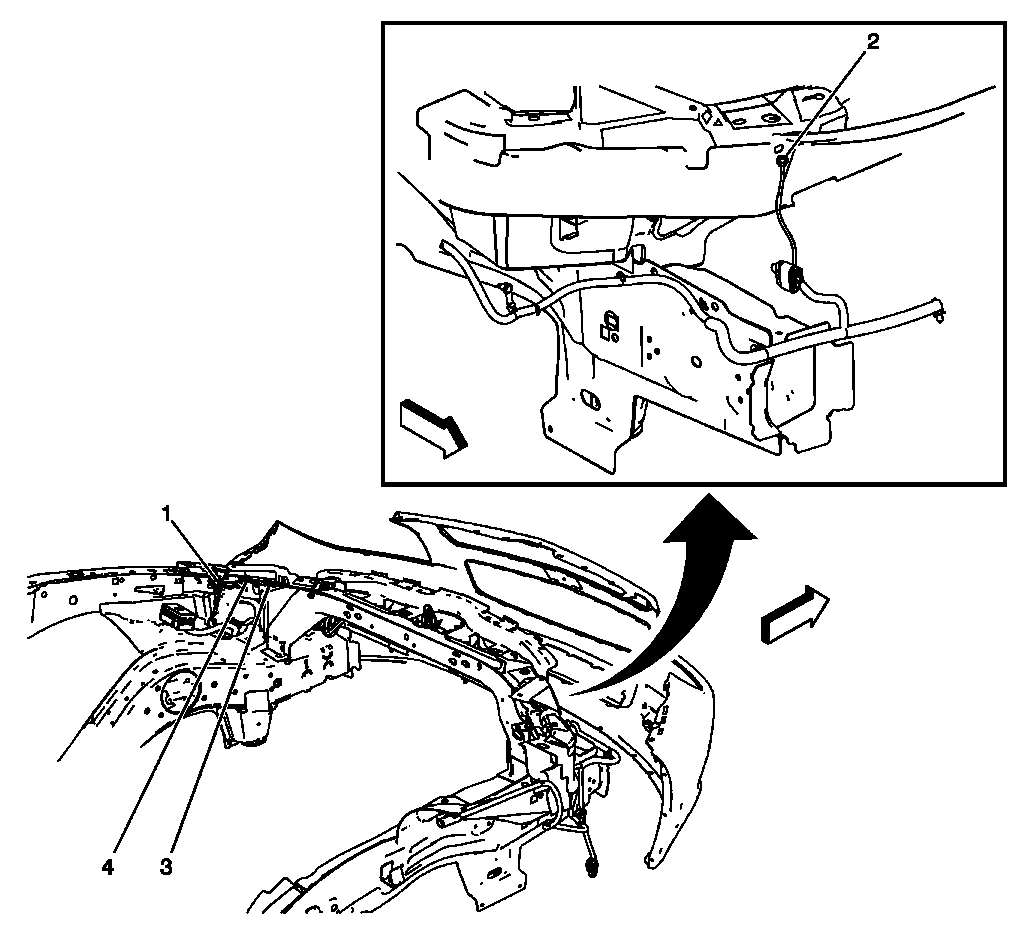

Fig 6: G106 (LE5 with MH8 and NU6) and G110 (LE5 or LE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G110
2	G106 (LE5 with MH8 and NU6)

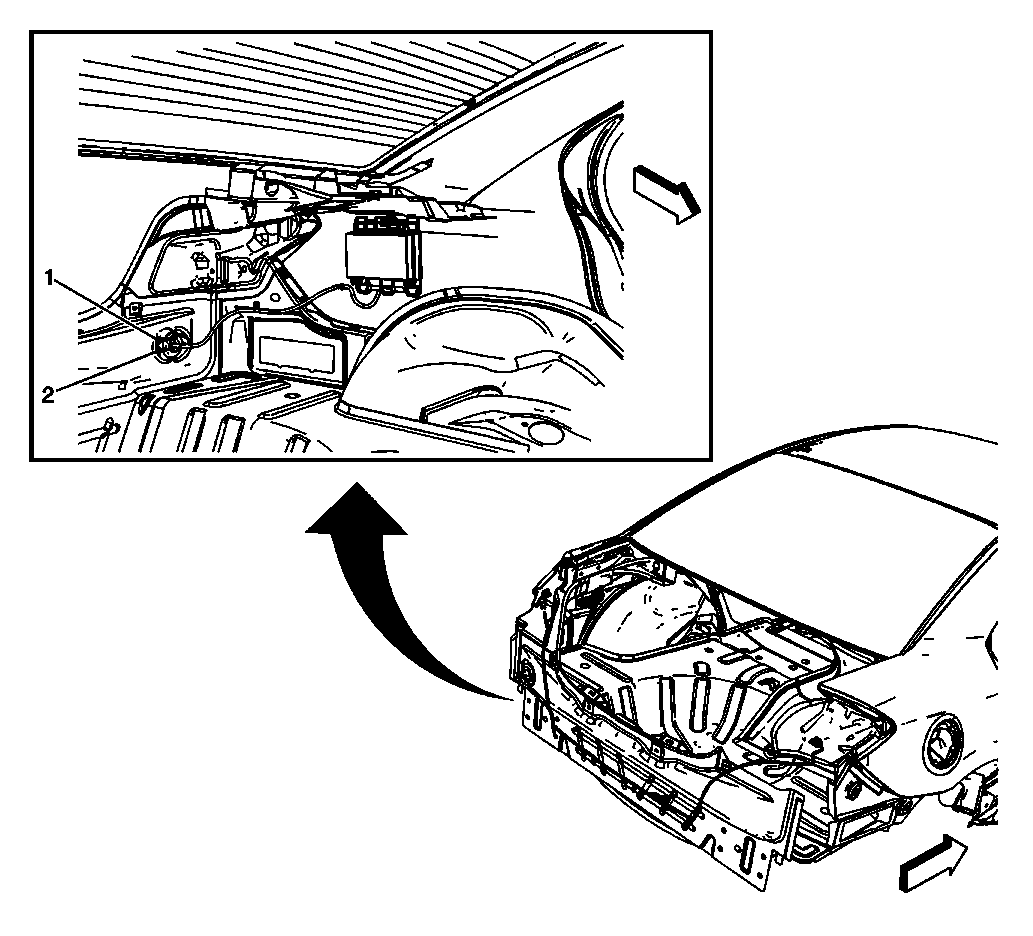

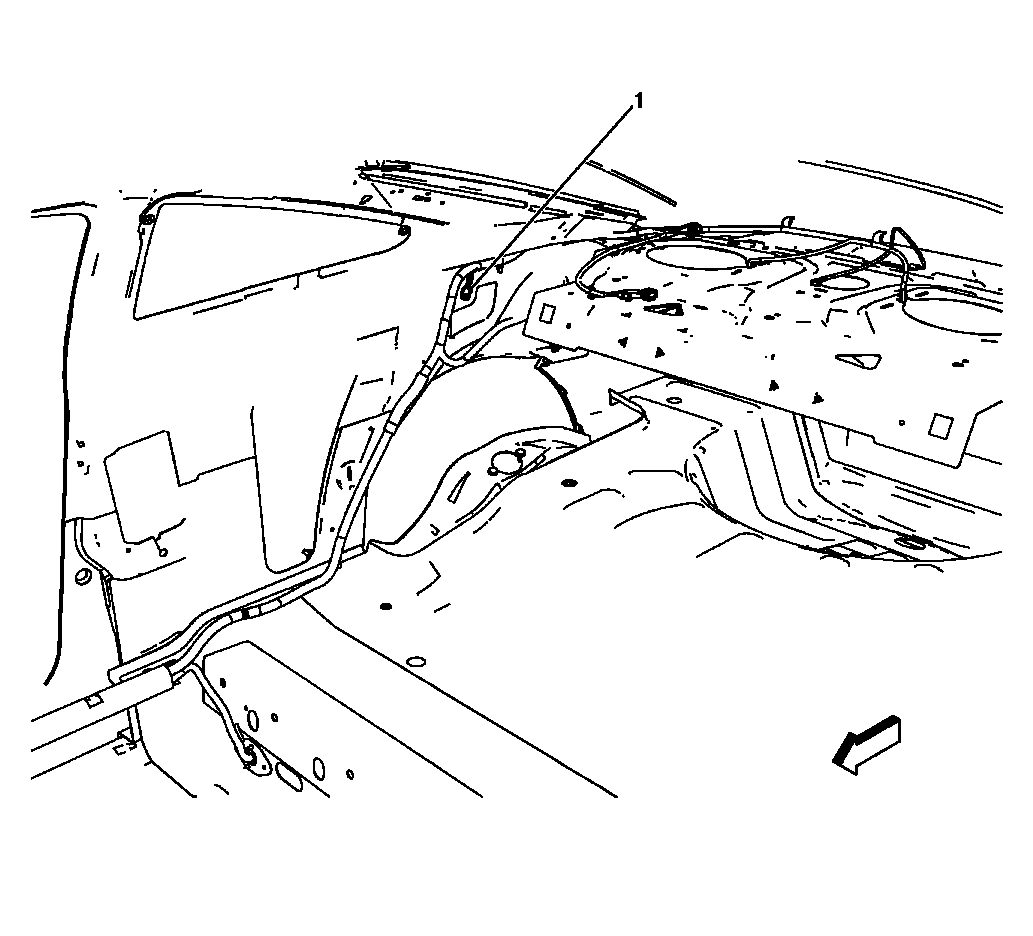

Fig 7: G106 and G111 (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G111
2	G106

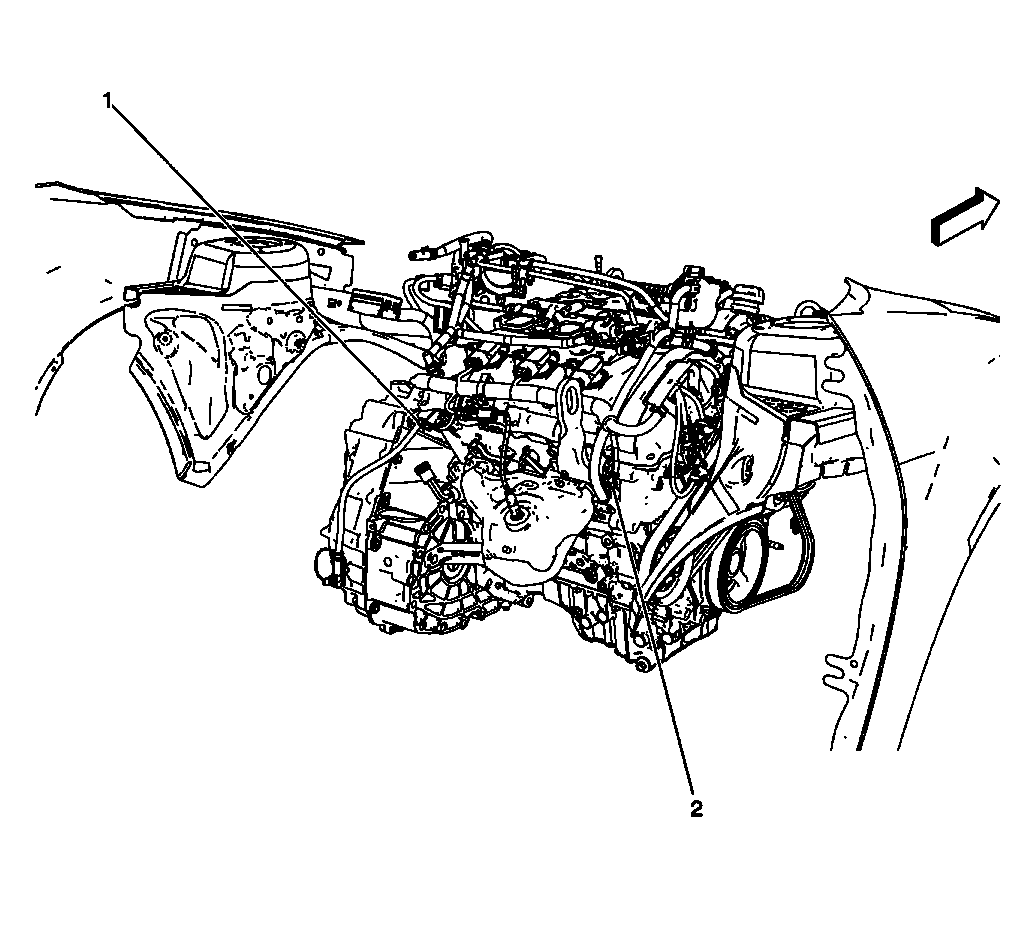

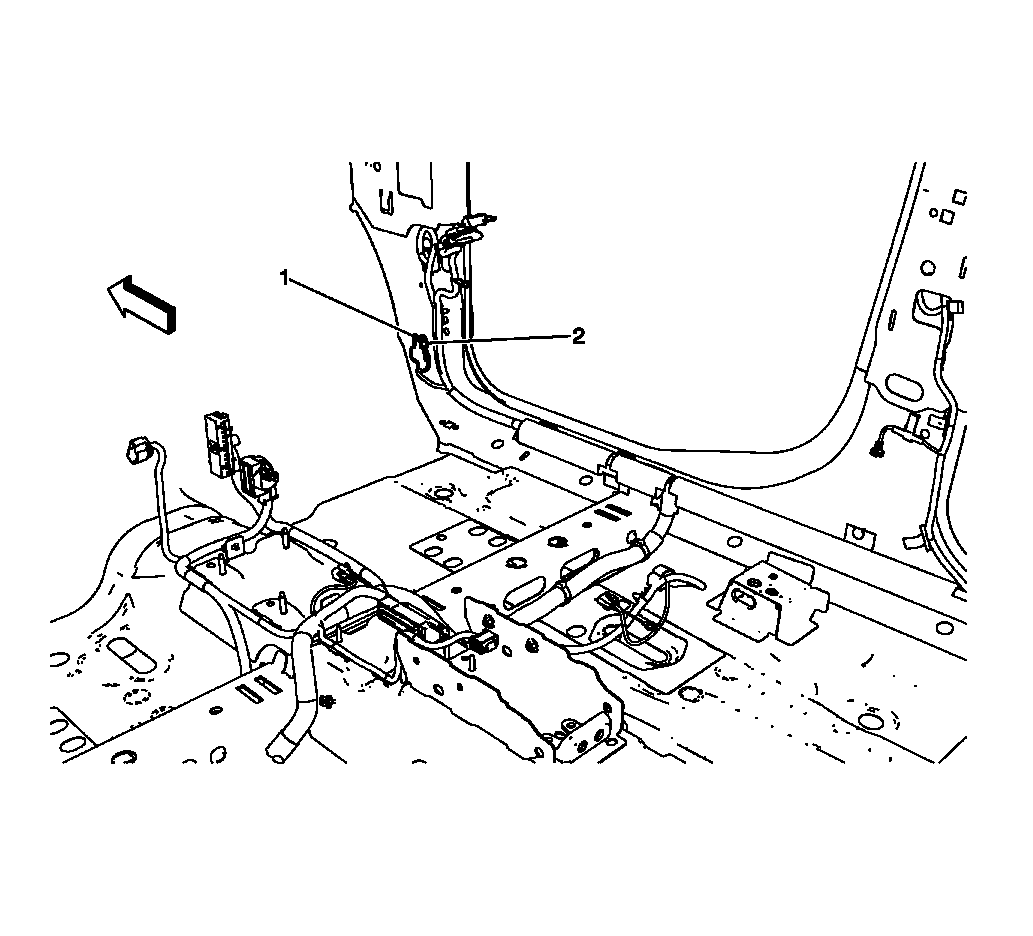

Fig 8: G107 and G113 (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	G113

Fig 9: G110 (LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G110

Fig 10: G201 and G203

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G201
2	G203

Fig 11: G301

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301

Fig 12: G302

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G302

Fig 13: G303

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303

Fig 14: G304 and G305

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G305
2	G304

Fig 15: G401 and G403

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	G403

Fig 16: G402 (HP7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G402
